Electrical function schematic for cellular phone - PE82.70-P-2051-97MAA

Code: Designation: Position:
A1 Instrument cluster 3H
A2 Radio 6G
A2/56 Radio and navigation unit 6G
A28/3 E-net compensator 11C
A34/15 UHI portable CTEL holder (Universal Handy Interface) 14H
A40/3 COMAND operating, display and control unit 6E
A40/3 COMAND operating, display and control unit 6H
A67b1 Hands-free system microphone group 12L
MOST Media Oriented System Transport 3K
N123/1 Universal Portable CTEL Interface (UPCI [UHI]) control unit 12F
N40/3 Amplifier for sound system 9B
N80 Steering column module 2B
S110 Left multifunction steering wheel button group 4C
S111 Right multifunction steering wheel button group 7C
U1 Valid for USA 11G
U1 Valid for USA 5D
U20 Valid for all (except USA Japan) 11H
U20 Valid for all (except USA Japan) 5G

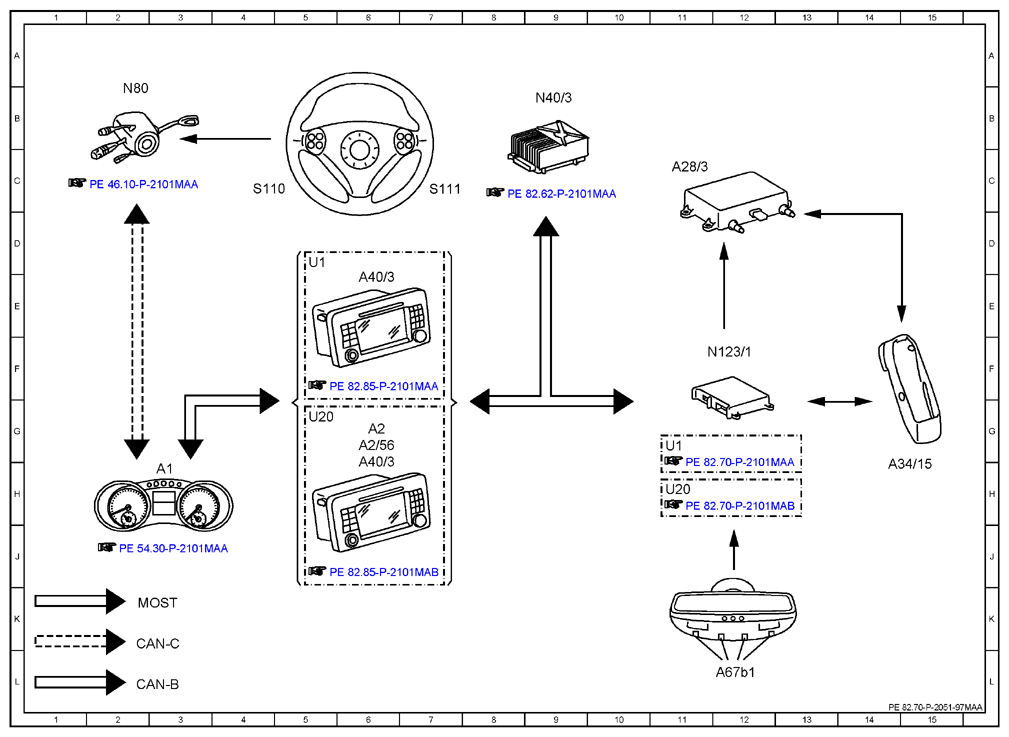

Fig 1: Cellular Phone Electrical Function Schematic
G10118657Courtesy of MERCEDES-BENZ USA
