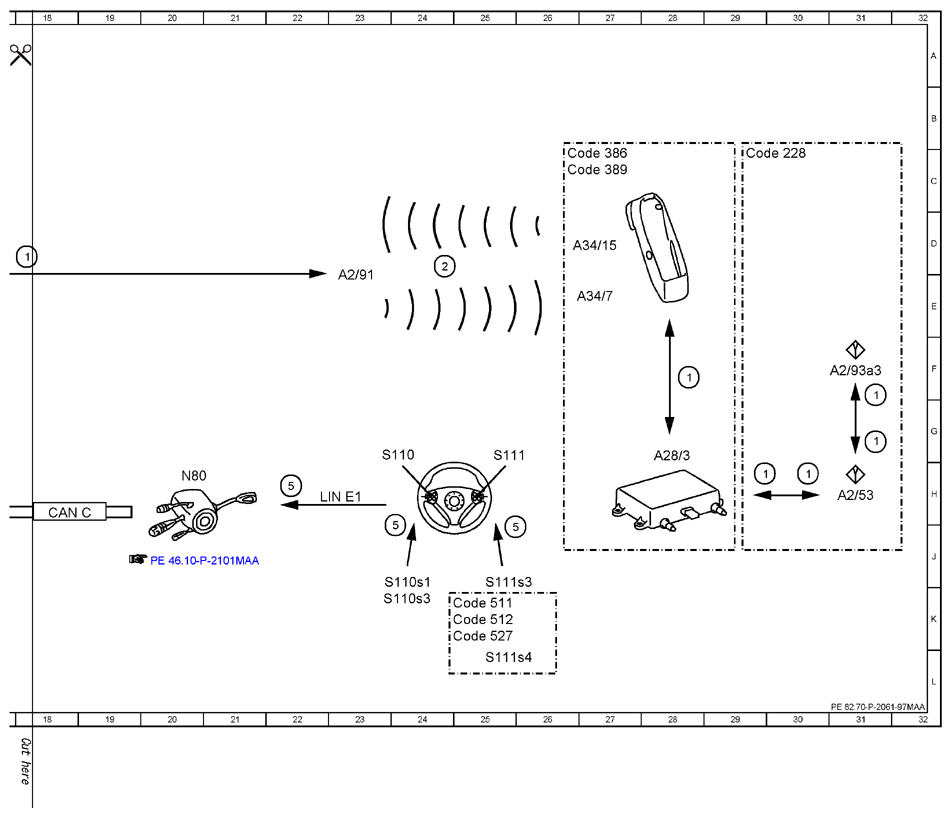

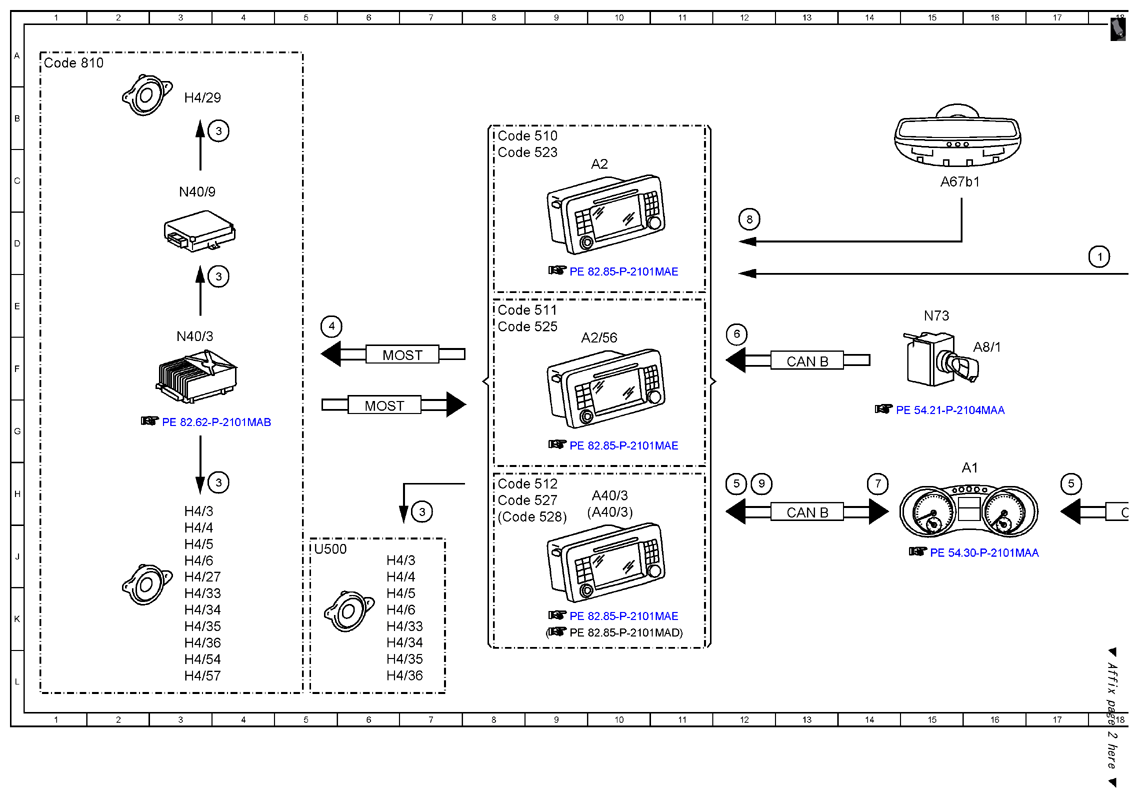

| 1 |
Telephone, signal |
18D |
| 1 |
Telephone, signal |
29H |
| 1 |
Telephone, signal |
30H |
| 1 |
Telephone, signal |
31F |
| 1 |
Telephone, signal |
28F |
| 2 |
Bluetooth, signal |
24D |
| 3 |
Voice output, signal |
4H |
| 3 |
Voice output, signal |
7H |
| 3 |
Voice output, signal |
4E |
| 3 |
Voice output, signal |
4B |
| 4 |
Sound system amplifier, actuation |
5E |
| 5 |
Multifunction steering wheel button group, signal |
25J |
| 5 |
Multifunction steering wheel button group, signal |
22H |
| 5 |
Multifunction steering wheel button group, signal |
24J |
| 5 |
Multifunction steering wheel button group, signal |
12G |
| 5 |
Multifunction steering wheel button group, signal |
17G |
| 6 |
Circuit 15R, status |
12E |
| 7 |
Instrument cluster, message |
|
| 8 |
Voice input, signal |
12D |
| 9 |
Kilometer reading and maintenance computer information, signal |
14G |
| A1 |
Instrument cluster |
16H |
| A2 |
Radio |
10C |
| A2/53 |
Telephone/portable CTEL/STH radio remote control antenna splitter |
31H |
| A2/56 |
Radio and navigation unit |
10F |
| A2/91 |
Bluetooth antenna |
23E |
| A2/93a3 |
Telephone antenna |
31F |
| A28/3 |
E-net compensator |
28G |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
27D |
| A34/7 |
Bluetooth module |
27E |
| A40/3 |
COMAND operating, display and control unit |
10H |
| A67b1 |
Hands-free system microphone group |
15C |
| A8/1 |
Transmitter key |
16F |
| CAN B |
Interior CAN |
13E |
| CAN B |
Interior CAN |
13H |
| CAN C |
Engine compartment CAN |
18H |
| Code 228 |
Stationary heater |
27C |
| Code 386 |
Mobile phone preinstallation with universal interface |
30C |
| Code 389 |
Mobile phone preinstallation with universal interface, USA/Canada |
27C |
| Code 510 |
Audio 20 with CD changer |
9B |
| Code 511 |
Audio 50 APS incl. DVD changer |
9E |
| Code 511 |
Audio 50 APS incl. DVD changer |
25K |
| Code 512 |
COMAND APS with DVD changer |
9H |
| Code 512 |
COMAND APS with DVD changer |
25K |
| Code 523 |
Audio 20 radio |
9B |
| Code 525 |
Audio 50 APS radio (CD) |
9E |
| Code 527 |
COMAND APS (with navigation) |
9H |
| Code 527 |
COMAND APS (with navigation) |
25K |
| Code 528 |
HIGH Class USA |
9H |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
6J |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
6K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
6K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
6L |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
6L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
6J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
6K |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
6K |
| LIN E1 |
Steering LIN |
23H |
| MOST |
Media Oriented System Transport |
7E |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
3F |
| N40/9 |
Subwoofer amplifier |
3C |
| N73 |
EIS [EZS] control unit |
15E |
| N80 |
Steering column module |
20H |
| S110 |
Left multifunction steering wheel button group |
24G |
| S110s1 |
Scroll forward/back button |
24J |
| S110s3 |
System selection button |
24K |
| S111 |
Right multifunction steering wheel button group |
25G |
| S111s3 |
Accept/terminate phone call button |
25J |
| S111s4 |
VCS [SBS] on button |
25L |
| U500 |
Not valid for Sound System |
5J |
