CD changer (CDC [CDW]) control unit wiring diagram - PE82.64-P-2101-97MAA

Code:	Designation:	Position:
A0	Color code key	7L
A2/6	CD changer	4A
A2/6x1	CD changer connector 1	1E
A2/6x2	CD changer 2 connector	6E
F3	Cockpit fuse box	3L
F3f14	Fuse 14	2L
W29/2	Ground (right A-pillar)	2H
X18	Interior/cockpit connector	5H

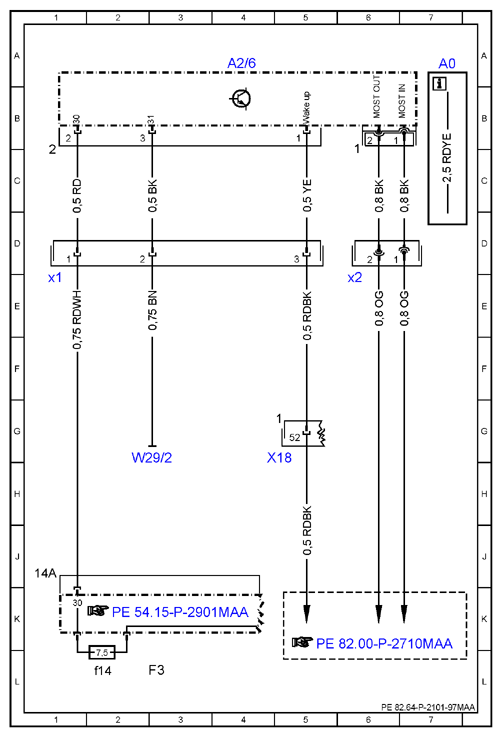

Fig 1: CD Changer Control Unit Wiring Diagram

Courtesy of MERCEDES-BENZ USA
