| A0 |
Color code key |
64A |
| A2/5 |

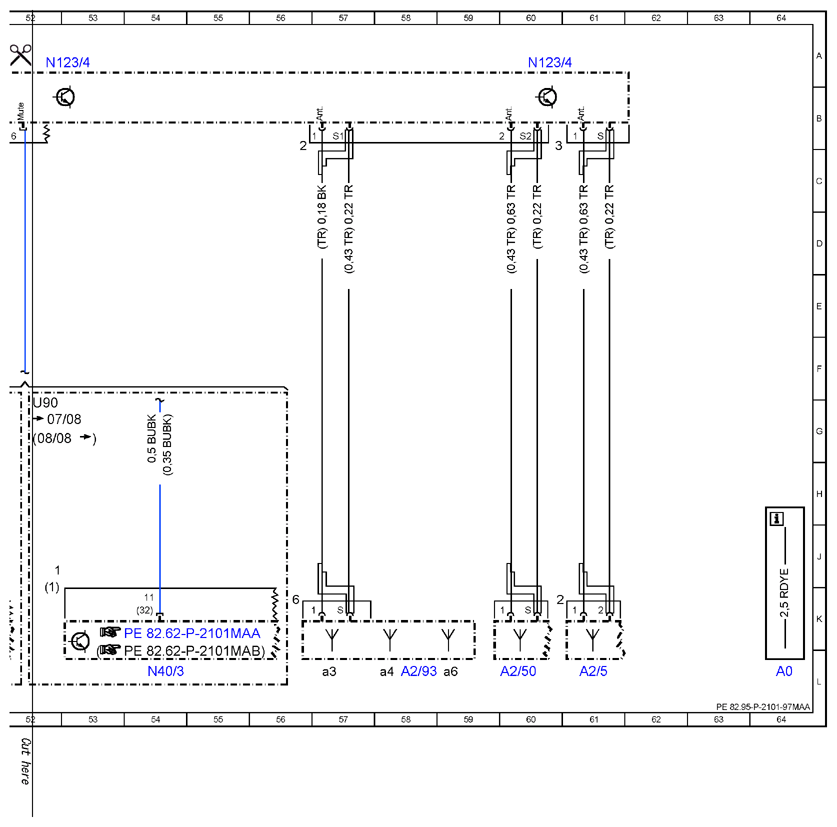

GPS antenna splitter |
61L |
| A2/50 |
TELE AID backup antenna |
60L |
| A2/93 |
Roof antenna module |
58L |
| A2/93a3 |
Telephone antenna |
27L |
| A2/93a4 |
TELE AID antenna |
58L |
| A2/93a6 |
GPS antenna |
59L |
| A40/3 |
COMAND operating, display and control unit |
50L |
| B25 |
Hands-free system microphone |
35L |
| B25x1 |
Hands-free system microphone connector 1 |
34J |

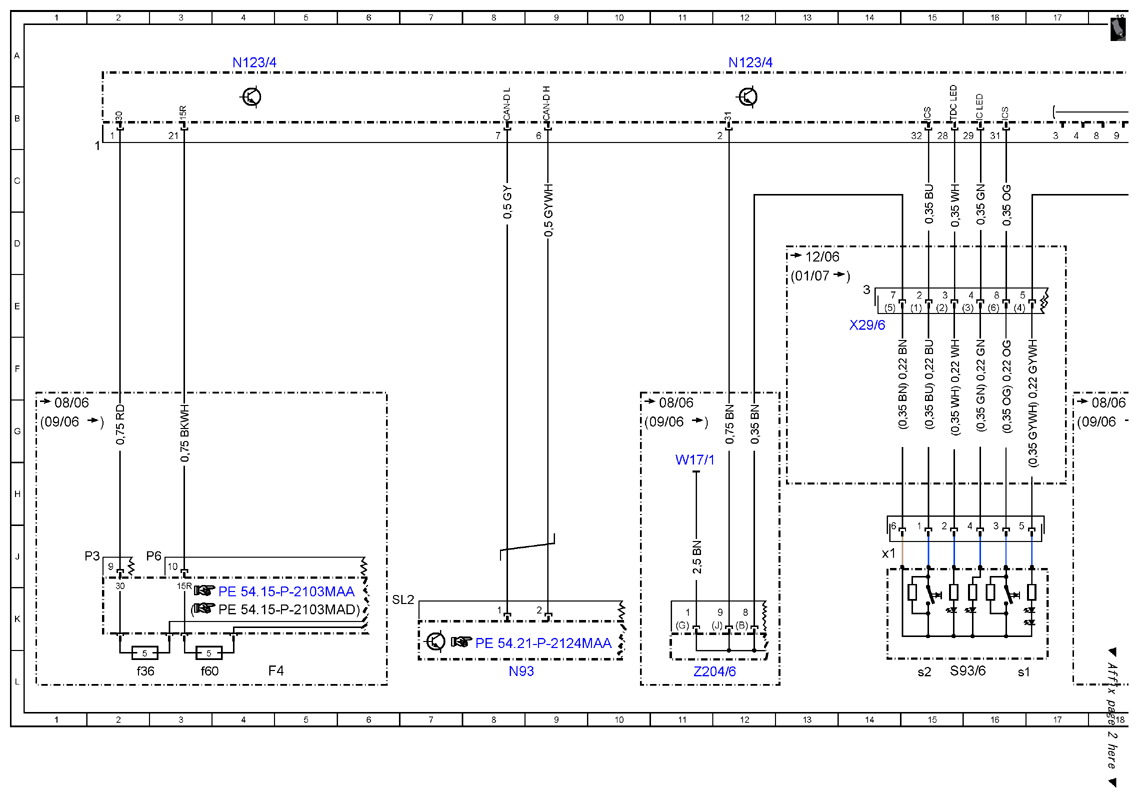

| F4 |
Load compartment fuse and relay box |
4L |
| F4f36 |
Fuse 36 |
2L |
| F4f60 |
Fuse 60 |
3L |
| H4/27 |
Center cockpit speaker (centerfill) |
29L |
| N10 |
Front SAM control unit |
22L |
| N123/4 |
Emergency call system control unit |
12A |
| N123/4 |
Emergency call system control unit |
4A |
| N123/4 |
Emergency call system control unit |
20A |
| N123/4 |
Emergency call system control unit |
28A |
| N123/4 |
Emergency call system control unit |
52A |
| N123/4 |
Emergency call system control unit |
36A |
| N123/4 |
Emergency call system control unit |
43A |
| N123/4 |
Emergency call system control unit |
60A |
| N2/7 |
Restraint systems control unit |
31L |
| N40/3 |
Amplifier for sound system |
54L |
| N93 |
Central gateway control unit |
8L |

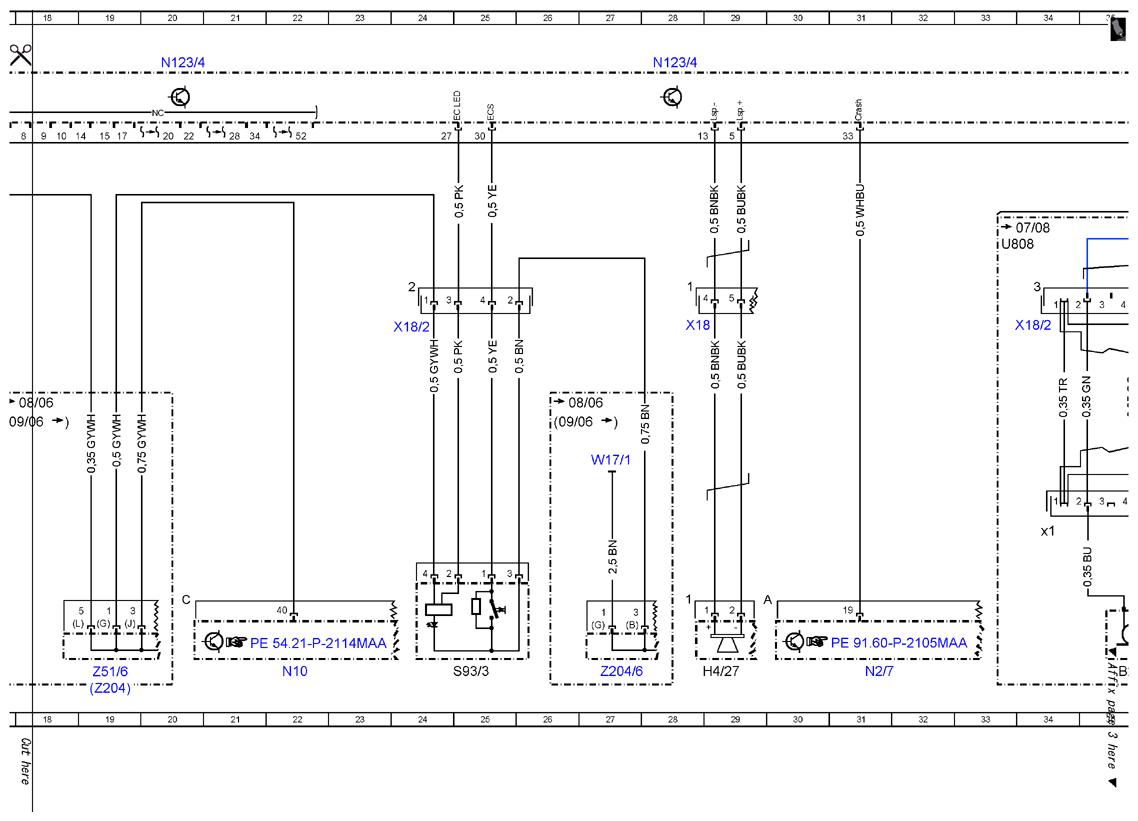

| S93/3 |
SOS push-button switch |
25L |
| S93/6 |
MB-Info and telediagnosis button group |
15L |
| S93/6s1 |
MB-Info button |
16L |
| S93/6s2 |
Telediagnosis button |
15L |
| S93/6x1 |
MB-Info and telediagnosis button group connector |
14J |
| U500 |
Not valid for Sound System |
48G |
| U808 |
Not valid for UPCI [UHI] (Universal Portable CTEL Interface) |
33D |
| U90 |
Valid for Sound System |
52G |
| W17/1 |
Ground (left rear seat) |
11H |
| W17/1 |
Ground (left rear seat) |
27H |
| X18 |
Interior/cockpit connector |
28E |
| X18/2 |
Interior/roof connector |
24E |
| X18/2 |
Interior/roof connector |
34E |
| X29/6 |
Center console intermediate connector |
14E |

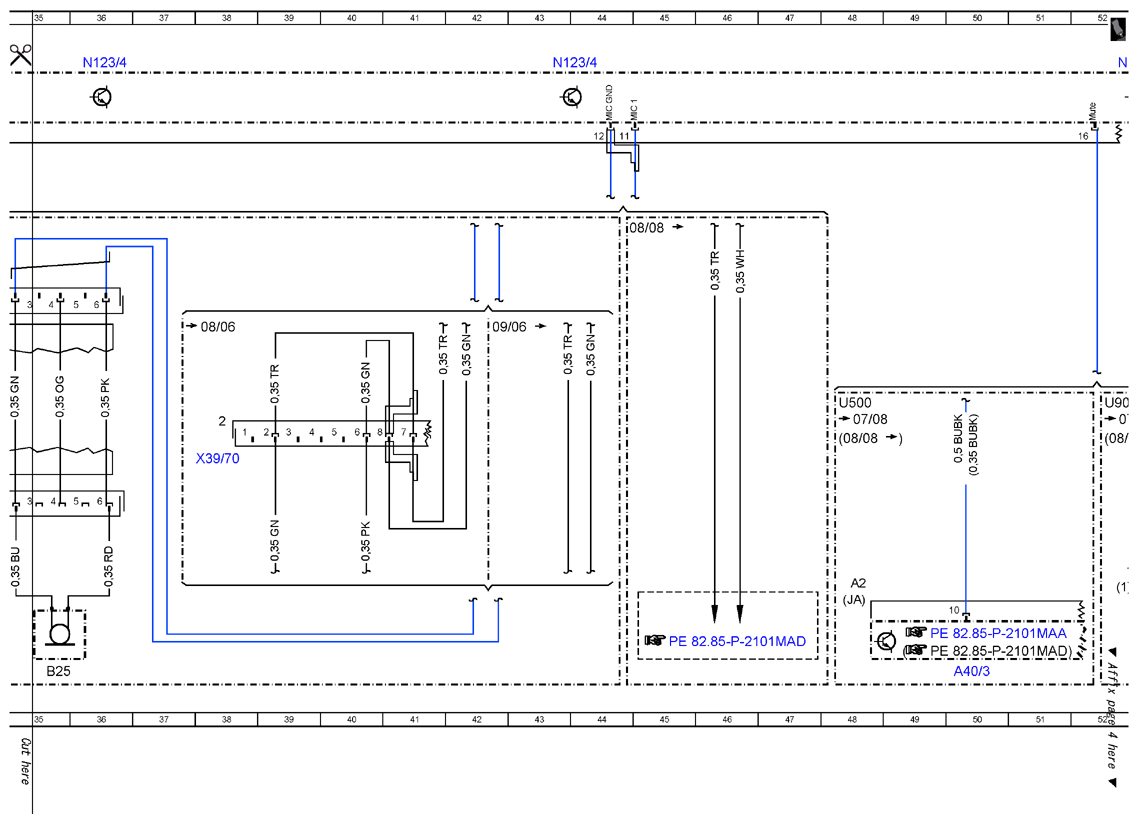

| X39/70 |
FFS [RBA microphone array connector |
38H |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
19L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
11L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
27L |
| Z51/6 |
Circuit 58d interior connector sleeve |
19L |
