Wiring diagram emergency call system control module - PE82.95-U-2101-99MAA

Code: Designation: Position:
A2/5 GPS antenna splitter 60 L
A2/50 TELE AID backup antenna 58 L
A2/93 Roof antenna module 57 L
A2/93a3 Telephone antenna 55 L
A2/93a4 TELE AID antenna 56 L
A2/93a6 GPS antenna 57 L
A40/3 COMAND operating, display and control unit 48 L
A40/3 COMAND operating, display and control unit 53 L
B25 Hands-free system microphone 34 L
B25x1 Hands-free system microphone connector 1 33 J
F4 Load compartment fuse and relay box 4 L
F4f36 Fuse 36 2 L
F4f60 Fuse 60 3 L
H4/27 Center cockpit speaker (centerfill) 28 L
N10 Front SAM control unit 21 L
N123/4 Emergency call system control unit 4 A
N123/4 Emergency call system control unit 12 A
N123/4 Emergency call system control unit 20 A
N123/4 Emergency call system control unit 28 A
N123/4 Emergency call system control unit 36 A
N123/4 Emergency call system control unit 44 A
N123/4 Emergency call system control unit 52 A
N123/4 Emergency call system control unit 59 A
N2/7 Restraint systems control unit 30 L
N40/3 Amplifier for sound system 48 L
N40/3 Amplifier for sound system 53 L
N93 Central gateway control unit 8 L
S93/3 SOS push-button switch 24 L
S93/6 MB-Info and telediagnosis button group 15 L
S93/6s1 MB-Info button 16 L
S93/6s2 Telediagnosis button 14 L
S93/6x1 MB-Info and telediagnosis button group connector 14 J
U500 Not valid for Sound System 47 D
U500 Not valid for Sound System 51 D
U808 Not valid for UPCI [UHI] (Universal Portable CTEL Interface) 32 D
U90 Valid for Sound System 47 D
U90 Valid for Sound System 51 D
W17/1 Ground (left rear seat) 10 H
W17/1 Ground (left rear seat) 26 H
X18 Interior/cockpit connector 27 E
X18/2 Interior/roof connector 23 E
X18/2 Interior/roof connector 32 E
X29/6 Center console intermediate connector 13 E
X39/70 FFS [RBA} microphone array connector 36 H
Z204 Wake-up signal/circuit 58d voltage distributor connector 18 L
Z204/6 Circuit 31 left rear seat voltage distributor connector 11 L
Z204/6 Circuit 31 left rear seat voltage distributor connector 26 L
Z51/6 Circuit 58d interior connector sleeve 18 L

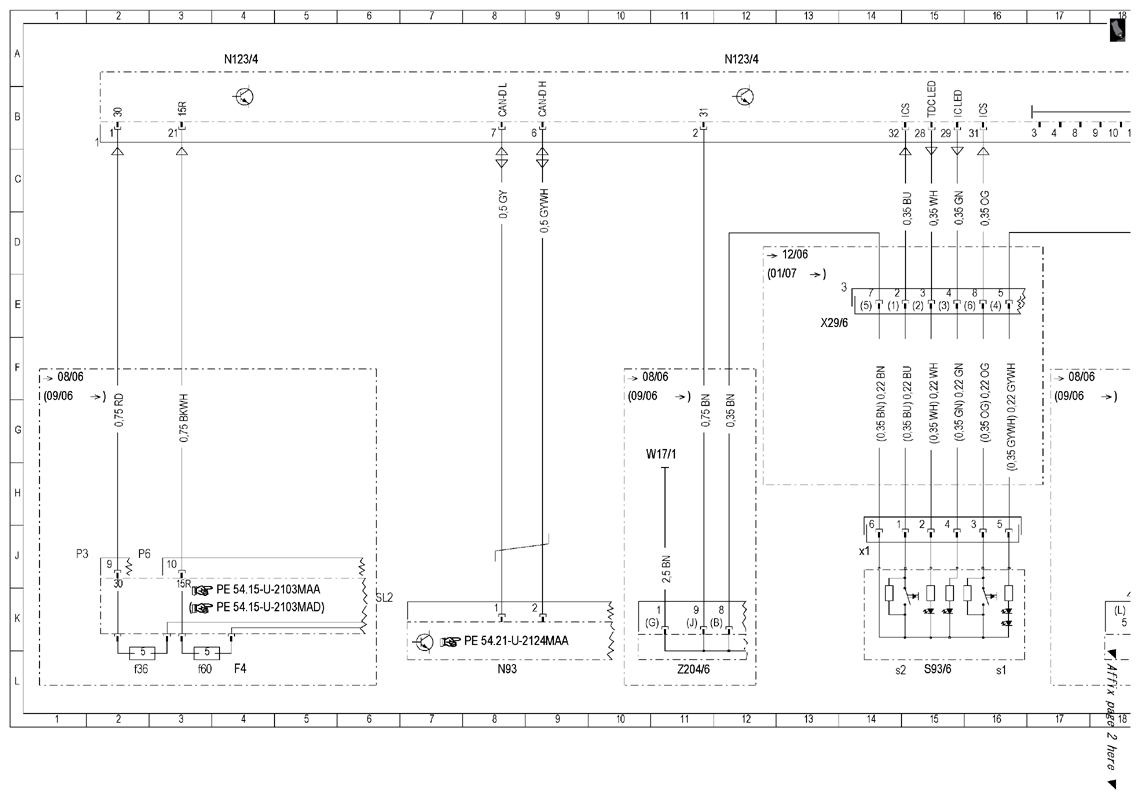

Fig 1: Emergency Call System Control Module Wiring Diagram (1 Of 4)
G10118812Courtesy of MERCEDES-BENZ USA

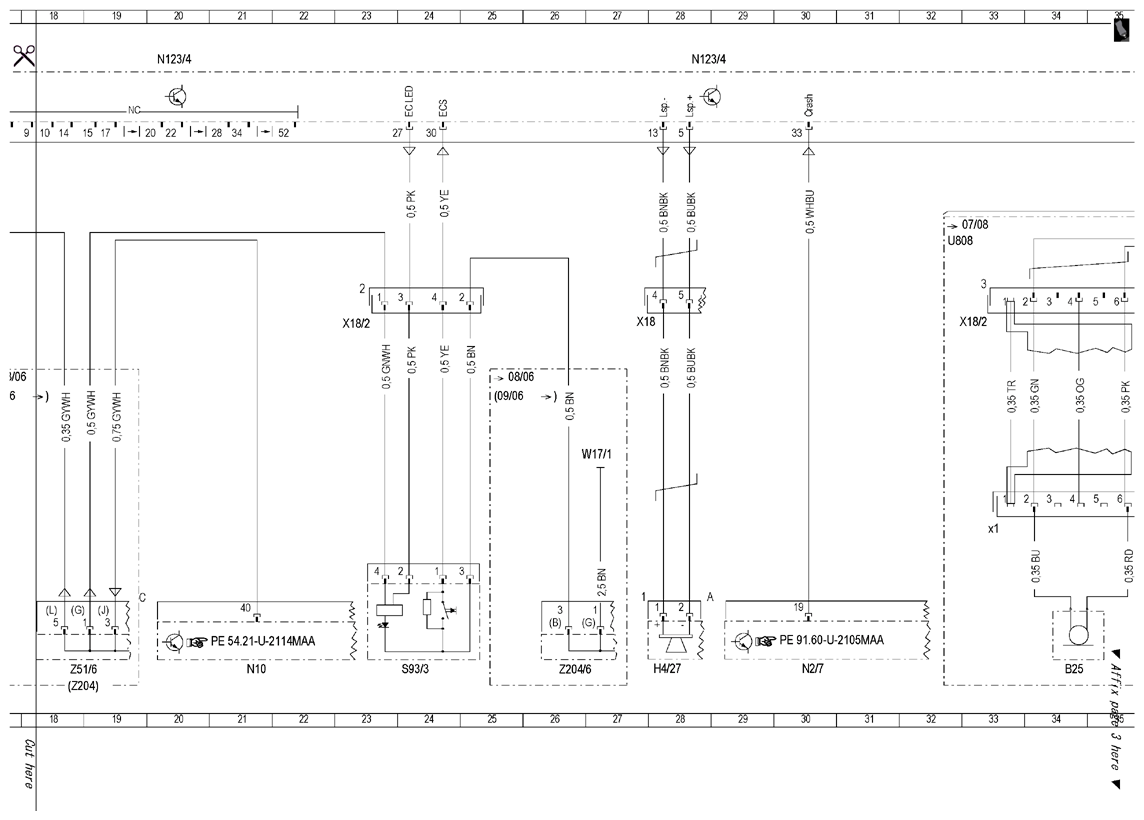

Fig 2: Emergency Call System Control Module Wiring Diagram (2 Of 4)
G10118813Courtesy of MERCEDES-BENZ USA
Fig 3: Emergency Call System Control Module Wiring Diagram (3 Of 4)
G10118814Courtesy of MERCEDES-BENZ USA

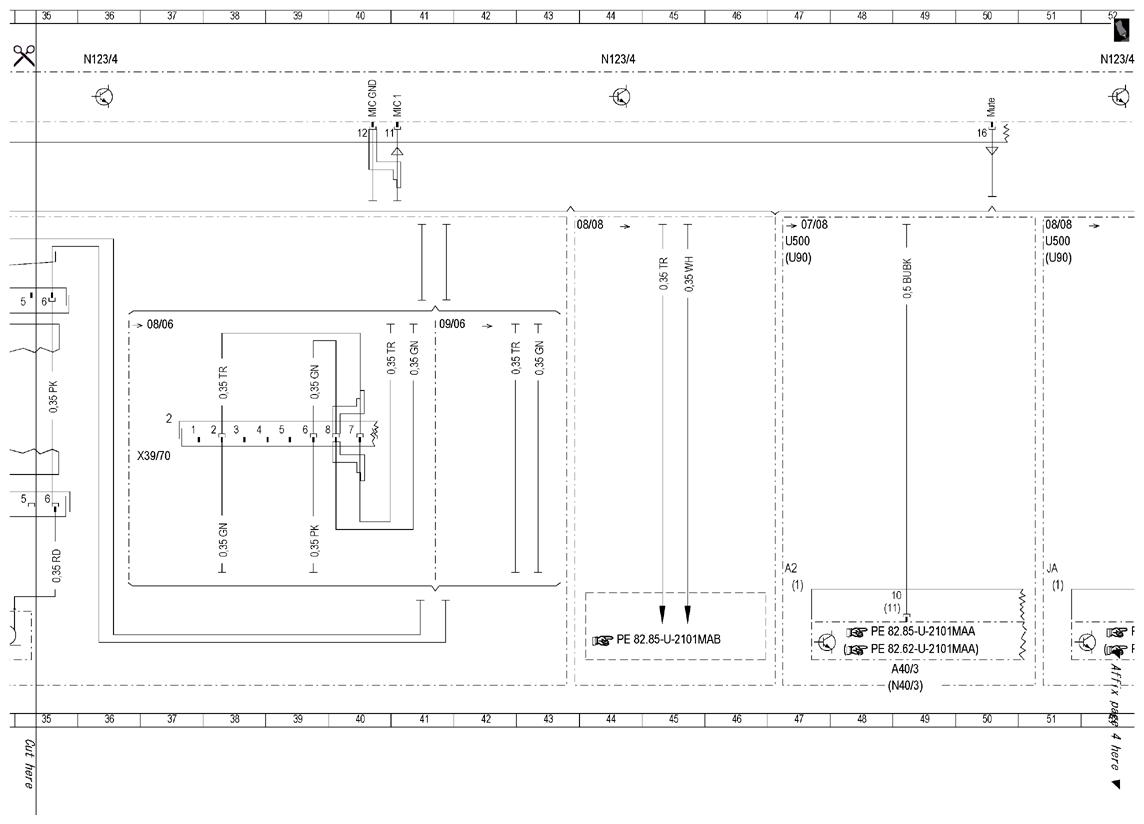

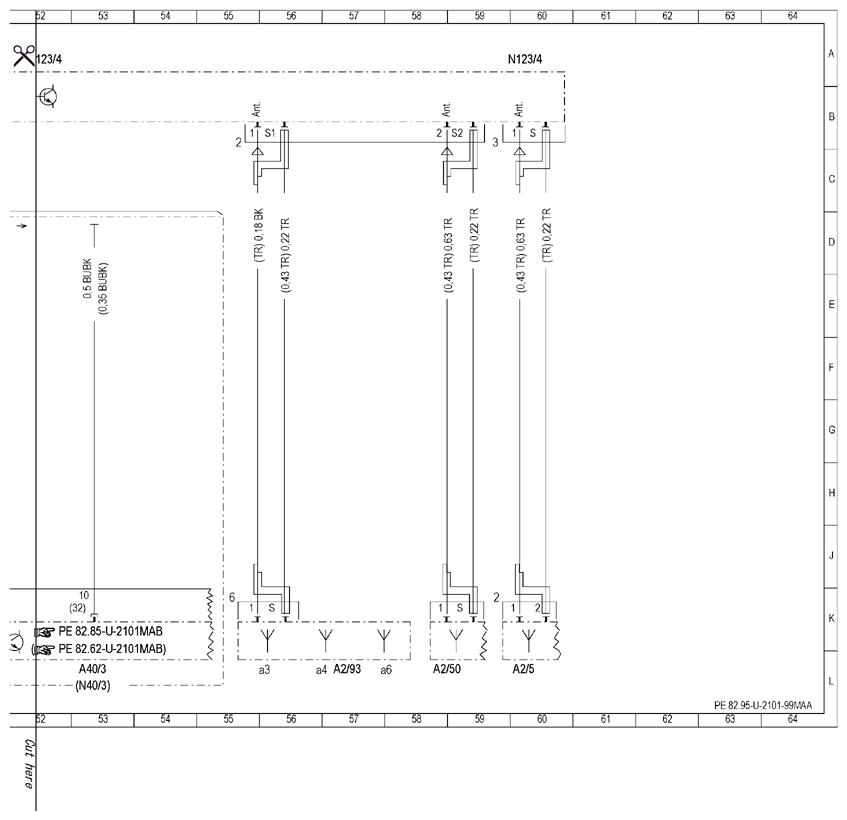

Fig 4: Emergency Call System Control Module Wiring Diagram (4 Of 4)
G10118815Courtesy of MERCEDES-BENZ USA
