Wiring diagram cockpit management and data system (COMAND) control module - PE82.85-U-2101-99MAB

Code: Designation: Position:
A2/19 FM rear window antenna amplifier 38 L
A2/5 GPS antenna splitter 28 L
A2/91 Bluetooth antenna 60 L
A2/93 Roof antenna module 33 L
A40/3 COMAND operating, display and control unit 4 A
A40/3 COMAND operating, display and control unit 11 A
A40/3 COMAND operating, display and control unit 20 A
A40/3 COMAND operating, display and control unit 28 A
A40/3 COMAND operating, display and control unit 36 A
A40/3 COMAND operating, display and control unit 44 A
A40/3 COMAND operating, display and control unit 52 A
A40/3 COMAND operating, display and control unit 60 A
A49/6 Radio antenna interference filter 40 L
A49/6x1 Radio antenna interference suppression filter electrical connector 40 K
A67b1 Hands-free system microphone group 48 L
A67b1x1 Hands-free system microphone group connector 46 J
CAN B Interior CAN 7 K
F3 Cockpit fuse box 69 L
F3f15 Fuse 15 68 L
F4 Load compartment fuse and relay box 2 L
F4 Load compartment fuse and relay box 42 L
F4f20 Fuse 20 42 L
F4f25 Fuse 25 1 L
H4/3 Left rear door speaker 18 L
H4/33 Left front door tweeter 14 L
H4/34 Right front door tweeter 16 L
H4/35 Left rear door tweeter 19 L
H4/36 Right rear door tweeter 22 L
H4/4 Right rear door speaker 21 L
H4/5 Left front door speaker 12 L
H4/6 Right front door speaker 15 L
N10/8 Rear SAM control unit 45 L
N123/4 Emergency call system control unit 25 L
N125/1 Media interface control unit 70 A
U170 Valid for media interface 65 A
U185 Not valid for high definition tuner 32 A
U500 Not valid for Sound System 11 A
U563 Valid for rear entertainment (DVD) 61 A
U644 Valid for walkman connection 57 A
U895 Valid for rear audio 50 E
U899 Valid for backup camera 53 A
W17/1 Ground (left rear seat) 4 G
W29/2 Ground (right A-pillar) 68 E
W29/8 Ground (left D-pillar) 39 G
X18 Interior/cockpit connector 71 H
X18/2 Interior/roof connector 46 E
X18/67 Media interface connector 1 66 H
X18/69 Media interface connector 2 66 L
X30/7 Voltage distributor (CAN) connector 7 L
X35/1 Left front door separation point 11 E
X35/2 Right front door separation point 14 E
X35/3 Left rear door separation point 17 E
X35/4 Right rear door separation point 20 E
X39/45 Walkman separation point 58 L
Z20/2 Cable end insulation not stripped, placed inside insulated tubing 57 K
Z204/6 Circuit 31 left rear seat voltage distributor connector 4 L

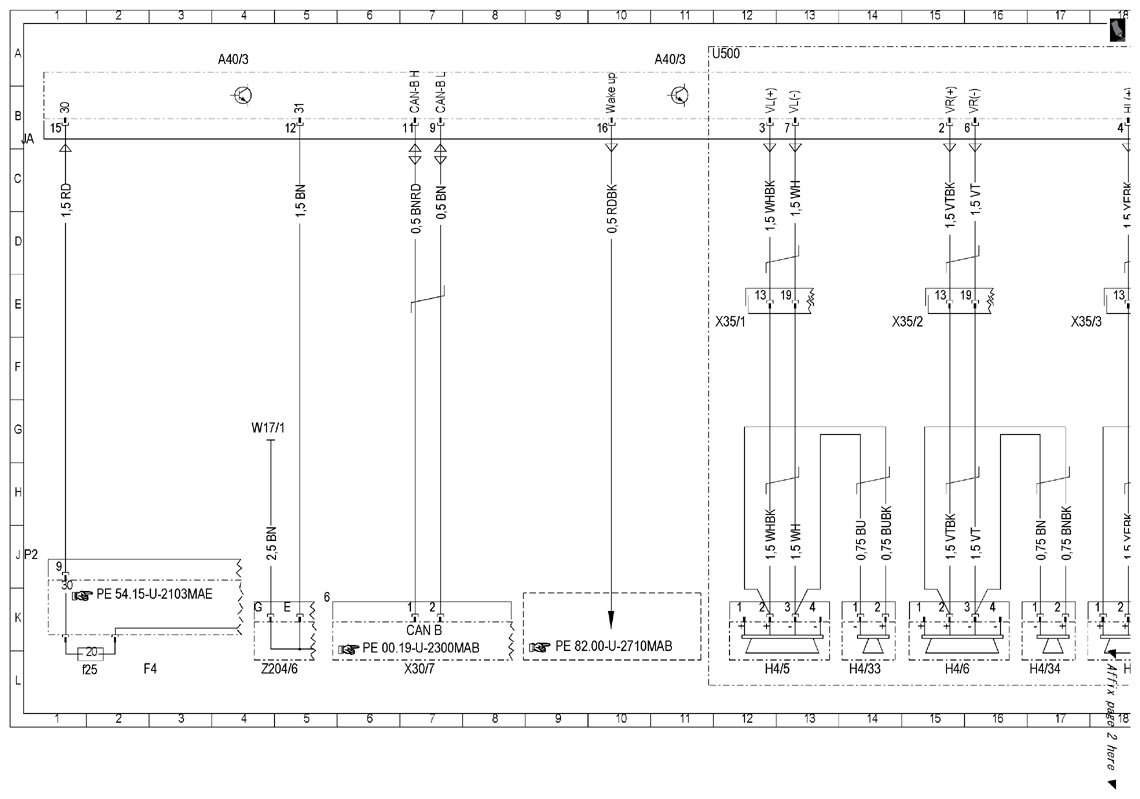

Fig 1: Cockpit Management And Data System Control Module Wiring Diagram (1 Of 5)
G10118769Courtesy of MERCEDES-BENZ USA

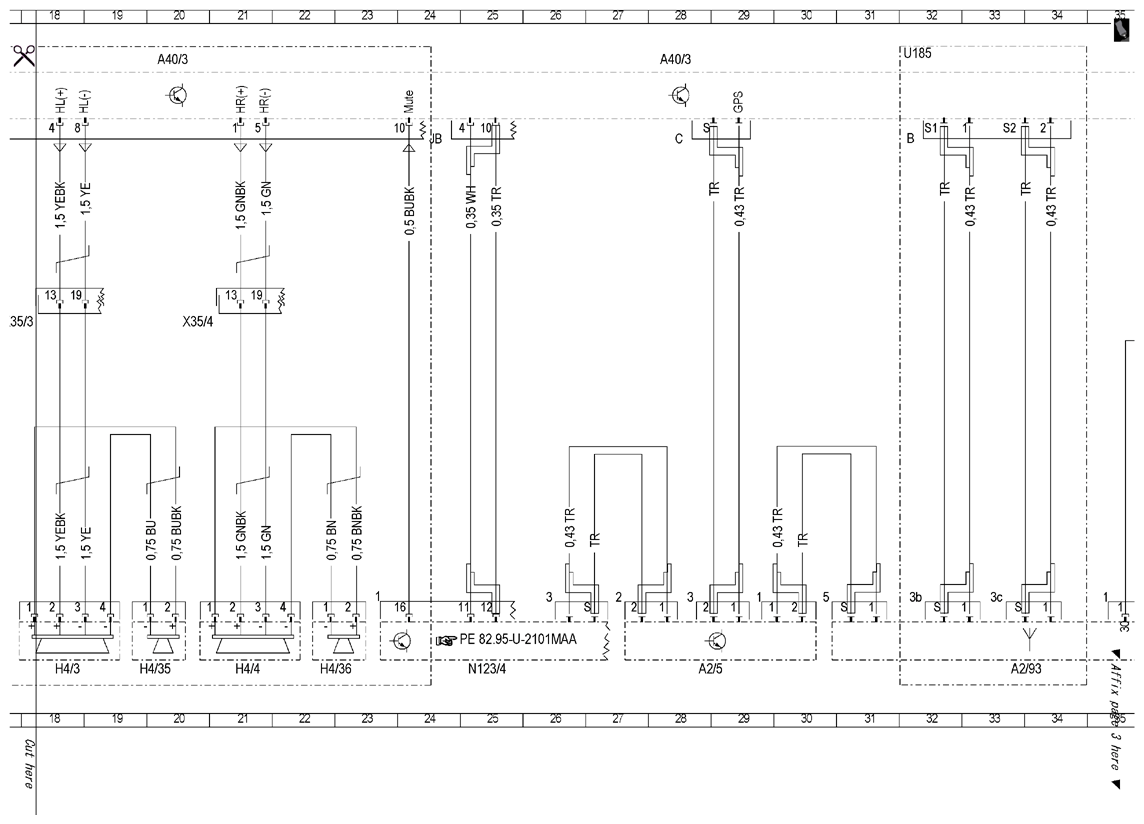

Fig 2: Cockpit Management And Data System Control Module Wiring Diagram (2 Of 5)
G10118770Courtesy of MERCEDES-BENZ USA

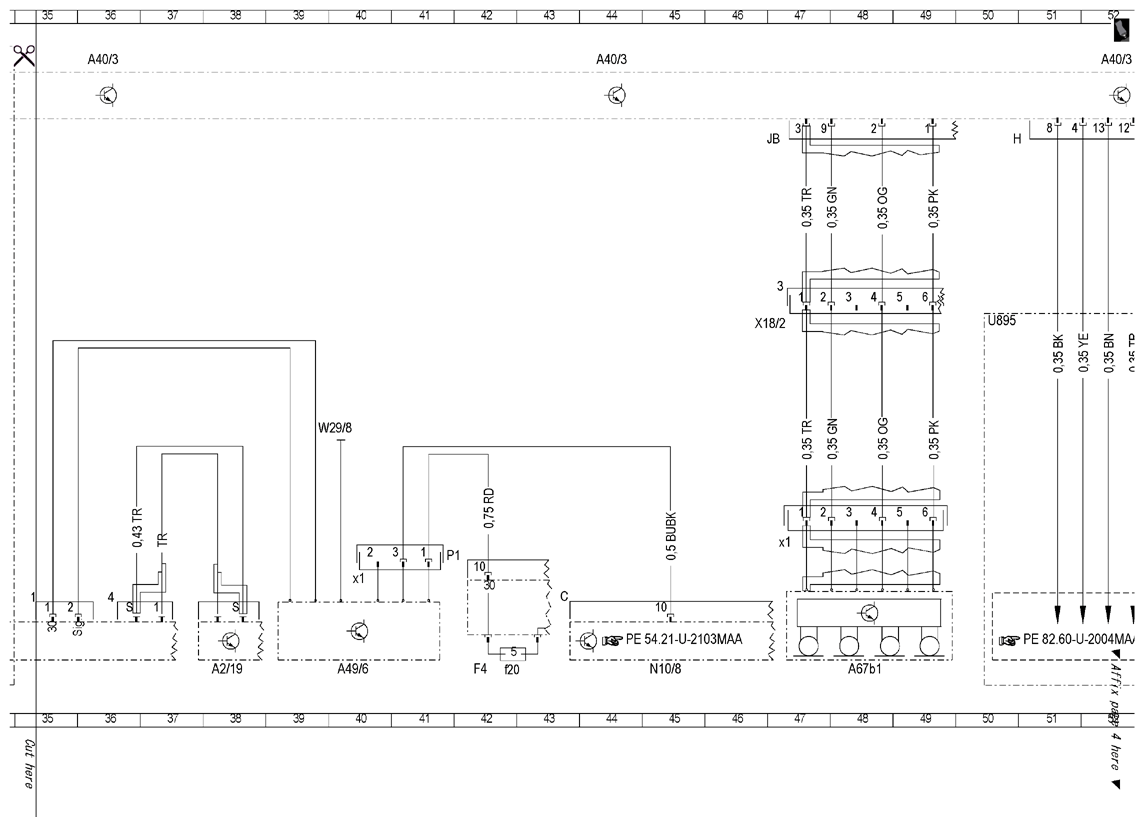

Fig 3: Cockpit Management And Data System Control Module Wiring Diagram (3 Of 5)
G10118771Courtesy of MERCEDES-BENZ USA

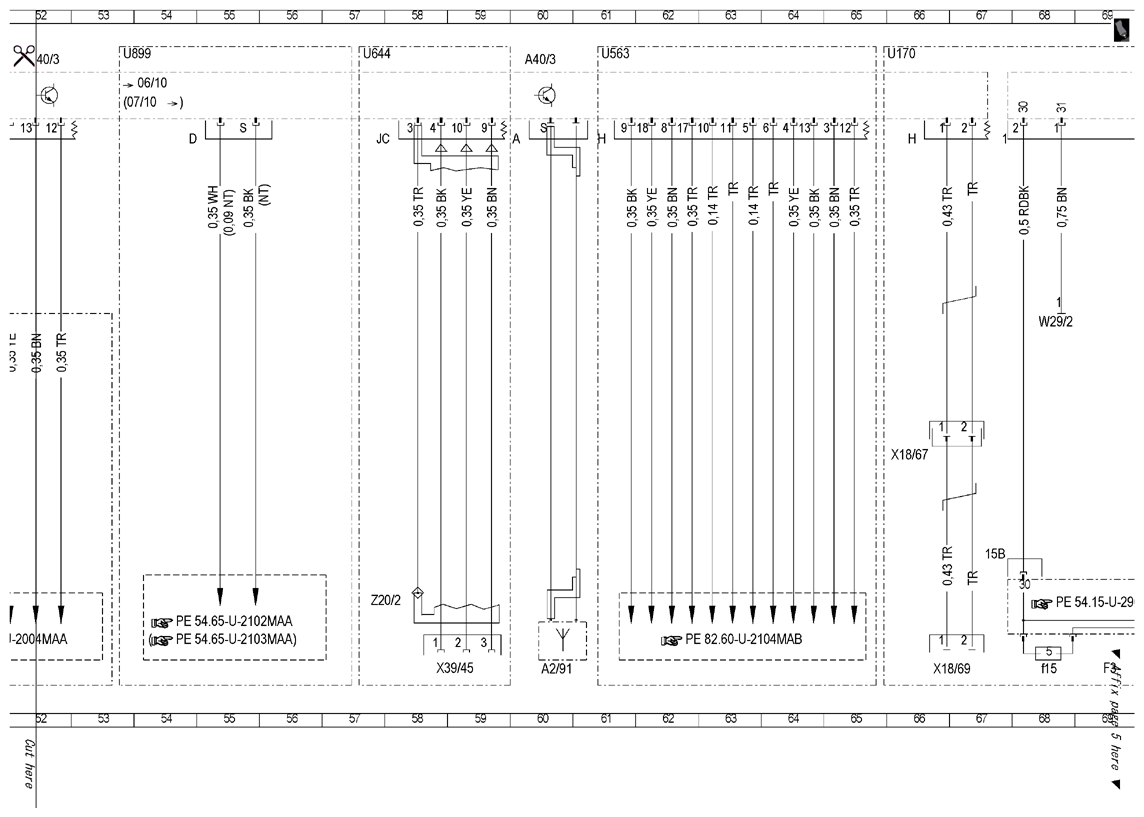

Fig 4: Cockpit Management And Data System Control Module Wiring Diagram (4 Of 5)
G10118772Courtesy of MERCEDES-BENZ USA

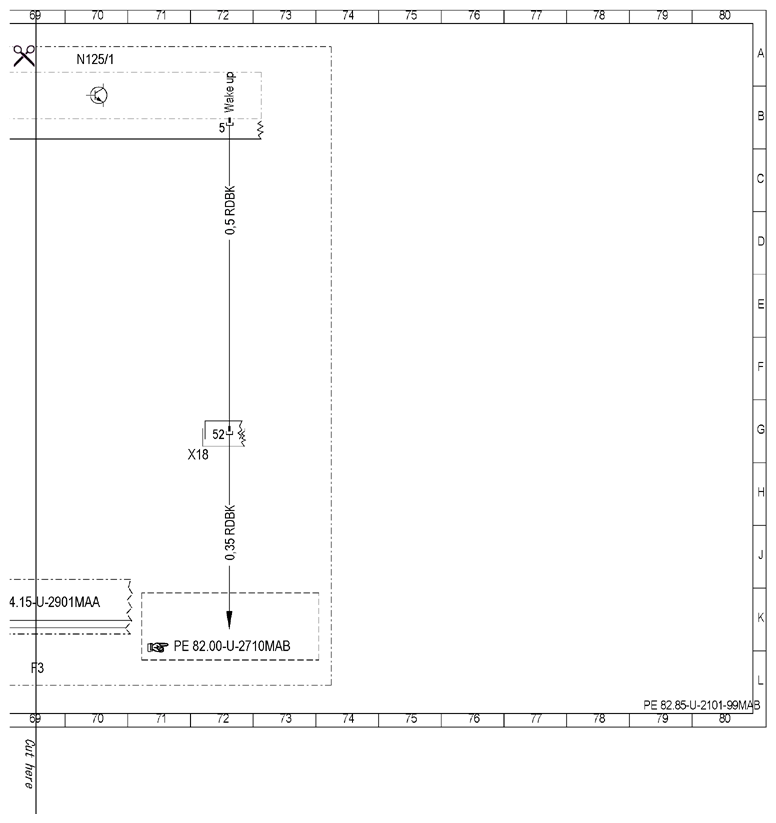

Fig 5: Cockpit Management And Data System Control Module Wiring Diagram (5 Of 5)
G10118773Courtesy of MERCEDES-BENZ USA
