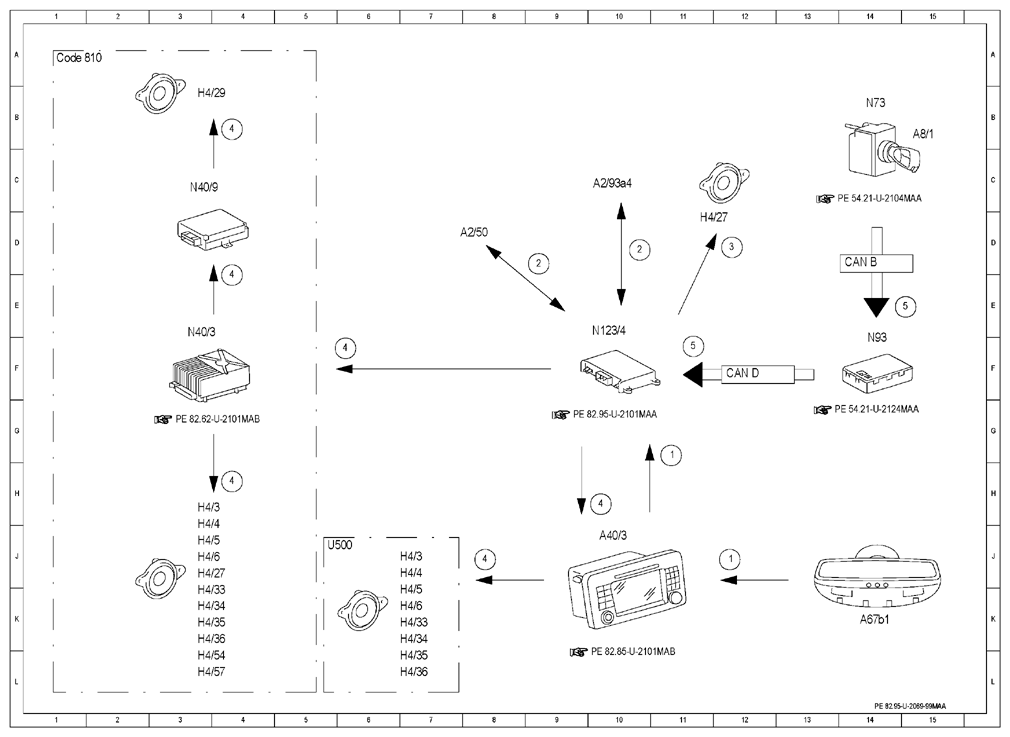

| 1 |
Voice input, signal |
11 H |
| 1 |
Voice input, signal |
12 J |
| 2 |
Telephone, signal |
9 D |
| 2 |
Telephone, signal |
10 D |
| 3 |
Voice output, signal |
12 D |
| 4 |
Mute, signal |
4 H |
| 4 |
Mute, signal |
4 E |
| 4 |
Mute, signal |
4 B |
| 4 |
Mute, signal |
6 F |
| 4 |
Mute, signal |
8 J |
| 4 |
Mute, signal |
10 H |
| 5 |
Circuit 15R, status |
11 F |
| 5 |
Circuit 15R, status |
14 E |
| A2/50 |
TELE AID spare antenna |
7 D |
| A2/93a4 |
TELE AID antenna |
10 C |
| A40/3 |
COMAND operating, display and control module |
10 J |
| A67b1 |
Hands-free system microphone group |
14 K |
| A8/1 |
Transmitter key |
15 B |
| CAN B |
Interior CAN |
14 D |
| CAN D |
Diagnostic CAN |
12 F |
| Code 810 |
Sound system |
1 A |
| H4/27 |
Center cockpit speaker (Centerfill) |
3 J |
| H4/27 |
Center cockpit speaker (Centerfill) |
11 D |
| H4/29 |
Subwoofer loudspeaker |
3 B |
| H4/3 |
Left rear door speaker |
3 H |
| H4/3 |
Left rear door speaker |
6 J |
| H4/33 |
Left front door tweeter |
3 K |
| H4/33 |
Left front door tweeter |
6 K |
| H4/34 |
Right front door tweeter |
3 K |
| H4/34 |
Right front door tweeter |
6 K |
| H4/35 |
Left rear door tweeter |
3 K |
| H4/35 |
Left rear door tweeter |
6 L |
| H4/36 |
Right rear door tweeter |
3 K |
| H4/36 |
Right rear door tweeter |
6 L |
| H4/4 |
Right rear door speaker |
3 J |
| H4/4 |
Right rear door speaker |
6 J |
| H4/5 |
Left front door speaker |
3 J |
| H4/5 |
Left front door speaker |
6 K |
| H4/54 |
Left rear surround loudspeaker |
3 L |
| H4/57 |
Right rear surround loudspeaker |
3 L |
| H4/6 |
Right front door speaker |
3 J |
| H4/6 |
Right front door speaker |
6 K |
| N123/4 |
Emergency call system control unit |
10 F |
| N40/3 |
Amplifier for Sound System |
3 F |
| N40/9 |
Subwoofer amplifier |
3 C |
| N73 |
EIS [EZS] control unit |
14 B |
| N93 |
Central gateway control module |
14 F |
| U500 |
Not valid for Sound System |
5 J |
