Electrical function schematic for rear entertainment switch on and switch off characteristics and system settings - PE82.90-U-2052-99MAA

Code: Designation: Position:
1 Circuit 15, status 7 H
1 Circuit 15, status 9 E
1 Circuit 15, status 9 H
2 Telematics CAN active, signal 7 H
2 Telematics CAN active, signal 10 H
3 Analog picture signal, signal 6 G
3 Analog picture signal, signal 11 G
4 Analog audio signal, signal 6 F
4 Analog audio signal, signal 11 F
5 Infrared, signal 4 G
5 Infrared, signal 12 G
6 Switch on/off, signal 9 G
A40/4 DVD player 8 E
A40/5 Left rear display 5 G
A40/6 Right rear display 11 G
A8/1 Transmitter key 9 B
A8/6 Rear entertainment remote control 1 G
A8/6 Rear entertainment remote control 14 G
CAN A Telematics CAN 8 H
CAN B Interior CAN 8 D
N73 EIS [EZS] control unit 8 B

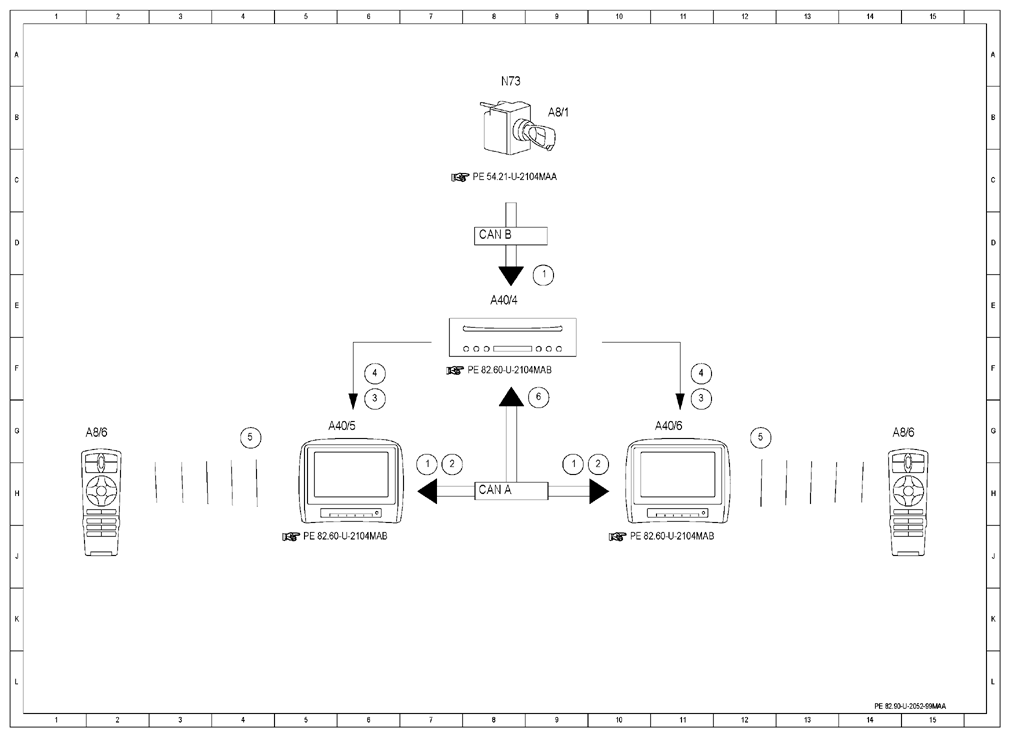

Fig 1: Rear Entertainment Switch Electrical Function Schematic
G10118783Courtesy of MERCEDES-BENZ USA
