| 1 |
Circuit 15, status |
23 G |
| 1 |
Circuit 15, status |
25 G |
| 1 |
Circuit 15, status |
25 D |
| 2 |
Telematics CAN active, signal |
23 G |
| 2 |
Telematics CAN active, signal |
25 G |
| 3 |
Analog picture signal, signal |
22 F |
| 3 |
Analog picture signal, signal |
27 F |
| 4 |
Analog audio signal, signal |
16 B |
| 4 |
Analog audio signal, signal |
21 K |
| 4 |
Analog audio signal, signal |
22 E |
| 4 |
Analog audio signal, signal |
26 K |
| 4 |
Analog audio signal, signal |
27 E |
| 5 |
Infrared, signal |
20 F |
| 5 |
Infrared, signal |
23 K |
| 5 |
Infrared, signal |
28 F |
| 5 |
Infrared, signal |
28 K |
| 6 |
Sound system amplifier, actuation |
15 E |
| 7 |
Audio, signal |
10 E |
| 7 |
Audio, signal |
12 H |
| 7 |
Audio, signal |
12 F |
| 7 |
Audio, signal |
14 H |
| 8 |
Multifunction steering wheel button group, signal |
4 D |
| 8 |
Multifunction steering wheel button group, signal |
7 B |
| 8 |
Multifunction steering wheel button group, signal |
12 B |

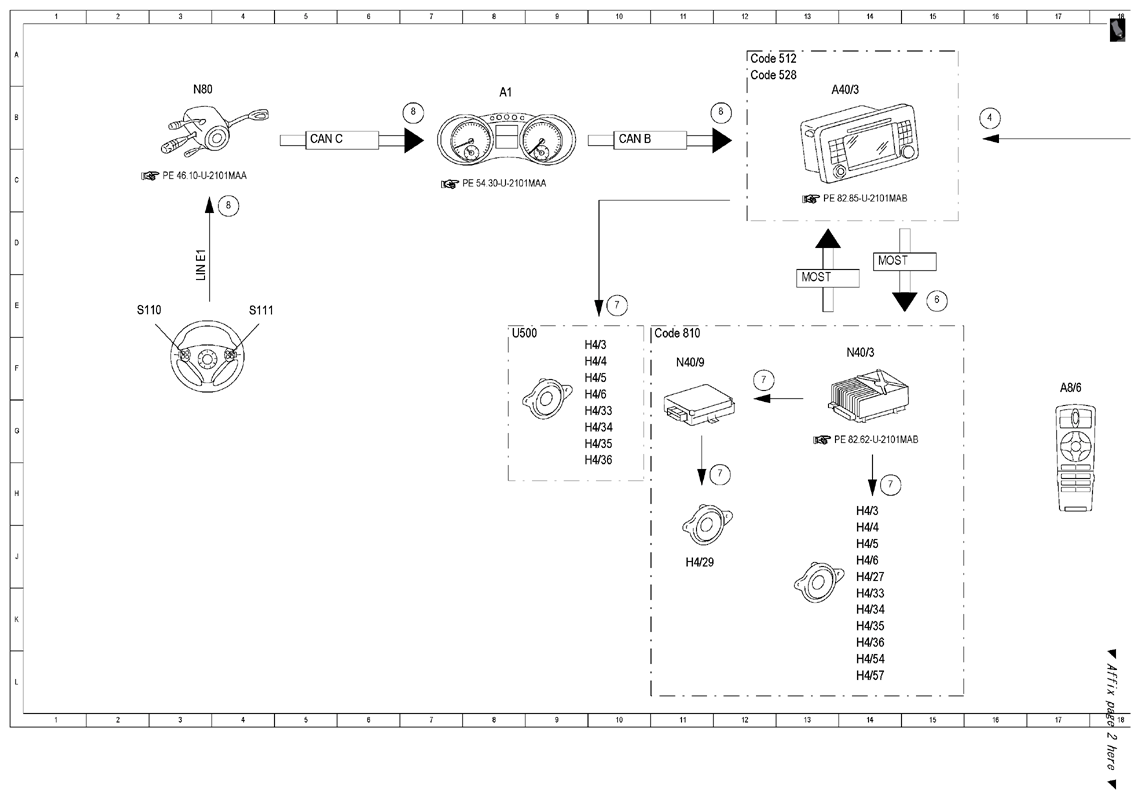

| A1 |
Instrument cluster |
8 B |
| A40/3 |
COMAND operating, display and control module |
13 B |

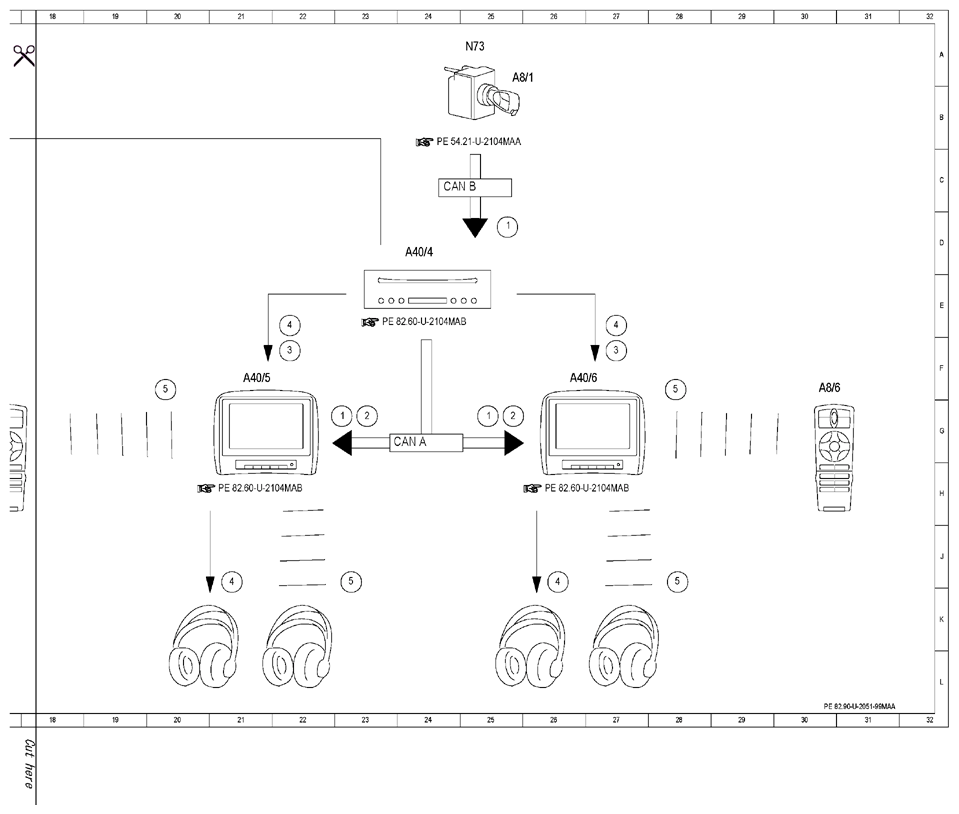

| A40/4 |
DVD player |
24 D |
| A40/5 |
Left rear display |
21 F |
| A40/6 |
Right rear display |
26 F |
| A8/1 |
Transmitter key |
25 B |
| A8/6 |
Rear entertainment remote control |
17 F |
| A8/6 |
Rear entertainment remote control |
30 F |
| CAN A |
Telematics CAN |
23 G |
| CAN B |
Interior CAN |
10 C |
| CAN B |
Interior CAN |
24 C |
| CAN C |
Engine compartment CAN |
5 C |
| Code 512 |
COMAND APS with DVD changer |
12 A |
| Code 528 |
HIGH Class USA |
12 A |
| Code 810 |
Sound system |
11 F |
| H4/27 |
Center cockpit speaker (Centerfill) |
14 J |
| H4/29 |
Subwoofer loudspeaker |
11 J |
| H4/3 |
Left rear door speaker |
9 F |
| H4/3 |
Left rear door speaker |
14 H |
| H4/33 |
Left front door tweeter |
9 G |
| H4/33 |
Left front door tweeter |
14 K |
| H4/34 |
Right front door tweeter |
9 G |
| H4/34 |
Right front door tweeter |
14 K |
| H4/35 |
Left rear door tweeter |
9 G |
| H4/35 |
Left rear door tweeter |
14 K |
| H4/36 |
Right rear door tweeter |
9 H |
| H4/36 |
Right rear door tweeter |
14 L |
| H4/4 |
Right rear door speaker |
9 F |
| H4/4 |
Right rear door speaker |
14 J |
| H4/5 |
Left front door speaker |
9 F |
| H4/5 |
Left front door speaker |
14 J |
| H4/54 |
Left rear surround loudspeaker |
14 L |
| H4/57 |
Right rear surround loudspeaker |
14 L |
| H4/6 |
Right front door speaker |
9 G |
| H4/6 |
Right front door speaker |
14 J |
| LIN E1 |
Steering LIN |
3 E |
| MOST |
Media Oriented System Transport |
13 E |
| MOST |
Media Oriented System Transport |
14 D |
| N40/3 |
Amplifier for Sound System |
14 F |
| N40/9 |
Subwoofer amplifier |
11 F |
| N73 |
EIS [EZS] control unit |
25 A |
| N80 |
Steering column module |
3 B |
| S110 |
Left multifunction steering wheel push-button group |
2 E |
| S111 |
Right multifunction steering wheel push-button group |
4 E |
| U500 |
Not valid for Sound System |
8 F |
