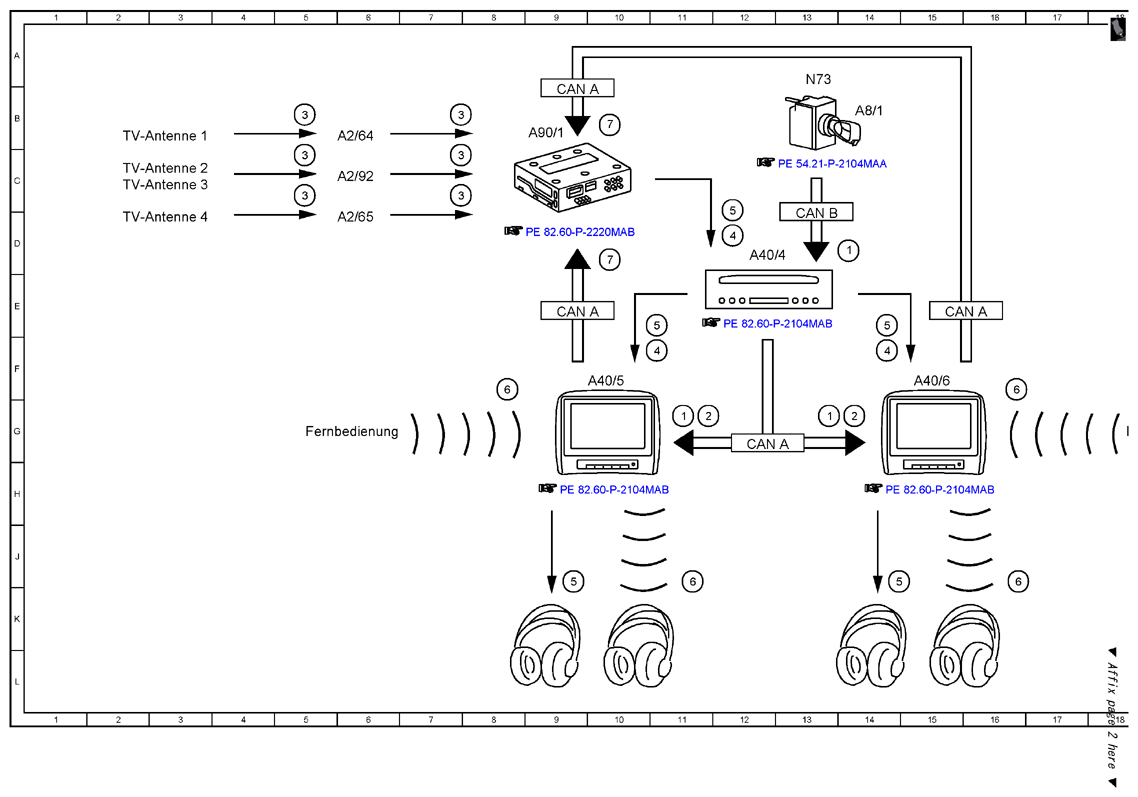

| 1 |
Circuit 15, status |
11G |
| 1 |
Circuit 15, status |
13G |
| 1 |
Circuit 15, status |
13D |
| 2 |
Telematics CAN active, signal |
11G |
| 2 |
Telematics CAN active, signal |
14G |
| 3 |
TV, signal |
7C |
| 3 |
TV, signal |
7B |
| 3 |
TV, signal |
7C |
| 3 |
TV, signal |
5C |
| 4 |
Analog picture signal, signal |
11F |
| 4 |
Analog picture signal, signal |
14F |
| 4 |
Analog picture signal, signal |
12D |
| 5 |
Analog audio signal, signal |
11E |
| 5 |
Analog audio signal, signal |
9J |
| 5 |
Analog audio signal, signal |
14E |
| 5 |
Analog audio signal, signal |
14J |
| 5 |
Analog audio signal, signal |
12D |
| 6 |
Infrared, signal |
11J |
| 6 |
Infrared, signal |
16J |
| 6 |
Infrared, signal |
8F |
| 6 |
Infrared, signal |
16F |
| 7 |
TV channel selection, signal |
10D |
| 7 |
TV channel selection, signal |
10B |
| A2/64 |
Left antenna amplifier module |
6B |
| A2/65 |
Right antenna amplifier module |
6D |
| A2/92 |
TV rear window antenna amplifier |
6C |
| A40/4 |
DVD player |
12D |
| A40/5 |
Left rear display |
10F |
| A40/6 |
Right rear display |
15F |
| A8/1 |
Transmitter key |
14B |
| A90/1 |
TV combination tuner (analog/digital) |
9B |
| CAN A |
Telematics CAN |
9B |
| CAN A |
Telematics CAN |
9E |
| CAN A |
Telematics CAN |
12G |
| CAN A |
Telematics CAN |
15E |
| CAN B |
Interior CAN |
13C |
| N73 |
EIS [EZS] control unit |
13A |
