| 1 |
Circuit 15, status |
7 G |
| 1 |
Circuit 15, status |
9 G |
| 1 |
Circuit 15, status |
10 D |
| 2 |
Telematics CAN active, signal |
7 G |
| 2 |
Telematics CAN active, signal |
10 G |
| 3 |
Analog picture signal, signal |
6 F |
| 3 |
Analog picture signal, signal |
8 D |
| 3 |
Analog picture signal, signal |
11 F |
| 4 |
Analog audio signal, signal |
5 K |
| 4 |
Analog audio signal, signal |
6 E |
| 4 |
Analog audio signal, signal |
8 C |
| 4 |
Analog audio signal, signal |
10 K |
| 4 |
Analog audio signal, signal |
11 E |
| 5 |
Infrared, signal |
4 F |
| 5 |
Infrared, signal |
7 K |
| 5 |
Infrared, signal |
12 F |
| 5 |
Infrared, signal |
12 K |

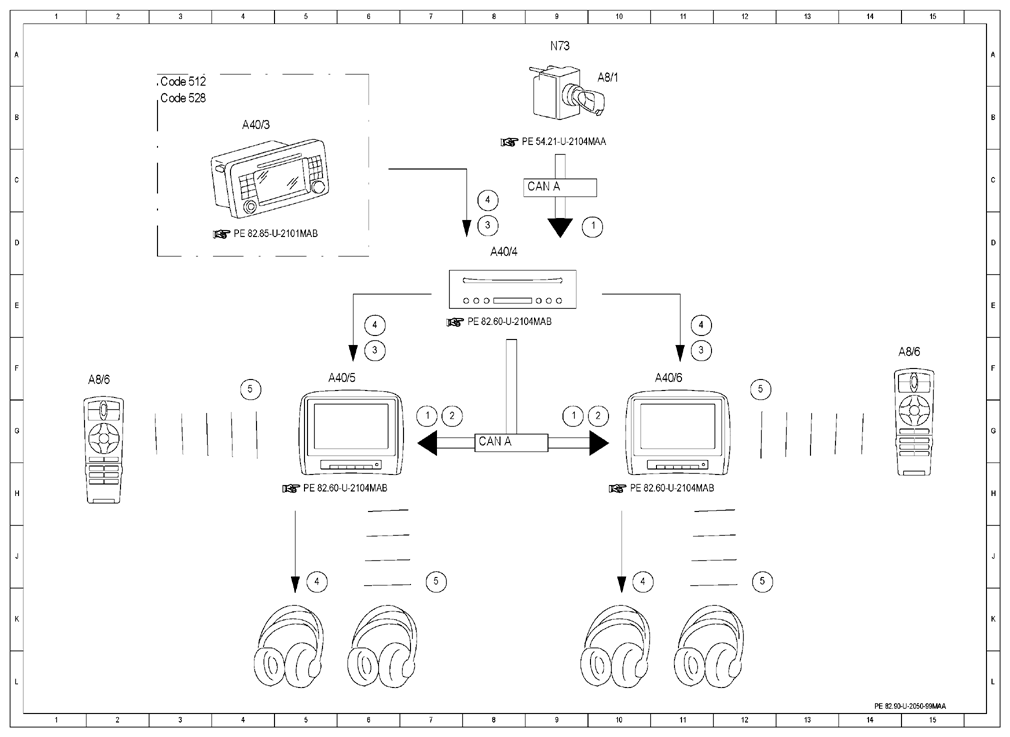

| A40/3 |
COMAND operating, display and control module |
4 B |
| A40/4 |
DVD player |
8 D |
| A40/5 |
Left rear display |
5 F |
| A40/6 |
Right rear display |
11 F |
| A8/1 |
Transmitter key |
10 B |
| A8/6 |
Rear entertainment remote control |
2 F |
| A8/6 |
Rear entertainment remote control |
14 F |
| CAN A |
Telematics CAN |
8 G |
| CAN A |
Telematics CAN |
9 C |
| Code 512 |
COMAND APS with DVD changer |
3 B |
| Code 528 |
HIGH Class USA |
3 B |
| N73 |
EIS [EZS] control unit |
9 A |
