| 1 |
Circuit 15, status |
7G |
| 1 |
Circuit 15, status |
9G |
| 1 |
Circuit 15, status |
10C |
| 2 |
Telematics CAN active, signal |
7G |
| 2 |
Telematics CAN active, signal |
10G |
| 3 |
Analog picture signal, signal |
6F |
| 3 |
Analog picture signal, signal |
11F |
| 3 |
Analog picture signal, signal |
8D |
| 4 |
Analog audio signal, signal |
6E |
| 4 |
Analog audio signal, signal |
5J |
| 4 |
Analog audio signal, signal |
11E |
| 4 |
Analog audio signal, signal |
10J |
| 4 |
Analog audio signal, signal |
8C |
| 5 |
Infrared, signal |
7J |
| 5 |
Infrared, signal |
12J |
| 5 |
Infrared, signal |
4F |
| 5 |
Infrared, signal |
12F |

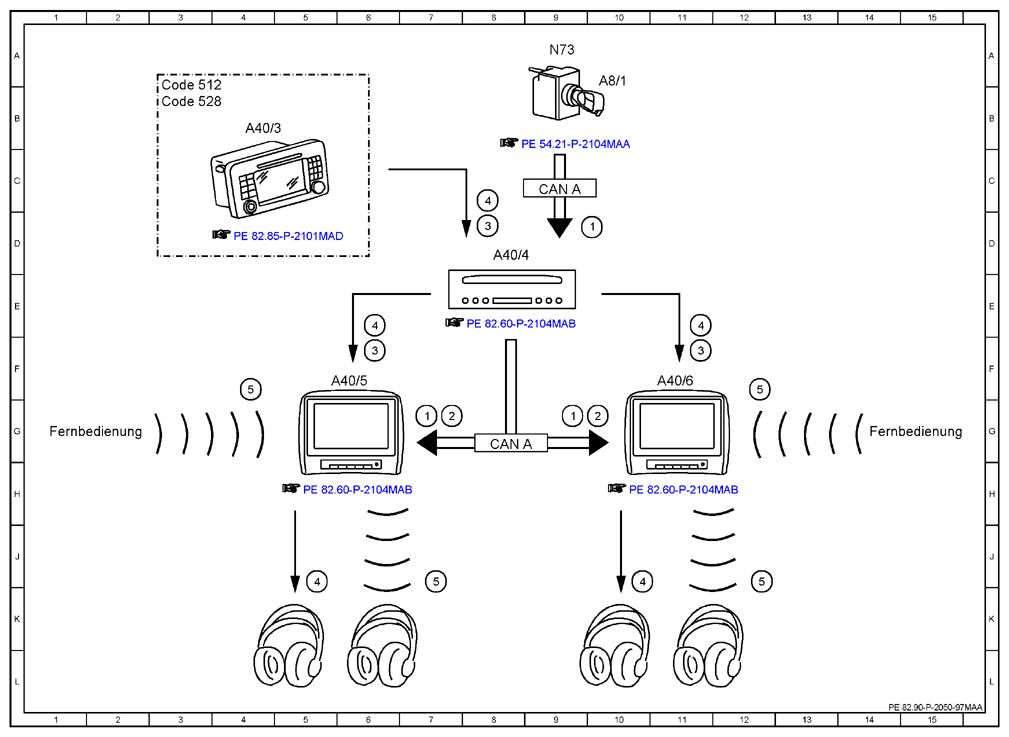

| A40/3 |
COMAND operating, display and control unit |
4B |
| A40/4 |
DVD player |
8D |
| A40/5 |
Left rear display |
6F |
| A40/6 |
Right rear display |
11F |
| A8/1 |
Transmitter key |
10A |
| CAN A |
Telematics CAN |
9C |
| CAN A |
Telematics CAN |
8G |
| Code 512 |
COMAND APS with DVD changer |
3A |
| Code 528 |
HIGH Class USA |
3B |
| N73 |
EIS [EZS] control unit |
9A |
