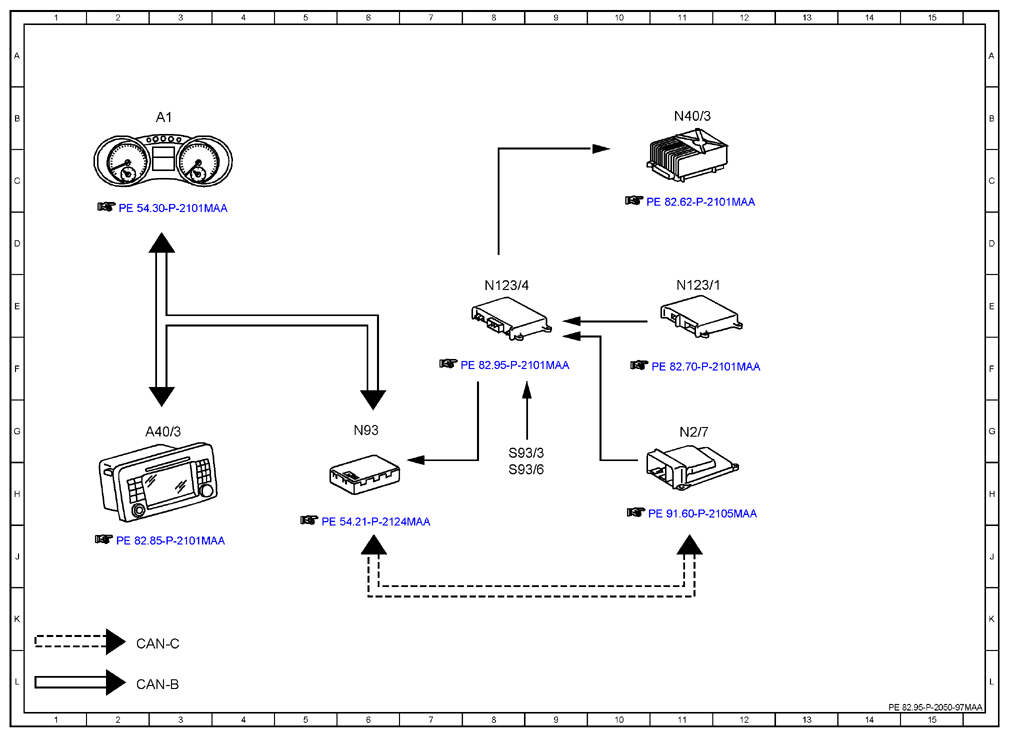

Electrical function schematic for TELE AID emergency call system - PE82.95-P-2050-97MAA
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 3B |
| A40/3 | COMAND operating, display and control unit | 3G |
| N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control unit | 11E |
| N123/4 | Emergency call system control unit | 8E |
| N2/7 | Restraint systems control unit | 11G |
| N40/3 | Amplifier for sound system | 11B |
| N93 | Central gateway control unit | 6G |
| S93/3 | SOS push-button switch | 8G |
| S93/6 | MB-Info and telediagnosis button group | 8H |
