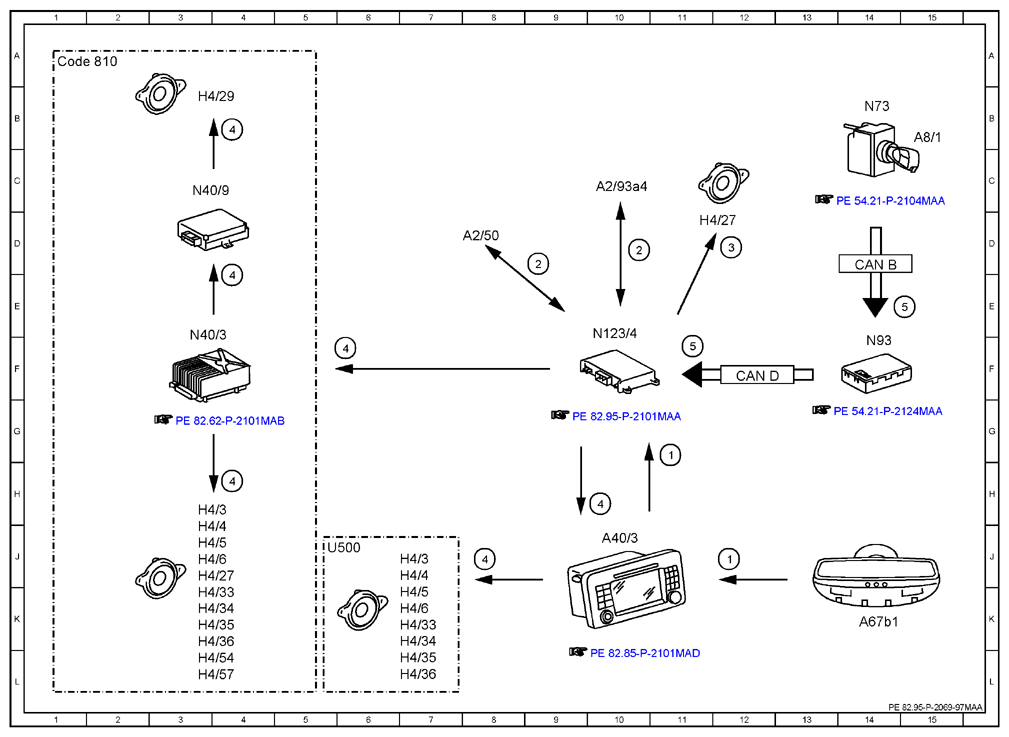

| 1 |
Voice input, signal |
11G |
| 1 |
Voice input, signal |
12J |
| 2 |
Telephone, signal |
10D |
| 2 |
Telephone, signal |
9D |
| 3 |
Voice output, signal |
12D |
| 4 |
Mute, signal |
4H |
| 4 |
Mute, signal |
8J |
| 4 |
Mute, signal |
4E |
| 4 |
Mute, signal |
6F |
| 4 |
Mute, signal |
4B |
| 4 |
Mute, signal |
10H |
| 5 |
Circuit 15R, status |
11F |
| 5 |
Circuit 15R, status |
15E |
| A2/50 |
TELE AID backup antenna |
8D |
| A2/93a4 |
TELE AID antenna |
10C |
| A40/3 |
COMAND operating, display and control unit |
10J |
| A67b1 |
Hands-free system microphone group |
14K |
| A8/1 |
Transmitter key |
15B |
| CAN B |
Interior CAN |
14D |
| CAN D |
Diagnostic CAN |
12F |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/27 |
Center cockpit speaker (centerfill) |
11D |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
7J |
| H4/33 |
Left front door tweeter |
7K |
| H4/33 |
Left front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
7K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
7L |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
7L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
7J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
7K |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
7K |
| H4/6 |
Right front door speaker |
3J |
| N123/4 |
Emergency call system control unit |
10F |
| N40/3 |
Amplifier for sound system |
3F |
| N40/9 |
Subwoofer amplifier |
3C |
| N73 |
EIS [EZS] control unit |
14B |
| N93 |
Central gateway control unit |
14F |
| U500 |
Not valid for Sound System |
5J |
