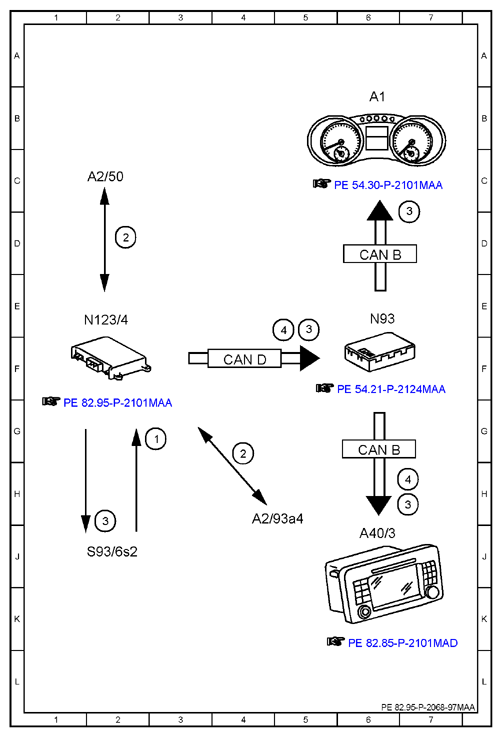

| 1 |
VCS ON button, signal |
3G |
| 2 |
Telephone, signal |
4G |
| 2 |
Telephone, signal |
2D |
| 3 |
Status indication, signal |
2J |
| 3 |
Status indication, signal |
7H |
| 3 |
Status indication, signal |
5E |
| 3 |
Status indication, signal |
6C |
| 4 |
Audio unit display, message |
7H |
| 4 |
Audio unit display, message |
5E |
| A1 |
Instrument cluster |
6B |
| A2/50 |
TELE AID backup antenna |
2C |
| A2/93a4 |
TELE AID antenna |
4H |
| A40/3 |
COMAND operating, display and control unit |
6J |
| CAN B |
Interior CAN |
6D |
| CAN B |
Interior CAN |
6G |
| CAN D |
Diagnostic CAN |
4F |
| N123/4 |
Emergency call system control unit |
2E |
| N93 |
Central gateway control unit |
6E |
| S93/6s2 |
Telediagnosis button |
2J |
