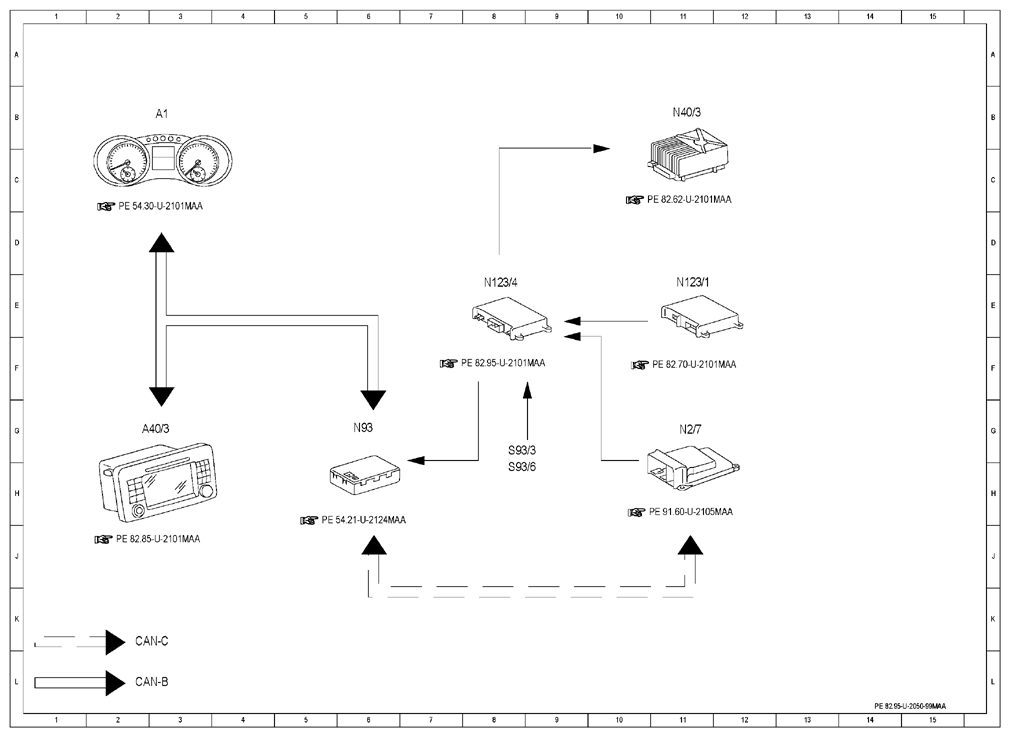

Electrical function diagram for TELE AID emergency call system - PE82.95-U-2050-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 3 B |
| A40/3 | COMAND operating, display and control module | 2 G |
| N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control module | 11 E |
| N123/4 | Emergency call system control unit | 8 E |
| N2/7 | Restraint systems control module | 11 G |
| N40/3 | Amplifier for Sound System | 11 B |
| N93 | Central gateway control module | 6 G |
| S93/3 | SOS push-button switch | 8 G |
| S93/6 | MB-Info and telediagnosis button group | 8 H |
