Wiring diagram of Telematics CAN bus - PE82.00-U-2720-99MAA

Code:	Designation:	Position:
A40/4	DVD player	12 L
A40/5	Left rear display	7 L
A40/6	Right rear display	9 L
U895	Valid for rear audio	6 D
W17/1	Ground (left rear seat)	15 H
X30/35	Telematics CAN voltage distributor connector	4 A
X30/35	Telematics CAN voltage distributor connector	12 A
X30/35	Telematics CAN voltage distributor connector	20 A
X55/3	Left front seat contacting strip	6 H
X55/4	Right front seat contacting strip	8 H
Z204/6	Circuit 31 left rear seat voltage distributor connector	15 L
Z53/28	Telematics circuit 31 interior solder point 2	15 E

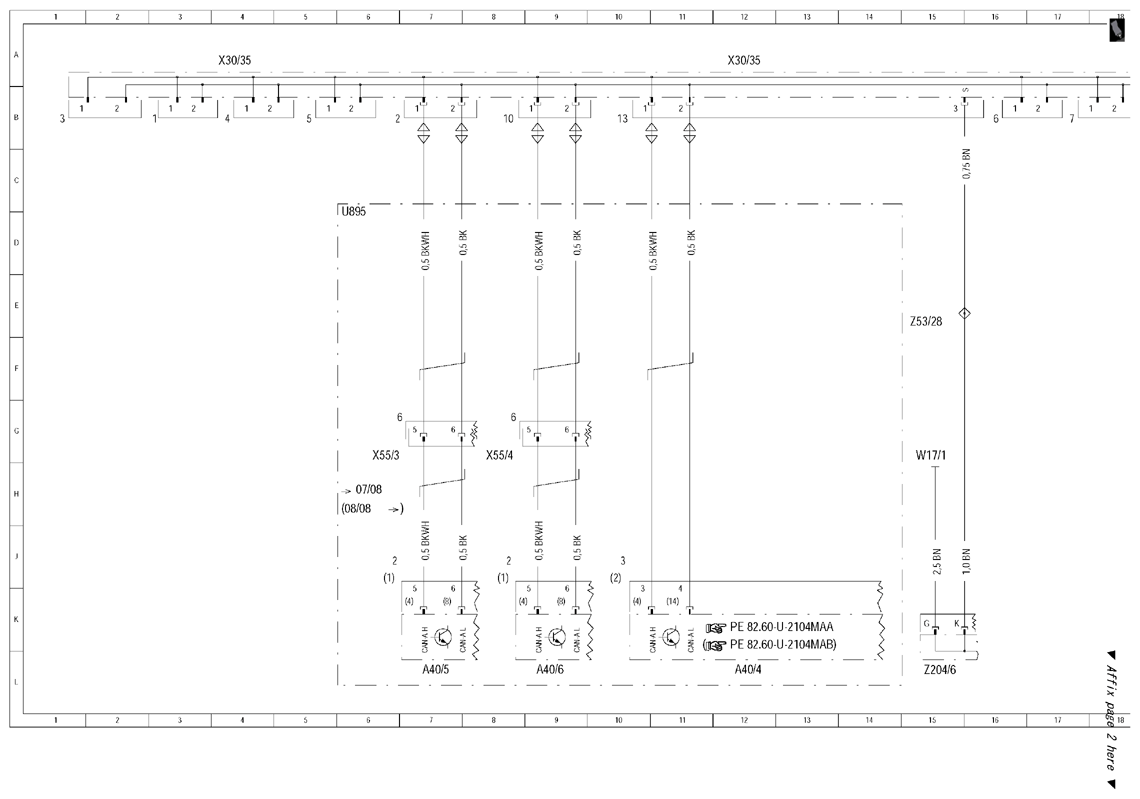

Fig 1: Telematics CAN Bus Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

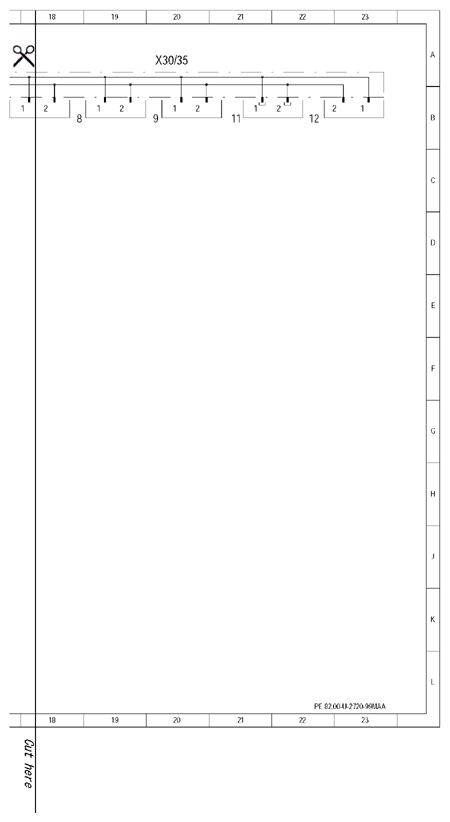

Fig 2: Telematics CAN Bus Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
