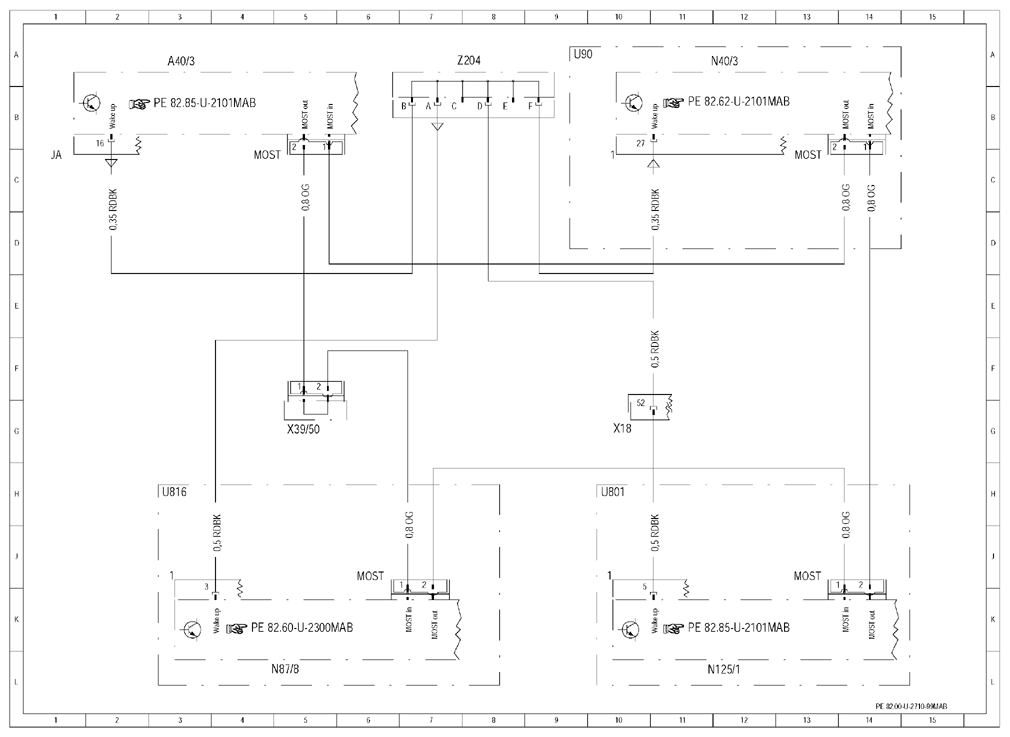

| A40/3 |
COMAND operating, display and control unit |
3 A |
| MOST |
Media Oriented System Transport |
4 C |
| MOST |
Media Oriented System Transport |
6 J |
| MOST |
Media Oriented System Transport |
13 J |
| MOST |
Media Oriented System Transport |
13 C |
| N125/1 |
Media interface control unit |
11 L |
| N40/3 |
Amplifier for sound system |
11 A |
| N87/8 |
High-definition tuner control unit |
4 L |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
10 H |
| U816 |
Valid for satellite radio (SDAR) |
3 H |
| U90 |
Valid for Sound System |
9 A |
| X18 |
Interior/cockpit connector |
10 G |
| X39/50 |
Fiber optical cable connector (MOST) |
5 G |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
7 A |
