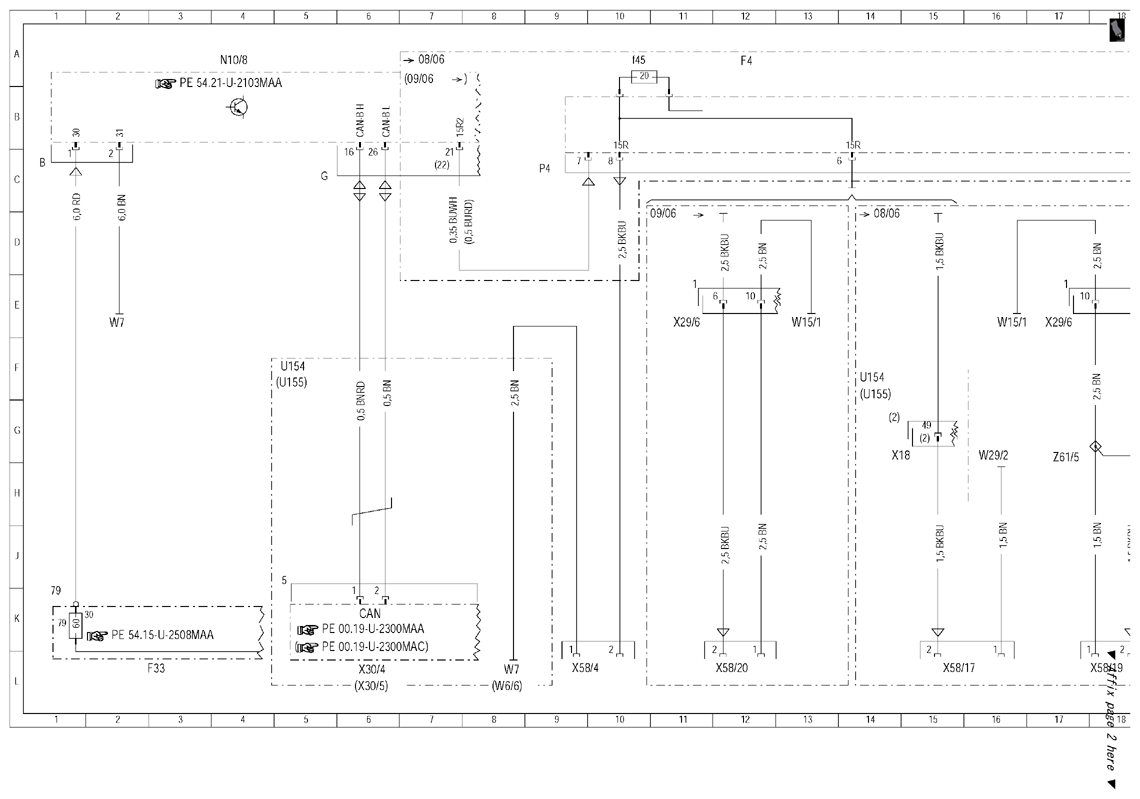

| F33 |
Battery compartment prefuse box |
2 L |
| F33 |
Battery compartment prefuse box |
34 L |
| F33f79 |
Fuse 79 |
1 K |
| F33f85 |
Fuse 85 |
32 K |
| F4 |
Load compartment fuse and relay box |
12 A |
| F4 |
Load compartment fuse and relay box |
20 A |
| F4 |
Load compartment fuse and relay box |
38 A |
| F4f44 |
Fuse 44 |
20 A |
| F4f45 |
Fuse 45 |
10 A |
| F4f46 |
Fuse 46 |
37 A |
| N10 |
Front SAM control unit |
48 A |
| N10/8 |
Rear SAM control unit |
4 A |
| N24/3 |
DC/AC converter control unit (115V socket) |
27 L |

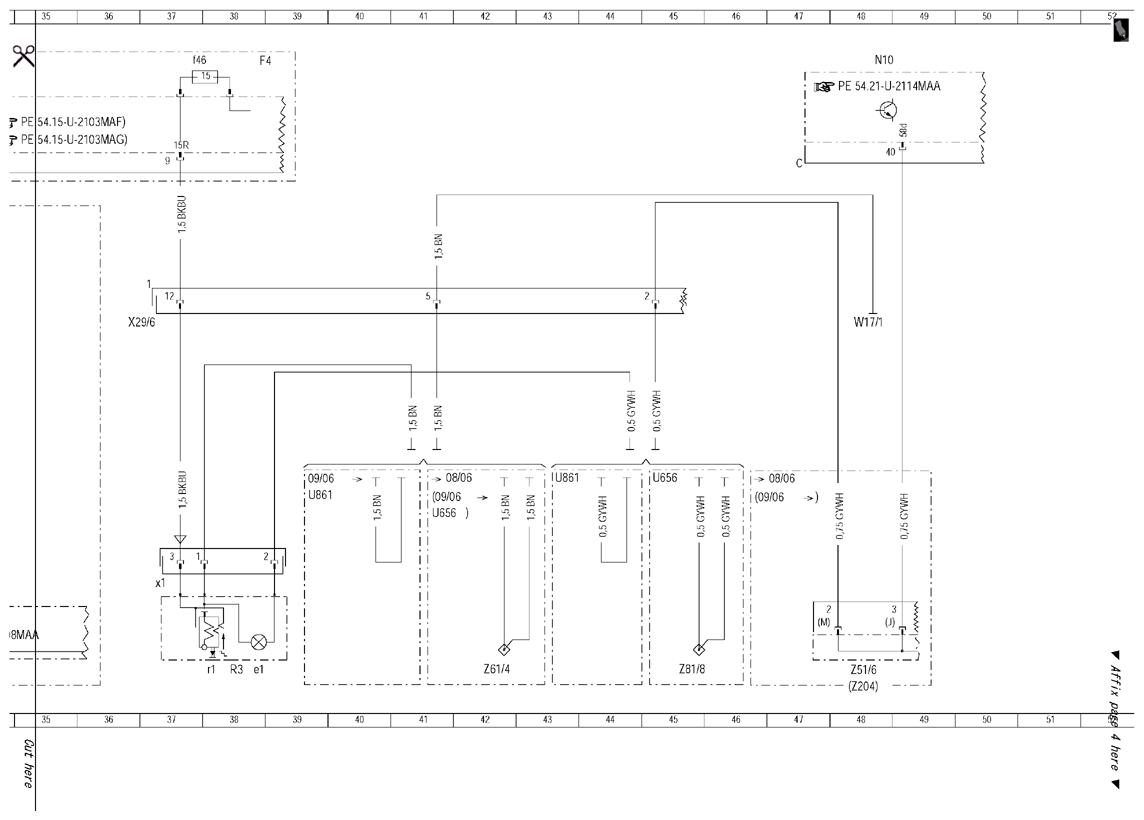

| R3 |
Front cigar lighter (with ashtray illumination) |
38 L |
| R3e1 |
Illumination |
38 L |
| R3r1 |
Heating element |
37 L |
| R3x1 |
Front cigar lighter (with ashtray illumination) connector |
37 K |
| U154 |
Valid for 164.1 |
5 F |
| U154 |
Valid for 164.1 |
14 F |
| U154 |
Valid for 164.1 |
29 H |
| U155 |
Valid for 164.8 |
4 F |
| U155 |
Valid for 164.8 |
14 G |
| U155 |
Valid for 164.8 |
30 H |
| U656 |
Valid for interior light package |
41 J |
| U656 |
Valid for interior light package |
45 H |
| U861 |
Valid for versions without interior light package |
39 H |
| U861 |
Valid for versions without interior light package |
43 H |
| U925 |
Valid for 115V socket |
22 D |
| W15/1 |
Ground (right footwell) |
13 E |
| W15/1 |
Ground (right footwell) |
16 E |
| W17/1 |
Ground (left rear seat) |
48 E |
| W29/2 |
Ground (right A-pillar) |
16 H |
| W29/2 |
Ground (right A-pillar) |
20 H |
| W6 |
Ground (left wheelhouse in luggage compartment) |
30 L |
| W6/6 |
Ground (left spare tire well) |
8 L |
| W7 |
Ground (right wheelhouse in luggage compartment) |
2 E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
8 L |
| W7 |
Ground (right wheelhouse in luggage compartment) |
32 L |
| X18 |
Interior/cockpit connector |
14 H |
| X18 |
Interior/cockpit connector |
21 E |
| X29/6 |
Center console intermediate connector |
11 E |
| X29/6 |
Center console intermediate connector |
17 E |
| X29/6 |
Center console intermediate connector |
36 E |
| X30/4 |
Right voltage distributor (CAN) connector |
6 L |
| X30/5 |
Left voltage distributor (CAN) connector |
6 L |
| X58/17 |
Front interior socket |
15 L |
| X58/17 |
Front interior socket |
21 L |
| X58/19 |
Left 2nd seat row socket |
17 L |
| X58/20 |
Right 2nd seat row socket |
11 L |
| X58/20 |
Right 2nd seat row socket |
19 L |

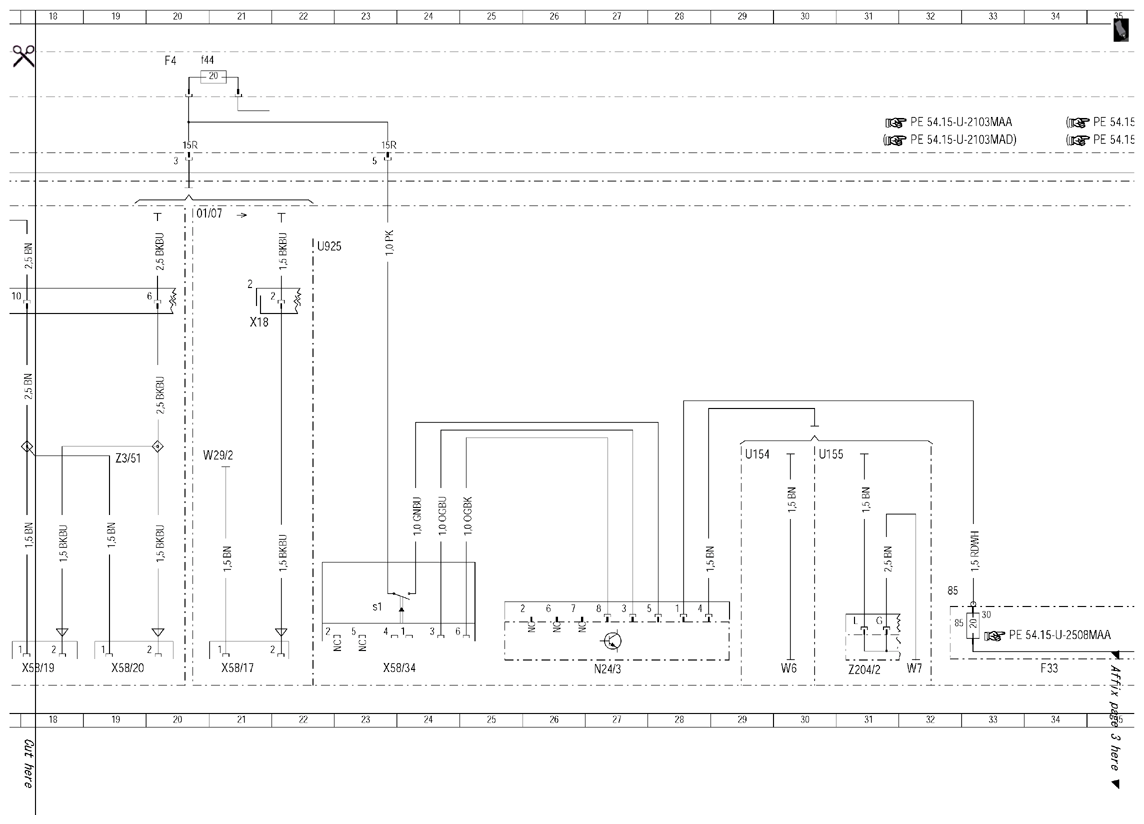

| X58/34 |
115 V socket |
23 L |
| X58/34s1 |
Socket microswitch |
23 K |
| X58/4 |
Load compartment socket |
9 L |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
48 L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
31 L |
| Z3/51 |
Front center console connector sleeve, circuit 15R |
19 H |
| Z51/6 |
Circuit 58d interior connector sleeve |
48 L |
| Z61/4 |
Front center console circuit 31 connector sleeve |
42 L |
| Z61/5 |
Circuit 31 center console wiring harness connector sleeve |
17 H |
| Z81/8 |
Front center console circuit 58d connector sleeve |
45 L |
