Remove/install fog lamp - AR82.10-P-5103GZ

MODEL 164.1

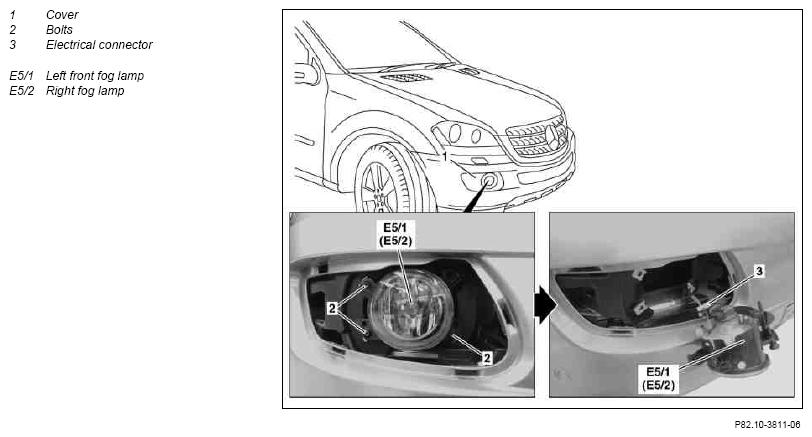

Fig 1: Identifying Fog Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key from EIS control unit	On vehicles with keyless go, Code 889: Press keyless go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store outside transmitter range (at least 2 m).
2	Remove cover (1)	Long wedge	Figure
3	Unscrew bolts (2)
4	Take out left front fog lamp (E5/1) or right front fog lamp (E5/2) and disconnect electrical connector (3)
5	Install in the reverse order

Fig 2: Identifying Longitudinal Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
