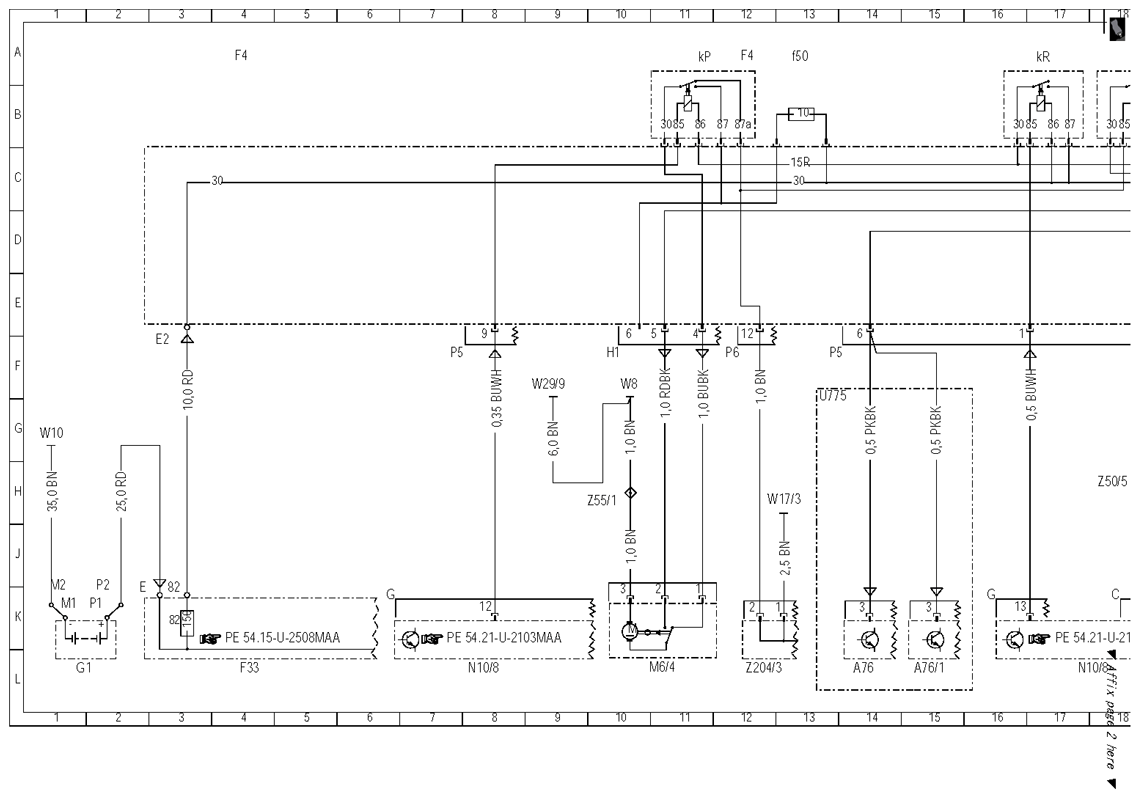

| A76 |
Left front reversible emergency tensioning retractor |
14 L |
| A76/1 |
Right front reversible emergency tensioning retractor |
15 L |

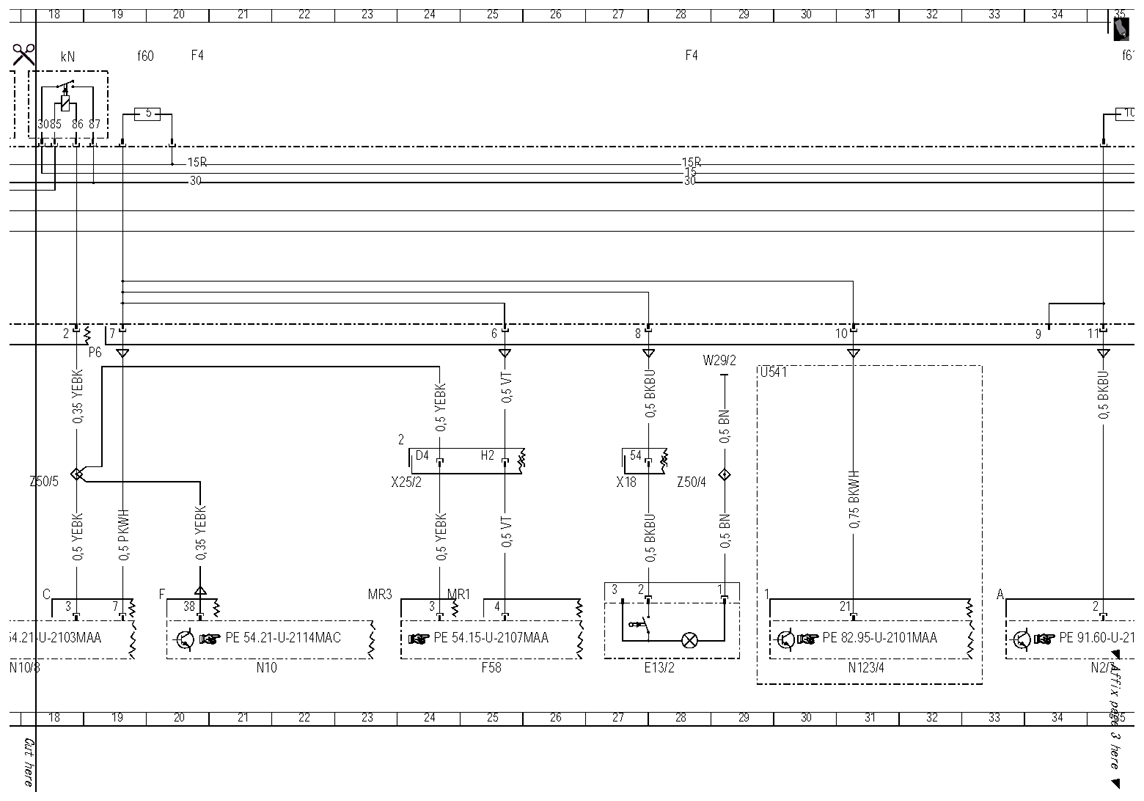

| E13/2 |
Glove compartment illumination with switch |
27 L |
| F33 |
Battery compartment prefuse box |
4 L |
| F33f82 |
Fuse 82 |
3 K |
| F4 |
Load compartment fuse and relay box |
4 A |
| F4 |
Load compartment fuse and relay box |
12 A |
| F4 |
Load compartment fuse and relay box |
20 A |
| F4 |
Load compartment fuse and relay box |
28 A |
| F4 |
Load compartment fuse and relay box |
36 A |
| F4 |
Load compartment fuse and relay box |
44 A |
| F4 |
Load compartment fuse and relay box |
52 A |
| F4 |
Load compartment fuse and relay box |
60 A |
| F4 |
Load compartment fuse and relay box |
68 A |
| F4 |
Load compartment fuse and relay box |
77 A |

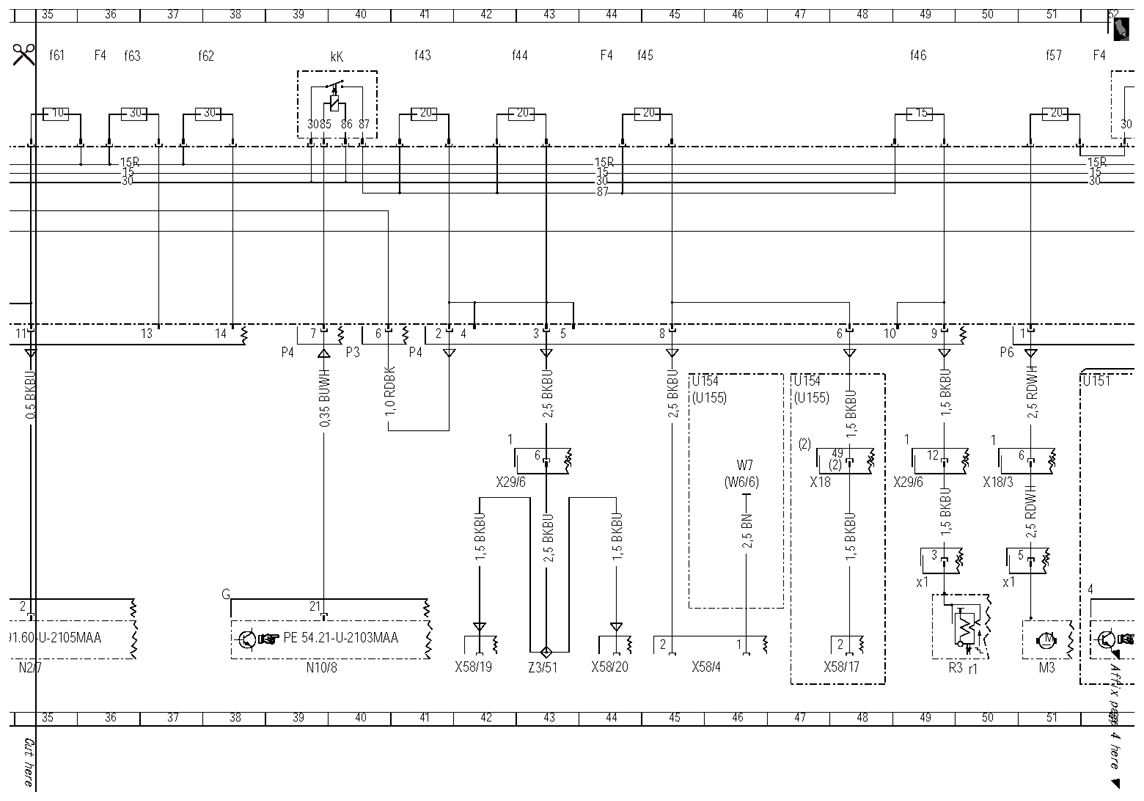

| F4f43 |
Fuse 43 |
41 A |
| F4f44 |
Fuse 44 |
42 A |
| F4f45 |
Fuse 45 |
44 A |
| F4f46 |
Fuse 46 |
49 A |

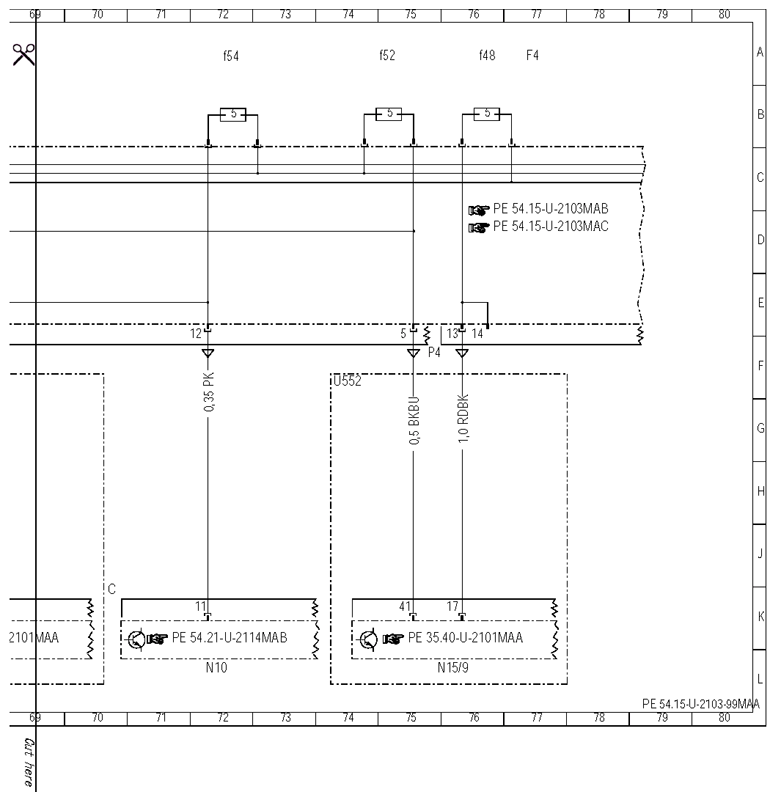

| F4f48 |
Fuse 48 |
76 A |
| F4f50 |
Fuse 50 |
13 A |
| F4f51 |
Fuse 51 |
64 A |
| F4f52 |
Fuse 52 |
74 A |
| F4f54 |
Fuse 54 |
72 A |
| F4f56 |
Fuse 56 |
65 A |
| F4f57 |
Fuse 57 |
51 A |
| F4f60 |
Fuse 60 |
19 A |
| F4f61 |
Fuse 61 |
35 A |
| F4f62 |
Fuse 62 |
37 A |
| F4f63 |
Fuse 63 |
36 A |
| F4kK |
Socket circuit 15R relay (with run-on) |
39 A |
| F4kN |
Circuit 15 (1)/spare 1 relay (changeover contact) |
18 A |

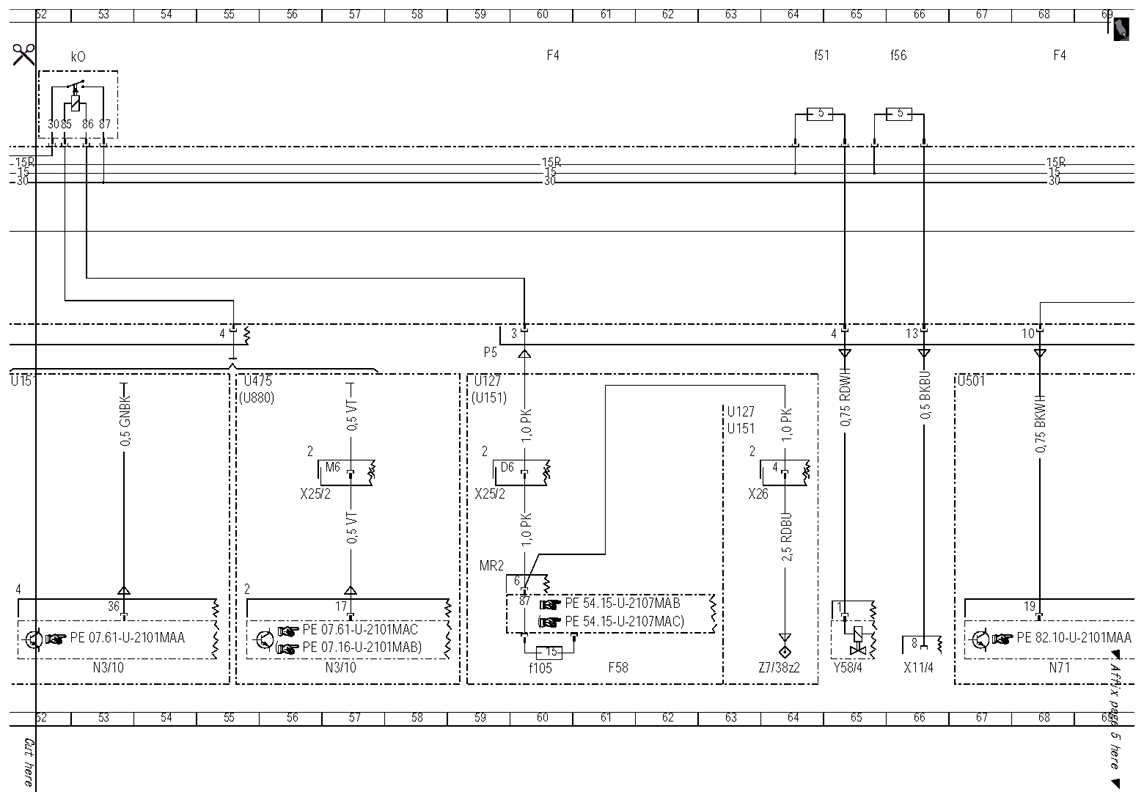

| F4kO |
Fuel pump relay |
52 A |
| F4kP |
Rear wiper relay |
11 A |
| F4kR |
Circuit 15R relay |
16 A |
| F58 |
Engine compartment fuse and relay box |
25 L |
| F58 |
Engine compartment fuse and relay box |
61 L |
| F58f105 |
Fuse 105 |
60 L |
| G1 |
Battery |
1 L |
| M3 |
Right fuel pump |
51 L |
| M3x1 |
Right fuel pump connector |
50 K |
| M6/4 |
Tailgate wiper motor |
10 L |
| N10 |
Front SAM control unit |
21 L |
| N10 |
Front SAM control unit |
72 L |
| N10/8 |
Rear SAM control unit |
8 L |
| N10/8 |
Rear SAM control unit |
17 L |
| N10/8 |
Rear SAM control unit |
39 L |
| N123/4 |
Emergency call system control unit |
31 L |
| N15/9 |
Rear axle differential lock control unit |
75 L |
| N2/7 |
Restraint systems control unit |
34 L |
| N3/10 |
ME-SFI [ME] control unit |
53 L |
| N3/10 |
ME-SFI [ME] control unit |
56 L |
| N71 |
Headlamp range adjustment control unit |
68 L |
| R3 |
Front cigar lighter (with ashtray illumination) |
49 L |
| R3r1 |
Heating element |
50 L |
| R3x1 |
Front cigar lighter (with ashtray illumination) connector |
49 K |
| U127 |
Valid for engine 272, engine 273 KE |
59 F |
| U127 |
Valid for engine 272, engine 273 KE |
63 G |
| U151 |
Valid for engine 113 |
51 F |
| U151 |
Valid for engine 113 |
59 G |
| U151 |
Valid for engine 113 |
63 G |
| U154 |
Valid for 164.1 |
45 F |
| U154 |
Valid for 164.1 |
47 F |
| U155 |
Valid for 164.8 |
45 G |
| U155 |
Valid for 164.8 |
47 G |
| U475 |
Valid for M 272 |
55 F |
| U501 |
Valid for xenon headlamps |
67 F |
| U541 |
Valid for TELE AID emergency call system |
29 F |
| U552 |
Valid for offroad package |
74 F |
| U775 |
Valid for reversible emergency tensioning retractor |
13 G |
| U880 |
Valid for engine 642 |
55 G |
| W10 |
Ground (battery) |
1 G |
| W17/3 |
Ground 2 (right rear seat) |
12 H |
| W29/2 |
Ground (right A-pillar) |
28 F |
| W29/9 |
Ground (right D-pillar) |
9 F |
| W6/6 |
Ground (left spare tire well) |
46 H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
46 H |
| W8 |
Ground (rear-end door) |
10 F |
| X11/4 |
Data link connector |
66 L |
| X18 |
Interior/cockpit connector |
27 H |
| X18 |
Interior/cockpit connector |
47 H |
| X18/3 |
Interior/fuel tank connector |
50 H |
| X25/2 |
Engine compartment/interior compartment connector |
23 H |
| X25/2 |
Engine compartment/interior compartment connector |
56 H |
| X25/2 |
Engine compartment/interior compartment connector |
59 H |
| X26 |
Interior and engine wiring harness connector |
63 H |
| X29/6 |
Center console intermediate connector |
42 H |
| X29/6 |
Center console intermediate connector |
48 H |
| X58/17 |
Front interior socket |
47 L |
| X58/19 |
Left 2nd seat row socket |
41 L |
| X58/20 |
Right 2nd seat row socket |
44 L |
| X58/4 |
Load compartment socket |
45 L |
| Y58/4 |
Activated charcoal filter shutoff valve |
65 L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
12 L |
| Z3/51 |
Front center console connector sleeve, circuit 15R |
43 L |
| Z50/4 |
Circuit 31 cockpit connector sleeve (2, right) |
28 H |
| Z50/5 |
Tml. 15 connector sleeve |
18 H |
| Z55/1 |
Rear-end door circuit 31 connector sleeve |
9 H |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
63 L |
