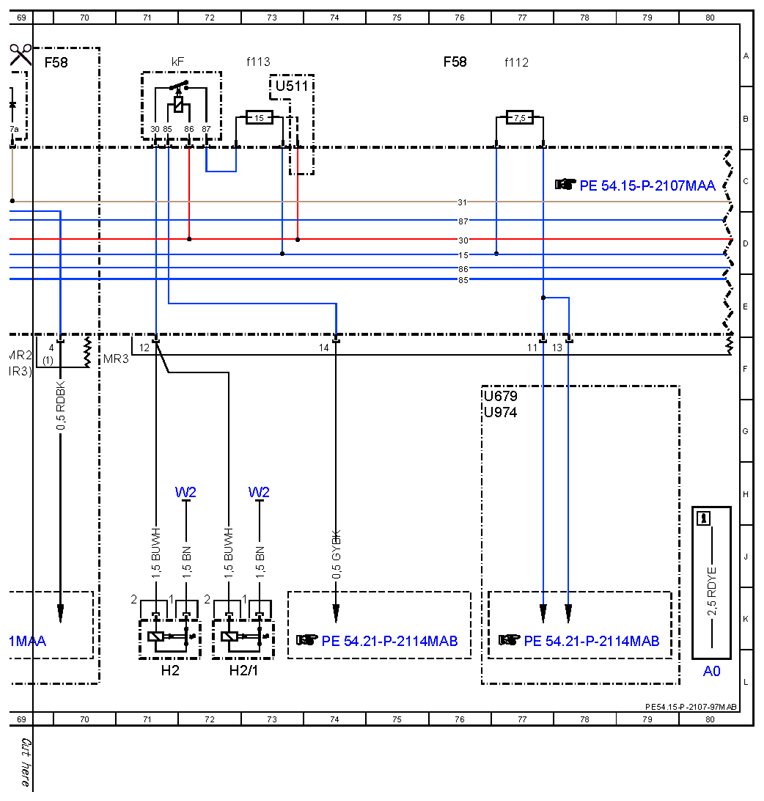

| A0 |
Color code key |
80L |

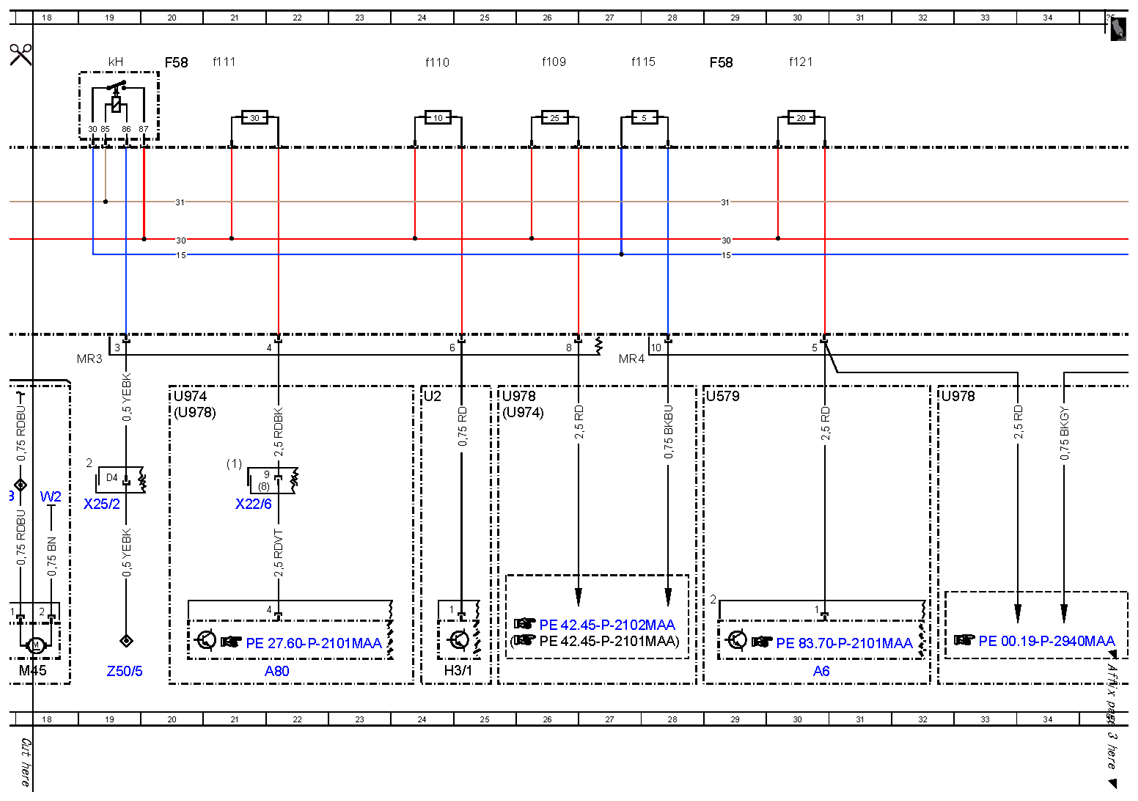

| A6 |
STH heater unit |
30L |
| A80 |
Intelligent servo module for DIRECT SELECT |
22L |

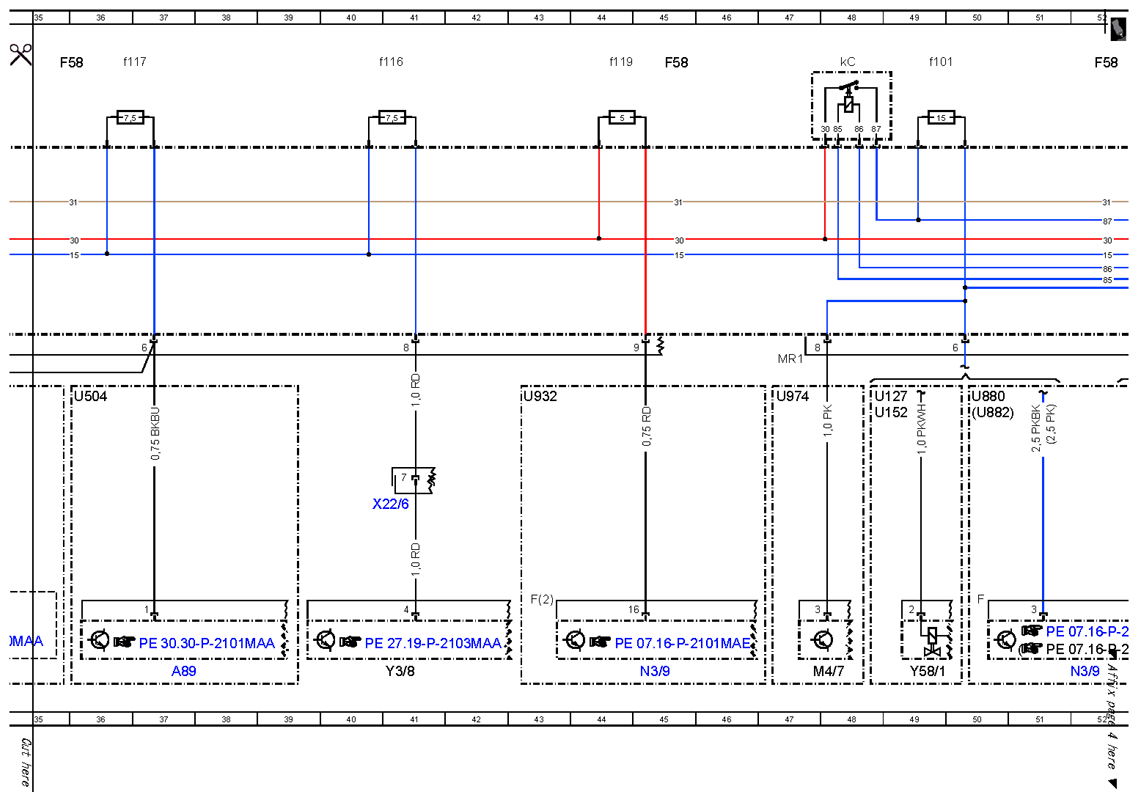

| A89 |
DTR control unit |
37L |
| F4 |
Load compartment fuse and relay box |
4L |
| F4f60 |
Fuse 60 |
2L |
| F58 |
Engine compartment fuse and relay box |
6A |
| F58 |
Engine compartment fuse and relay box |
10A |
| F58 |
Engine compartment fuse and relay box |
29A |
| F58 |
Engine compartment fuse and relay box |
20A |
| F58 |
Engine compartment fuse and relay box |
35A |
| F58 |
Engine compartment fuse and relay box |
45A |
| F58 |
Engine compartment fuse and relay box |
52A |
| F58 |
Engine compartment fuse and relay box |
61A |
| F58 |
Engine compartment fuse and relay box |
69A |
| F58 |
Engine compartment fuse and relay box |
76A |
| F58f100 |
Fuse 100 |
5A |
| F58f101 |
Fuse 101 |
49A |
| F58f102 |
Fuse 102 |
14A |

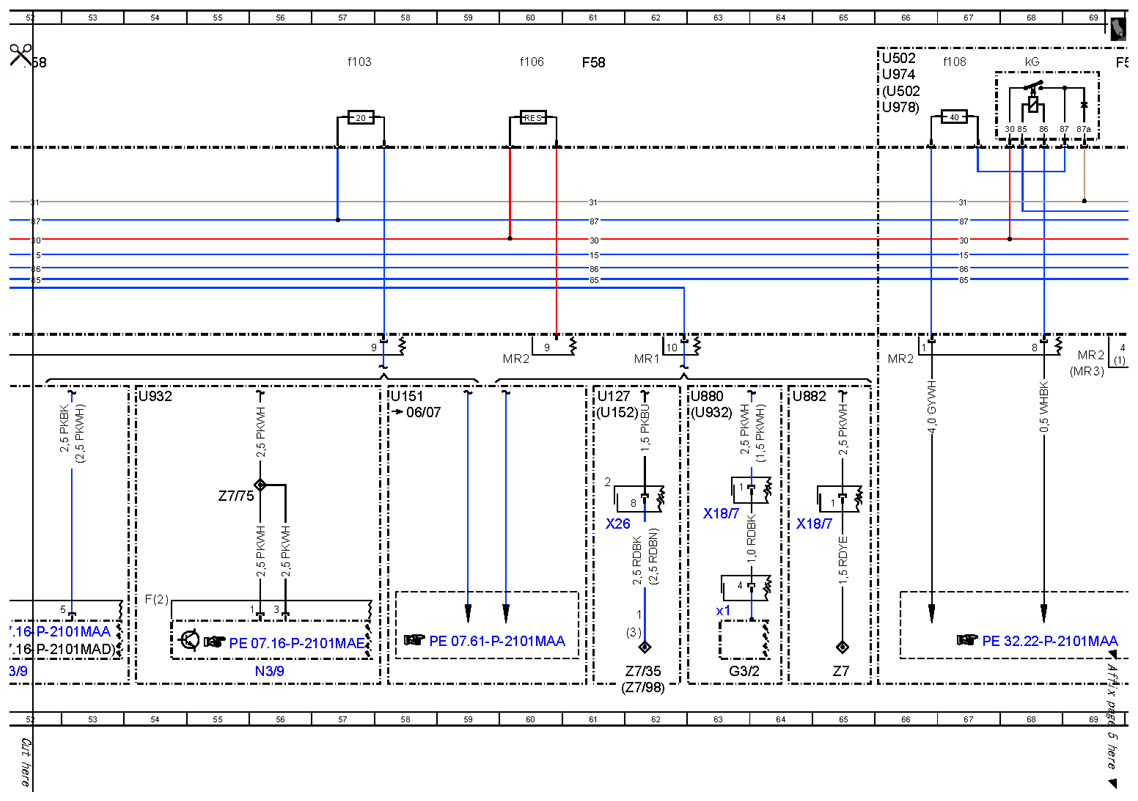

| F58f103 |
Fuse 103 |
57A |
| F58f106 |
Fuse 106 |
60A |
| F58f108 |
Fuse 108 |
67A |
| F58f109 |
Fuse 109 |
26A |
| F58f110 |
Fuse 110 |
24A |
| F58f111 |
Fuse 111 |
21A |
| F58f112 |
Fuse 112 |
77B |
| F58f113 |
Fuse 113 |
73A |
| F58f115 |
Fuse 115 |
27A |
| F58f116 |
Fuse 116 |
41A |
| F58f117 |
Fuse 117 |
36A |
| F58f119 |
Fuse 119 |
44A |
| F58f121 |
Fuse 121 |
30A |

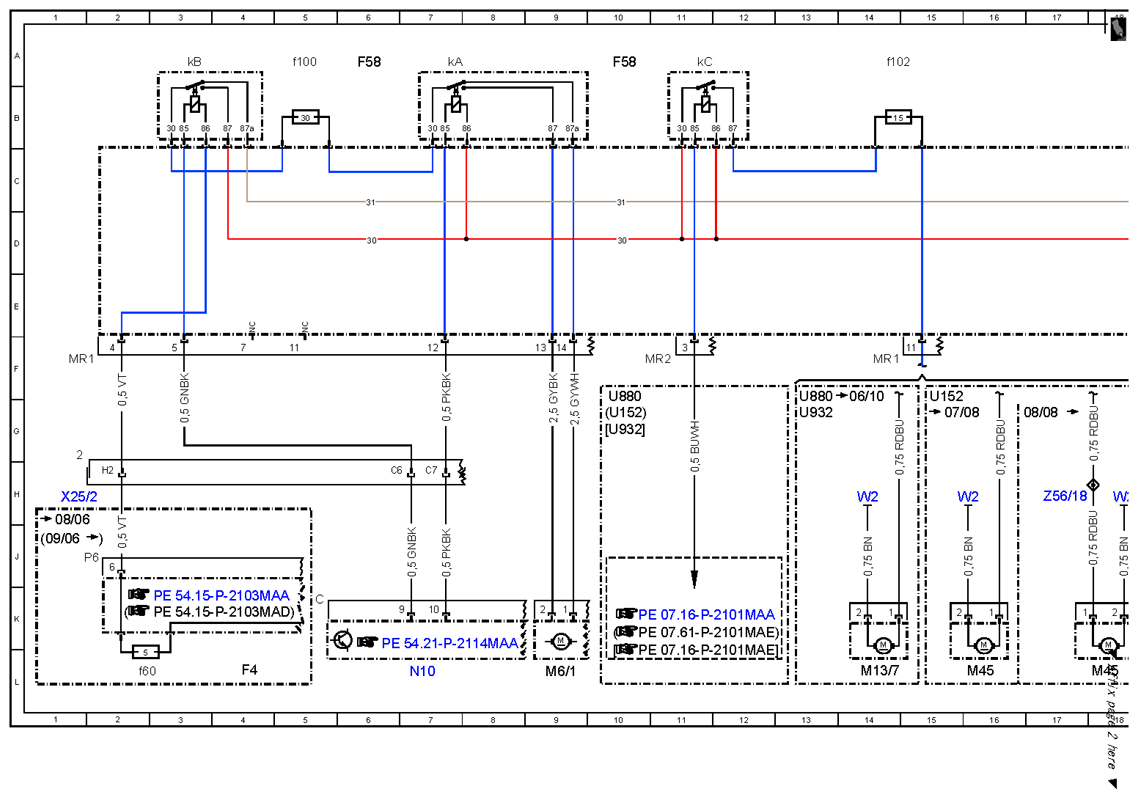

| F58kA |
Wiper level 1/2 relay |
7A |
| F58kB |
Wiper ON/OFF relay |
3A |
| F58kC |
Coolant circulation pump relay |
11A |
| F58kC |
Coolant circulation pump relay |
48A |
| F58kF |
Fanfare horn relay |
71A |
| F58kG |
Air suspension compressor |
68A |
| F58kH |
Circuit 15 relay |
19A |
| G3/2 |
O2 sensor upstream of TWC [KAT] |
63L |
| G3/2x1 |
O2 sensor upstream of TWC [KAT] connector |
63K |
| H2 |
Left fanfare horn |
71L |
| H2/1 |
Right fanfare horn |
72L |
| H3/1 |
Alarm signal siren |
24L |
| M13/7 |
Transmission oil cooler circulation pump |
14L |
| M4/7 |
Engine and AC electric suction fan with integrated control |
48L |
| M45 |
Engine coolant circulation pump |
16L |
| M45 |
Engine coolant circulation pump |
18L |
| M6/1 |
Wiper motor |
9L |
| N10 |
Front SAM control unit |
7L |
| N3/9 |
CDI control unit |
45L |
| N3/9 |
CDI control unit |
52L |
| N3/9 |
CDI control unit |
56L |
| U127 |
Valid for engine 272, engine 273 KE |
48G |
| U127 |
Valid for engine 272, engine 273 KE |
61G |
| U151 |
Valid for engine 113 |
58G |
| U152 |
Valid for engine 156 |
15G |
| U152 |
Valid for engine 156 |
48G |
| U152 |
Valid for engine 156 |
61F |
| U152 |
Valid for engine 156 |
10F |
| U2 |
Valid for all except {{USA}} |
24G |
| U502 |
Valid for AIRMATIC |
66A |
| U502 |
Valid for AIRMATIC |
66B |
| U504 |
Valid for DTR |
36G |
| U511 |
Valid for customer request option |
73B |
| U579 |
Valid for stationary heater |
29G |
| U679 |
Valid for version without xenon headlamps |
76G |
| U880 |
Valid for engine 642 |
10G |
| U880 |
Valid for engine 642 |
13G |
| U880 |
Valid for engine 642 |
50G |
| U880 |
Valid for engine 642 |
63G |
| U882 |
Valid for engine 629 |
64G |
| U882 |
Valid for engine 629 |
50G |
| U932 |
Valid for engine 642 BLUETEC |
13G |
| U932 |
Valid for engine 642 BLUETEC |
43G |
| U932 |
Valid for engine 642 BLUETEC |
54G |
| U932 |
Valid for engine 642 BLUETEC |
42G |
| U932 |
Valid for engine 642 BLUETEC |
10G |
| U974 |
Not valid for full hybrid drive |
66A |
| U974 |
Not valid for full hybrid drive |
76G |
| U974 |
Not valid for full hybrid drive |
47G |
| U974 |
Not valid for full hybrid drive |
20G |
| U974 |
Not valid for full hybrid drive |
25G |
| U978 |
Valid for full hybrid drive |
25G |
| U978 |
Valid for full hybrid drive |
32G |
| U978 |
Valid for full hybrid drive |
33G |
| U978 |
Valid for full hybrid drive |
20G |
| W2 |
Ground (right front, at lamp unit) |
14H |
| W2 |
Ground (right front, at lamp unit) |
16H |
| W2 |
Ground (right front, at lamp unit) |
18H |
| W2 |
Ground (right front, at lamp unit) |
72H |
| W2 |
Ground (right front, at lamp unit) |
73H |
| X18/7 |
Interior/engine connector |
63H |
| X18/7 |
Interior/engine connector |
65J |
| X22/6 |
Automatic transmission/intelligent servo module connector |
21H |
| X22/6 |
Automatic transmission/intelligent servo module connector |
41H |
| X25/2 |
Engine compartment/interior compartment connector |
1H |
| X25/2 |
Engine compartment/interior compartment connector |
19H |
| X26 |
Interior and engine wiring harness connector |
61J |
| Y3/8 |
Electric control unit (VGS) |
41L |
| Y58/1 |
Purge control valve |
49L |
| Z50/5 |
Tml. 15 connector sleeve |
19L |
| Z56/18 |
Low temperature water pump connector sleeve |
17H |
| Z7 |
Tml. 30 connector sleeve |
65L |
| Z7/35 |
Circuit 87 M1e connector sleeve |
62L |
| Z7/75 |
Circuit 87 D3 connector sleeve |
55H |
| Z7/98 |
Circuit 87 M3e connector sleeve |
62L |
