| A0 |
Color code key |
80L |
| A1 |
Instrument cluster |
16L |
| A100 |
High-voltage battery module |
2L |
| A100 |
High-voltage battery module |
73L |
| A76 |
Left front reversible emergency tensioning retractor |
20L |
| A76/1 |
Right front reversible emergency tensioning retractor |
21L |
| A90/1 |
TV combination tuner (analog/digital) |
10L |
| A90/1 |
TV combination tuner (analog/digital) |
10L |
| A90/3 |
TV digital tuner |
11L |

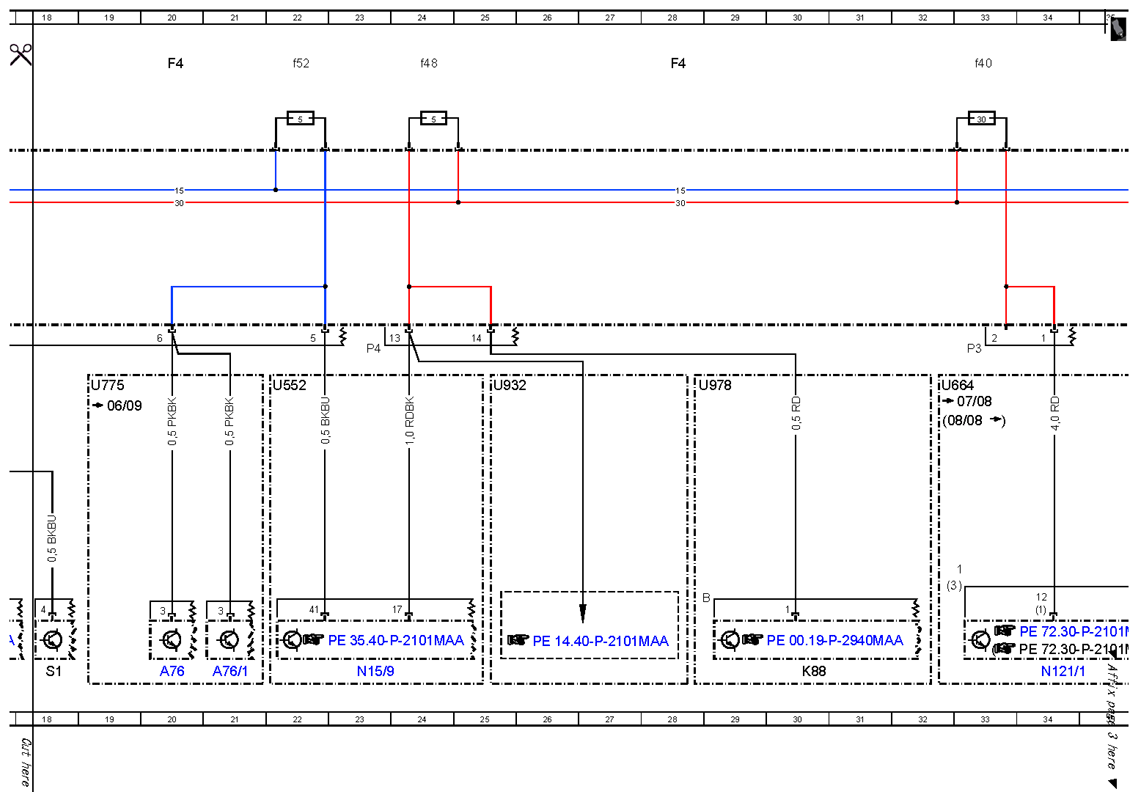

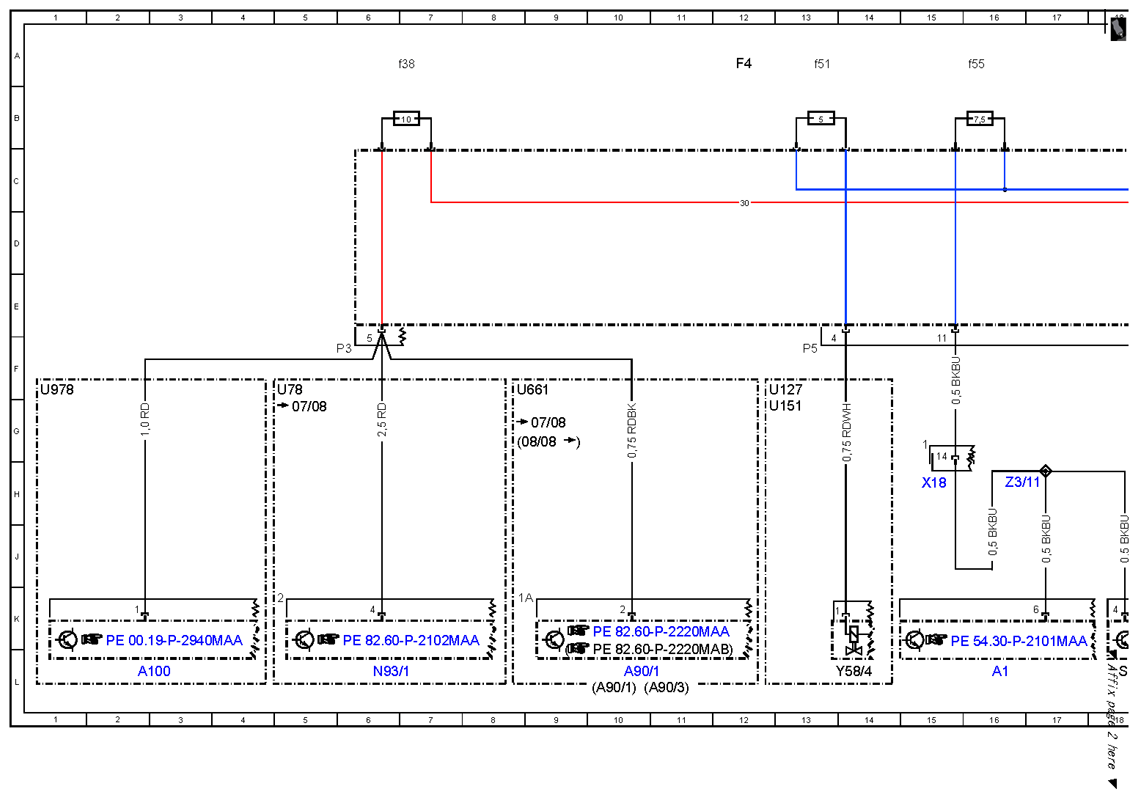

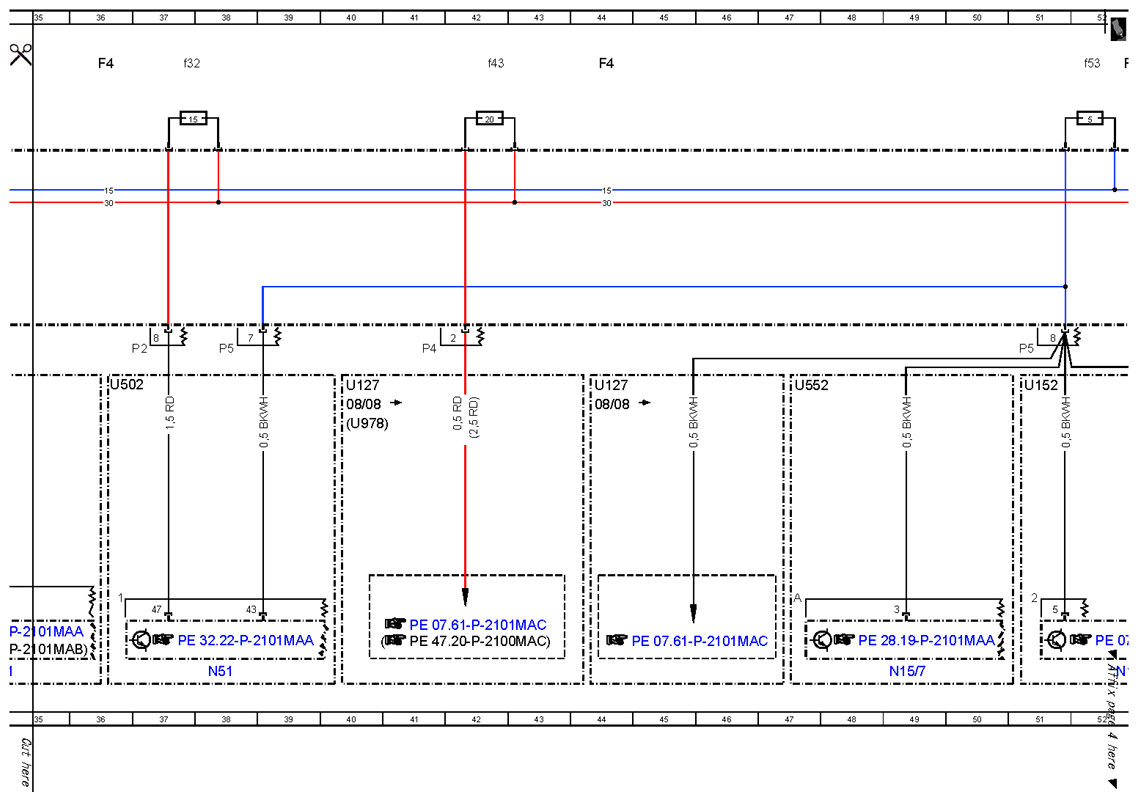

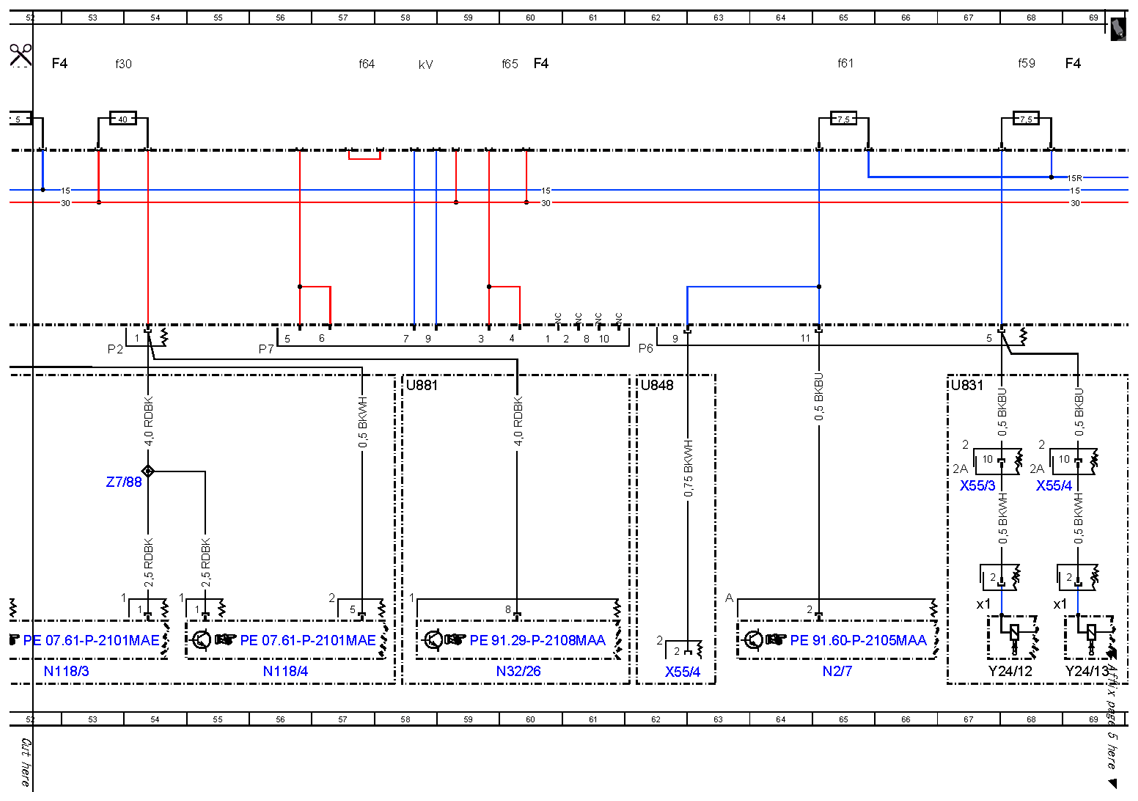

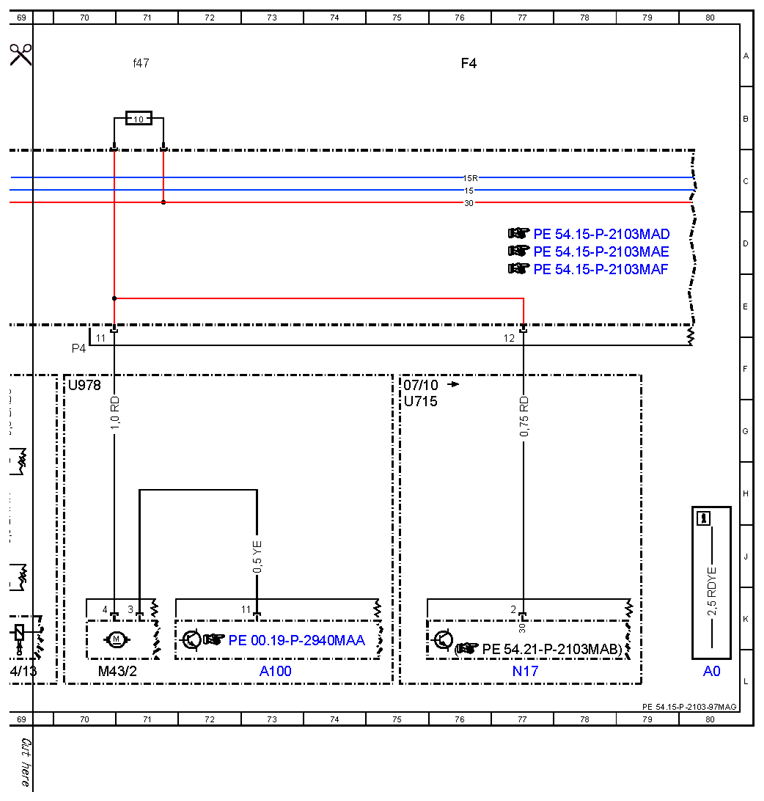

| F4 |
Load compartment fuse and relay box |
12A |
| F4 |
Load compartment fuse and relay box |
20A |
| F4 |
Load compartment fuse and relay box |
28A |
| F4 |
Load compartment fuse and relay box |
36A |
| F4 |
Load compartment fuse and relay box |
44A |
| F4 |
Load compartment fuse and relay box |
52A |
| F4 |
Load compartment fuse and relay box |
60A |
| F4 |
Load compartment fuse and relay box |
69A |
| F4 |
Load compartment fuse and relay box |
76A |
| F4f30 |
Fuse 30 |
53A |
| F4f32 |
Fuse 32 |
37A |
| F4f38 |
Fuse 38 |
7A |
| F4f40 |
Fuse 40 |
33A |
| F4f43 |
Fuse 43 |
42A |
| F4f47 |
Fuse 47 |
71A |
| F4f48 |
Fuse 48 |
24A |
| F4f51 |
Fuse 51 |
13A |
| F4f52 |
Fuse 52 |
22A |
| F4f53 |
Fuse 53 |
52A |
| F4f55 |
Fuse 55 |
16A |
| F4f59 |
Fuse 59 |
68A |
| F4f61 |
Fuse 61 |
65A |
| F4f64 |
Fuse 64 |
57A |
| F4f65 |
Fuse 65 |
60A |
| F4kV |
Backup relay 2 |
58A |
| K88 |
Pyrotechnical separator |
30L |
| M43/2 |
High-voltage battery coolant pump |
70L |
| N118/3 |
Left fuel pump control unit |
52L |
| N118/4 |
Right fuel pump control unit |
56L |
| N121/1 |
Rear-end door closing control unit |
34L |
| N15/7 |
Transfer case control unit |
49L |
| N15/9 |
Rear axle differential lock control unit |
23L |
| N17 |
Illuminated door sill molding actuation module LED |
77L |
| N2/7 |
Restraint systems control unit |
65L |
| N32/26 |
Folding rear bench seat control unit |
60L |
| N51 |
AIRMATIC control unit |
38L |
| N93/1 |
Audio gateway control unit |
6L |
| S1 |
Rotary light switch |
18L |
| U127 |
Valid for engine 272, engine 273 KE |
40F |
| U127 |
Valid for engine 272, engine 273 KE |
44F |
| U127 |
Valid for engine 272, engine 273 KE |
12F |
| U151 |
Valid for engine 113 |
12G |
| U152 |
Valid for engine 156 |
51F |
| U502 |
Valid for AIRMATIC |
36F |
| U552 |
Valid for offroad package |
22F |
| U552 |
Valid for offroad package |
47F |
| U661 |
Valid for TV and video in rear |
8F |
| U664 |
Valid for automatic rear-end door |
32F |
| U715 |
Valid for illuminated door sills |
75G |
| U775 |
Valid for reversible emergency tensioning retractor |
19F |
| U78 |
Valid for {{Japan}} |
5F |
| U831 |
Valid for crash-active head restraints |
67F |
| U848 |
Valid for automatic child seat recognition ACSR [AKSE] |
62F |
| U881 |
Valid for 3rd rear seat |
58F |
| U932 |
Valid for engine 642 BLUETEC |
25F |
| U978 |
Valid for full hybrid drive |
1F |
| U978 |
Valid for full hybrid drive |
28F |
| U978 |
Valid for full hybrid drive |
70F |
| U978 |
Valid for full hybrid drive |
40G |
| X18 |
Interior/cockpit connector |
15H |
| X55/3 |
Left front seat contacting strip |
67H |
| X55/4 |
Right front seat contacting strip |
68H |
| X55/4 |
Right front seat contacting strip |
62L |
| Y24/12 |
Driver NECK-PRO head restraint solenoid |
67L |
| Y24/12x1 |
Driver NECK-PRO head restraint solenoid connector |
67K |
| Y24/13 |
Front passenger NECK-PRO head restraint solenoid |
69L |
| Y24/13x1 |
Front passenger NECK-PRO head restraint solenoid connector |
69K |
| Y58/4 |
Activated charcoal filter shutoff valve |
14L |
| Z3/11 |
Circuit 15 (fused) connector sleeve |
16H |
| Z7/88 |
Fuel pump control unit circuit 30 connector sleeve |
53H |
