| A0 |
Color code key |
80L |
| A2 |
Radio |
54L |
| A2/56 |
Radio and navigation unit |
55L |
| A28/3 |
E-net compensator |
23L |
| A40/3 |
COMAND operating, display and control unit |
51L |
| A40/3 |
COMAND operating, display and control unit |
52L |
| A40/3 |
COMAND operating, display and control unit |
56L |
| A40/3 |
COMAND operating, display and control unit |
55L |
| A40/3 |
COMAND operating, display and control unit |
51L |
| A40/3 |
COMAND operating, display and control unit |
56L |
| A40/4 |
DVD player |
36L |
| A49/6 |
Radio antenna interference filter |
77L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
77K |
| A6/1 |
STH radio remote control receiver |
16L |
| A76 |
Left front reversible emergency tensioning retractor |
8L |
| A76/1 |
Right front reversible emergency tensioning retractor |
10L |
| F4 |
Load compartment fuse and relay box |
4A |
| F4 |
Load compartment fuse and relay box |
12A |
| F4 |
Load compartment fuse and relay box |
20A |
| F4 |
Load compartment fuse and relay box |
28A |
| F4 |
Load compartment fuse and relay box |
36A |
| F4 |
Load compartment fuse and relay box |
44A |
| F4 |
Load compartment fuse and relay box |
52A |
| F4 |
Load compartment fuse and relay box |
60A |
| F4 |
Load compartment fuse and relay box |
68A |
| F4 |
Load compartment fuse and relay box |
77A |

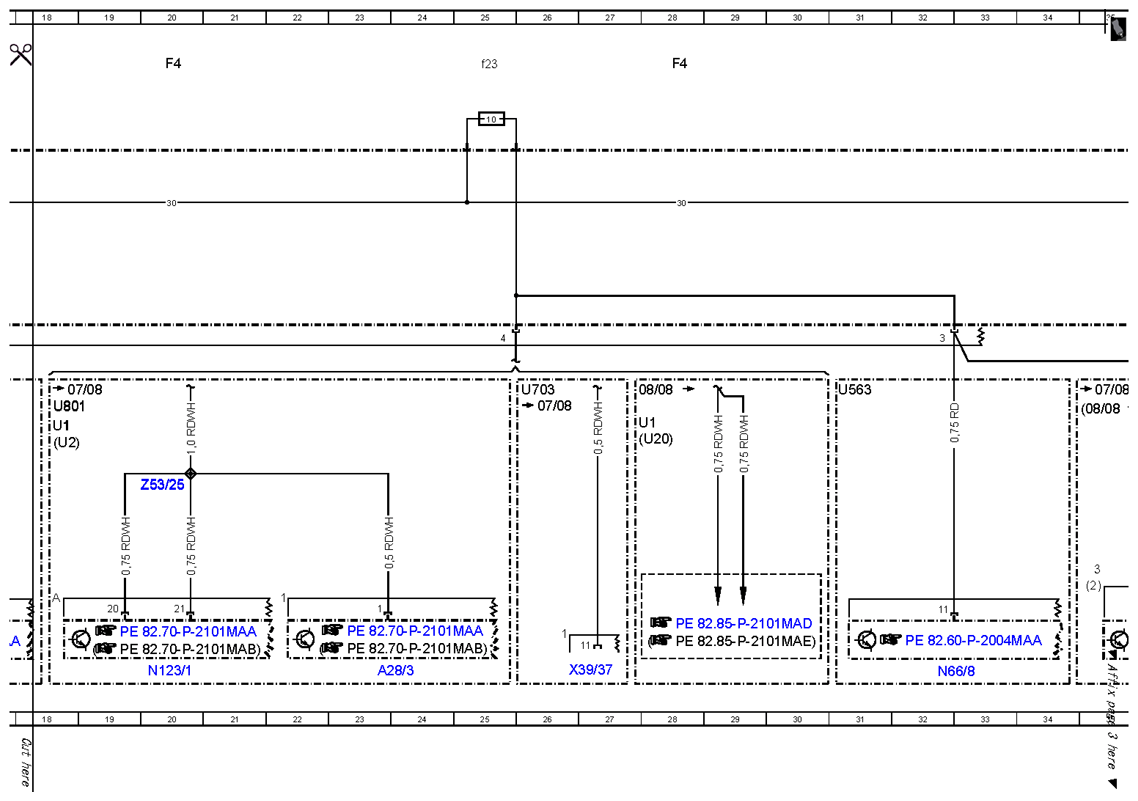

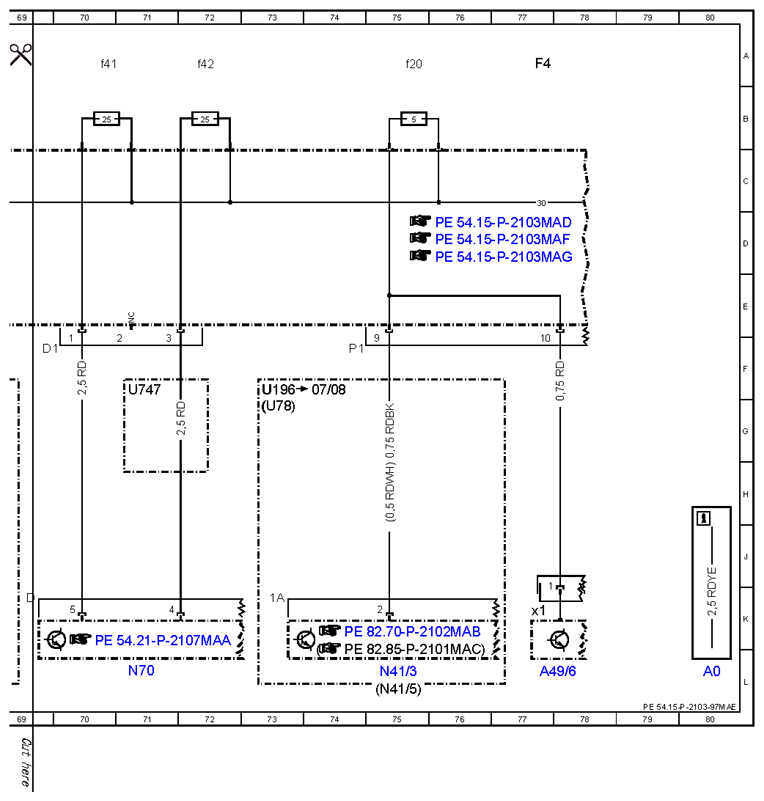

| F4f20 |
Fuse 20 |
75A |

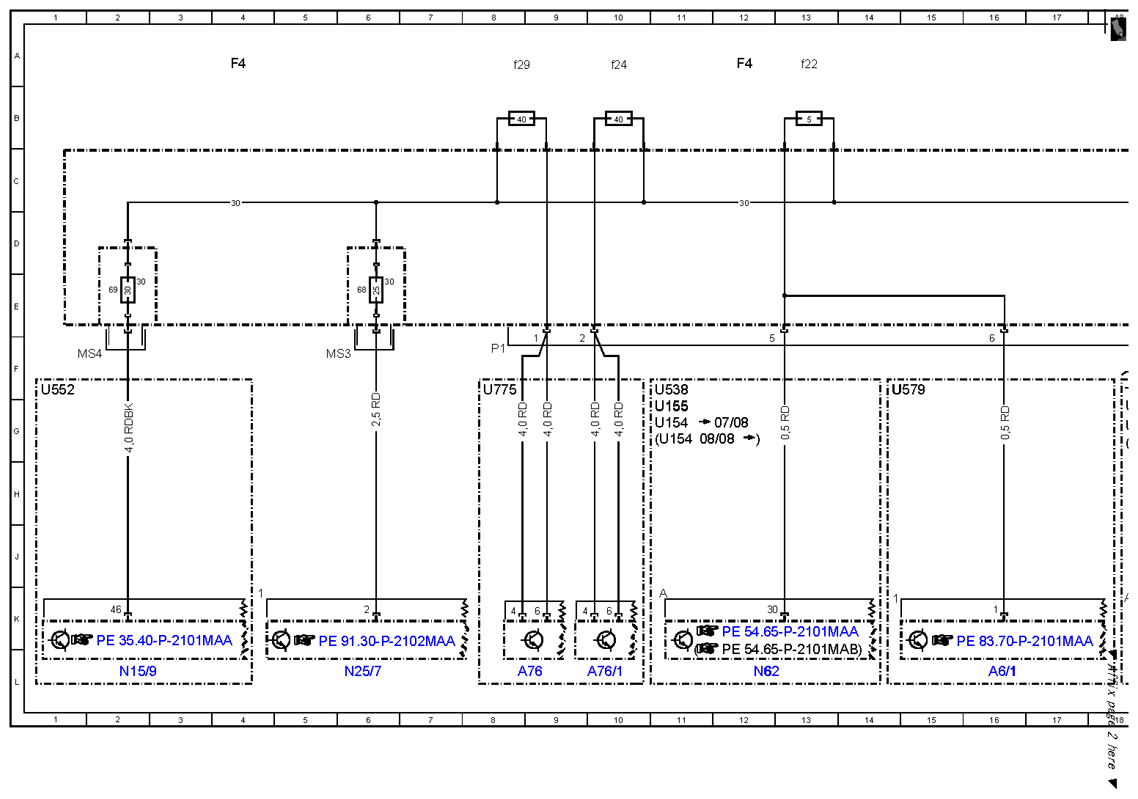

| F4f22 |
Fuse 22 |
13A |
| F4f23 |
Fuse 23 |
25A |
| F4f24 |
Fuse 24 |
10A |

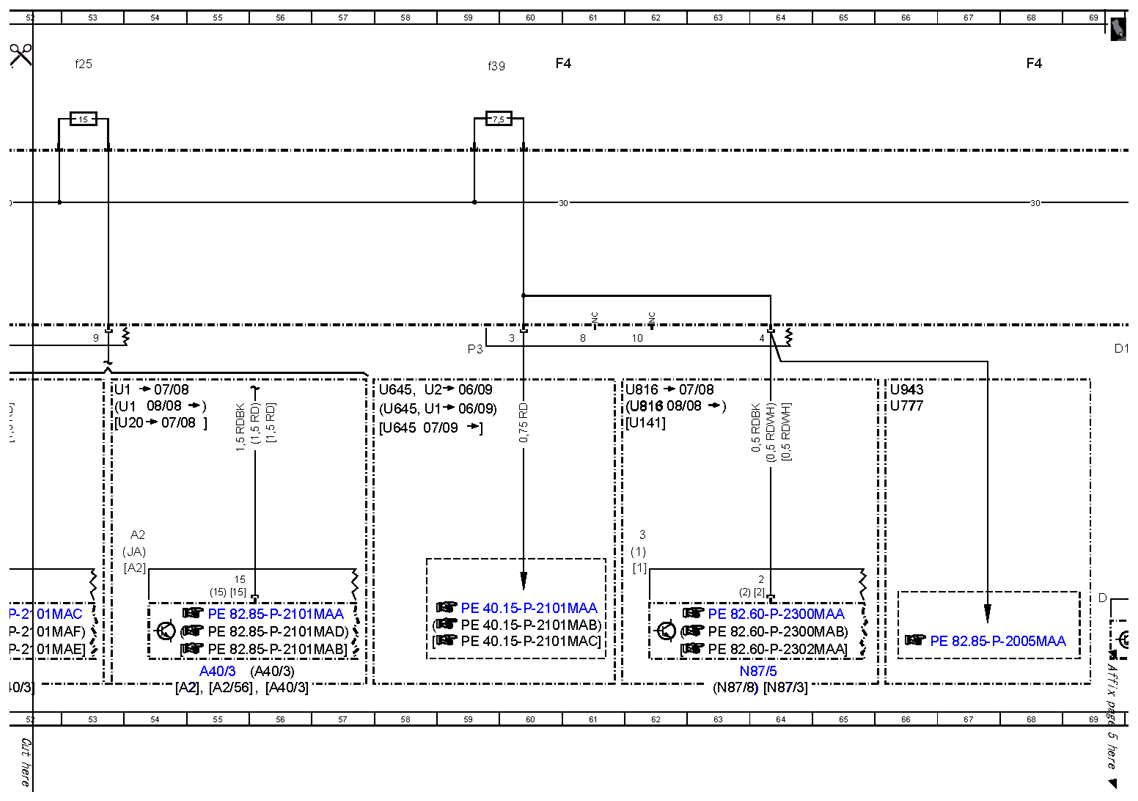

| F4f25 |
Fuse 25 |
53A |

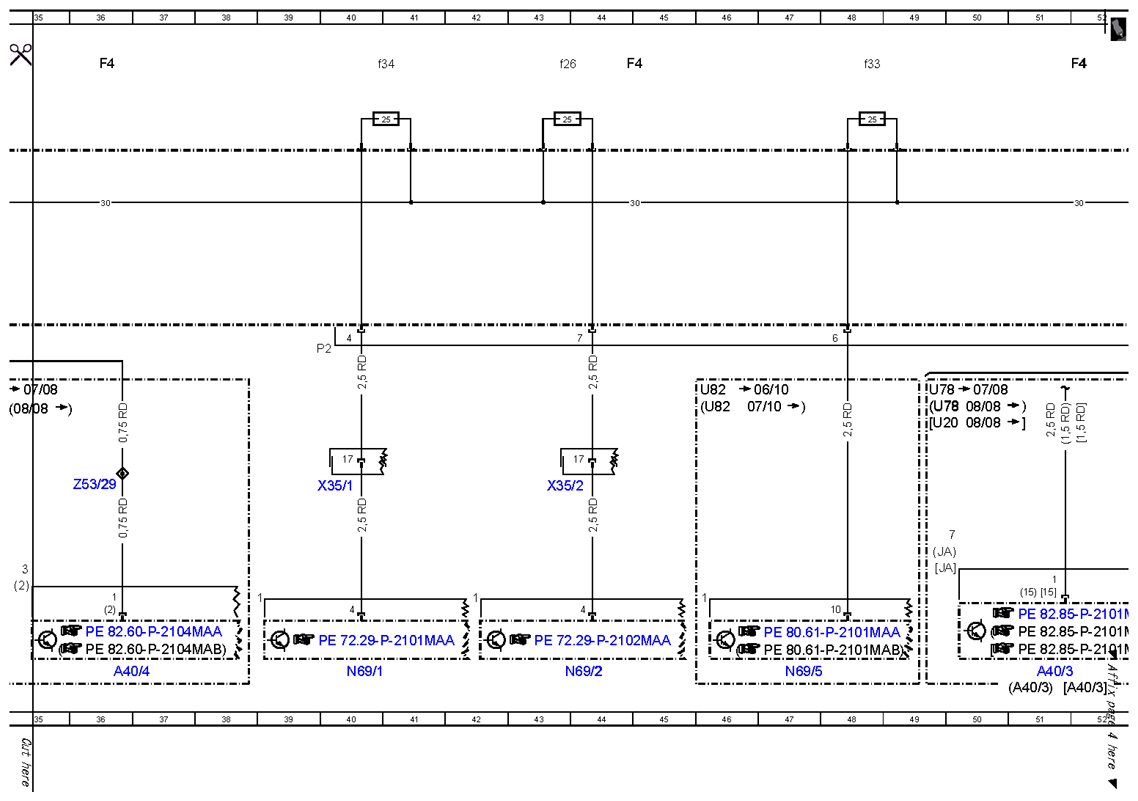

| F4f26 |
Fuse 26 |
43A |
| F4f29 |
Fuse 29 |
8A |
| F4f33 |
Fuse 33 |
48A |
| F4f34 |
Fuse 34 |
41A |
| F4f39 |
Fuse 39 |
59A |
| F4f41 |
Fuse 41 |
70A |
| F4f42 |
Fuse 42 |
72A |
| F4f68 |
Fuse 68 |
|
| F4f69 |
Fuse 69 |
|
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
20L |
| N15/9 |
Rear axle differential lock control unit |
2L |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
6L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
75L |
| N41/5 |
Microphone array control unit |
75L |
| N62 |
PTS control unit |
12L |
| N66/8 |
Rear audio control unit |
32L |
| N69/1 |
Left front door control unit |
40L |
| N69/2 |
Right front door control unit |
44L |
| N69/5 |
KEYLESS-GO control unit |
47L |
| N70 |
Overhead control panel control unit |
71L |
| N87/3 |
Digital Audio Broadcasting control unit |
64L |
| N87/5 |
SDAR control unit |
63L |
| N87/8 |
High-definition tuner control unit |
63L |
| U1 |
Valid for {{USA}} |
18G |
| U1 |
Valid for {{USA}} |
27G |
| U1 |
Valid for {{USA}} |
53F |
| U1 |
Valid for {{USA}} |
53G |
| U1 |
Valid for {{USA}} |
58G |
| U141 |
Valid for Digital Audio Broadcasting |
61G |
| U154 |
Valid for 164.1 |
11G |
| U154 |
Valid for 164.1 |
11G |
| U155 |
Valid for 164.8 |
11G |
| U196 |
Valid for VCS [SBS] |
73F |
| U2 |
Valid for all except {{USA}} |
18G |
| U2 |
Valid for all except {{USA}} |
58F |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
27G |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
53G |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
49G |
| U538 |
Valid for Parktronic System |
11F |
| U552 |
Valid for offroad package |
1F |
| U563 |
Valid for rear entertainment (DVD) |
31F |
| U579 |
Valid for stationary heater |
14F |
| U645 |
Valid for tire pressure monitor system |
58G |
| U645 |
Valid for tire pressure monitor system |
58G |
| U645 |
Valid for tire pressure monitor system |
58F |
| U703 |
Valid for portable CTEL preinstallation |
26F |
| U747 |
Valid for panoramic sliding roof |
71F |
| U775 |
Valid for reversible emergency tensioning retractor |
8F |
| U777 |
Valid for navigation |
66G |
| U78 |
Valid for {{Japan}} |
49G |
| U78 |
Valid for {{Japan}} |
49F |
| U78 |
Valid for {{Japan}} |
73G |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
18G |
| U816 |
Valid for satellite radio (SDAR) |
61G |
| U816 |
Valid for satellite radio (SDAR) |
61F |
| U82 |
Valid for KEYLESS GO |
46F |
| U82 |
Valid for KEYLESS GO |
46G |
| U943 |
Valid for South Korea |
66F |
| X35/1 |
Left front door separation point |
40H |
| X35/2 |
Right front door separation point |
43H |
| X39/37 |
CTEL separation point |
27L |
| Z53/25 |
UPCI [UHI] circuit 30 interior compartment solder point |
20H |
| Z53/29 |
Rear seat entertainment circuit 30 solder connector |
36H |
