| A0 |
Color code key |
80L |
| B29/4 |
Left rear bumper intelligent radar sensor |
17L |
| B29/4 |
Left rear bumper intelligent radar sensor |
34L |
| B29/5 |
Right rear bumper intelligent radar sensor |
18L |
| B29/5 |
Right rear bumper intelligent radar sensor |
35L |

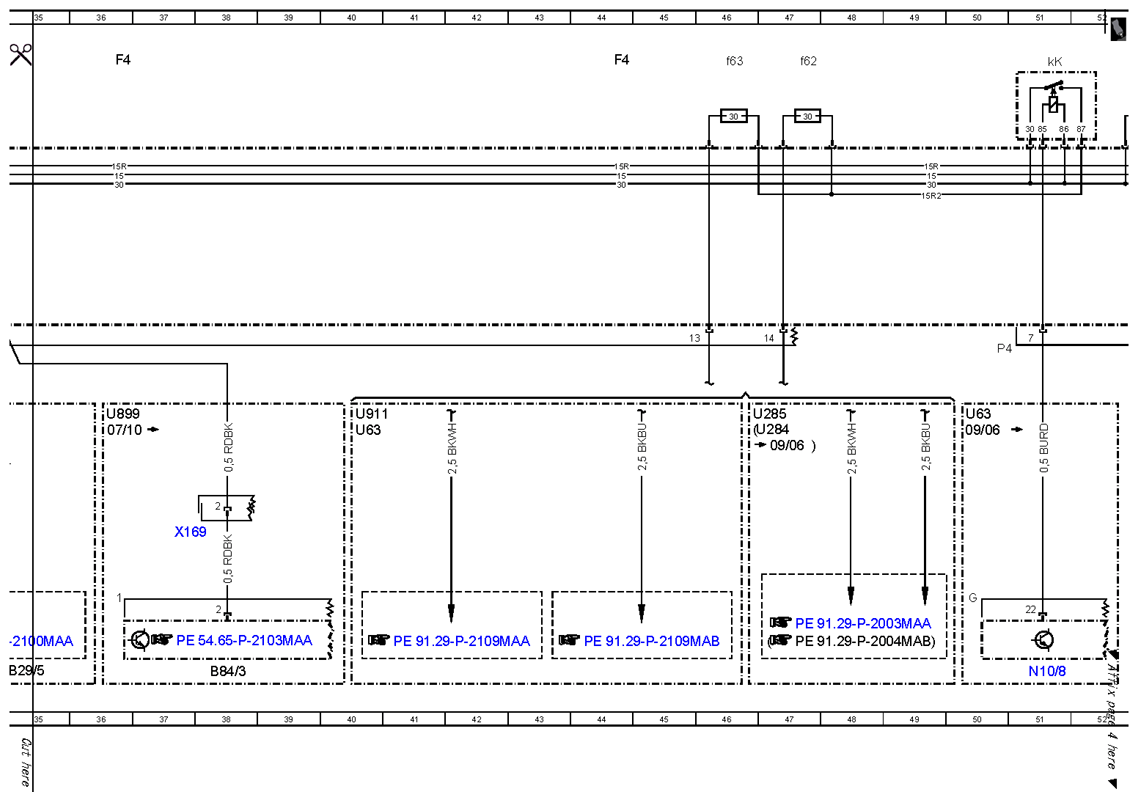

| B84/3 |
Backup camera |
38L |

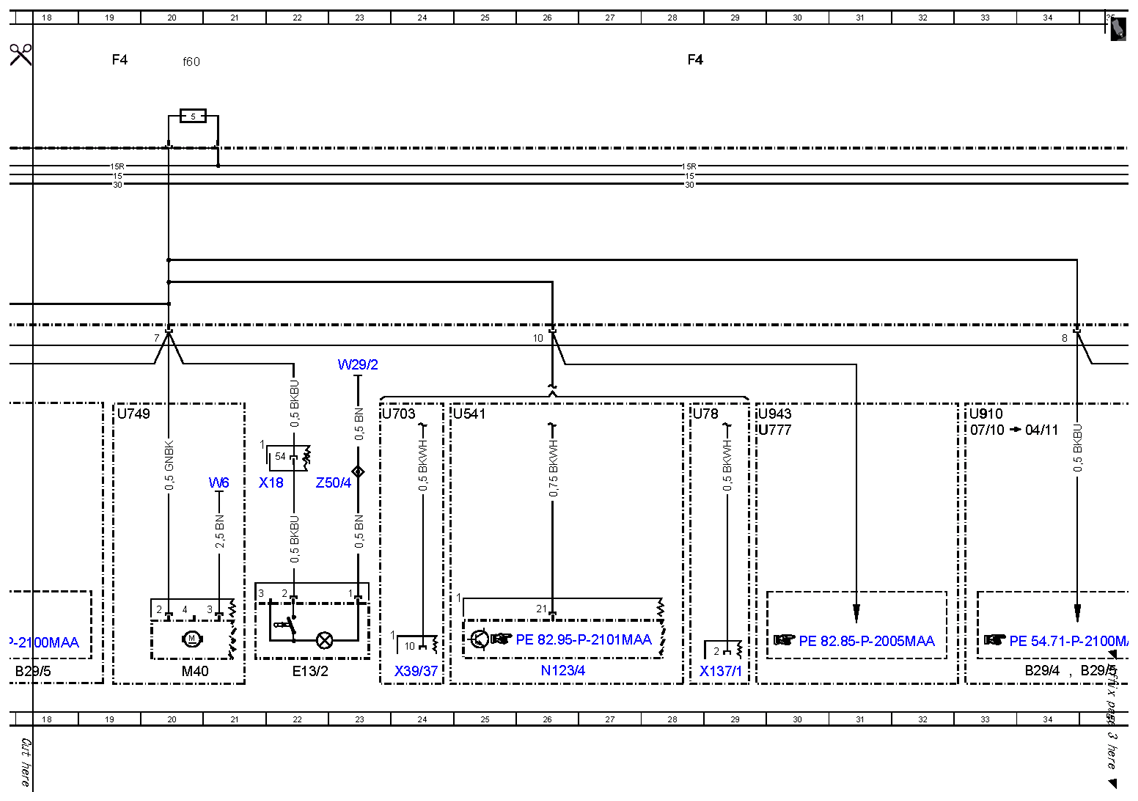

| E13/2 |
Glove compartment illumination with switch |
22L |
| F33 |
Battery compartment prefuse box |
4L |
| F33f82 |
Fuse 82 |
4K |
| F4 |
Load compartment fuse and relay box |
4A |
| F4 |
Load compartment fuse and relay box |
14A |
| F4 |
Load compartment fuse and relay box |
36A |
| F4 |
Load compartment fuse and relay box |
28A |
| F4 |
Load compartment fuse and relay box |
44A |
| F4 |
Load compartment fuse and relay box |
61A |
| F4 |
Load compartment fuse and relay box |
69A |
| F4 |
Load compartment fuse and relay box |
76A |
| F4 |
Load compartment fuse and relay box |
19A |

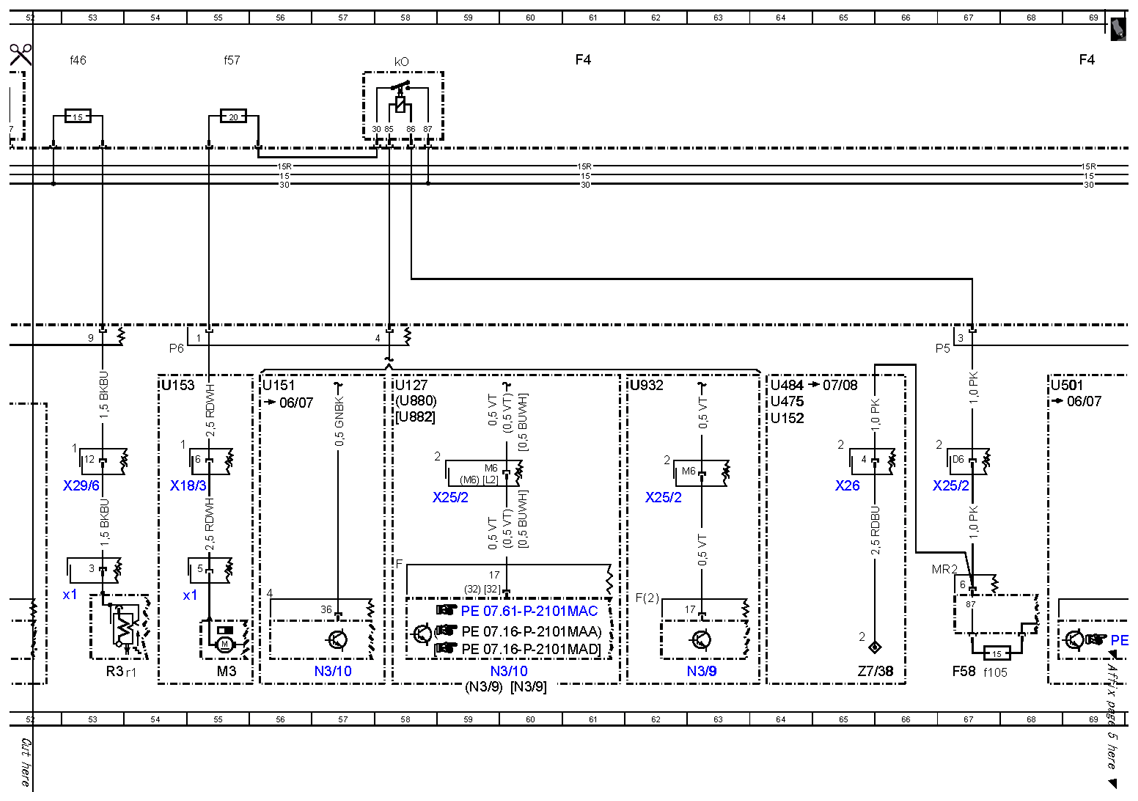

| F4f46 |
Fuse 46 |
53A |
| F4f50 |
Fuse 50 |
9A |

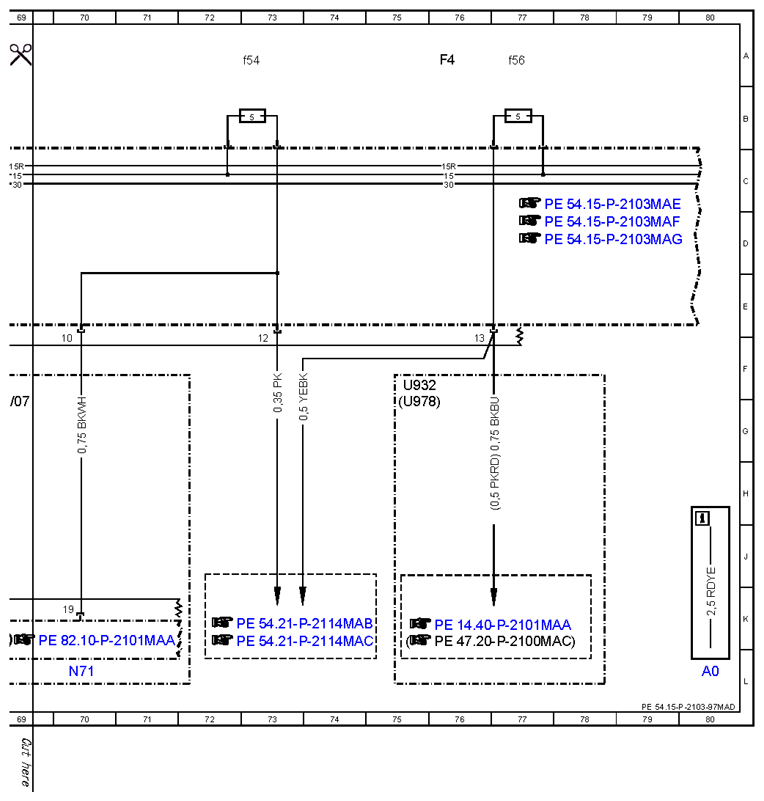

| F4f54 |
Fuse 54 |
73A |
| F4f56 |
Fuse 56 |
77A |
| F4f57 |
Fuse 57 |
55A |
| F4f60 |
Fuse 60 |
20A |
| F4f62 |
Fuse 62 |
47A |
| F4f63 |
Fuse 63 |
46A |
| F4kK |
Socket circuit 15R relay (with run-on) |
51A |
| F4kN |
Circuit 15 (1)/spare 1 relay (changeover contact) |
11A |
| F4kO |
Fuel pump relay |
58A |
| F4kP |
Rear wiper relay |
7A |
| F4kR |
Circuit 15R relay |
10A |
| F58 |
Engine compartment fuse and relay box |
14L |
| F58 |
Engine compartment fuse and relay box |
67L |
| F58f105 |
Fuse 105 |
67L |

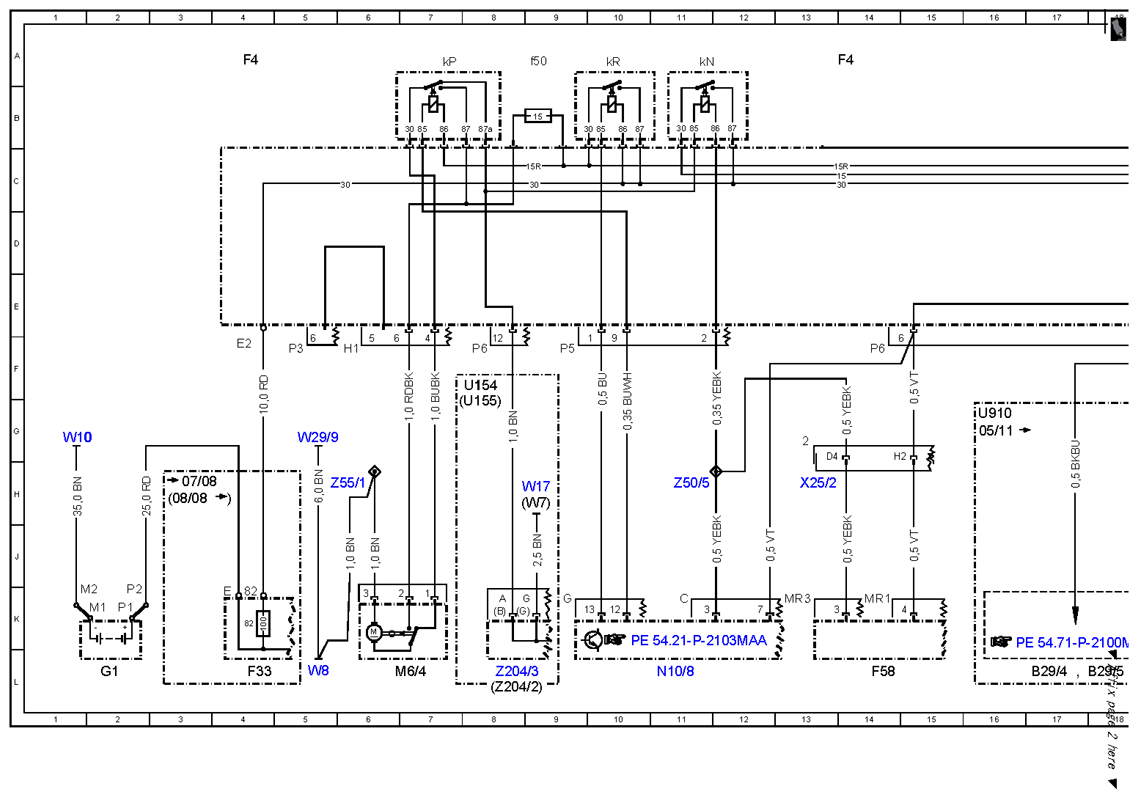

| G1 |
Battery |
2L |
| M3 |
Fuel pump (FP) |
55L |
| M3x1 |
Fuel pump connector |
55K |
| M40 |
Multicontour seat pneumatic pump |
20L |
| M6/4 |
Tailgate wiper motor |
7L |
| N10/8 |
Rear SAM control unit |
11L |
| N10/8 |
Rear SAM control unit |
51L |
| N123/4 |
Emergency call system control unit |
26L |
| N3/10 |
ME-SFI [ME] control unit |
57L |
| N3/10 |
ME-SFI [ME] control unit |
60L |
| N3/9 |
CDI control unit |
59L |
| N3/9 |
CDI control unit |
63L |
| N3/9 |
CDI control unit |
60L |
| N71 |
Headlamp range adjustment control unit |
70L |
| R3 |
Front cigar lighter (with ashtray illumination) |
53L |
| R3r1 |
Heating element |
54L |
| R3x1 |
Front cigar lighter (with ashtray illumination) connector |
53K |
| U127 |
Valid for engine 272, engine 273 KE |
58F |
| U151 |
Valid for engine 113 |
56F |
| U152 |
Valid for engine 156 |
64G |
| U153 |
Valid for all except engine 156 |
54F |
| U154 |
Valid for 164.1 |
8F |
| U155 |
Valid for 164.8 |
7G |
| U284 |
Valid for fully electric seat adjustment |
46G |
| U285 |
Valid for partially electric seat adjustment |
46G |
| U475 |
Valid for M 272 |
64G |
| U484 |
Valid for M273 ME |
64F |
| U501 |
Valid for xenon headlamps |
68F |
| U541 |
Valid for TELE AID emergency call system |
24G |
| U63 |
Valid for seat adjustment without memory |
40G |
| U63 |
Valid for seat adjustment without memory |
50G |
| U703 |
Valid for portable CTEL preinstallation |
23G |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
19G |
| U777 |
Valid for navigation |
29G |
| U78 |
Valid for {{Japan}} |
28G |
| U880 |
Valid for engine 642 |
58G |
| U882 |
Valid for engine 629 |
58G |
| U899 |
Valid for backup camera |
36G |
| U910 |
Valid for Blind Spot Assist |
33G |
| U910 |
Valid for Blind Spot Assist |
16G |
| U911 |
Valid for lumbar support |
40G |
| U932 |
Valid for engine 642 BLUETEC |
62F |
| U932 |
Valid for engine 642 BLUETEC |
75F |
| U943 |
Valid for South Korea |
29G |
| U978 |
Valid for full hybrid drive |
75G |
| W10 |
Ground (battery) |
1G |
| W17 |
Ground (right rear seat) |
9H |
| W29/2 |
Ground (right A-pillar) |
23F |
| W29/9 |
Ground (right D-pillar) |
5G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
21H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
9H |
| W8 |
Ground (rear-end door) |
5L |
| X137/1 |
VICS+ETC voltage supply separation point |
29L |
| X169 |
Reversing camera connecting point |
37J |
| X18 |
Interior/cockpit connector |
22H |
| X18/3 |
Interior/fuel tank connector |
55H |
| X25/2 |
Engine compartment/interior compartment connector |
13H |
| X25/2 |
Engine compartment/interior compartment connector |
62H |
| X25/2 |
Engine compartment/interior compartment connector |
67H |
| X25/2 |
Engine compartment/interior compartment connector |
59H |
| X26 |
Interior and engine wiring harness connector |
65H |
| X29/6 |
Center console intermediate connector |
53H |
| X39/37 |
CTEL separation point |
24L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
8L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
8L |
| Z50/4 |
Circuit 31 cockpit connector sleeve (2, right) |
23H |
| Z50/5 |
Tml. 15 connector sleeve |
11H |
| Z55/1 |
Rear-end door circuit 31 connector sleeve |
6H |
| Z7/38 |
Circuit 87 M1i connector sleeve |
65L |
