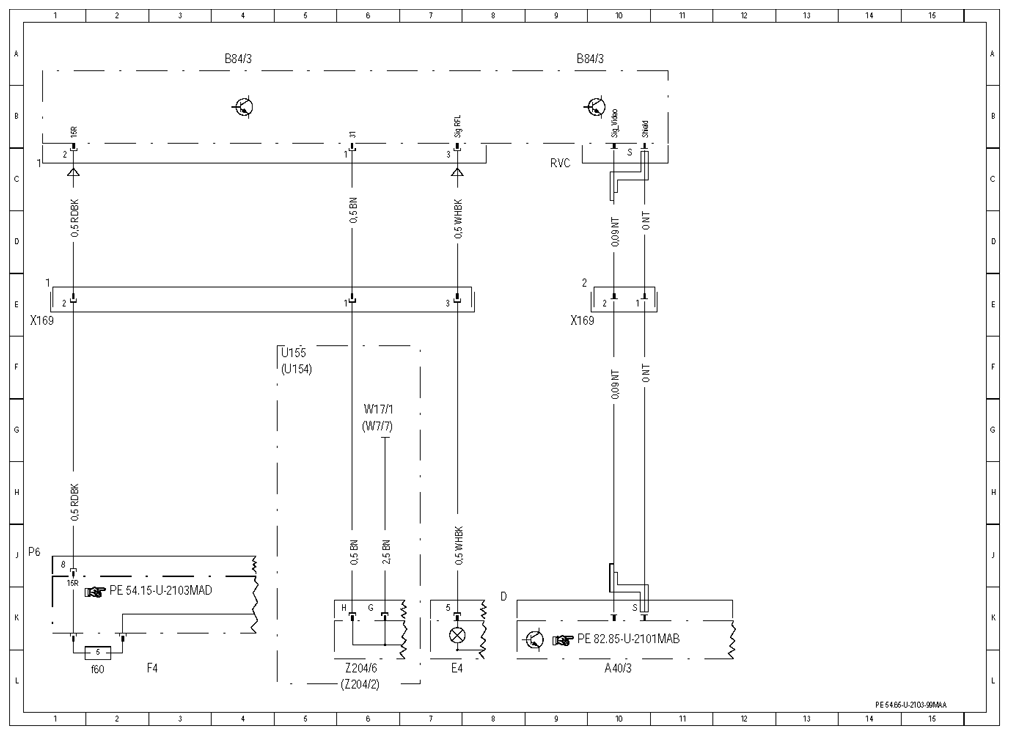

| A40/3 |
COMAND operating, display and control unit |
10 L |
| B84/3 |
Backup camera |
4 A |
| B84/3 |
Backup camera |
9 A |
| E4 |
Right tail amp |
7 L |
| F4 |
Load compartment fuse and relay box |
2 L |
| F4f60 |
Fuse 60 |
1 L |
| U154 |
Valid for 164.1 |
5 F |
| U155 |
Valid for 164.8 |
5 F |
| W17/1 |
Ground (left rear seat) |
6 G |
| W7/7 |
Ground (right spare tire well) |
6 G |
| X169 |
Reversing camera connecting point |
1 E |
| X169 |
Reversing camera connecting point |
9 E |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
6 L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
6 L |
