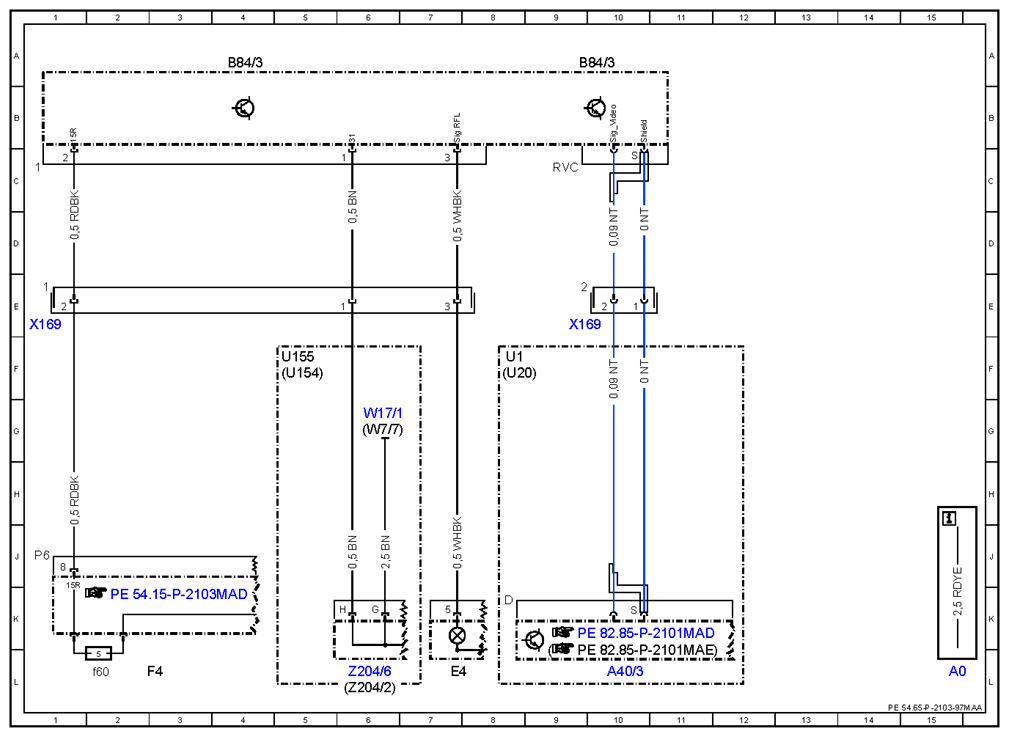

| A0 |
Color code key |
15L |
| A40/3 |
COMAND operating, display and control unit |
10L |
| B84/3 |
Backup camera |
4A |
| B84/3 |
Backup camera |
10A |
| E4 |
Right tail amp |
7L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f60 |
Fuse 60 |
2L |
| U1 |
Valid for {{USA}} |
8F |
| U154 |
Valid for 164.1 |
5F |
| U155 |
Valid for 164.8 |
5F |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
8F |
| W17/1 |
Ground (left rear seat) |
6G |
| W7/7 |
Ground (right spare tire well) |
6G |
| X169 |
Reversing camera connecting point |
1E |
| X169 |
Reversing camera connecting point |
9E |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
6L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
6L |
