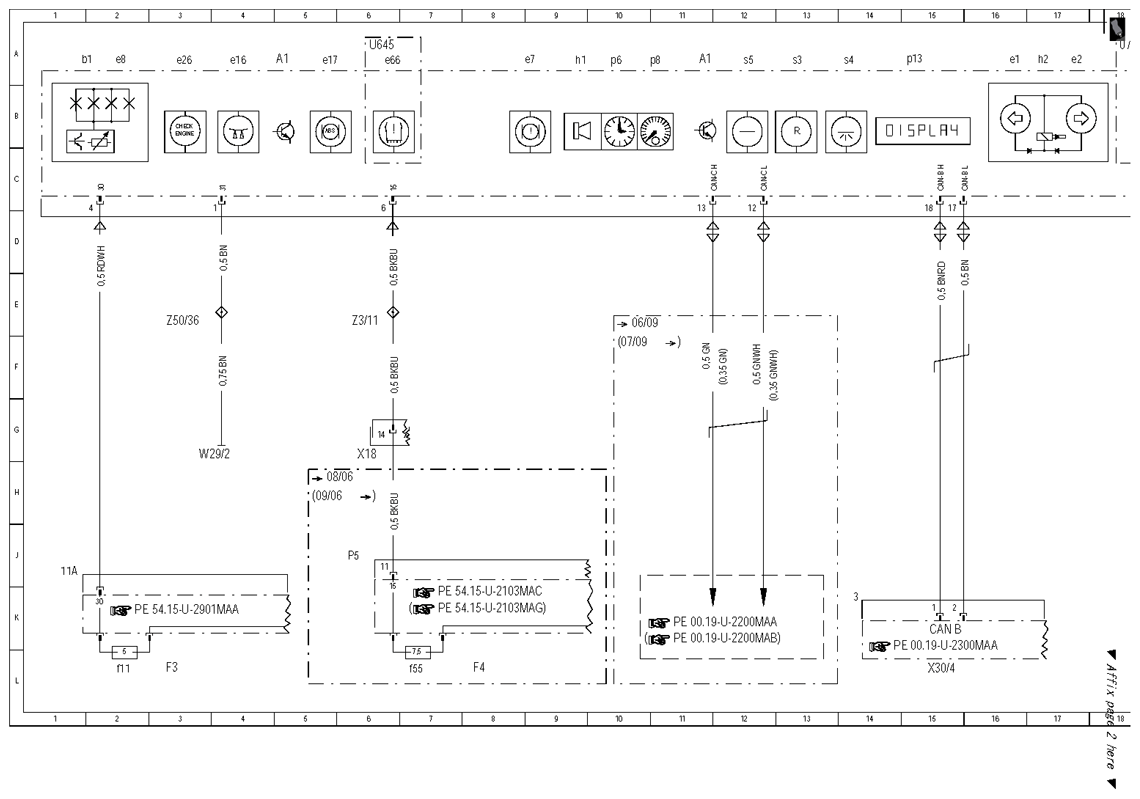

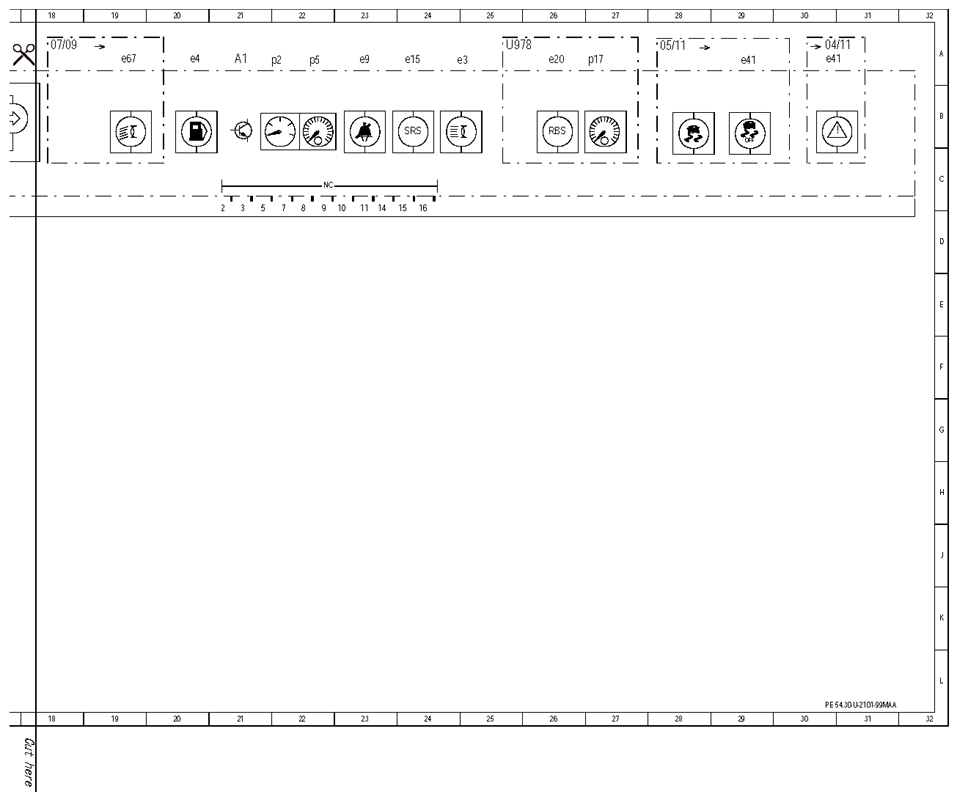

| A1 |
Instrument cluster |
5 A |
| A1 |
Instrument cluster |
11 A |
| A1 |
Instrument cluster |
21 A |
| A1b1 |
Brightness sensor |
1 A |
| A1e1 |
Left turn signal indicator lamp |
16 A |
| A1e15 |
Airbag indicator and warning lamp |
23 A |
| A1e16 |
Preglow indicator lamp |
4 A |
| A1e17 |
ABS indicator lamp |
5 A |
| A1e2 |
Right turn signal indicator lamp |
17 A |
| A1e20 |
Regenerative braking system indicator lamp |
26 A |
| A1e26 |
"CHECK ENGINE" MIL |
3 A |
| A1e3 |
High beam indicator lamp |
24 A |
| A1e4 |
Fuel reserve indicator lamp |
20 A |
| A1e41 |
ESP warning lamp |
29 A |
| A1e41 |
ESP warning lamp |
30 A |
| A1e66 |
Tire pressure monitor warning lamp |
6 A |
| A1e67 |
Low beam indicator lamp |
19 A |
| A1e7 |
Brake fluid and parking brake warning lamp |
8 A |
| A1e8 |
Instrument illumination |
2 A |
| A1e9 |
Seat belt warning lamp |
23 A |
| A1h1 |
Warning buzzer |
9 A |
| A1h2 |
Audible turn signal indicator |
17 A |
| A1p13 |
Multifunction display |
14 A |
| A1p17 |
Power indicator |
26 A |
| A1p2 |
Fuel level and reserve indicator |
21 A |
| A1p5 |
Tachometer |
22 A |
| A1p6 |
Electronic clock |
10 A |
| A1p8 |
Electronic speedometer |
10 A |
| A1s3 |
Trip odometer reset button |
13 A |
| A1s4 |
Instrument and controls illumination button, bright |
13 A |
| A1s5 |
Instrument and controls illumination button, dim |
12 A |
| CAN B |
Interior CAN |
15 K |
| F3 |
Cockpit fuse box |
3 L |
| F3f11 |
Fuse 11 |
2 L |
| F4 |
Load compartment fuse and relay box |
8 L |
| F4f55 |
Fuse 55 |
7 L |
| U645 |
Valid for tire pressure monitor system |
6 A |
| U978 |
Valid for full hybrid drive |
25 A |
| W29/2 |
Ground (right A-pillar) |
3 H |
| X18 |
Interior/cockpit connector |
6 H |
| X30/4 |
Right voltage distributor (CAN) connector |
15 L |
| Z3/11 |
Circuit 15 (fused) connector sleeve |
6 E |
| Z50/36 |
Circuit 31 (4) cockpit connector sleeve) |
3 E |
