| F3 |
Cockpit fuse box |
14 L |
| F3f13 |
Fuse 13 |
13 L |
| F4 |
Load compartment fuse and relay box |
28 L |
| F4f55 |
Fuse 55 |
27 L |

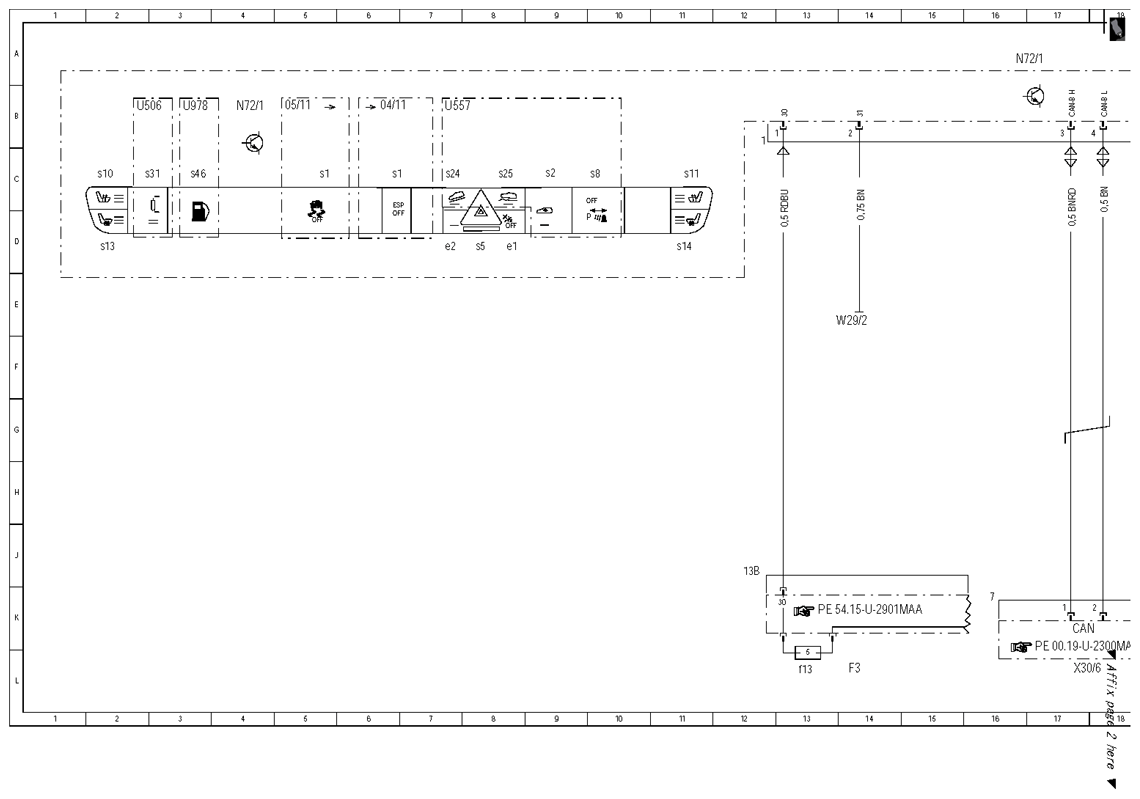

| N72 |
Lower control panel control unit |
32 A |
| N72/1 |
Upper control panel control unit |
4 B |
| N72/1 |
Upper control panel control unit |
16 A |
| N72/1 |
Upper control panel control unit |
24 A |
| N72/1e1 |
Automatic child seat recognition airbag OFF indicator lamp |
8 D |
| N72/1e2 |
ATA [EDW] function indicator |
7 D |
| N72/1s1 |
ESP OFF switch |
5 C |
| N72/1s1 |
ESP OFF switch |
6 C |
| N72/1s10 |
Left front HS [SIH] switch |
1 C |
| N72/1s11 |
Right front HS [SIH] switch |
11 C |
| N72/1s13 |
Left front seat ventilation switch |
2 D |
| N72/1s14 |
Right front seat ventilation switch |
11 D |
| N72/1s2 |
Level adjustment switch |
8 C |
| N72/1s24 |
Downhill Speed Regulation switch |
7 C |
| N72/1s25 |
Offroad program switch |
8 C |
| N72/1s31 |
Comfort/Sport switch (ADS) |
2 C |
| N72/1s46 |
Refueling safety detection switch |
3 C |
| N72/1s5 |
Hazard warning system switch |
7 D |
| N72/1s8 |
PTS OFF switch |
9 C |
| N72e4 |
Level control function indicator |
33 C |
| N72s30 |
Downhill Speed Regulation switch |
30 C |
| N72s31 |
Low Range switch |
31 B |
| N72s32 |
Level adjustment high switch |
33 B |
| N72s33 |
Level adjustment low switch |
33 C |
| N72s34 |
Differential lock thumb wheel |
32 B |

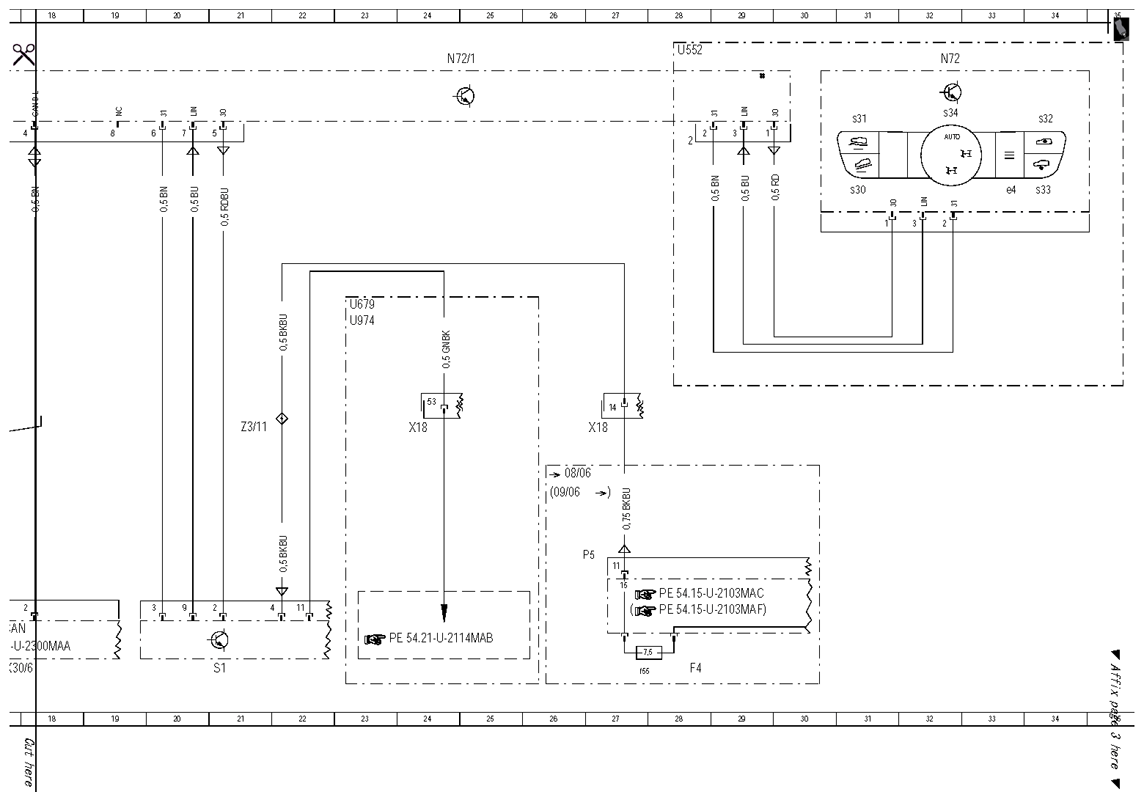

| S1 |
Rotary light switch |
21 L |
| U506 |
Valid for ADS |
2 B |
| U552 |
Valid for offroad package |
28 A |
| U557 |
Not valid for offroad package |
7 B |
| U679 |
Valid for version without xenon headlamps |
23 E |
| U974 |
Not valid for full hybrid drive |
23 E |
| U978 |
Valid for full hybrid drive |
3 B |
| W29/2 |
Ground (right A-pillar) |
13 E |
| X18 |
Interior/cockpit connector |
24 G |
| X18 |
Interior/cockpit connector |
27 G |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
17 L |
| Z3/11 |
Circuit 15 (fused) connector sleeve |
21 G |
