| E1/3 |
Left daytime running lamps headlamp |
32 L |
| E17/15 |
Right front footwell lamp |
29 L |
| E17/16 |
Left front footwell lamp |
27 L |
| E17/17 |
Right rear footwell lamp |
10 L |
| E17/18 |
Left rear footwell lamp |
13 L |

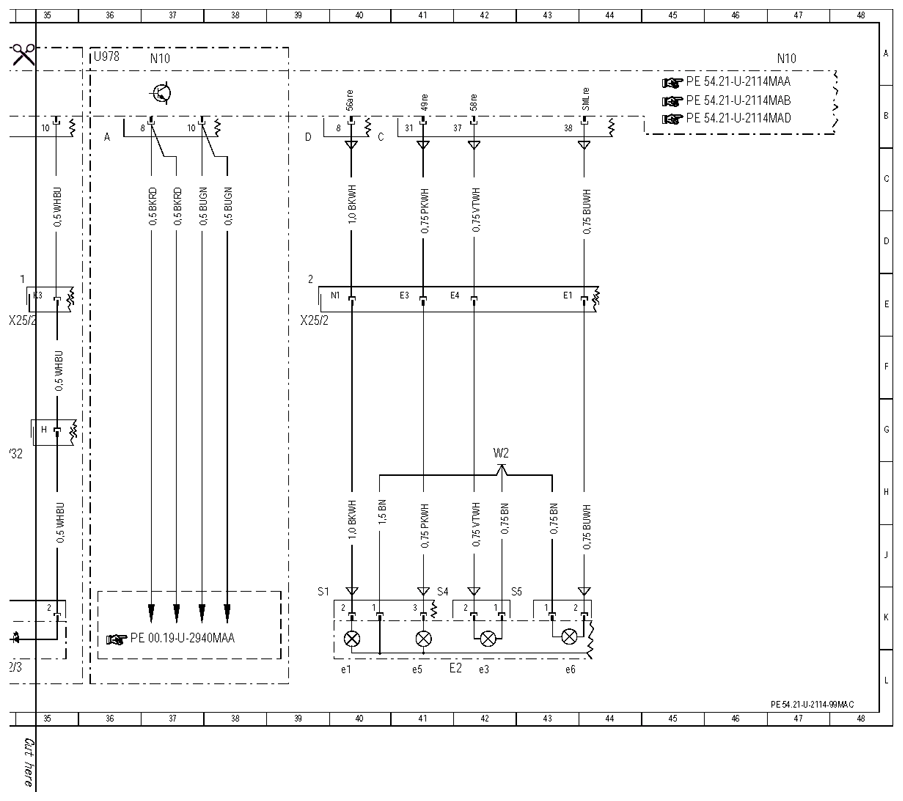

| E2 |
Right front lamp unit |
41 L |
| E2/3 |
Right daytime running lamps headlamp |
34 L |
| E20/2 |
Front center console cup holder illumination |
16 L |
| E20/2e1 |
Cup holder 1 illumination |
15 L |
| E20/2e2 |
Cup holder 2 illumination |
16 L |
| E2e1 |
Right high beam |
40 L |
| E2e3 |
Right standing and parking lamp |
42 L |
| E2e5 |
Right turn signal lamp |
41 L |
| E2e6 |
Right side-marker lamp |
43 L |

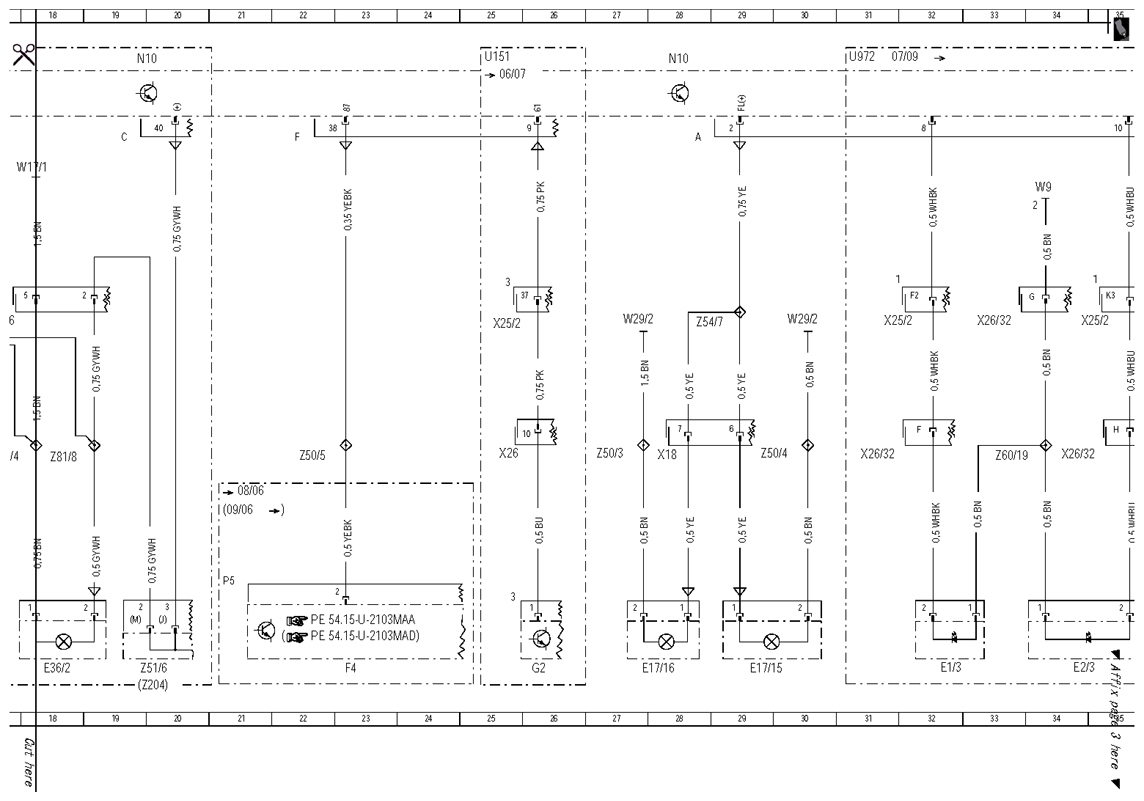

| E36/2 |
Front center console illumination |
18 L |
| F4 |
Load compartment fuse and relay box |
23 L |
| G2 |
Alternator |
26 L |

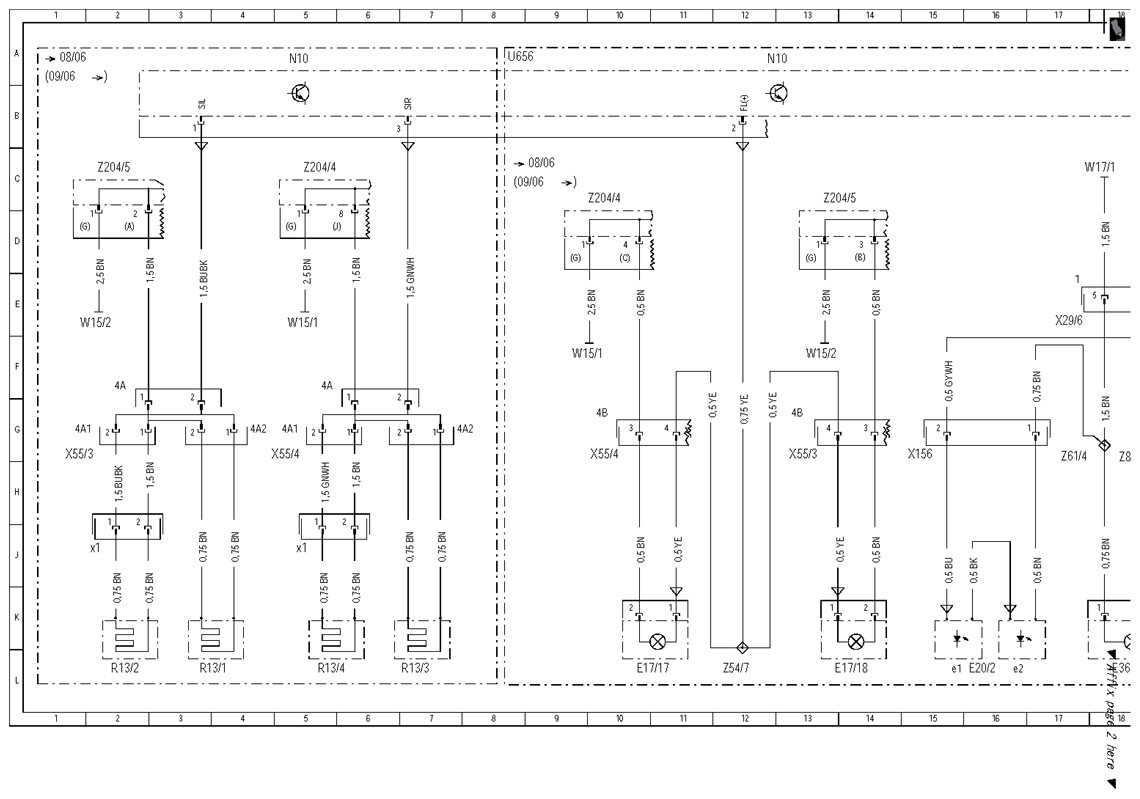

| N10 |
Front SAM control unit |
5 A |
| N10 |
Front SAM control unit |
12 A |
| N10 |
Front SAM control unit |
19 A |
| N10 |
Front SAM control unit |
28 A |
| N10 |
Front SAM control unit |
37 A |
| N10 |
Front SAM control unit |
47 A |
| R13/1 |
Left front seat heated cushion |
3 L |
| R13/2 |
Left front backrest heated cushion |
2 L |
| R13/2x1 |
Left front backrest heated cushion connector |
1 J |
| R13/3 |
Right front seat heated cushion |
6 L |
| R13/4 |
Right front backrest heated cushion |
5 L |
| R13/4x1 |
Right front backrest heater element connector |
5 J |
| U151 |
Valid for engine 113 |
25 A |
| U656 |
Valid for interior light package |
8 A |
| U972 |
Valid for daytime running lights in LED version |
31 A |
| U978 |
Valid for full hybrid drive |
36 A |
| W15/1 |
Ground (right footwell) |
5 E |
| W15/1 |
Ground (right footwell) |
9 F |
| W15/2 |
Ground (left footwell) |
1 E |
| W15/2 |
Ground (left footwell) |
13 F |
| W17/1 |
Ground (left rear seat) |
17 C |
| W2 |
Ground (right front, at lamp unit) |
42 H |
| W29/2 |
Ground (right A-pillar) |
27 E |
| W29/2 |
Ground (right A-pillar) |
30 E |
| W9 |
Ground (left front, at lamp unit) |
34 C |
| X156 |
Illuminated cup holder separation point |
15 H |
| X18 |
Interior/cockpit connector |
28 H |
| X25/2 |
Engine compartment/interior compartment connector |
25 E |
| X25/2 |
Engine compartment/interior compartment connector |
31 E |
| X25/2 |
Engine compartment/interior compartment connector |
34 E |
| X25/2 |
Engine compartment/interior compartment connector |
39 E |
| X26 |
Interior and engine wiring harness connector |
25 H |
| X26/32 |
Left front engine compartment/bumper connector |
31 H |
| X26/32 |
Left front engine compartment/bumper connector |
33 E |
| X26/32 |
Left front engine compartment/bumper connector |
34 H |
| X29/6 |
Center console intermediate connector |
17 E |
| X55/3 |
Left front seat contacting strip |
1 H |
| X55/3 |
Left front seat contacting strip |
13 H |
| X55/4 |
Right front seat contacting strip |
4 H |
| X55/4 |
Right front seat contacting strip |
10 H |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
19 L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
5 C |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
9 C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
2 C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
13 C |
| Z50/3 |
Circuit 31 cockpit connector sleeve (1, left) |
27 H |
| Z50/4 |
Circuit 31 cockpit connector sleeve (2, right) |
29 H |
| Z50/5 |
Tml. 15 connector sleeve |
22 H |
| Z51/6 |
Circuit 58d interior connector sleeve |
19 L |
| Z54/7 |
Footwell lamps connector sleeve |
12 L |
| Z54/7 |
Footwell lamps connector sleeve |
28 E |
| Z60/19 |
Daytime running light connector sleeve, circuit 31 |
33 H |
| Z61/4 |
Front center console circuit 31 connector sleeve |
17 H |
| Z81/8 |
Front center console circuit 58d connector sleeve |
18 H |
