Wiring diagram for compass module control unit - PE54.30-U-2102-99MAA

Code:	Designation:	Position:
B26	Electronic compass	3 A
F3	Cockpit fuse box	2 L
F3f15	Fuse 15	2 L
W29/2	Ground (right A-pillar)	3 H
X30/4	Right voltage distributor (CAN) connector	6 L
Z50/36	Circuit 31 (4) cockpit connector sleeve)	2 E

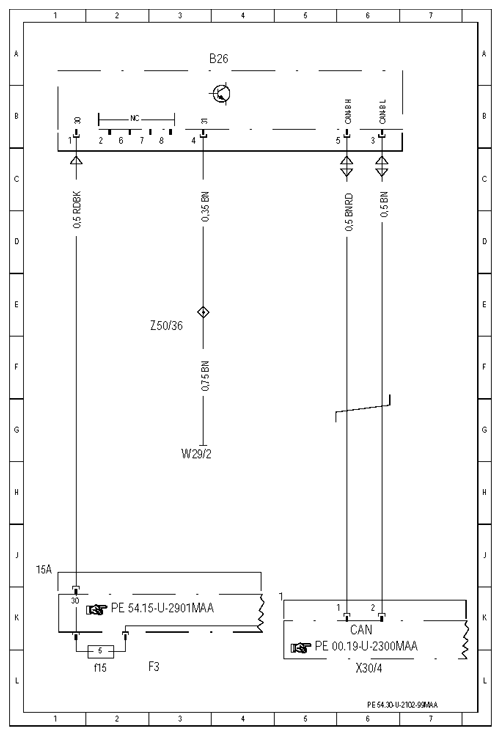

Fig 1: Compass Module Control Unit Wiring Diagram

Courtesy of MERCEDES-BENZ USA
