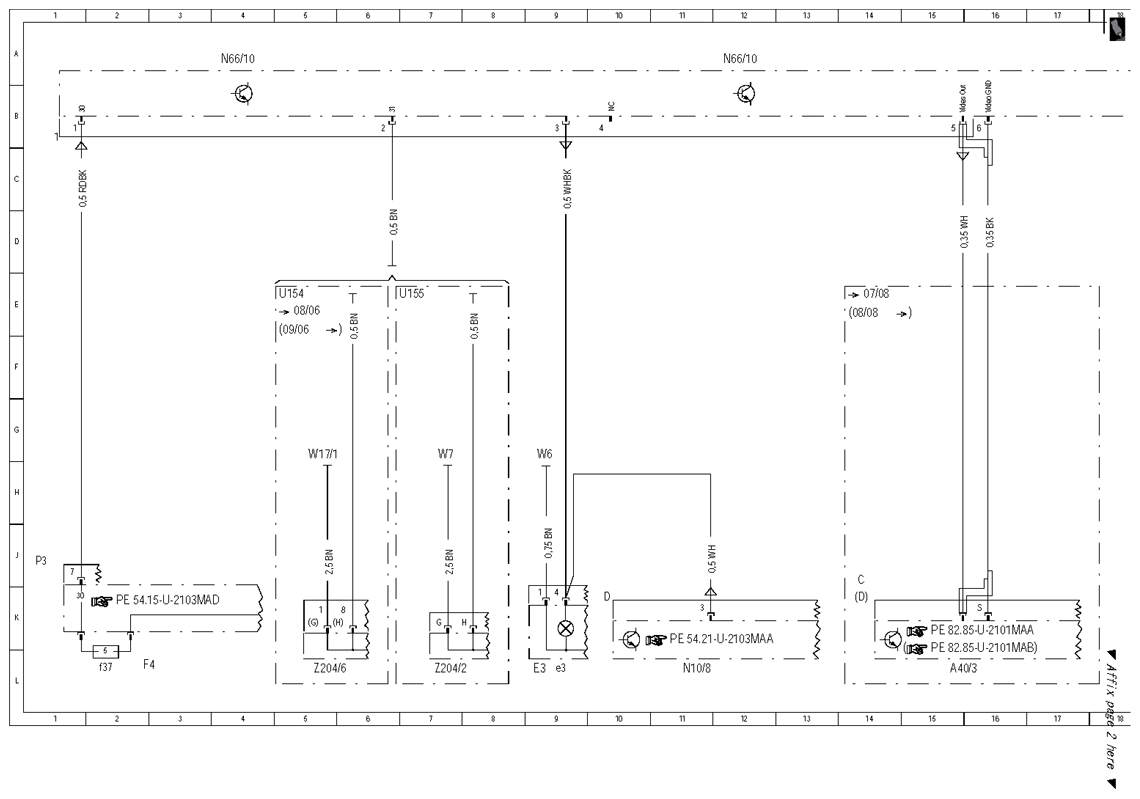

| A40/3 |
COMAND operating, display and control unit |
15 L |
| B84/3 |

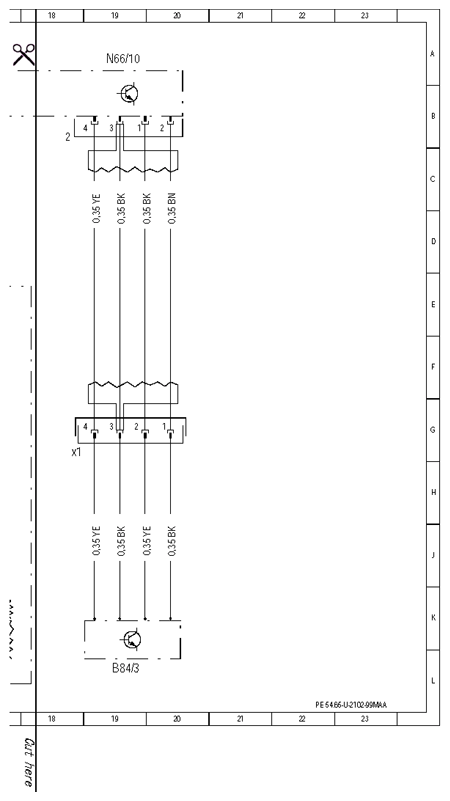

Backup camera |
19 L |
| B84/3x1 |
Backup camera connector |
18 H |
| E3 |
Left tail amp |
9 L |
| E3e3 |
Left backup lamp |
9 L |
| F4 |
Load compartment fuse and relay box |
2 L |
| F4f37 |
Fuse 37 |
2 L |
| N10/8 |
Rear SAM control unit |
11 L |
| N66/10 |
Backup camera voltage supply module |
4 A |
| N66/10 |
Backup camera voltage supply module |
12 A |
| N66/10 |
Backup camera voltage supply module |
19 A |
| U154 |
Valid for 164.1 |
5 E |
| U155 |
Valid for 164.8 |
6 E |
| W17/1 |
Ground (left rear seat) |
5 H |
| W6 |
Ground (left wheelhouse in luggage compartment) |
9 H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
7 H |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
7 L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
5 L |
