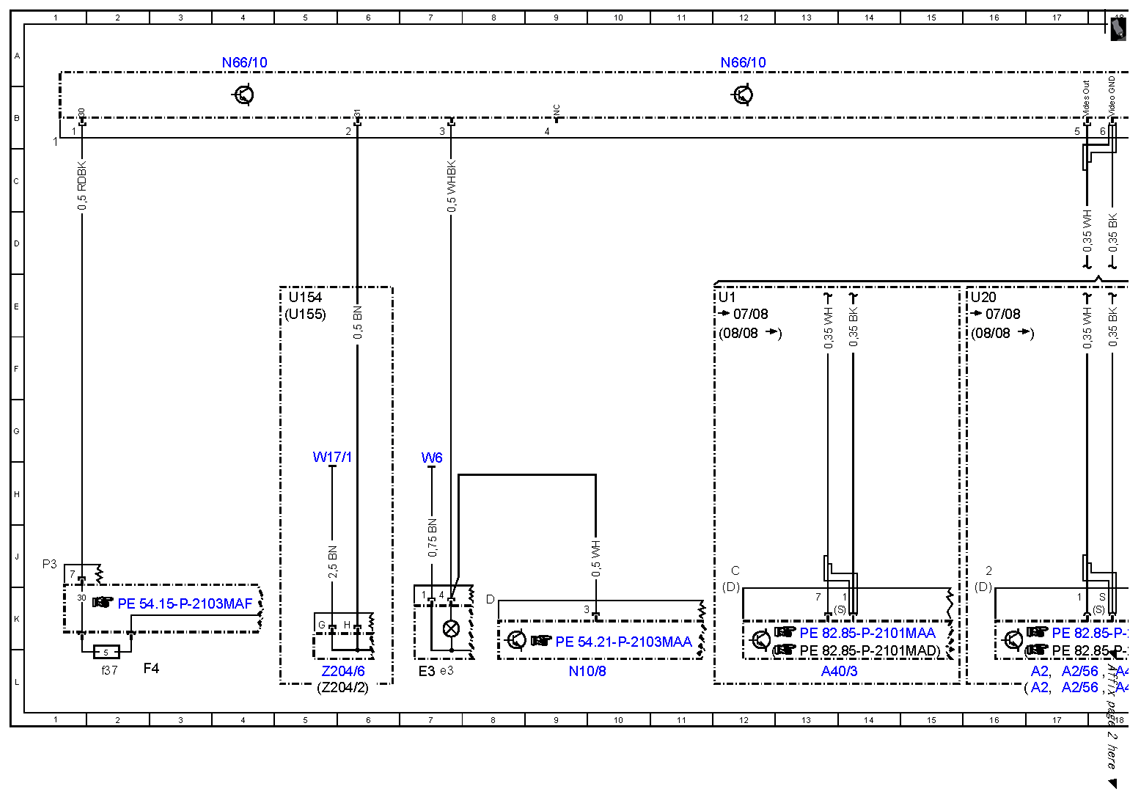

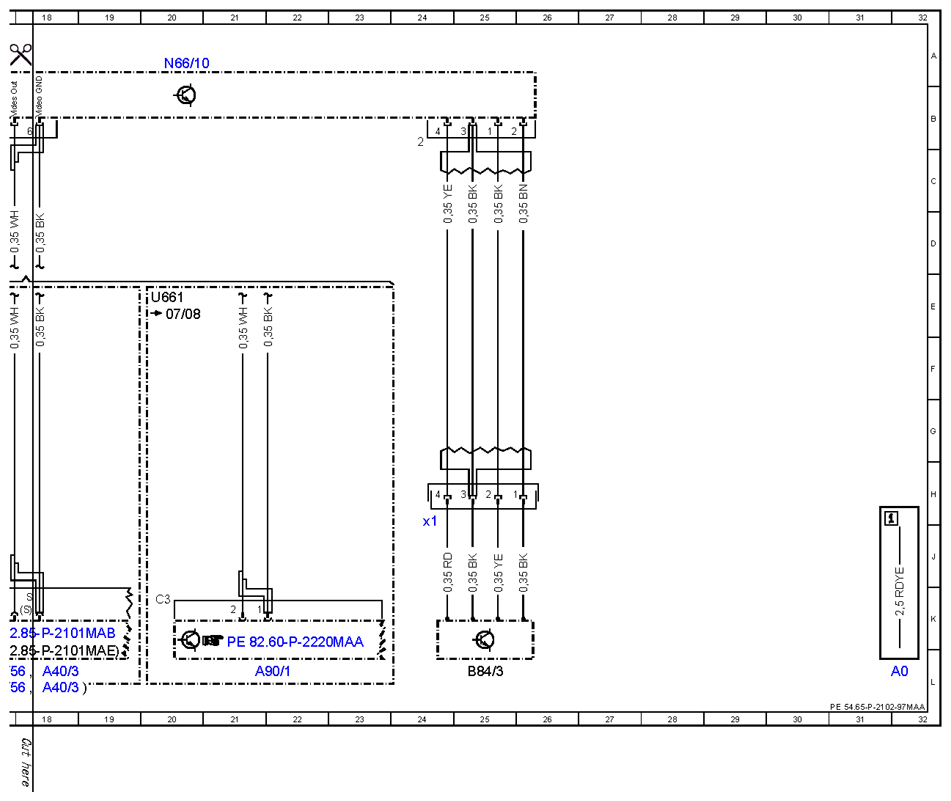

| A0 |
Color code key |
32L |
| A2 |
Radio |
17L |
| A2 |
Radio |
17L |
| A2/56 |
Radio and navigation unit |
17L |
| A2/56 |
Radio and navigation unit |
17L |
| A40/3 |
COMAND operating, display and control unit |
13L |
| A40/3 |
COMAND operating, display and control unit |
18L |
| A40/3 |
COMAND operating, display and control unit |
18L |
| A90/1 |
TV combination tuner (analog/digital) |
21L |
| B84/3 |
Backup camera |
25L |
| B84/3x1 |
Backup camera connector |
24J |
| E3 |
Left tail amp |
7L |
| E3e3 |
Left backup lamp |
7L |
| F4 |
Load compartment fuse and relay box |
2L |
| F4f37 |
Fuse 37 |
2L |
| N10/8 |
Rear SAM control unit |
9L |
| N66/10 |
Backup camera voltage supply module |
4A |
| N66/10 |
Backup camera voltage supply module |
12A |
| N66/10 |
Backup camera voltage supply module |
20A |
| U1 |
Valid for {{USA}} |
12E |
| U154 |
Valid for 164.1 |
5E |
| U155 |
Valid for 164.8 |
5E |
| U20 |
Valid for all (except {{USA}} {{Japan}}) |
16E |
| U661 |
Valid for TV and video in rear |
20E |
| W17/1 |
Ground (left rear seat) |
5H |
| W6 |
Ground (left wheelhouse in luggage compartment) |
7H |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
5L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
5L |
