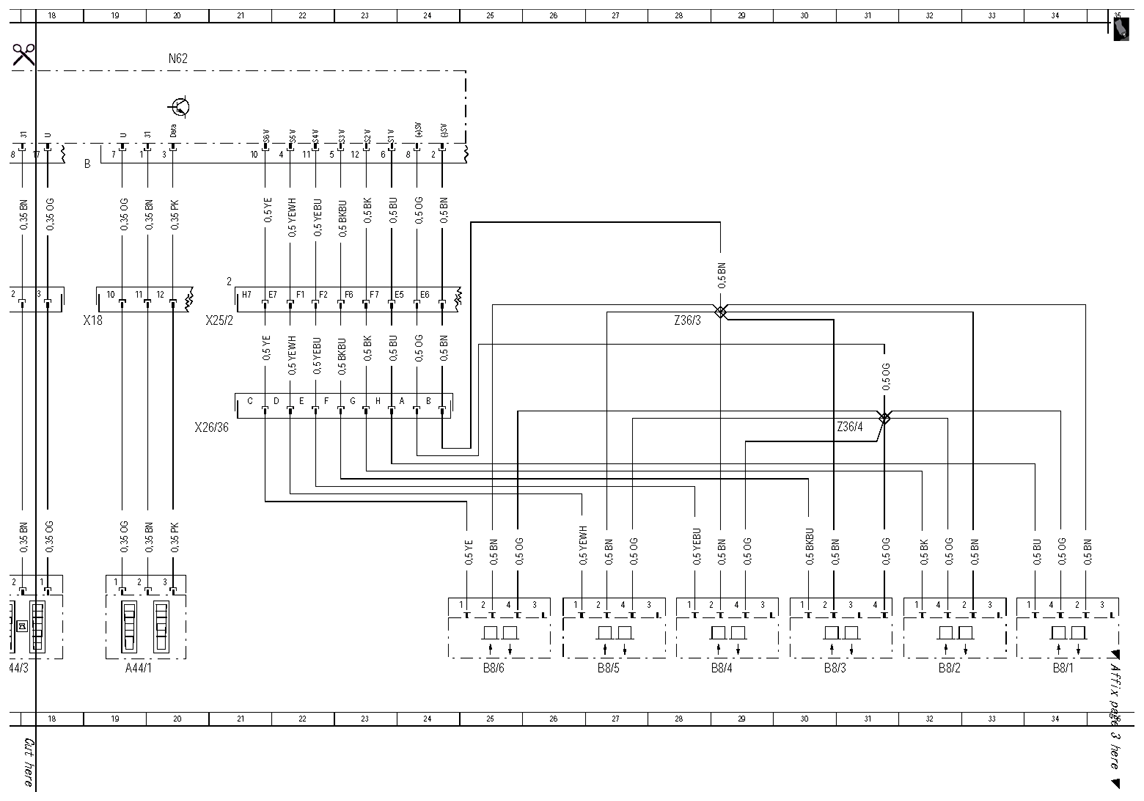

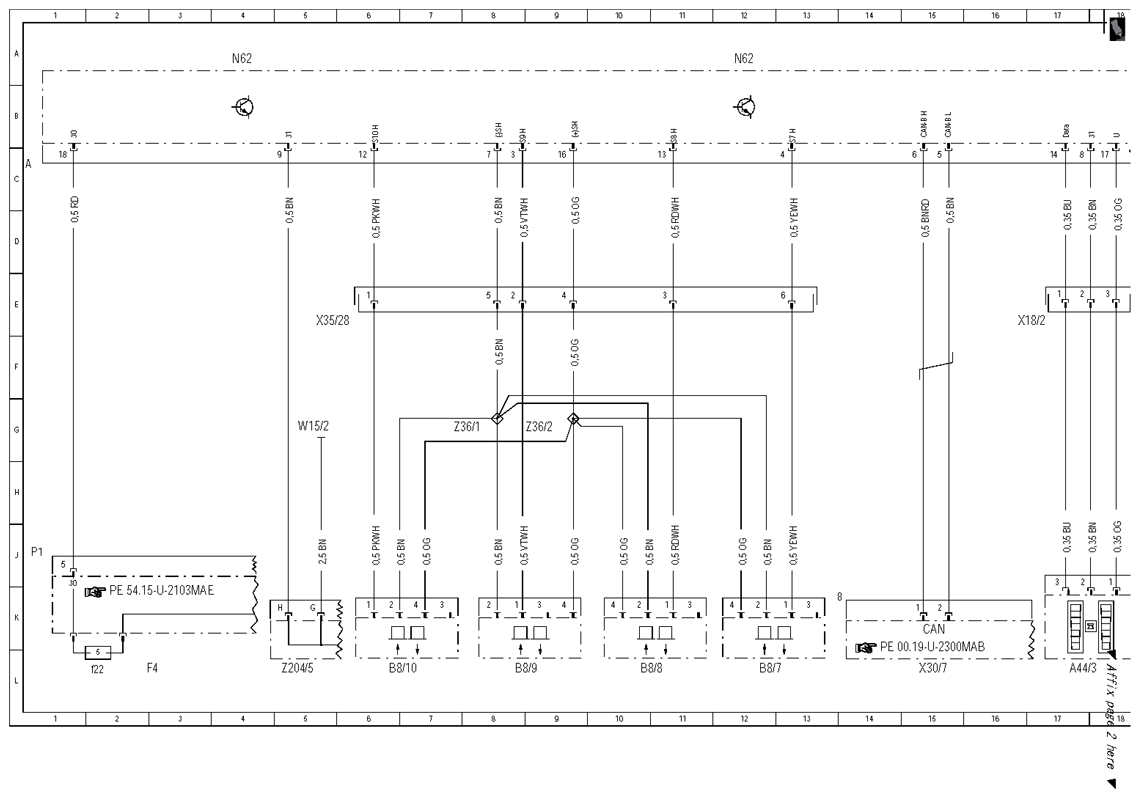

| A44/1 |
PTS warning indicator, driver side instrument panel |
19 L |
| A44/3 |
Rear PTS warning indicator dome lamp |
17 L |
| B8/1 |
Outer left front PTS ultrasonic sensor |
34 L |
| B8/10 |
Outer left rear PTS ultrasonic sensor |
6 L |
| B8/2 |
Center left front PTS ultrasonic sensor |
32 L |
| B8/3 |
Inner left front PTS ultrasonic sensor |
30 L |
| B8/4 |
Inner right front PTS ultrasonic sensor |
28 L |
| B8/5 |
Center right front PTS ultrasonic sensor |
27 L |
| B8/6 |
Outer right front PTS ultrasonic sensor |
25 L |
| B8/7 |
Outer right rear PTS ultrasonic sensor |
12 L |
| B8/8 |
Inner right rear PTS ultrasonic sensor |
10 L |
| B8/9 |
Inner left rear PTS ultrasonic sensor |
8 L |
| F4 |
Load compartment fuse and relay box |
2 L |
| F4f22 |
Fuse 22 |
1 L |
| N62 |
PTS control unit |
4 A |
| N62 |
PTS control unit |
12 A |
| N62 |
PTS control unit |
20 A |
| W15/2 |
Ground (left footwell) |
5 G |
| X18 |
Interior/cockpit connector |
18 E |
| X18/2 |
Interior/roof connector |
16 E |
| X25/2 |
Engine compartment/interior compartment connector |
20 E |
| X26/36 |
Right front engine compartment/bumper connector |
20 G |
| X30/7 |
Voltage distributor (CAN) connector |
15 L |
| X35/28 |
PTS, rear bumper connector |
5 E |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
5 L |
| Z36/1 |
Rear PTS sensor ground connector sleeve |
7 G |
| Z36/2 |
Rear PTS sensor voltage supply connector sleeve |
8 G |
| Z36/3 |
Front PTS sensor ground connector sleeve |
28 E |
| Z36/4 |
Front PTS sensor voltage supply connector sleeve |
30 G |
