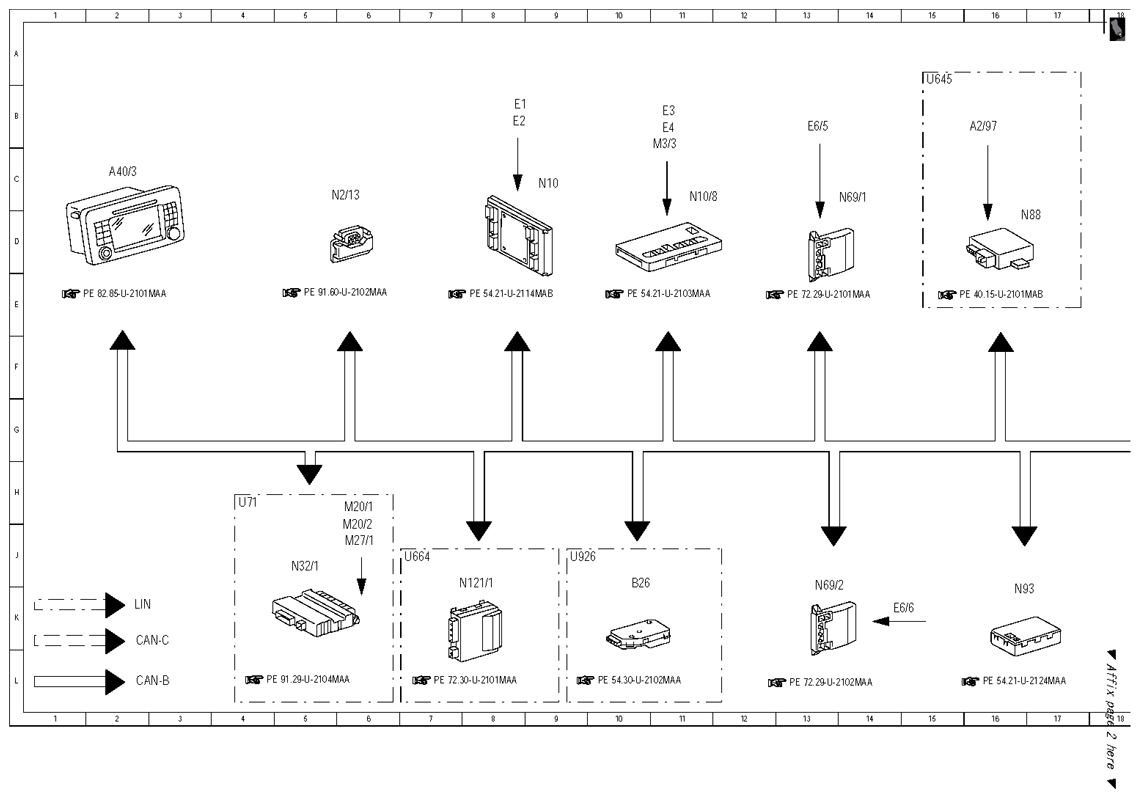

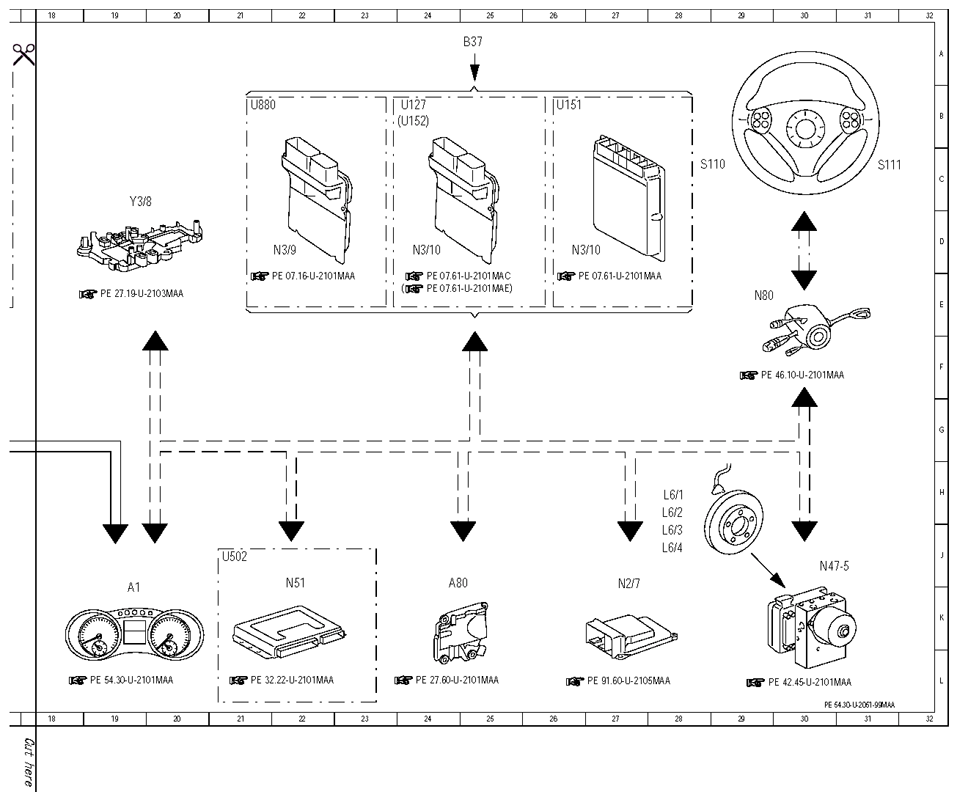

| A1 |
Instrument cluster |
19 K |
| A2/97 |
Central TPM [RDK] antenna |
16 B |
| A40/3 |
COMAND operating, display and control module |
2 C |
| A80 |
Intelligent servo module for DIRECT SELECT |
24 K |
| B26 |
Electronic compass |
10 K |
| B37 |
Accelerator pedal sensor |
25 A |
| E1 |
Left front headlamp unit |
8 B |
| E2 |
Right front headlamp unit |
8 B |
| E3 |
Left tail amp |
11 B |
| E4 |
Right tail amp |
11 B |
| E6/5 |
Left exterior mirror turn signal lamp |
13 B |
| E6/6 |
Right exterior mirror turn signal lamp |
14 K |
| L6/1 |
Left front wheel speed sensor |
28 H |
| L6/2 |
Right front wheel speed sensor |
28 H |
| L6/3 |
Left rear wheel speed sensor |
28 J |
| L6/4 |
Right rear wheel speed sensor |
28 J |
| M20/1 |
Steering column forward/back motor |
6 H |
| M20/2 |
Steering column raise/lower motor |
6 J |
| M27/1 |
Seat fore/aft adjustment motor, driver |
6 J |
| M3/3 |
Fuel pump with fuel level sensor |
11 C |
| N10 |
Front SAM control unit |
9 C |
| N10/8 |
Rear SAM control module |
11 C |
| N121/1 |
Rear-end door closing control module |
7 K |
| N2/13 |
WSS control unit (Weight Sensing System) |
5 C |
| N2/7 |
Restraint systems control module |
27 K |
| N3/10 |
ME-SFI [ME] control module |
24 D |
| N3/10 |
ME-SFI [ME] control module |
26 D |
| N3/9 |
CDI control module |
22 D |
| N32/1 |
Driver front seat adjustment control module with memory |
5 J |
| N47-5 |
ESP control module |
30 J |
| N51 |
AIRMATIC control unit |
22 K |
| N69/1 |
Left front door control module |
13 C |
| N69/2 |
Right front door control module |
13 K |
| N80 |
Steering column module |
29 E |
| N88 |
TPM control module |
16 D |
| N93 |
Central gateway control module |
16 K |
| S110 |
Left multifunction steering wheel push-button group |
28 C |
| S111 |
Right multifunction steering wheel push-button group |
31 C |
| U127 |
Valid for engine 272, engine 273 KE |
24 B |
| U151 |
Valid for engine 113 |
26 B |
| U152 |
Valid for engine 156 |
24 B |
| U502 |
Valid for AIRMATIC |
21 J |
| U645 |
Valid for tire pressure monitor system |
15 B |
| U664 |
Valid for automatic rear-end door |
7 J |
| U71 |
Valid for seat adjustment with memory |
4 H |
| U880 |
Valid for engine 642 |
21 B |
| U926 |
Valid for compass |
9 J |
| Y3/8 |
Electric control unit (VGS) |
19 D |
