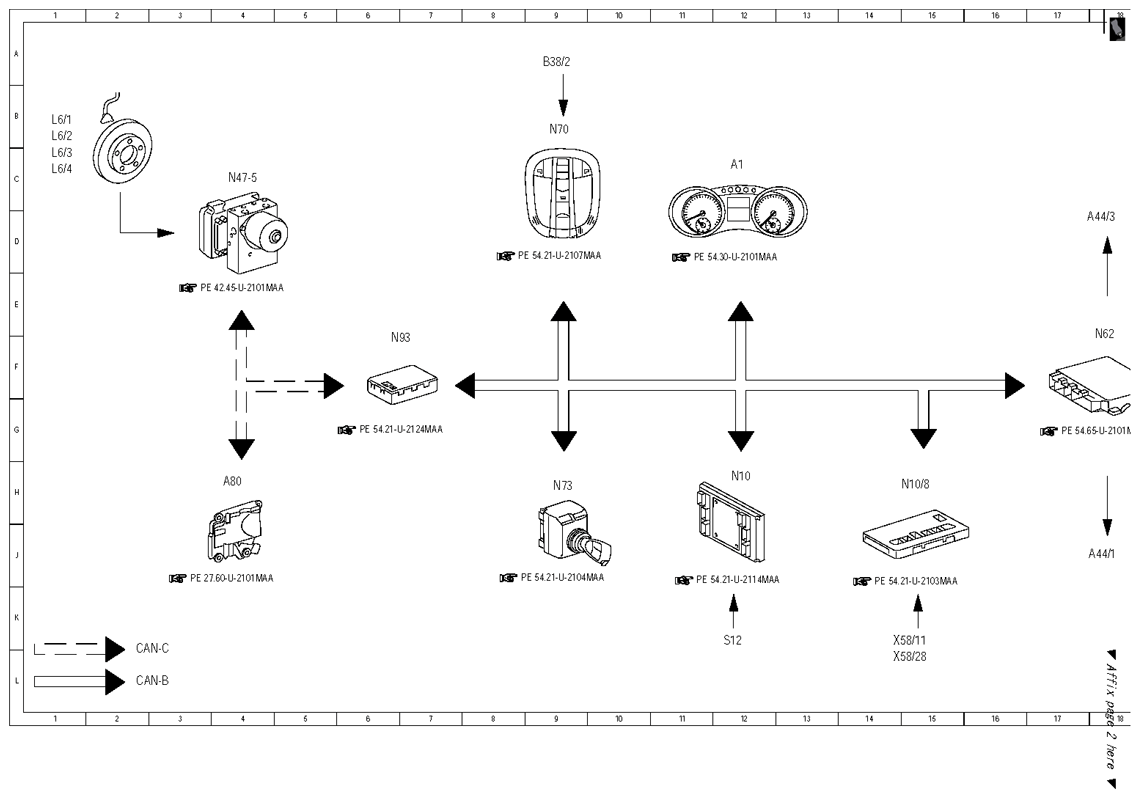

| A1 |
Instrument cluster |
12 C |
| A44/1 |
PTS warning display, instrument panel driver side |
17 J |
| A44/3 |
PTS warning display, rear dome lamp |
17 D |
| A80 |
Intelligent servo module for DIRECT SELECT |
4 H |
| B38/2 |
Rain/light sensor |
9 A |

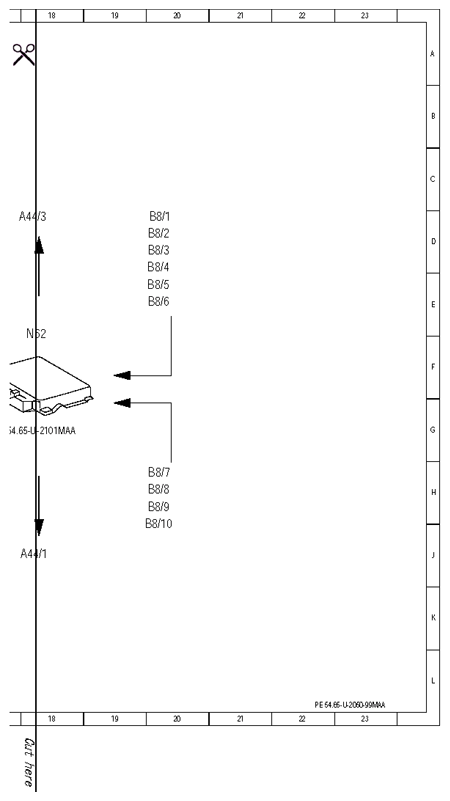

| B8/1 |
Outer left front PTS ultrasonic sensor |
20 D |
| B8/10 |
Outer left rear PTS ultrasonic sensor |
19 J |
| B8/2 |
Center left front PTS ultrasonic sensor |
19 D |
| B8/3 |
Inner left front PTS ultrasonic sensor |
19 D |
| B8/4 |
Inner right front PTS ultrasonic sensor |
19 E |
| B8/5 |
Center right front PTS ultrasonic sensor |
19 E |
| B8/6 |
Outer right front PTS ultrasonic sensor |
19 E |
| B8/7 |
Outer right rear PTS ultrasonic sensor |
19 H |
| B8/8 |
Inner right rear PTS ultrasonic sensor |
19 H |
| B8/9 |
Inner left rear PTS ultrasonic sensor |
19 H |
| L6/1 |
Left front wheel speed sensor |
1 B |
| L6/2 |
Right front wheel speed sensor |
1 B |
| L6/3 |
Left rear wheel speed sensor |
1 C |
| L6/4 |
Right rear wheel speed sensor |
1 C |
| N10 |
Front SAM control unit |
12 H |
| N10/8 |
Rear SAM control module |
14 H |
| N47-5 |
ESP control module |
4 C |
| N62 |
PTS control module |
18 F |
| N70 |
Overhead control panel control module |
9 B |
| N73 |
DI control module |
9 H |
| N93 |
Central gateway control module |
6 F |
| S12 |
Parking brake indicator switch |
12 L |
| X58/11 |
Trailer hitch socket (7-pin) |
14 L |
| X58/28 |
Electric brake control separation point |
14 L |
