Electrical function diagram for backup camera - PE54.65-U-2051-99MAA

Code:	Designation:	Position:
1	Reverse gear, status	1 A
1	Reverse gear, status	1 A
2	Circuit 15, status	1 A
3	Backup camera power supply module, actuation	1 A
4	Backup camera, actuation	1 A
5	Backup camera, signal	1 A
5	Backup camera, signal	1 A
A40/3	COMAND operating, display and control module	1 A
A8/1	Transmitter key	1 A
A80	Intelligent servo module for DIRECT SELECT	1 A
B84/3	Backup camera	1 A
CAN B	Interior CAN	1 A
CAN B	Interior CAN	1 A
CAN C	Engine compartment CAN	1 A
N10/8	Rear SAM control module	1 A
N66/10	Backup camera voltage supply module	1 A
N73	EIS [EZS] control unit	1 A
N93	Central gateway control module	1 A

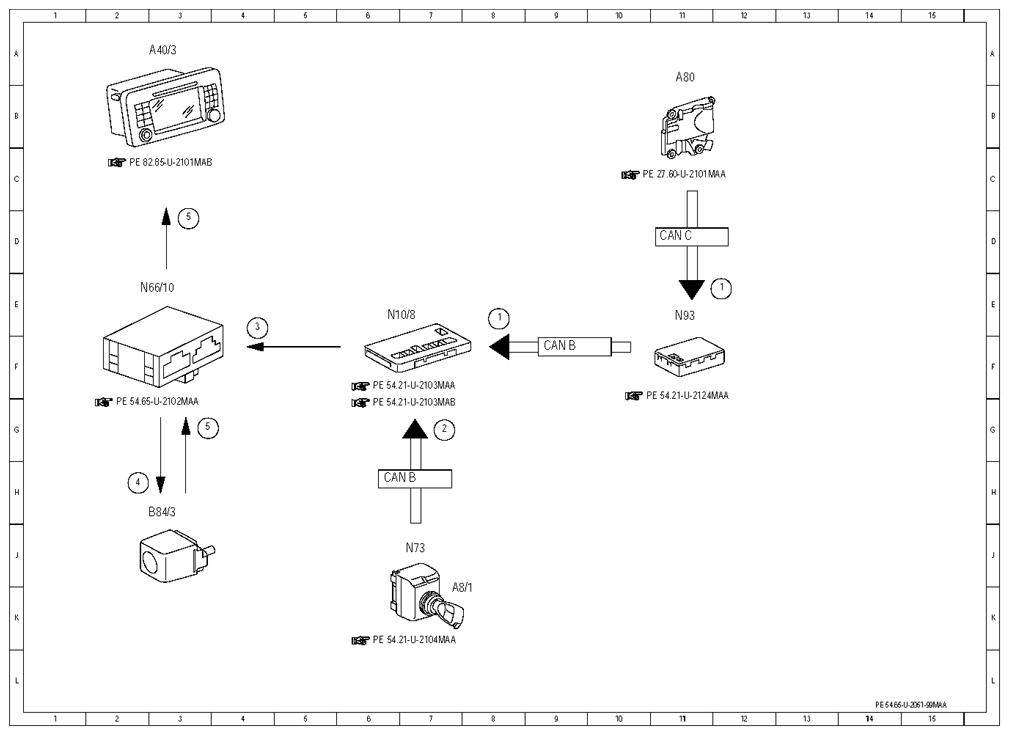

Fig 1: Backup Camera Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
