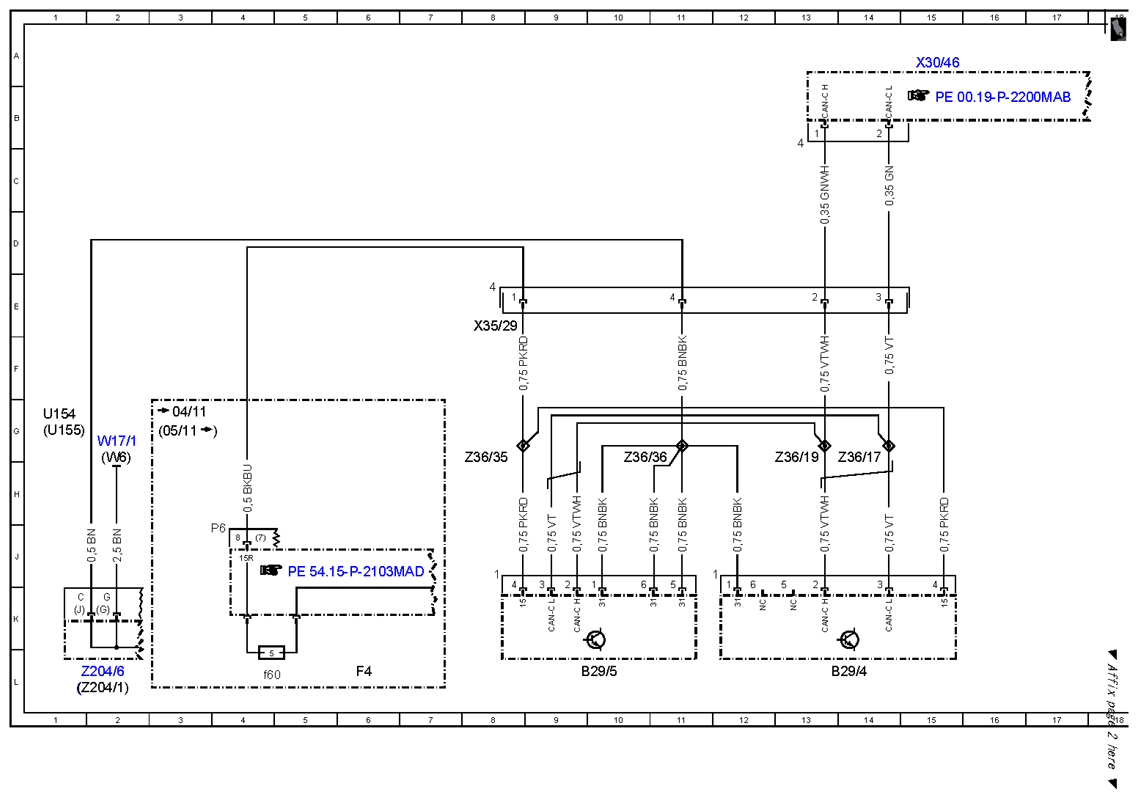

| A0 |
Color code key |
23L |
| B29/4 |
Left rear bumper intelligent radar sensor |
14L |
| B29/5 |
Right rear bumper intelligent radar sensor |
10L |
| F4 |
Load compartment fuse and relay box |
6L |
| F4f60 |
Fuse 60 |
4L |
| U154 |
Valid for 164.1 |
1G |
| U155 |
Valid for 164.8 |
1G |
| W17/1 |
Ground (left rear seat) |
2G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
2H |
| X30/46 |
Rear end CAN C potential distributor connector |
15A |
| X35/29 |
Rear bumper interior Blind Spot Monitoring electrical connector |
8E |
| Z204/1 |
Circuit 31 left wheelhouse luggage compartment voltage distributor connector |
2L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
2L |
| Z36/17 |
Rear sensor CAN connector sleeve |
14G |
| Z36/19 |
Rear sensor CAN connector sleeve |
13G |
| Z36/35 |
Rear radar sensors sensor power supply connector sleeve |
8G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
10G |
