Wiring diagram rear signal acquisition and actuation module (SAM) control module - PE54.21-U-2103-99MAB

Code: Designation: Position:
E17/13 Left rear inside door handle illumination 54 L
E17/14 Right rear door inside handle illumination 56 L
E17/47 Left front illuminated door sill molding 16 L
E17/48 Right front illuminated door sill molding 18 L
E18/5 Left luggage compartment lamp 28 L
F4 Load compartment fuse and relay box 11 L
F4 Load compartment fuse and relay box 40 L
F4f47 Fuse 47 10 L
M14/10 Fuel filler flap CL [ZV] motor 37 L
M14/5 Right front door CL [ZV] motor 22 L
M14/5s1 Right front door rotary tumbler microswitch 22 L
M14/6 Left front door CL [ZV] motor 5 L
M14/6s1 Left front door rotary tumbler microswitch 6 L
M14/8 Left rear door CL [ZV] motor 48 L
M14/8s1 Left rear door rotary tumbler microswitch 48 L
M14/9 Right rear door CL [ZV] motor 35 L
M14/9s1 Right rear door rotary tumbler microswitch 35 L
N10 Front SAM control unit 51 L
N10/8 Rear SAM control unit 12 A
N10/8 Rear SAM control unit 19 A
N10/8 Rear SAM control unit 28 A
N10/8 Rear SAM control unit 36 A
N10/8 Rear SAM control unit 44 A
N10/8 Rear SAM control unit 52 A
N10/8 Rear SAM control unit 62 A
N17 Illuminated door sill molding actuation module LED 14 L
N69/1 Left front door control unit 2 L
N69/2 Right front door control unit 25 L
S62 ATA [EDW] hood switch 43 L
U151 Valid for engine 113 43 D
U154 Valid for 164.1 32 H
U155 Valid for 164.8 27 D
U155 Valid for 164.8 32 H
U533 Valid for trailer hitch 58 A
U656 Valid for interior light package 53 A
U681 Valid for all except M113 43 D
U715 Valid for illuminated door sills 9 F
U715 Valid for illuminated door sills 21 A
W15/1 Ground (right footwell) 18 G
W15/1 Ground (right footwell) 19 L
W15/2 Ground (left footwell) 8 L
W15/2 Ground (left footwell) 17 G
W15/2 Ground (left footwell) 46 H
W17 Ground (right rear seat) 14 G
W17 Ground (right rear seat) 31 L
W6 Ground (left wheelhouse in luggage compartment) 30 H
W9 Ground (left front, at lamp unit) 42 H
X25/2 Engine compartment/interior compartment connector 43 H
X35/1 Left front door separation point 5 H
X35/2 Right front door separation point 20 H
X35/3 Left rear door separation point 47 E
X35/3 Left rear door separation point 54 E
X35/4 Right rear door separation point 34 E
X35/4 Right rear door separation point 56 E
X8/16 Left rear door printed wiring harness connector 53 H
X8/17 Right rear door printed wiring harness connector 55 H
Z204/1 Circuit 31 left wheelhouse luggage compartment voltage distributor connector 29 L
Z204/3 Circuit 31 right rear seat voltage distributor connector 33 L
Z204/4 Circuit 31 right footwell voltage distributor connector 33 L
Z204/5 Circuit 31 left footwell voltage distributor connector (1) 46 L
Z204/7 Circuit 31 left footwell voltage distributor connector (2) 46 L
Z21 Front rotary tumbler switch connector sleeve 6 E
Z21/1 Front rotary tumbler switch connector sleeve 21 E
Z6/12 Left rear door ground connector sleeve 47 H
Z6/12 Left rear door ground connector sleeve 53 E
Z6/13 Right rear door ground connector sleeve 34 H
Z6/13 Right rear door ground connector sleeve 56 E
Z6/35 Left front door ground connector sleeve 7 L
Z6/36 Right front door ground connector sleeve 20 L

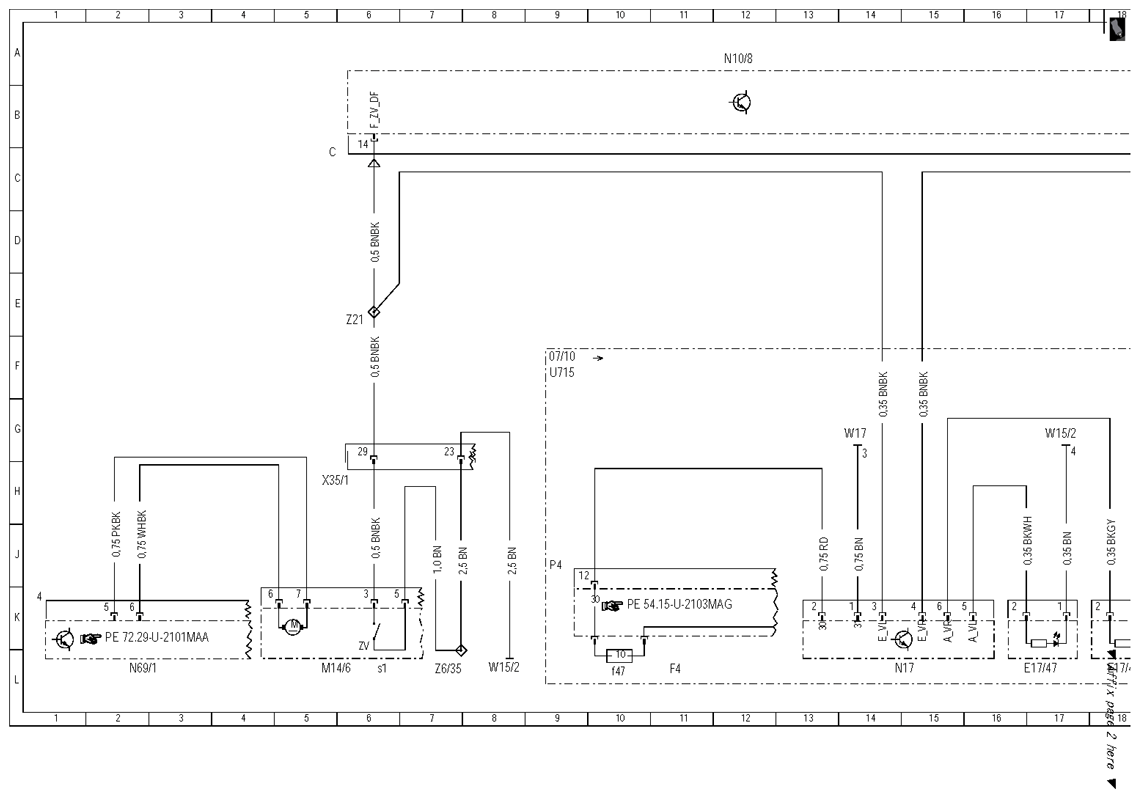

Fig 1: Rear Signal Acquisition And Actuation Module Control Module Wiring Diagram (1 Of 4)
G10117364Courtesy of MERCEDES-BENZ USA

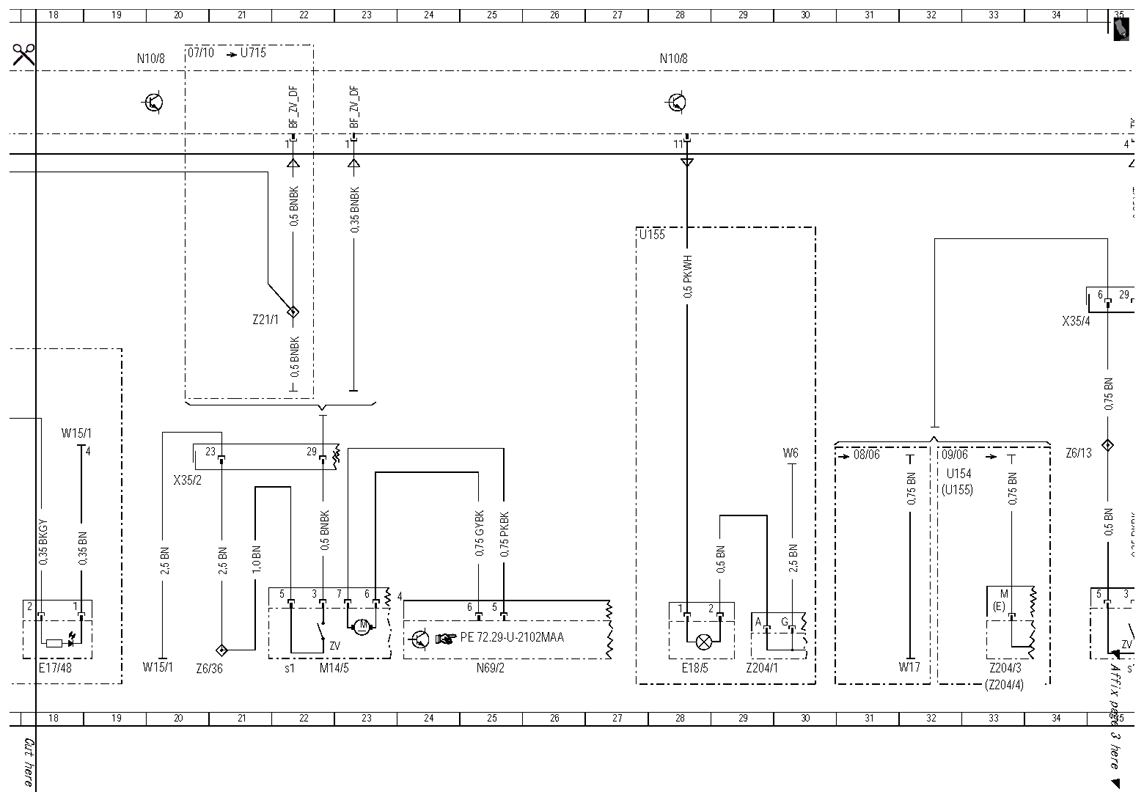

Fig 2: Rear Signal Acquisition And Actuation Module Control Module Wiring Diagram (2 Of 4)
G10117365Courtesy of MERCEDES-BENZ USA

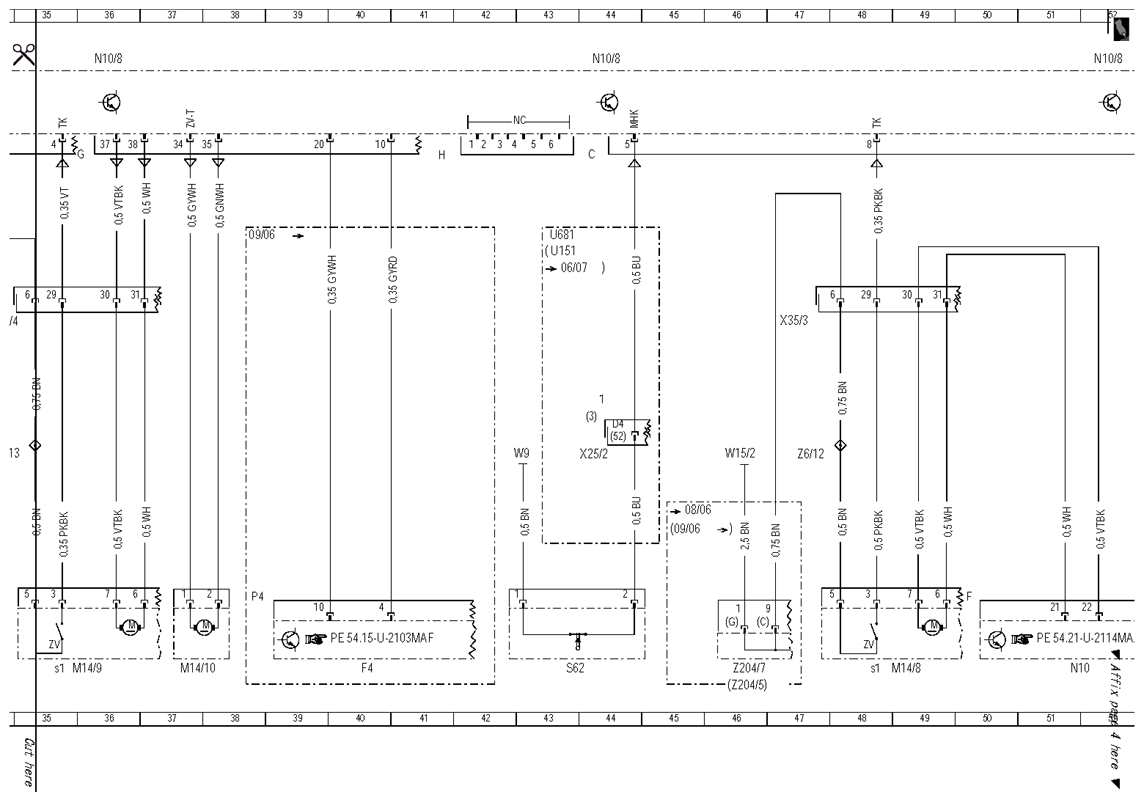

Fig 3: Rear Signal Acquisition And Actuation Module Control Module Wiring Diagram (3 Of 4)
G10117366Courtesy of MERCEDES-BENZ USA

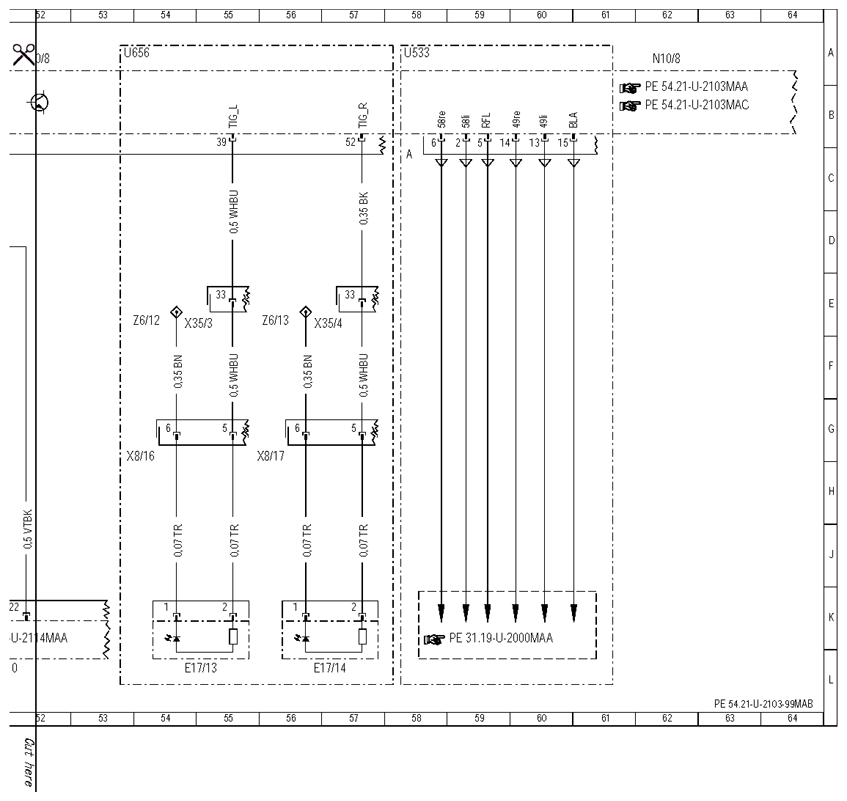

Fig 4: Rear Signal Acquisition And Actuation Module Control Module Wiring Diagram (4 Of 4)
G10117367Courtesy of MERCEDES-BENZ USA
