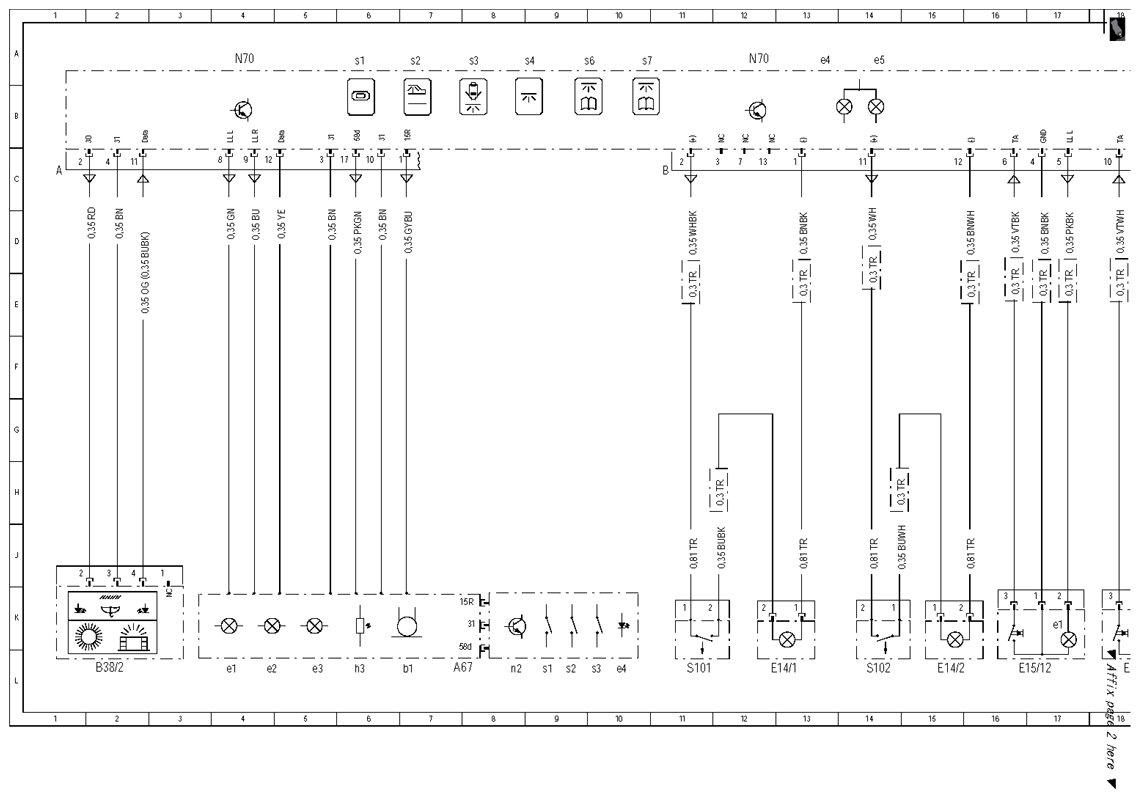

| A67 |
Inside rearview mirror unit |
7 L |
| A67b1 |
Hands-free system microphone group |
6 L |
| A67e1 |
Left reading lamp |
4 L |
| A67e2 |
Right reading lamp |
4 L |
| A67e3 |
Ambient lamp |
5 L |
| A67e4 |
Garage door opener indicator lamp |
10 L |
| A67h3 |
Automatic dimming mirror |
6 L |
| A67n2 |
Garage door opener transmitter unit |
8 L |
| A67s1 |
Garage door opener button 1 |
9 L |
| A67s2 |
Garage door opener button 2 |
9 L |
| A67s3 |
Garage door opener button 3 |
9 L |
| B38/2 |
Rain/light sensor |
2 L |
| E14/1 |
Left sun visor with illuminated mirror |
12 L |
| E14/2 |
Right sun visor with illuminated mirror |
15 L |

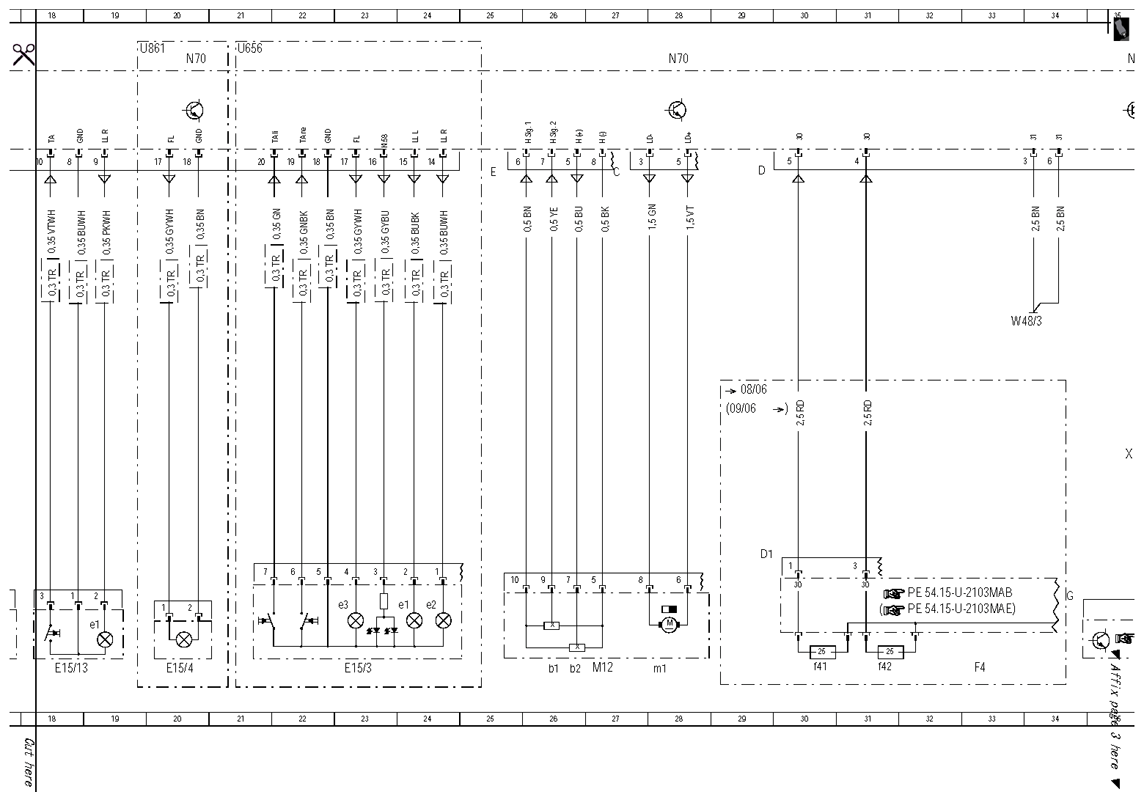

| E15/12 |
Left dome lamp, 2nd seat row |
16 L |
| E15/12e1 |
2nd seat row left reading lamp |
17 K |
| E15/13 |
Right dome lamp, 2nd seat row |
18 L |
| E15/13e1 |
2nd seat row right reading lamp |
18 K |
| E15/3 |
Left dome lamp, 3rd seat row |
23 L |
| E15/3e1 |
3rd seat row left reading lamp |
23 K |
| E15/3e2 |
3rd seat row right reading lamp |
24 K |
| E15/3e3 |
Left dome lamp, 3rd seat row |
22 K |
| E15/4 |
Central load compartment dome lamp |
20 L |
| F4 |
Load compartment fuse and relay box |
33 L |
| F4f41 |
Fuse 41 |
30 L |
| F4f42 |
Fuse 42 |
31 L |
| M12 |
Tilting/sliding roof (SR [SHD]) drive unit |
27 L |
| M12b1 |
Hall sensor 1, SR |
26 L |
| M12b2 |
Hall sensor 2, SR |
26 L |
| M12m1 |
SR [SHD] motor |
27 L |

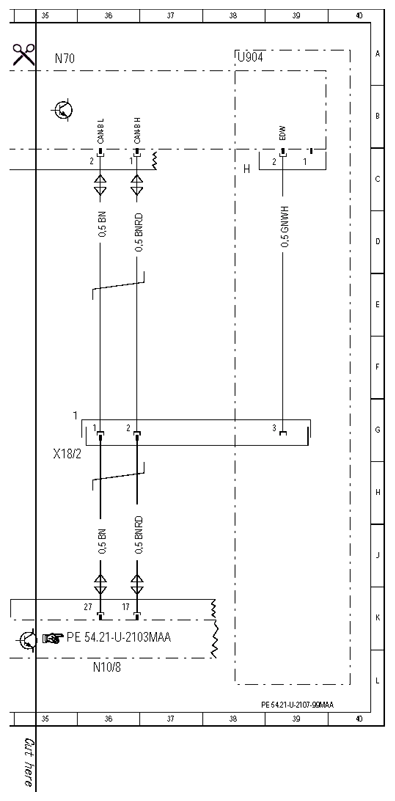

| N10/8 |
Rear SAM control unit |
36 L |
| N70 |
Overhead control panel control unit |
4 A |
| N70 |
Overhead control panel control unit |
12 A |
| N70 |
Overhead control panel control unit |
20 A |
| N70 |
Overhead control panel control unit |
28 A |
| N70 |
Overhead control panel control unit |
35 A |
| N70e4 |
Left interior lamp, 1st seat row |
13 A |
| N70e5 |
Right interior lamp, 1st seat row |
14 A |
| N70s1 |
Roof switch |
6 A |
| N70s2 |
Rear dome lamp switch |
6 A |
| N70s3 |
Door contact ON and OFF switch |
7 A |
| N70s4 |
Interior lamp switch, 1st seat row |
8 A |
| N70s6 |
Left reading lamp switch, 1st seat row |
9 A |
| N70s7 |
Right reading lamp switch, 1st seat row |
10 A |
| S101 |
Left front vanity mirror illumination switch |
11 L |
| S102 |
Right front vanity mirror illumination switch |
14 L |
| U656 |
Valid for interior light package |
21 A |
| U861 |
Valid for versions without interior light package |
19 A |
| U904 |
Wiring harness installed but nonfunctional |
38 A |
| W48/3 |
Ground (headliner supply) |
33 E |
| X18/2 |
Interior/roof connector |
35 H |
