| A0 |
Color code key |
80L |
| A72 |
Rear door locking unit |
30L |
| A72 |
Rear door locking unit |
36L |
| B51/5 |
Left vent window obstruction sensor strip |
44L |
| B51/6 |
Right vent window obstruction sensor strip |
48L |

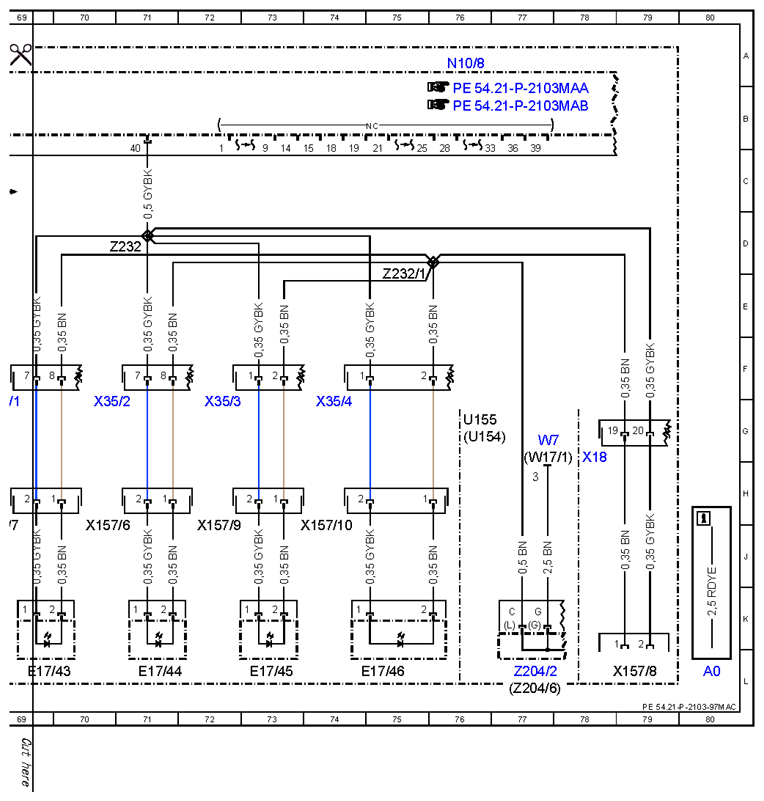

| E17/43 |
Left front door ambiance illumination |
59L |
| E17/43 |
Left front door ambiance illumination |
69L |
| E17/44 |
Right front door ambiance illumination |
60L |
| E17/44 |
Right front door ambiance illumination |
71L |
| E17/45 |
Left rear door ambiance illumination |
62L |
| E17/45 |
Left rear door ambiance illumination |
73L |
| E17/46 |
Right rear door ambiance illumination |
64L |
| E17/46 |
Right rear door ambiance illumination |
75L |

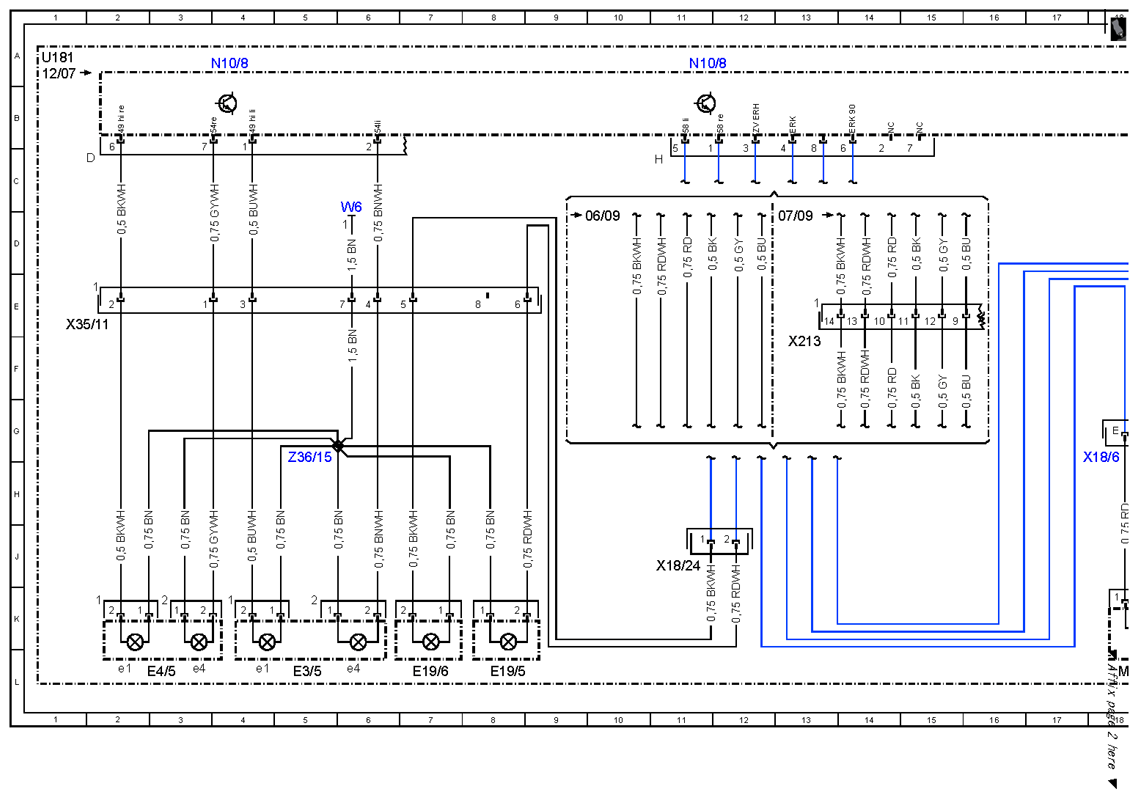

| E19/5 |
Left spare tire carrier license plate lamp |
8L |
| E19/6 |
Right spare tire carrier license plate lamp |
7L |
| E3/5 |
Left additional tail lamp |
5L |
| E3/5e1 |
Left turn signal lamp |
4L |
| E3/5e4 |
Left brake light and taillight |
6L |
| E4/5 |
Right additional tail lamp |
3L |
| E4/5e1 |
Right turn signal lamp |
2L |
| E4/5e4 |
Right brake light and taillight |
3L |

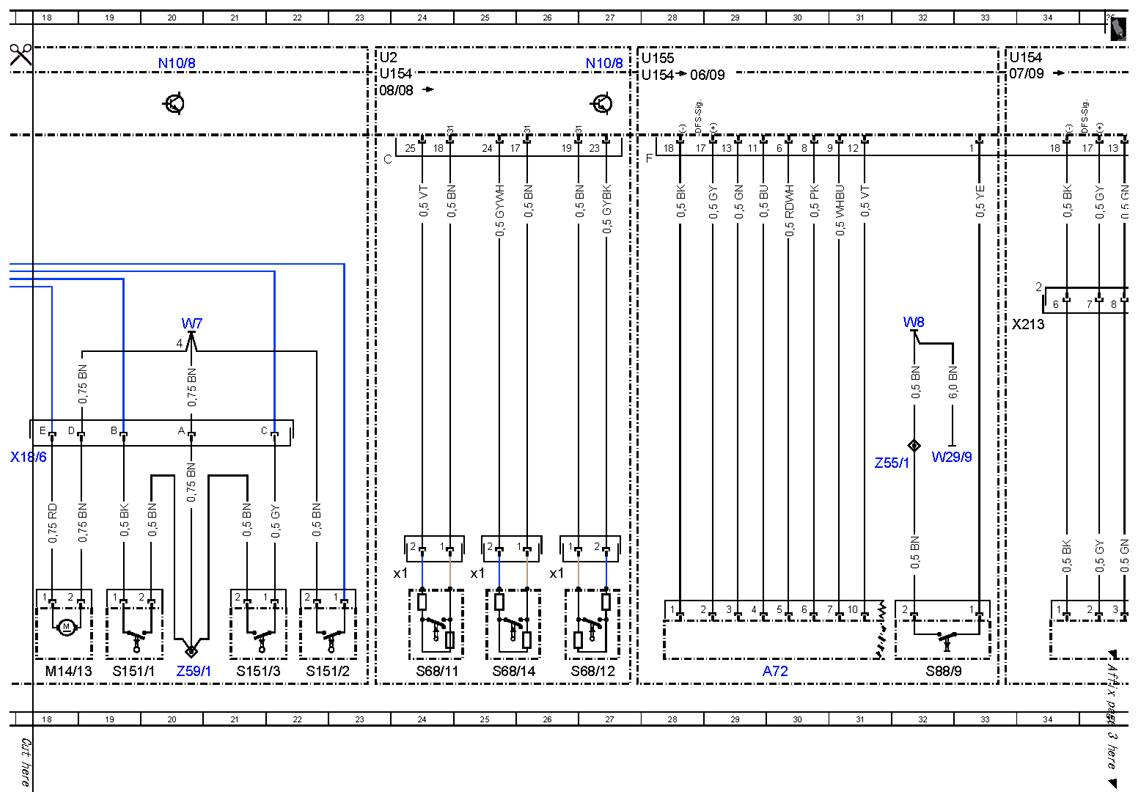

| M14/13 |
Spare tire carrier CL [ZV] motor |
18L |

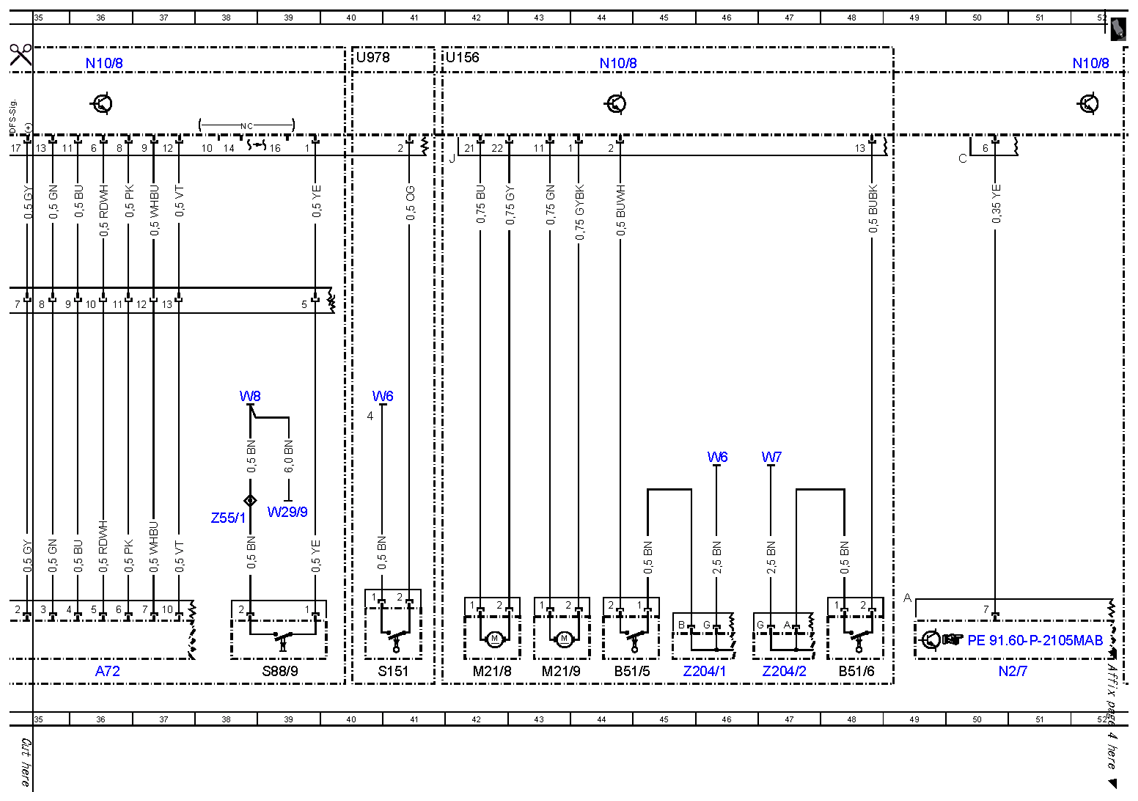

| M21/8 |
Left vent window motor |
42L |
| M21/9 |
Right vent window motor |
43L |
| N10/8 |
Rear SAM control unit |
4A |
| N10/8 |
Rear SAM control unit |
11A |
| N10/8 |
Rear SAM control unit |
20A |
| N10/8 |
Rear SAM control unit |
27A |
| N10/8 |
Rear SAM control unit |
36A |
| N10/8 |
Rear SAM control unit |
44A |
| N10/8 |
Rear SAM control unit |
52A |
| N10/8 |
Rear SAM control unit |
60A |
| N10/8 |
Rear SAM control unit |
68A |
| N10/8 |
Rear SAM control unit |
76A |
| N2/7 |
Restraint systems control unit |
50L |
| S151 |
Rear SAM/fuse and relay box lid contact switch |
41L |
| S151/1 |
Spare tire carrier "locked" switch |
19L |
| S151/2 |
Spare tire carrier "open" switch |
22L |
| S151/3 |
Spare tire carrier control button |
21L |

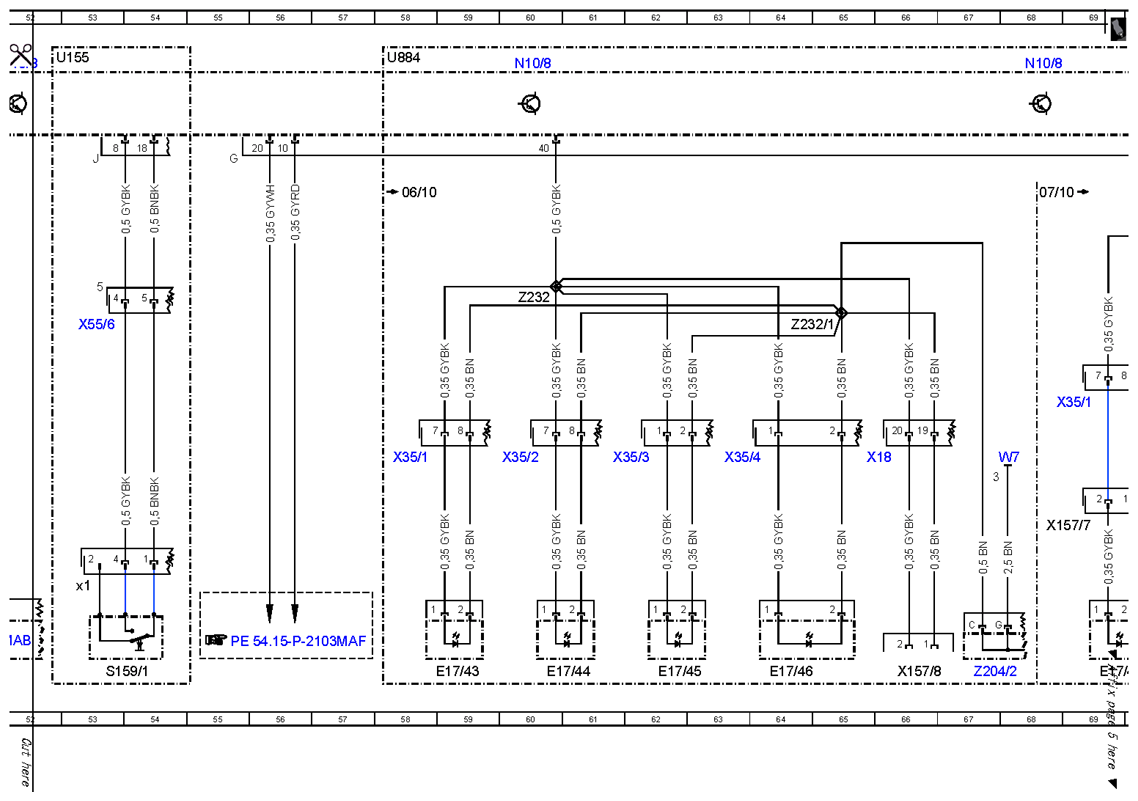

| S159/1 |
Right easy entry feature microswitch, 2nd seat row |
53L |
| S159/1x1 |
Right easy entry feature microswitch connector, 2nd seat row |
53K |
| S68/11 |
Left rear seat belt buckle switch |
24L |
| S68/11x1 |
Left rear seat belt buckle switch connector |
24K |
| S68/12 |
Right rear seat belt buckle switch |
27L |
| S68/12x1 |
Right rear seat belt buckle switch connector |
26K |
| S68/14 |
Center rear seat belt buckle switch |
25L |
| S68/14x1 |
Seat belt buckle switch connector, center rear |
25K |
| S88/9 |
Rear-end door handle switch |
32L |
| S88/9 |
Rear-end door handle switch |
39L |
| U154 |
Valid for 164.1 |
28A |
| U154 |
Valid for 164.1 |
23A |
| U154 |
Valid for 164.1 |
33A |
| U154 |
Valid for 164.1 |
76G |
| U155 |
Valid for 164.8 |
28A |
| U155 |
Valid for 164.8 |
76G |
| U155 |
Valid for 164.8 |
52A |
| U156 |
Valid for electric vent window |
42A |
| U181 |
Valid for spare tire carrier |
1A |
| U2 |
Valid for all except{{USA}} |
23A |
| U884 |
Valid for ambiance illumination |
58A |
| U978 |
Valid for full hybrid drive |
40A |
| W17/1 |
Ground (left rear seat) |
77G |
| W29/9 |
Ground (right D-pillar) |
39H |
| W29/9 |
Ground (right D-pillar) |
32G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
40G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
6D |
| W6 |
Ground (left wheelhouse in luggage compartment) |
46G |
| W7 |
Ground (right wheelhouse in luggage compartment) |
20E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
47G |
| W7 |
Ground (right wheelhouse in luggage compartment) |
68G |
| W7 |
Ground (right wheelhouse in luggage compartment) |
77G |
| W8 |
Ground (rear-end door) |
38G |
| W8 |
Ground (rear-end door) |
32E |
| X157/10 |
Right rear door trim strip illumination separating point |
74J |
| X157/6 |
Right front door trim strip illumination separating point |
70J |
| X157/7 |
Left front door trim strip illumination separating point |
69J |
| X157/8 |
Instrument panel ambiance illumination connecting point |
66L |
| X157/8 |
Instrument panel ambiance illumination connecting point |
79L |
| X157/9 |
Left rear door trim strip illumination separating point |
72J |
| X18 |
Interior/cockpit connector |
66H |
| X18 |
Interior/cockpit connector |
78H |
| X18/24 |
License plate lamp connector |
11J |
| X18/6 |
Spare tire carrier connector |
18H |
| X213 |
Rear SAM connecting point |
13F |
| X213 |
Rear SAM connecting point |
34E |
| X35/1 |
Left front door separation point |
58H |
| X35/1 |
Left front door separation point |
69G |
| X35/11 |
Spare tire carrier FFS [RBA]/rear bumper connector |
2E |
| X35/2 |
Right front door separation point |
60H |
| X35/2 |
Right front door separation point |
70G |
| X35/3 |
Left rear door separation point |
62H |
| X35/3 |
Left rear door separation point |
72G |
| X35/4 |
Right rear door separation point |
63H |
| X35/4 |
Right rear door separation point |
74G |
| X55/6 |
Right rear seat adjustment connector block |
53E |
| Z204/1 |
Circuit 31 left wheelhouse luggage compartment voltage distributor connector |
45L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
47L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
67L |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
77L |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
77L |
| Z232 |
Ambiance illumination connector sleeve |
60E |
| Z232 |
Ambiance illumination connector sleeve |
71D |
| Z232/1 |
Ambiance illumination circuit 31 connector sleeve |
64E |
| Z232/1 |
Ambiance illumination circuit 31 connector sleeve |
75E |
| Z36/15 |
Rear additional tail lamp ground connector sleeve |
5G |
| Z55/1 |
Rear-end door circuit 31 connector sleeve |
38H |
| Z55/1 |
Rear-end door circuit 31 connector sleeve |
31H |
| Z59/1 |
Wheel carrier connector sleeve (circuit 31) |
20L |
