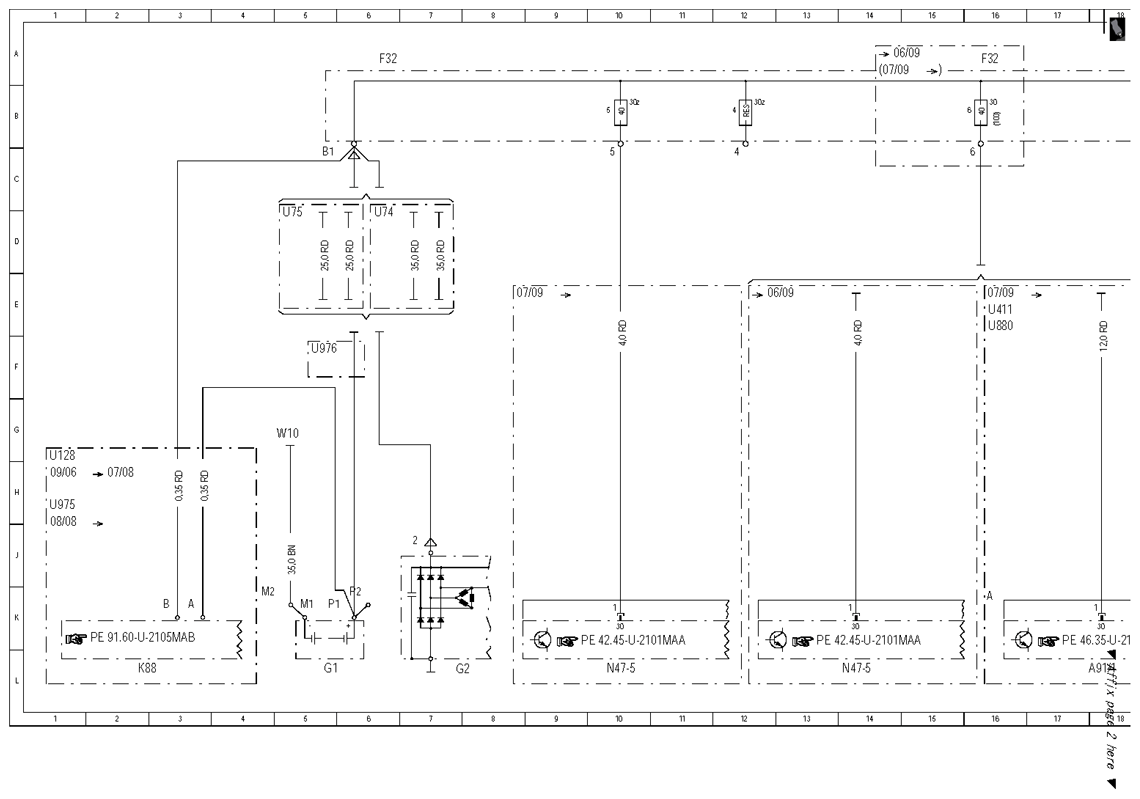

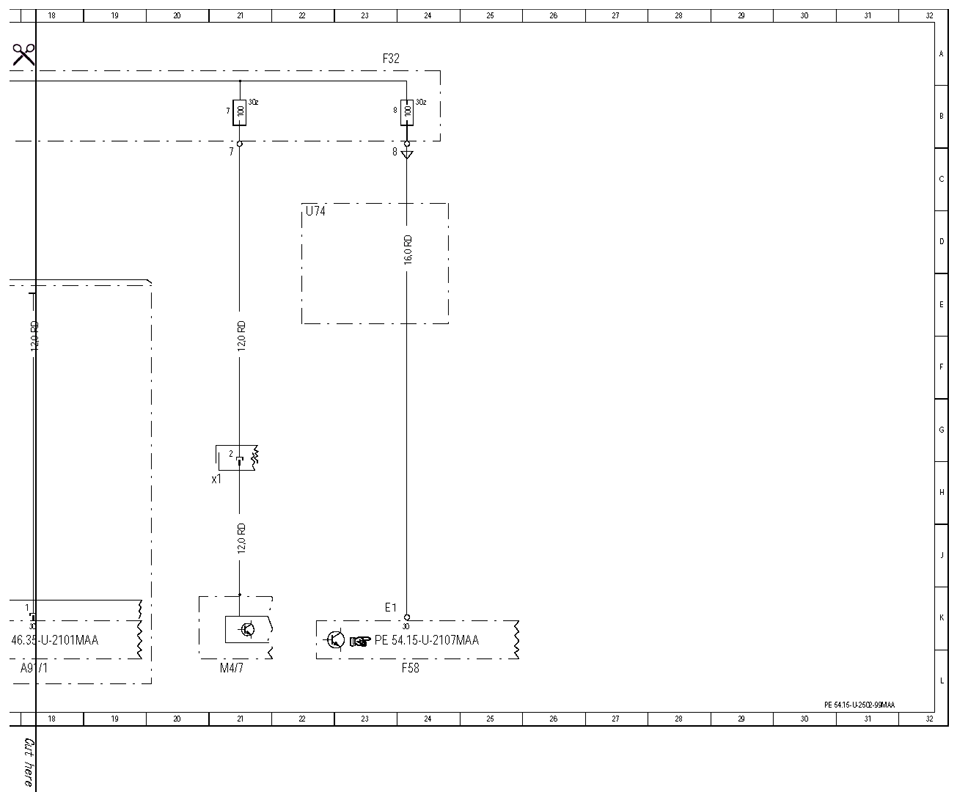

| A91/1 |
Electrohydraulic power steering |
17 L |
| F32 |
Front prefuse |
6 A |
| F32 |
Front prefuse |
16 A |
| F32 |
Front prefuse |
23 A |
| F32f4 |
Fuse 4 |
12 B |
| F32f5 |
Fuse 5 |
10 B |
| F32f6 |
Fuse 6 |
16 B |
| F32f7 |
Fuse 7 |
21 B |
| F32f8 |
Fuse 8 |
23 B |
| F58 |
Engine compartment fuse and relay box |
24 L |
| G1 |
Battery |
5 L |
| G2 |
Alternator |
7 L |
| K88 |
Pyrotechnical separator |
2 L |
| M4/7 |
Engine and AC electric suction fan with integrated control |
21 L |
| M4/7x1 |
Engine and AC electric suction fan with integrated control connector 1 |
20 H |
| N47-5 |
ESP control unit |
10 L |
| N47-5 |
ESP control unit |
14 L |
| U128 |
Valid for 164.8 with engine 642 |
1 H |
| U411 |
Valid for EHPS |
16 E |
| U74 |
Valid for diesel engines |
6 D |
| U74 |
Valid for diesel engines |
22 D |
| U75 |
Valid for gasoline engines |
5 D |
| U880 |
Valid for engine 642 |
16 E |
| U975 |
Valid for pyrofuse |
1 H |
| U976 |
Not valid for pyrofuse |
5 F |
| W10 |
Ground (battery) |
5 G |
