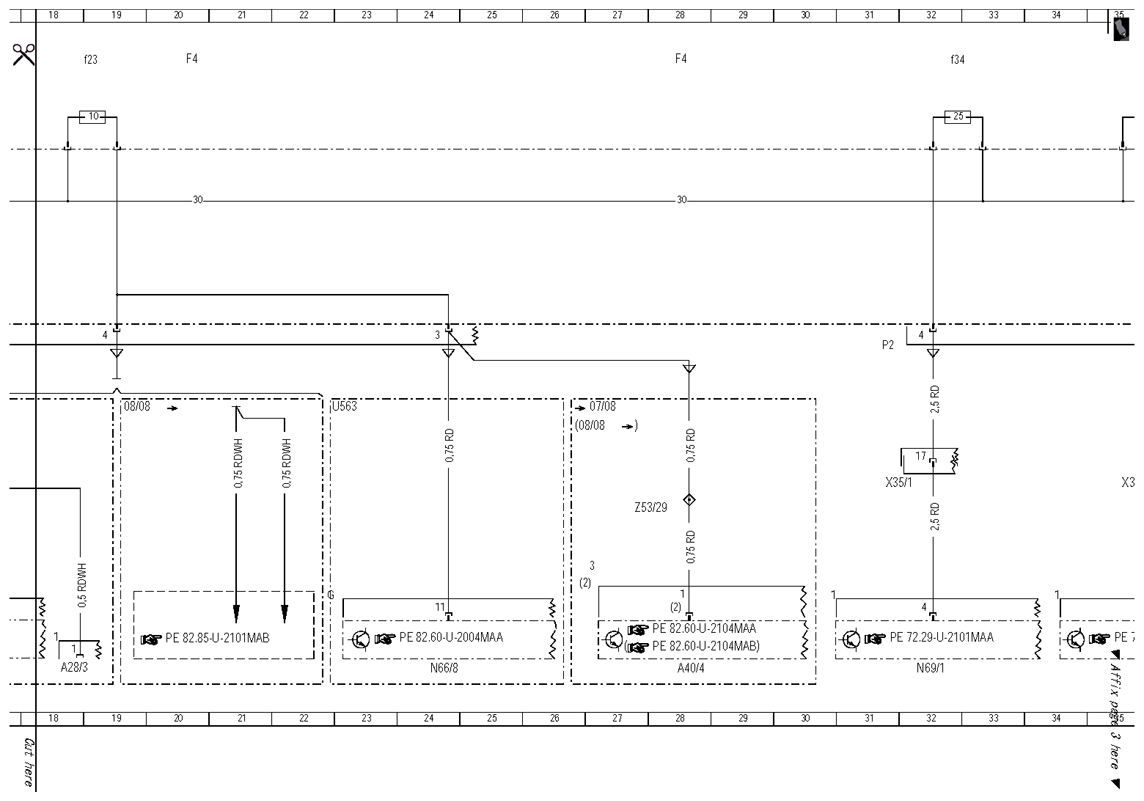

| A28/3 |
E-net compensator |
18 L |
| A40/3 |
COMAND operating, display and control unit |
43 L |
| A40/4 |
DVD player |
28 L |
| A49/6 |
Radio antenna interference filter |
59 L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
58 K |
| A76 |
Left front reversible emergency tensioning retractor |
8 L |
| A76/1 |
Right front reversible emergency tensioning retractor |
9 L |

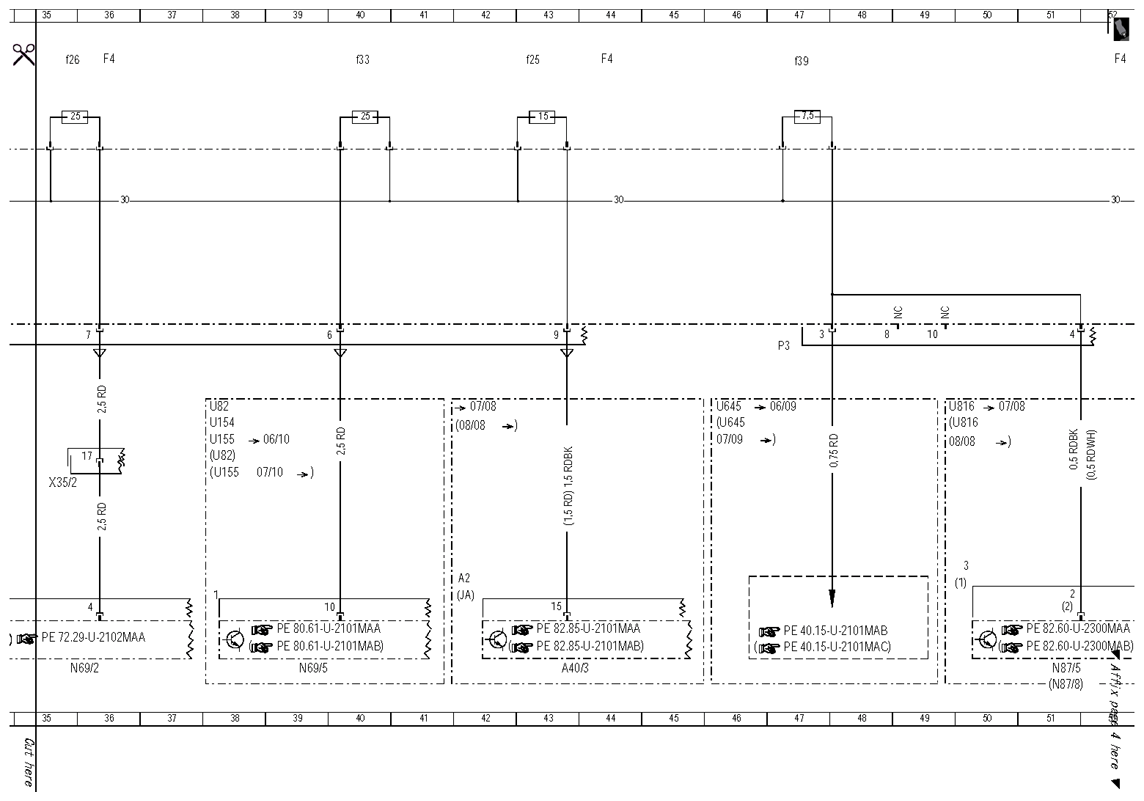

| F4 |
Load compartment fuse and relay box |
4 A |
| F4 |
Load compartment fuse and relay box |
12 A |
| F4 |
Load compartment fuse and relay box |
20 A |
| F4 |
Load compartment fuse and relay box |
28 A |
| F4 |
Load compartment fuse and relay box |
36 A |
| F4 |
Load compartment fuse and relay box |
44 A |
| F4 |
Load compartment fuse and relay box |
52 A |
| F4 |
Load compartment fuse and relay box |
60 A |
| F4f20 |
Fuse 20 |
59 A |
| F4f22 |
Fuse 22 |
13 A |
| F4f23 |
Fuse 23 |
18 A |
| F4f24 |
Fuse 24 |
10 A |
| F4f25 |
Fuse 25 |
43 A |
| F4f26 |
Fuse 26 |
35 A |
| F4f29 |
Fuse 29 |
8 A |
| F4f33 |
Fuse 33 |
40 A |
| F4f34 |
Fuse 34 |
32 A |
| F4f38 |
Fuse 38 |
58 A |
| F4f39 |
Fuse 39 |
47 A |
| F4f41 |
Fuse 41 |
55 A |
| F4f42 |
Fuse 42 |
56 A |
| F4f68 |
Fuse 68 |
6 E |
| F4f69 |
Fuse 69 |
2 E |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
16 L |

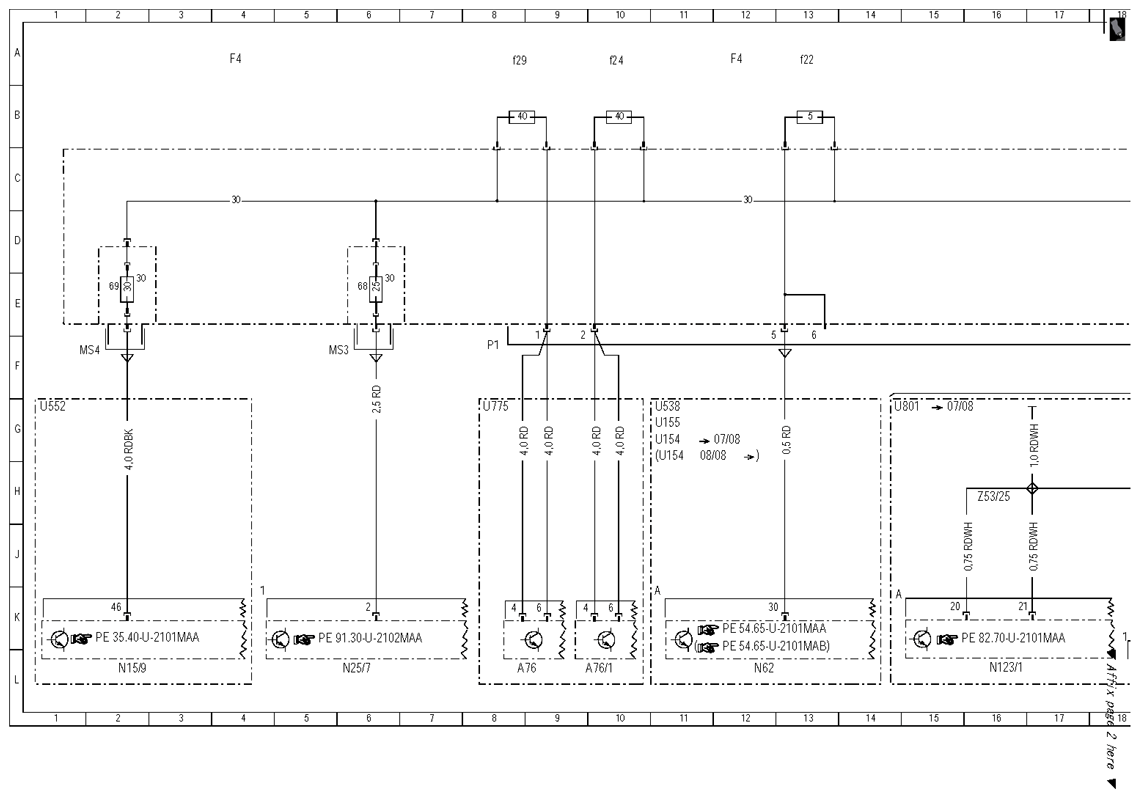

| N15/9 |
Rear axle differential lock control unit |
2 L |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
6 L |
| N62 |
PTS control unit |
12 L |
| N66/8 |
Rear audio control unit |
24 L |
| N69/1 |
Left front door control unit |
32 L |
| N69/2 |
Right front door control unit |
35 L |
| N69/5 |
KEYLESS-GO control unit |
39 L |

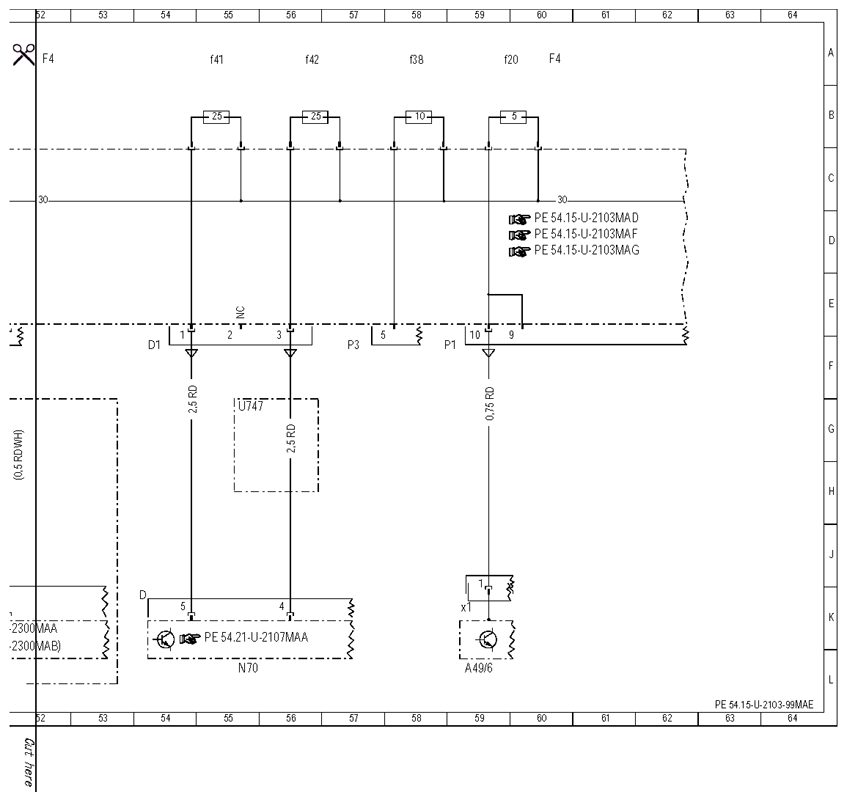

| N70 |
Overhead control panel control unit |
55 L |
| N87/5 |
SDAR control unit |
51 L |
| N87/8 |
High-definition tuner control unit |
51 L |
| U154 |
Valid for 164.1 |
11 H |
| U154 |
Valid for 164.1 |
11 G |
| U154 |
Valid for 164.1 |
38 G |
| U155 |
Valid for 164.8 |
11 G |
| U155 |
Valid for 164.8 |
38 G |
| U155 |
Valid for 164.8 |
38 H |
| U538 |
Valid for Parktronic System |
11 G |
| U552 |
Valid for offroad package |
1 G |
| U563 |
Valid for rear entertainment (DVD) |
22 G |
| U645 |
Valid for tire pressure monitor system |
46 G |
| U645 |
Valid for tire pressure monitor system |
46 G |
| U747 |
Valid for panoramic sliding roof |
55 G |
| U775 |
Valid for reversible emergency tensioning retractor |
8 G |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
14 G |
| U816 |
Valid for satellite radio (SDAR) |
49 G |
| U816 |
Valid for satellite radio (SDAR) |
49 G |
| U82 |
Valid for KEYLESS GO |
38 H |
| U82 |
Valid for KEYLESS GO |
38 G |
| X35/1 |
Left front door separation point |
31 H |
| X35/2 |
Right front door separation point |
35 H |
| Z53/25 |
UPCI [UHI] circuit 30 interior compartment solder point |
16 H |
| Z53/29 |
Rear seat entertainment circuit 30 solder connector |
27 H |
