| B29/4 |
Left rear bumper intelligent radar sensor |
17 L |
| B29/4 |
Left rear bumper intelligent radar sensor |
23 L |
| B29/5 |
Right rear bumper intelligent radar sensor |
18 L |
| B29/5 |
Right rear bumper intelligent radar sensor |
24 L |

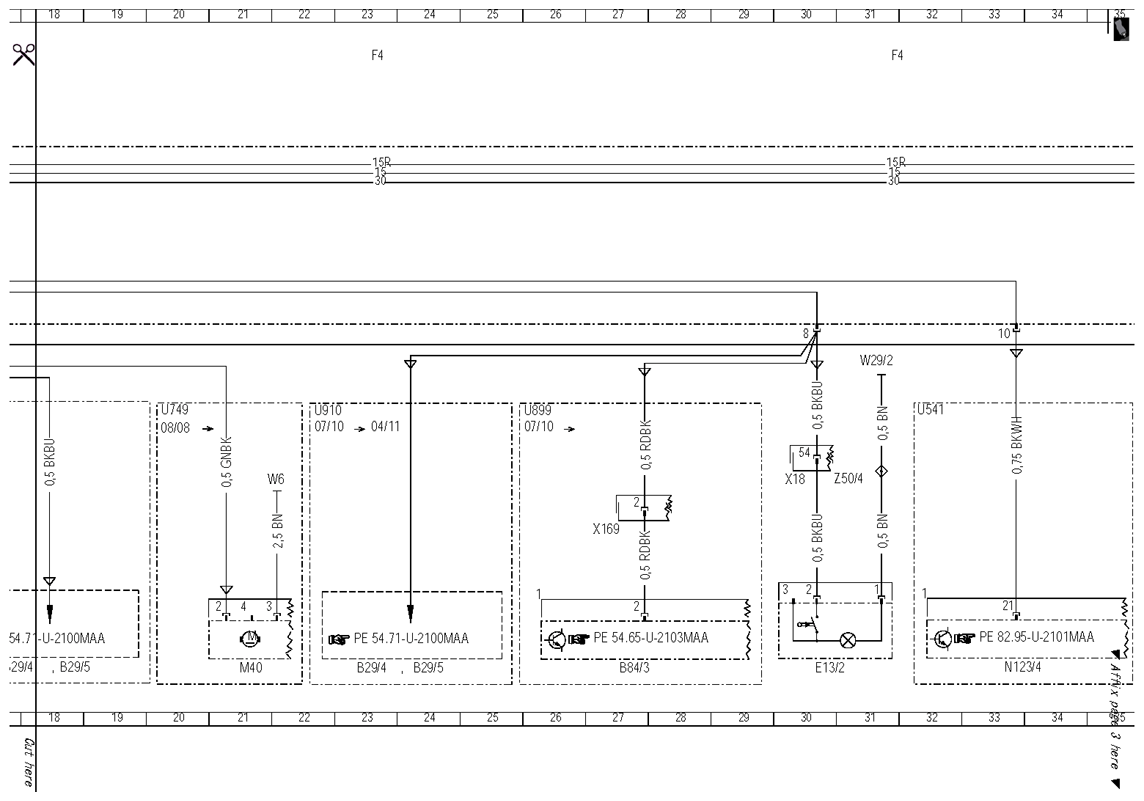

| B84/3 |
Backup camera |
27 L |
| E13/2 |
Glove compartment illumination with switch |
30 L |
| F33 |
Battery compartment prefuse box |
4 L |
| F33f82 |
Fuse 82 |
4 K |
| F4 |
Load compartment fuse and relay box |
4 A |
| F4 |
Load compartment fuse and relay box |
12 A |
| F4 |
Load compartment fuse and relay box |
23 A |
| F4 |
Load compartment fuse and relay box |
31 A |
| F4 |
Load compartment fuse and relay box |
39 A |
| F4 |
Load compartment fuse and relay box |
48 A |
| F4 |
Load compartment fuse and relay box |
55 A |
| F4 |
Load compartment fuse and relay box |
63 A |
| F4 |
Load compartment fuse and relay box |
71 A |
| F4 |
Load compartment fuse and relay box |
77 A |
| F4f37 |
Fuse 37 |
59 A |
| F4f50 |
Fuse 50 |
9 A |
| F4f56 |
Fuse 56 |
75 A |
| F4f57 |
Fuse 57 |
50 A |
| F4f60 |
Fuse 60 |
13 A |
| F4f62 |
Fuse 62 |
43 A |

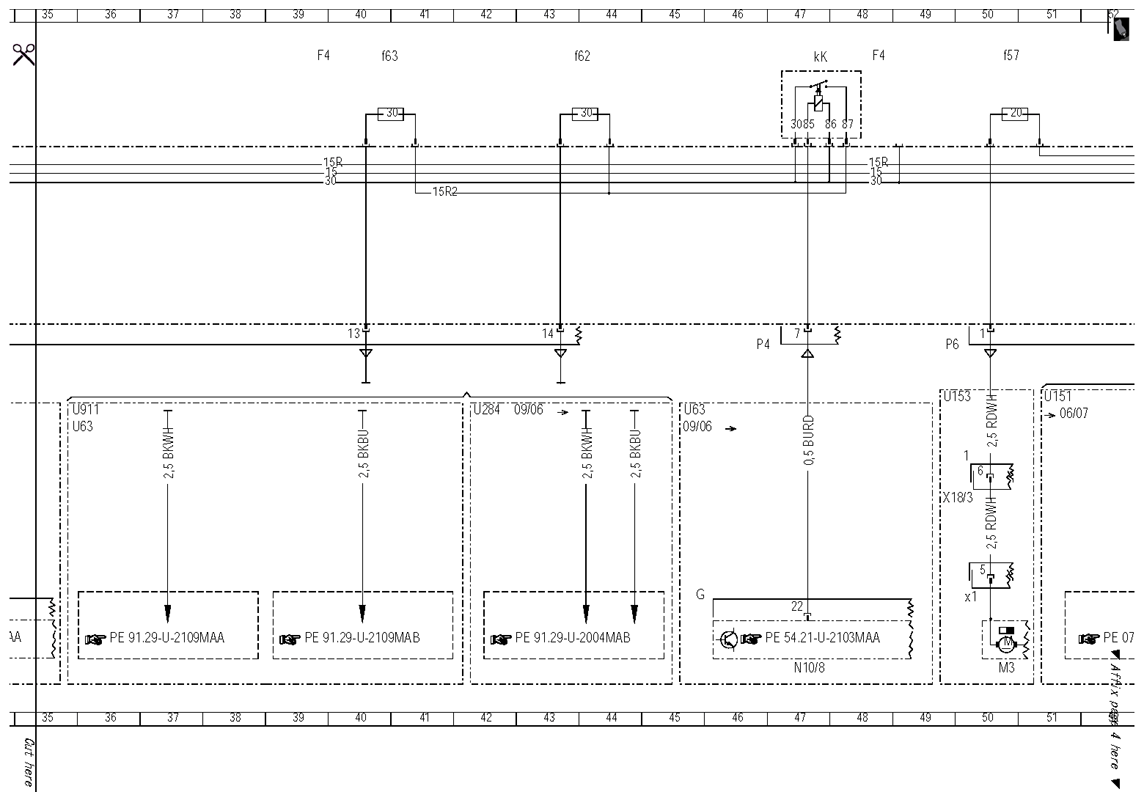

| F4f63 |
Fuse 63 |
40 A |
| F4kK |
Socket circuit 15R relay (with run-on) |
47 A |
| F4kN |
Circuit 15 (1)/spare 1 relay (changeover contact) |
11 A |

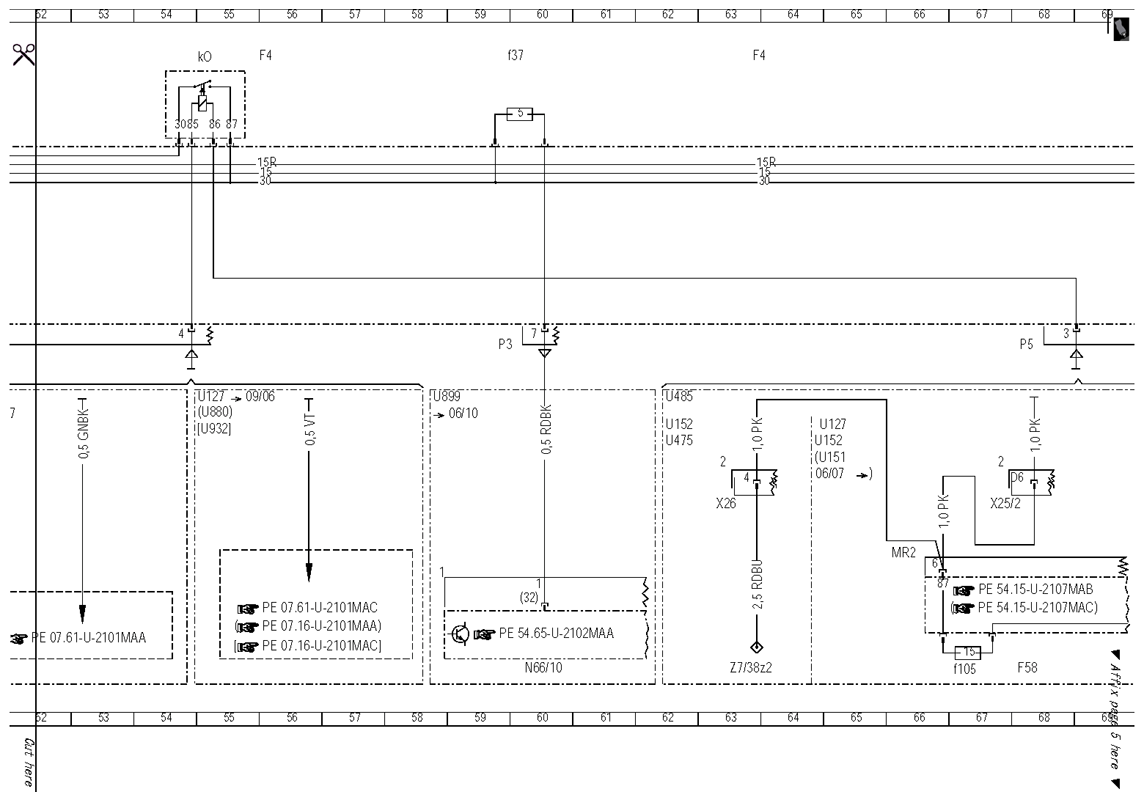

| F4kO |
Fuel pump relay |
54 A |
| F4kP |
Rear wiper relay |
7 A |
| F4kR |
Circuit 15R relay |
10 A |
| F58 |
Engine compartment fuse and relay box |
14 L |
| F58 |
Engine compartment fuse and relay box |
68 L |
| F58 |
Engine compartment fuse and relay box |
72 L |

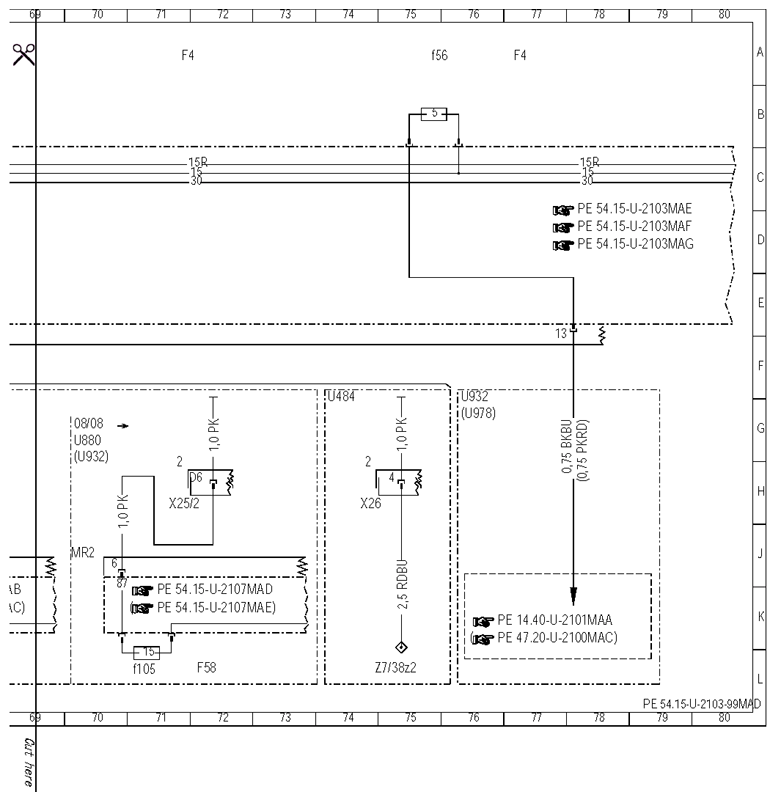

| F58f105 |
Fuse 105 |
66 L |
| F58f105 |
Fuse 105 |
70 L |

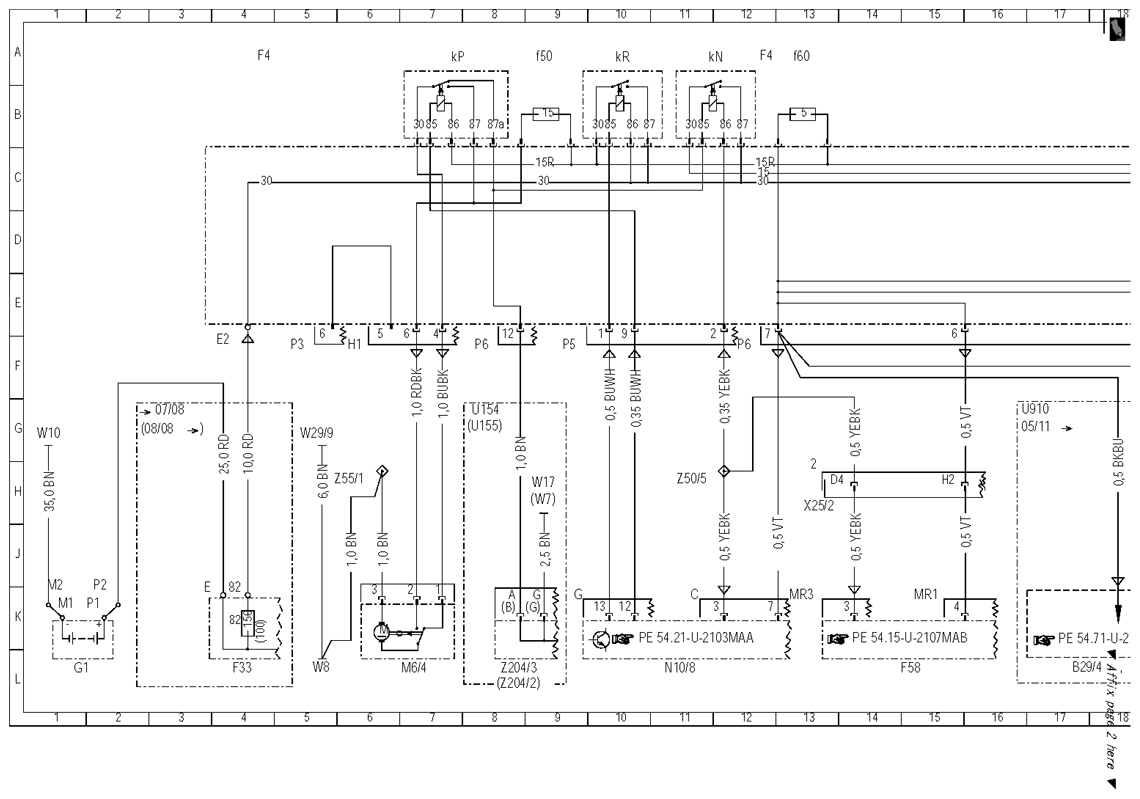

| G1 |
Battery |
1 L |
| M3 |
Fuel pump (FP) |
50 L |
| M3x1 |
Fuel pump connector |
49 K |
| M40 |
Multicontour seat pneumatic pump |
21 L |
| M6/4 |
Tailgate wiper motor |
6 L |
| N10/8 |
Rear SAM control unit |
11 L |
| N10/8 |
Rear SAM control unit |
47 L |
| N123/4 |
Emergency call system control unit |
33 L |
| N66/10 |
Backup camera voltage supply module |
60 L |
| U127 |
Valid for engine 272, engine 273 KE |
54 G |
| U127 |
Valid for engine 272, engine 273 KE |
64 G |
| U151 |
Valid for engine 113 |
51 G |
| U151 |
Valid for engine 113 |
64 H |
| U152 |
Valid for engine 156 |
62 G |
| U152 |
Valid for engine 156 |
64 G |
| U153 |
Valid for all except engine 156 |
49 G |
| U154 |
Valid for 164.1 |
8 G |
| U155 |
Valid for 164.8 |
8 G |
| U284 |
Valid for fully electric seat adjustment |
42 G |
| U475 |
Valid for M 272 |
62 G |
| U484 |
Valid for M273 ME |
74 G |
| U485 |
Not valid for M273 ME |
62 G |
| U541 |
Valid for TELE AID emergency call system |
32 G |
| U63 |
Valid for seat adjustment without memory |
35 G |
| U63 |
Valid for seat adjustment without memory |
45 G |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
20 G |
| U880 |
Valid for engine 642 |
54 G |
| U880 |
Valid for engine 642 |
70 G |
| U899 |
Valid for backup camera |
25 G |
| U899 |
Valid for backup camera |
58 G |
| U910 |
Valid for Blind Spot Assist |
16 G |
| U910 |
Valid for Blind Spot Assist |
22 G |
| U911 |
Valid for lumbar support |
35 G |
| U932 |
Valid for engine 642 BLUETEC |
54 G |
| U932 |
Valid for engine 642 BLUETEC |
70 H |
| U932 |
Valid for engine 642 BLUETEC |
76 G |
| U978 |
Valid for full hybrid drive |
76 G |
| W10 |
Ground (battery) |
1 G |
| W17 |
Ground (right rear seat) |
9 H |
| W29/2 |
Ground (right A-pillar) |
31 F |
| W29/9 |
Ground (right D-pillar) |
5 G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
21 H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
9 H |
| W8 |
Ground (rear-end door) |
5 L |
| X169 |
Reversing camera connecting point |
27 J |
| X18 |
Interior/cockpit connector |
30 H |
| X18/3 |
Interior/fuel tank connector |
49 H |
| X25/2 |
Engine compartment/interior compartment connector |
13 H |
| X25/2 |
Engine compartment/interior compartment connector |
67 H |
| X25/2 |
Engine compartment/interior compartment connector |
71 H |
| X26 |
Interior and engine wiring harness connector |
63 H |
| X26 |
Interior and engine wiring harness connector |
74 H |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
8 L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
8 L |
| Z50/4 |
Circuit 31 cockpit connector sleeve (2, right) |
30 H |
| Z50/5 |
Tml. 15 connector sleeve |
11 H |
| Z55/1 |
Rear-end door circuit 31 connector sleeve |
5 H |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
63 L |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
74 L |
