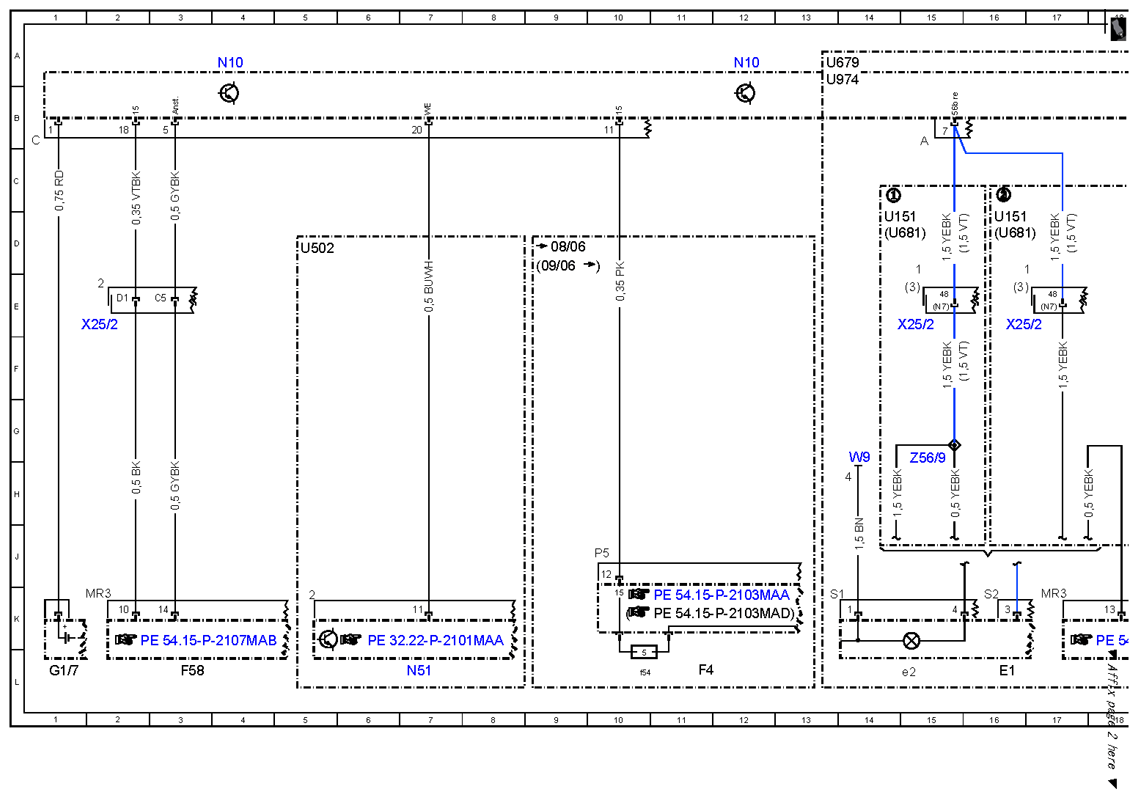

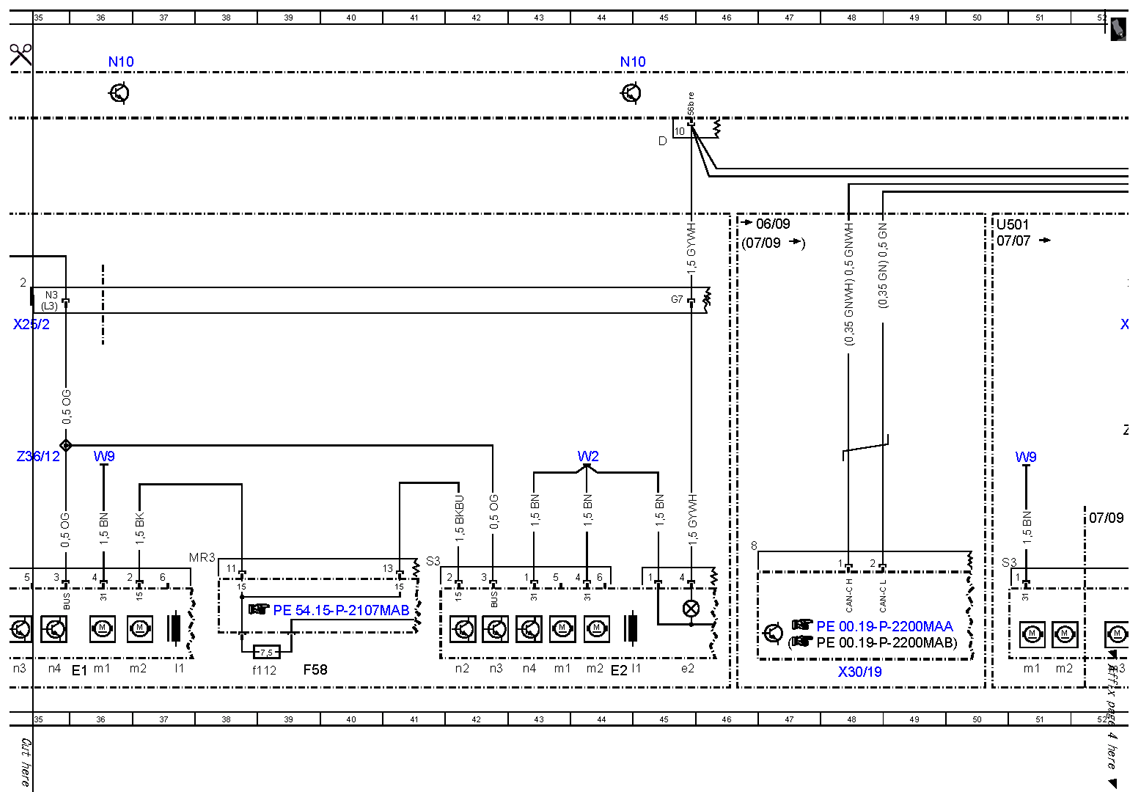

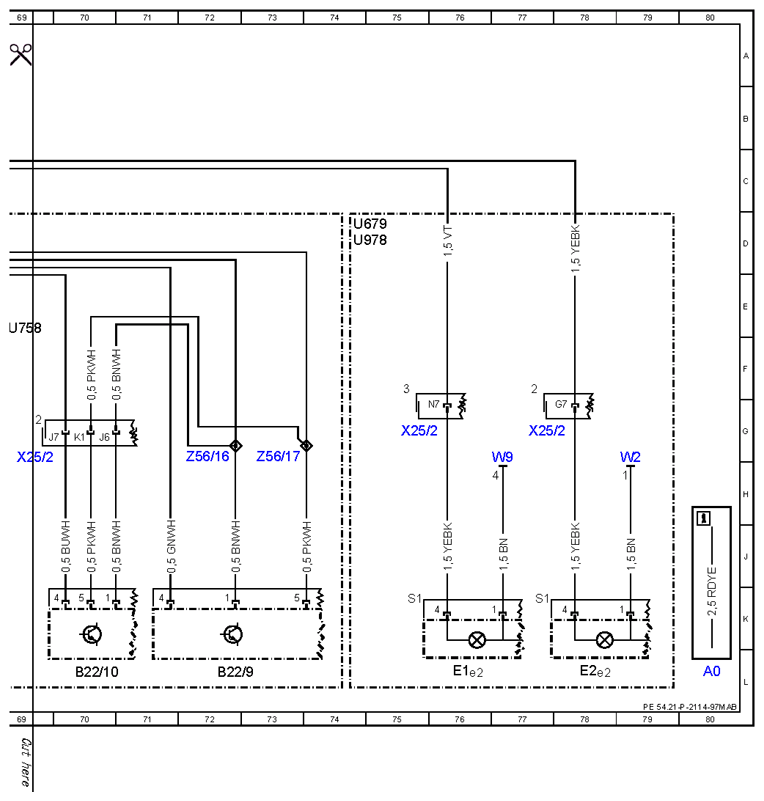

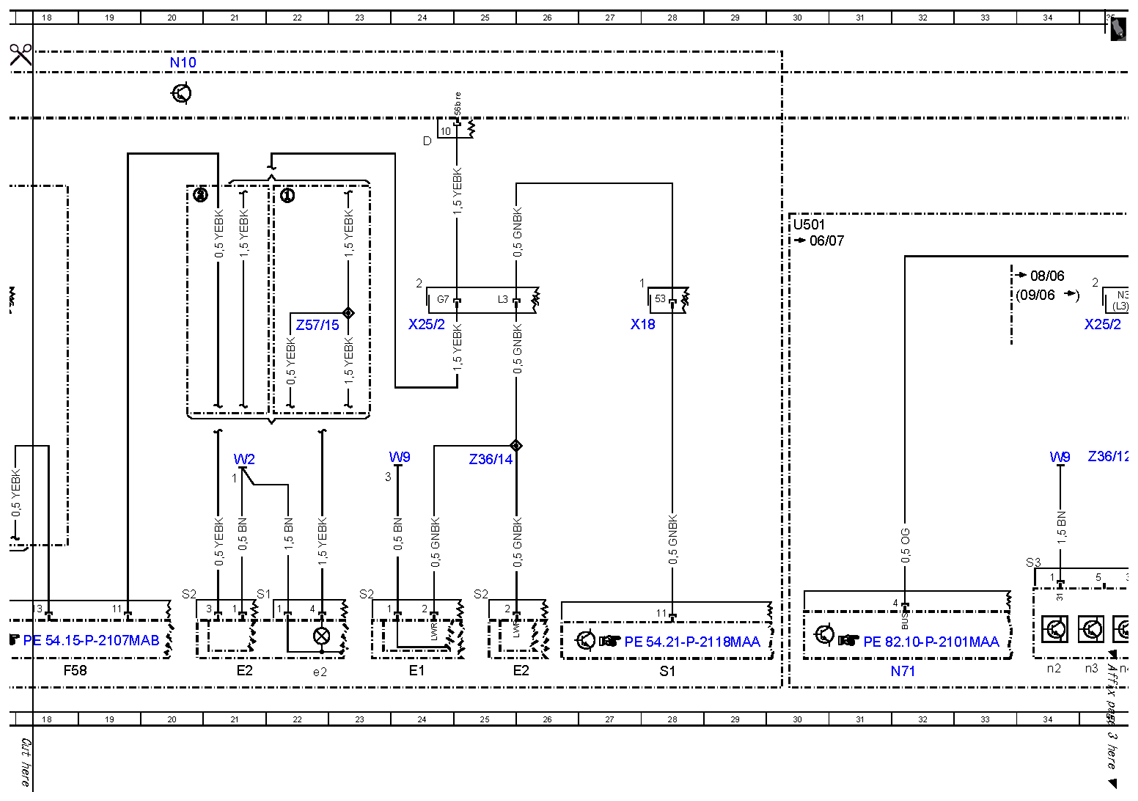

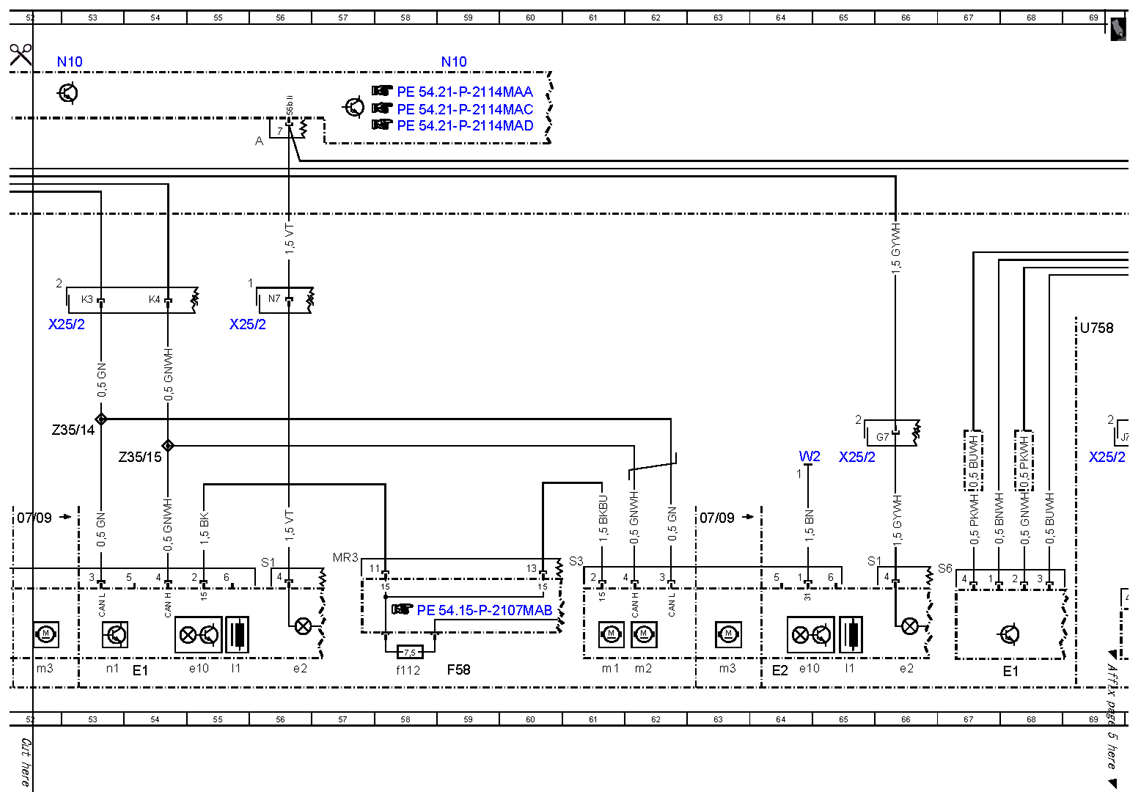

| A0 |
Color code key |
80L |
| B22/10 |
Right rear level sensor |
70L |
| B22/9 |
Right front level sensor |
72L |
| E1 |
Left front lamp unit |
16L |
| E1 |
Left front lamp unit |
24L |
| E1 |
Left front lamp unit |
36L |
| E1 |
Left front lamp unit |
54L |
| E1 |
Left front lamp unit |
68L |
| E1 |
Left front lamp unit |
76L |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
55L |
| E1e2 |
Left low beam |
56L |
| E1e2 |
Left low beam |
76L |
| E1e2 |
Left low beam |
15L |
| E1l1 |
Left high beam solenoid |
37L |
| E1l1 |
Left high beam solenoid |
55L |
| E1m1 |
Left headlamp range adjustment motor |
36L |
| E1m1 |
Left headlamp range adjustment motor |
51L |
| E1m2 |
Left dynamic curve illumination motor |
37L |
| E1m2 |
Left dynamic curve illumination motor |
51L |
| E1m3 |
Left light distribution cylinder motor |
52L |
| E1n1 |
Xenon headlamp control unit |
53L |
| E1n2 |
Xenon headlamp ignition module |
34L |
| E1n3 |
HRA [LWR] power module |
35L |
| E1n4 |
Xenon headlamp supply module |
35L |
| E2 |
Right front lamp unit |
21L |
| E2 |
Right front lamp unit |
26L |
| E2 |
Right front lamp unit |
44L |
| E2 |
Right front lamp unit |
64L |
| E2 |
Right front lamp unit |
78L |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
64L |
| E2e2 |
Right low beam |
22L |
| E2e2 |
Right low beam |
66L |
| E2e2 |
Right low beam |
45L |
| E2e2 |
Right low beam |
78L |
| E2l1 |
Right high beam solenoid |
44L |
| E2l1 |
Right high beam solenoid |
65L |
| E2m1 |
Right headlamp range adjustment motor |
43L |
| E2m1 |
Right headlamp range adjustment motor |
61L |
| E2m2 |
Right dynamic curve illumination motor |
44L |
| E2m2 |
Right dynamic curve illumination motor |
62L |
| E2m3 |
Right light distribution cylinder motor |
63L |
| E2n2 |
Xenon headlamp ignition module |
42L |
| E2n3 |
HRA [LWR] power module |
42L |
| E2n4 |
Xenon headlamp supply module |
43L |
| F4 |
Load compartment fuse and relay box |
11L |
| F4f54 |
Fuse 54 |
10L |
| F58 |
Engine compartment fuse and relay box |
3L |
| F58 |
Engine compartment fuse and relay box |
18L |
| F58 |
Engine compartment fuse and relay box |
39L |
| F58 |
Engine compartment fuse and relay box |
59L |
| F58f112 |
Fuse 112 |
58L |
| F58f112 |
Fuse 112 |
30L |
| G1/7 |
Additional battery |
1L |
| N10 |
Front SAM control unit |
4A |
| N10 |
Front SAM control unit |
12A |
| N10 |
Front SAM control unit |
20A |
| N10 |
Front SAM control unit |
36A |
| N10 |
Front SAM control unit |
44A |
| N10 |
Front SAM control unit |
53A |
| N10 |
Front SAM control unit |
59A |
| N51 |
AIRMATIC control unit |
7L |
| N71 |
Headlamp range adjustment control unit |
32L |
| S1 |
Rotary light switch |
28L |
| U151 |
Valid for engine 113 |
14D |
| U151 |
Valid for engine 113 |
16D |
| U501 |
Valid for xenon headlamps |
30D |
| U501 |
Valid for xenon headlamps |
50D |
| U502 |
Valid for AIRMATIC |
5D |
| U679 |
Valid for version without xenon headlamps |
13A |
| U679 |
Valid for version without xenon headlamps |
74D |
| U681 |
Valid for all except M113 |
14D |
| U681 |
Valid for all except M113 |
16D |
| U758 |
Valid for steel suspension |
69E |
| U974 |
Not valid for full hybrid drive |
13A |
| U978 |
Valid for full hybrid drive |
74D |
| W2 |
Ground (right front, at lamp unit) |
21H |
| W2 |
Ground (right front, at lamp unit) |
44G |
| W2 |
Ground (right front, at lamp unit) |
64G |
| W2 |
Ground (right front, at lamp unit) |
79G |
| W9 |
Ground (left front, at lamp unit) |
14H |
| W9 |
Ground (left front, at lamp unit) |
24G |
| W9 |
Ground (left front, at lamp unit) |
34G |
| W9 |
Ground (left front, at lamp unit) |
36G |
| W9 |
Ground (left front, at lamp unit) |
51G |
| W9 |
Ground (left front, at lamp unit) |
77G |
| X18 |
Interior/cockpit connector |
28E |
| X25/2 |
Engine compartment/interior compartment connector |
2E |
| X25/2 |
Engine compartment/interior compartment connector |
15E |
| X25/2 |
Engine compartment/interior compartment connector |
16E |
| X25/2 |
Engine compartment/interior compartment connector |
24E |
| X25/2 |
Engine compartment/interior compartment connector |
35E |
| X25/2 |
Engine compartment/interior compartment connector |
65H |
| X25/2 |
Engine compartment/interior compartment connector |
69H |
| X25/2 |
Engine compartment/interior compartment connector |
53E |
| X25/2 |
Engine compartment/interior compartment connector |
55E |
| X25/2 |
Engine compartment/interior compartment connector |
77G |
| X25/2 |
Engine compartment/interior compartment connector |
75G |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
48L |
| Z35/14 |
CAN-C low engine compartment connector sleeve |
53G |
| Z35/15 |
CAN-C high engine compartment connector sleeve |
54G |
| Z36/12 |
Headlamp range adjustment (HRA [LWR]) control bus connector sleeve |
35G |
| Z36/14 |
Static headlamp range adjustment signal connector sleeve |
25H |
| Z56/16 |
Level sensor ground engine compartment solder point |
72G |
| Z56/17 |
Level sensor supply engine compartment solder point |
73G |
| Z56/9 |
Left engine compartment connector sleeve (circuit 56B) |
15H |
| Z57/15 |
Right engine compartment connector sleeve (circuit 56B) |
22E |
