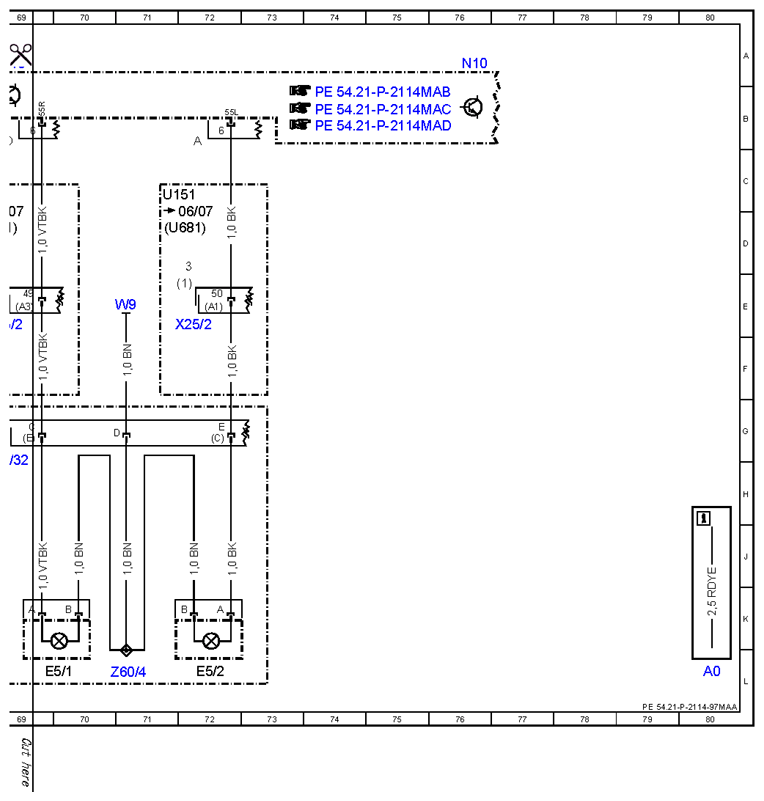

| A0 |
Color code key |
80L |

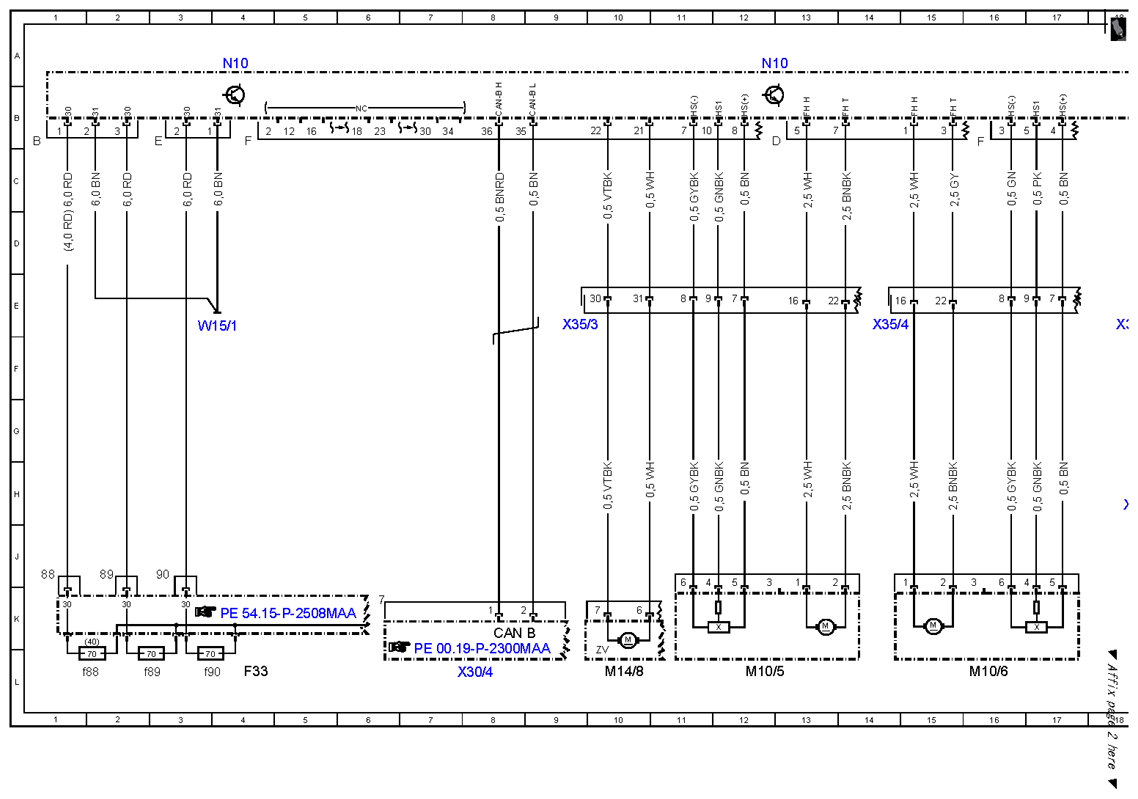

| CAN B |
Interior CAN |
8K |
| E5/1 |
Left front fog lamp |
69L |
| E5/2 |
Right fog lamp |
72L |
| F33 |
Battery compartment prefuse box |
4L |
| F33f88 |
Fuse 88 |
2L |
| F33f89 |
Fuse 89 |
3L |
| F33f90 |
Fuse 90 |
3L |

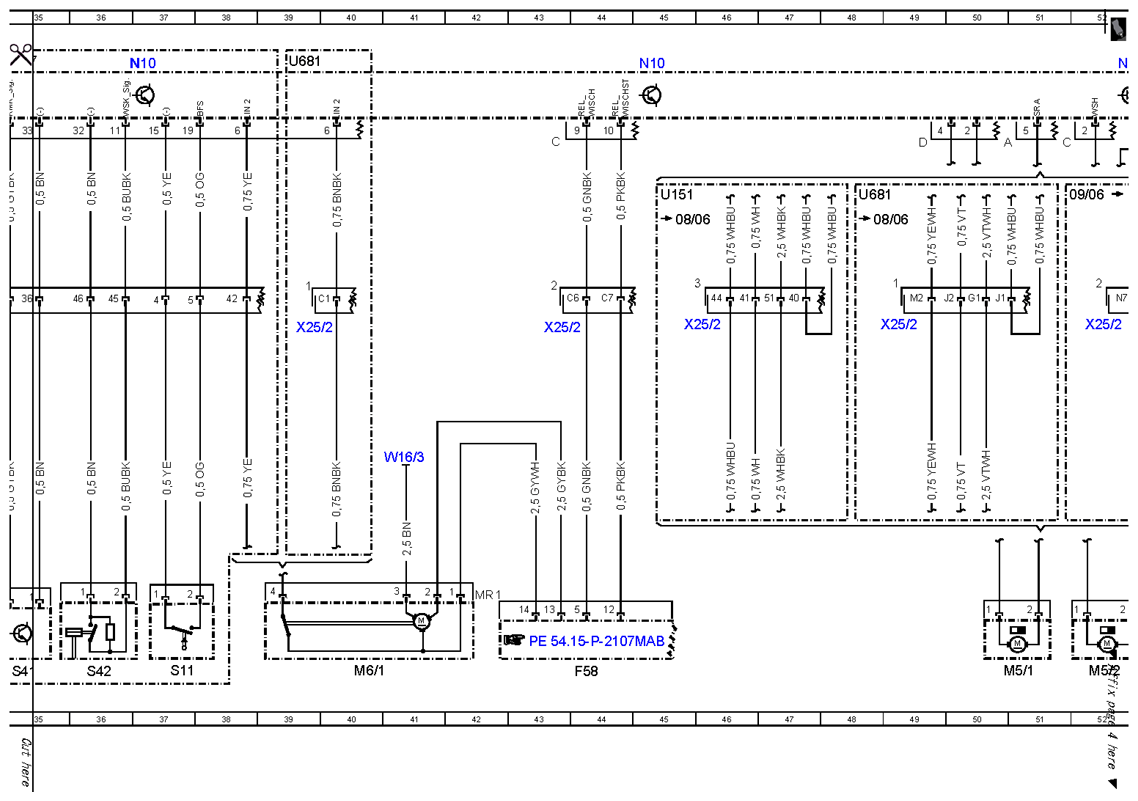

| F58 |
Engine compartment fuse and relay box |
44L |
| M10/5 |
Left rear power window motor |
12L |
| M10/6 |
Right rear power window motor |
16L |
| M14/8 |
Left rear door CL [ZV] motor |
10L |
| M5/1 |
Windshield washer fluid pump |
51L |

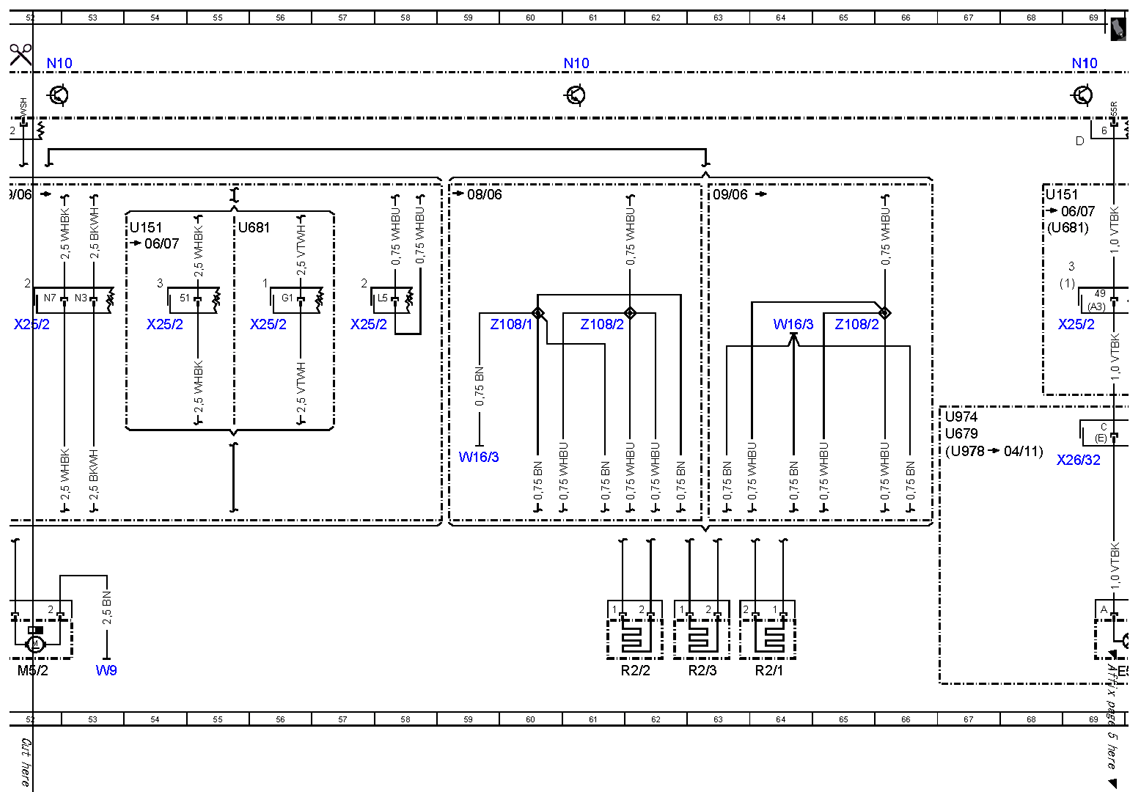

| M5/2 |
HCS [SRA] pump |
52L |
| M6/1 |
Wiper motor |
40L |
| N10 |
Front SAM control unit |
4A |
| N10 |
Front SAM control unit |
12A |
| N10 |
Front SAM control unit |
28A |
| N10 |
Front SAM control unit |
20A |
| N10 |
Front SAM control unit |
37A |
| N10 |
Front SAM control unit |
45A |
| N10 |
Front SAM control unit |
52A |
| N10 |
Front SAM control unit |
61A |
| N10 |
Front SAM control unit |
69A |
| N10 |
Front SAM control unit |
76A |
| R2/1 |
Center washer nozzle heater |
64L |
| R2/2 |
Left heated windshield washer nozzle |
62L |
| R2/3 |
Right washer nozzle heater |
63L |
| S11 |
Brake fluid indicator switch |
37L |

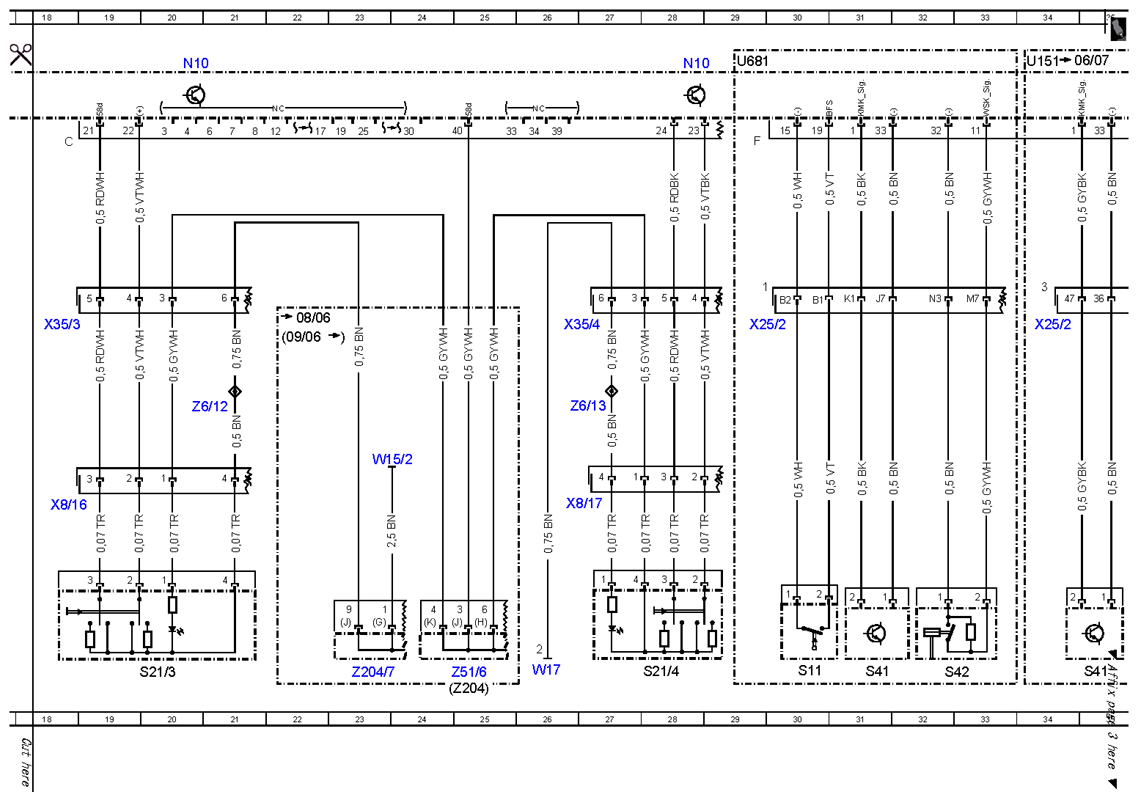

| S11 |
Brake fluid indicator switch |
30L |
| S21/3 |
Left rear power window switch |
20L |
| S21/4 |
Right rear power window switch |
28L |
| S41 |
Coolant level indicator switch |
35L |
| S41 |
Coolant level indicator switch |
31L |
| S42 |
Windshield washer fluid level indicator switch |
36L |
| S42 |
Windshield washer fluid level indicator switch |
32L |
| U151 |
Valid for engine 113 |
34A |
| U151 |
Valid for engine 113 |
54D |
| U151 |
Valid for engine 113 |
45C |
| U151 |
Valid for engine 113 |
68C |
| U151 |
Valid for engine 113 |
71C |
| U679 |
Valid for version without xenon headlamps |
67G |
| U681 |
Valid for all except M113 |
29A |
| U681 |
Valid for all except M113 |
39A |
| U681 |
Valid for all except M113 |
48C |
| U681 |
Valid for all except M113 |
55D |
| U681 |
Valid for all except M113 |
68D |
| U681 |
Valid for all except M113 |
71D |
| U974 |
Not valid for full hybrid drive |
67G |
| U978 |
Valid for full hybrid drive |
67G |
| W15/1 |
Ground (right footwell) |
3E |
| W15/2 |
Ground (left footwell) |
23H |
| W16/3 |
Ground (left assembly compartment, power ground) |
41H |
| W16/3 |
Ground (left assembly compartment, power ground) |
59H |
| W16/3 |
Ground (left assembly compartment, power ground) |
64E |
| W17 |
Ground (right rear seat) |
26L |
| W9 |
Ground (left front, at lamp unit) |
53L |
| W9 |
Ground (left front, at lamp unit) |
71E |
| X25/2 |
Engine compartment/interior compartment connector |
30E |
| X25/2 |
Engine compartment/interior compartment connector |
34E |
| X25/2 |
Engine compartment/interior compartment connector |
39E |
| X25/2 |
Engine compartment/interior compartment connector |
43E |
| X25/2 |
Engine compartment/interior compartment connector |
46E |
| X25/2 |
Engine compartment/interior compartment connector |
49E |
| X25/2 |
Engine compartment/interior compartment connector |
52E |
| X25/2 |
Engine compartment/interior compartment connector |
54E |
| X25/2 |
Engine compartment/interior compartment connector |
56E |
| X25/2 |
Engine compartment/interior compartment connector |
57E |
| X25/2 |
Engine compartment/interior compartment connector |
69E |
| X25/2 |
Engine compartment/interior compartment connector |
72E |
| X26/32 |
Left front engine compartment/bumper connector |
69H |
| X30/4 |
Right voltage distributor (CAN) connector |
8L |
| X35/3 |
Left rear door separation point |
9E |
| X35/3 |
Left rear door separation point |
18E |
| X35/4 |
Right rear door separation point |
14E |
| X35/4 |
Right rear door separation point |
27E |
| X8/16 |
Left rear door printed wiring harness connector |
18H |
| X8/17 |
Right rear door printed wiring harness connector |
27H |
| Z108/1 |
Washer nozzle heater circuit 31 connector sleeve |
60E |
| Z108/2 |
Washer nozzle heater signal connector sleeve |
61E |
| Z108/2 |
Washer nozzle heater signal connector sleeve |
65E |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
25L |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
23L |
| Z51/6 |
Circuit 58d interior connector sleeve |
25L |
| Z6/12 |
Left rear door ground connector sleeve |
21G |
| Z6/13 |
Right rear door ground connector sleeve |
27G |
| Z60/4 |
Front fog lamp wiring harness connector sleeve (circuit 31) |
71L |
