| CAN B |
Interior CAN |
7 M |

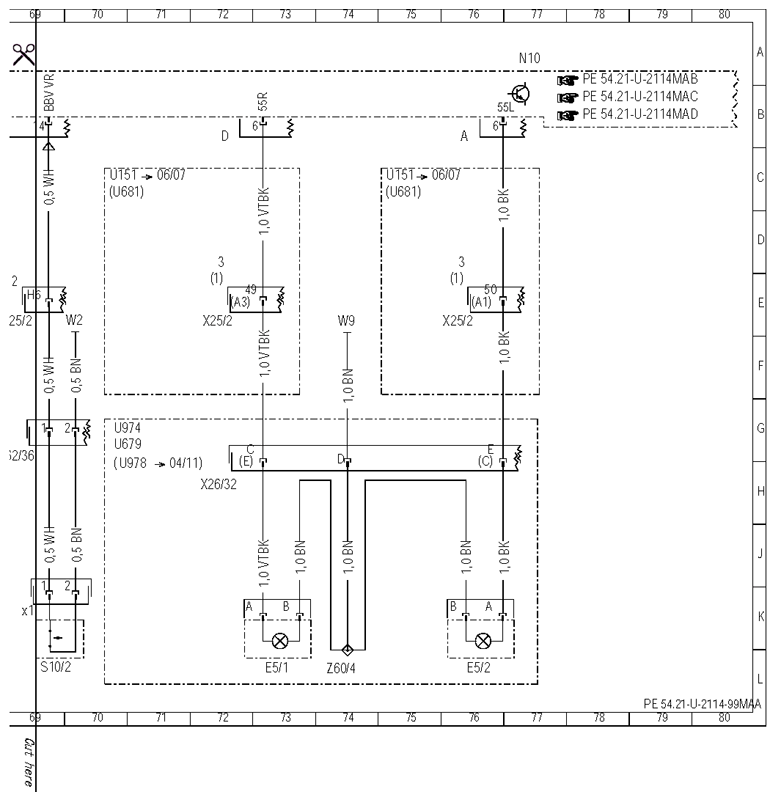

| E5/1 |
Left front fog lamp |
73 M |
| E5/2 |
Right fog lamp |
76 M |

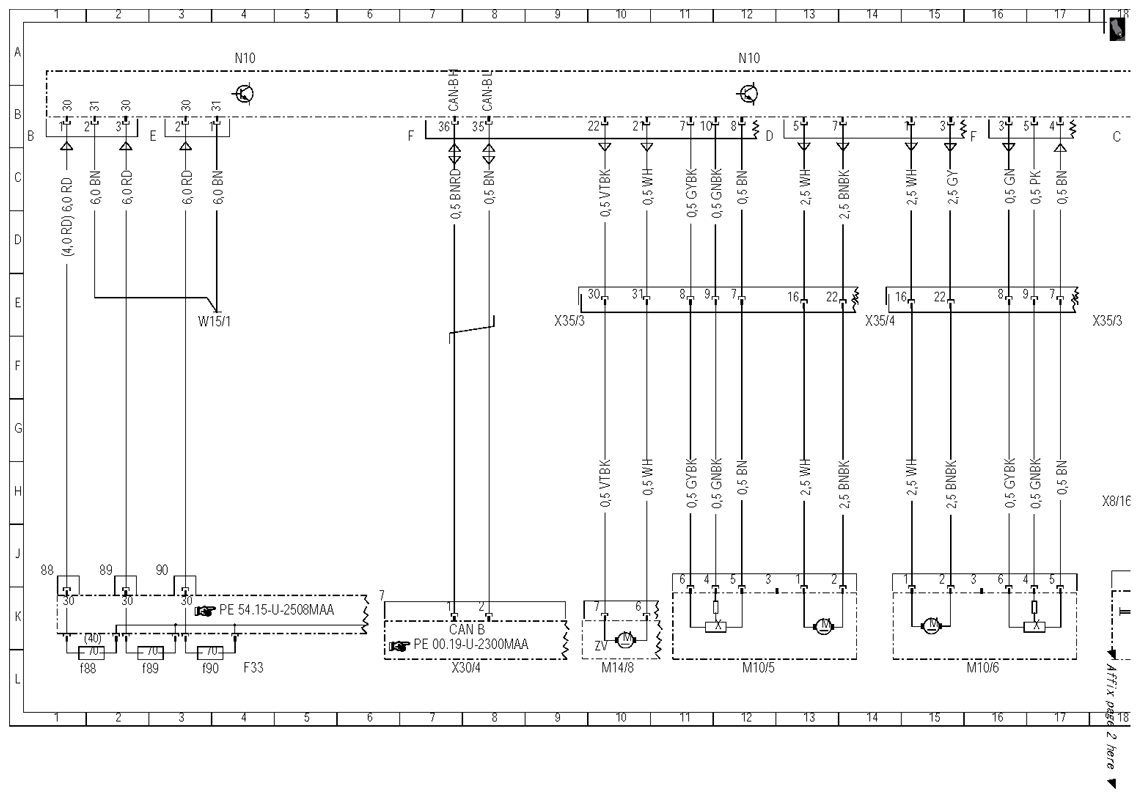

| F33 |
Battery compartment prefuse box |
4 M |
| F33f88 |
Fuse 88 |
1 M |
| F33f89 |
Fuse 89 |
2 M |
| F33f90 |
Fuse 90 |
3 M |
| F58 |
Engine compartment fuse and relay box |
42 M |
| M10/5 |
Left rear power window motor |
12 M |
| M10/6 |
Right rear power window motor |
15 M |
| M14/8 |
Left rear door CL [ZV] motor |
10 M |

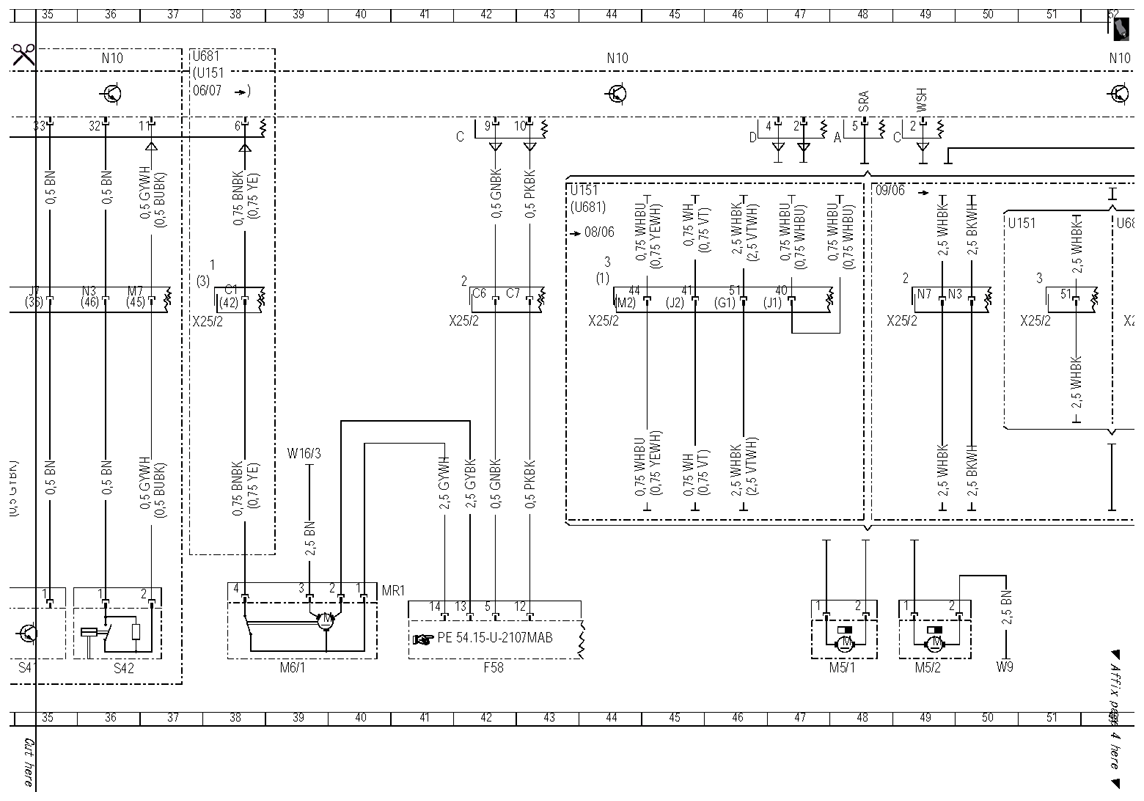

| M5/1 |
Windshield washer fluid pump |
47 M |
| M5/2 |
HCS [SRA] pump |
49 M |
| M6/1 |
Wiper motor |
39 M |
| N10 |
Front SAM control unit |
4 B |
| N10 |
Front SAM control unit |
12 B |
| N10 |
Front SAM control unit |
20 B |
| N10 |
Front SAM control unit |
28 B |
| N10 |
Front SAM control unit |
36 B |
| N10 |
Front SAM control unit |
44 B |
| N10 |
Front SAM control unit |
52 B |
| N10 |
Front SAM control unit |
60 B |
| N10 |
Front SAM control unit |
68 B |
| N10 |
Front SAM control unit |
77 B |
| R2/1 |
Center washer nozzle heater |
59 M |

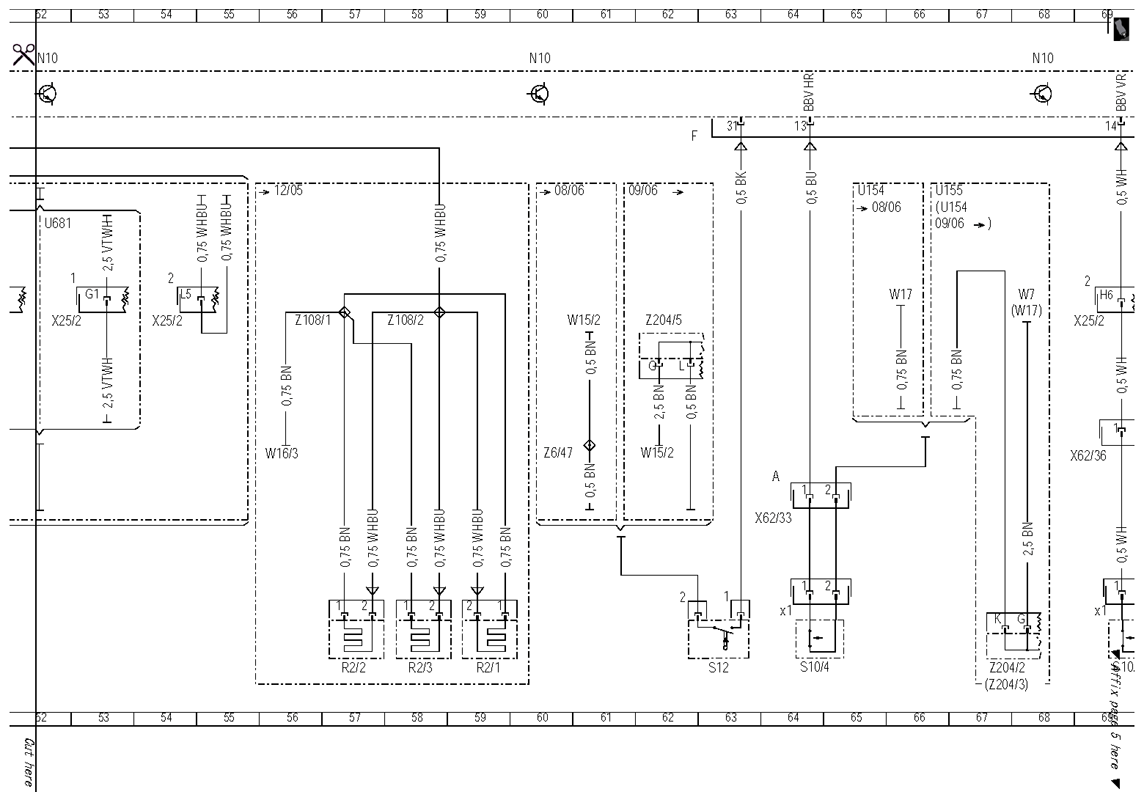

| R2/2 |
Left heated windshield washer nozzle |
57 M |
| R2/3 |
Right washer nozzle heater |
58 M |
| S10/2 |
Right front brake pad contact sensor |
69 M |
| S10/2x1 |
Right front brake pad contact sensor connector |
69 L |
| S10/4 |
Right rear brake pad contact sensor |
64 M |
| S10/4x1 |
Right rear brake pad contact sensor connector |
64 L |
| S11 |
Brake fluid indicator switch |
33 M |
| S12 |
Parking brake indicator switch |
63 M |

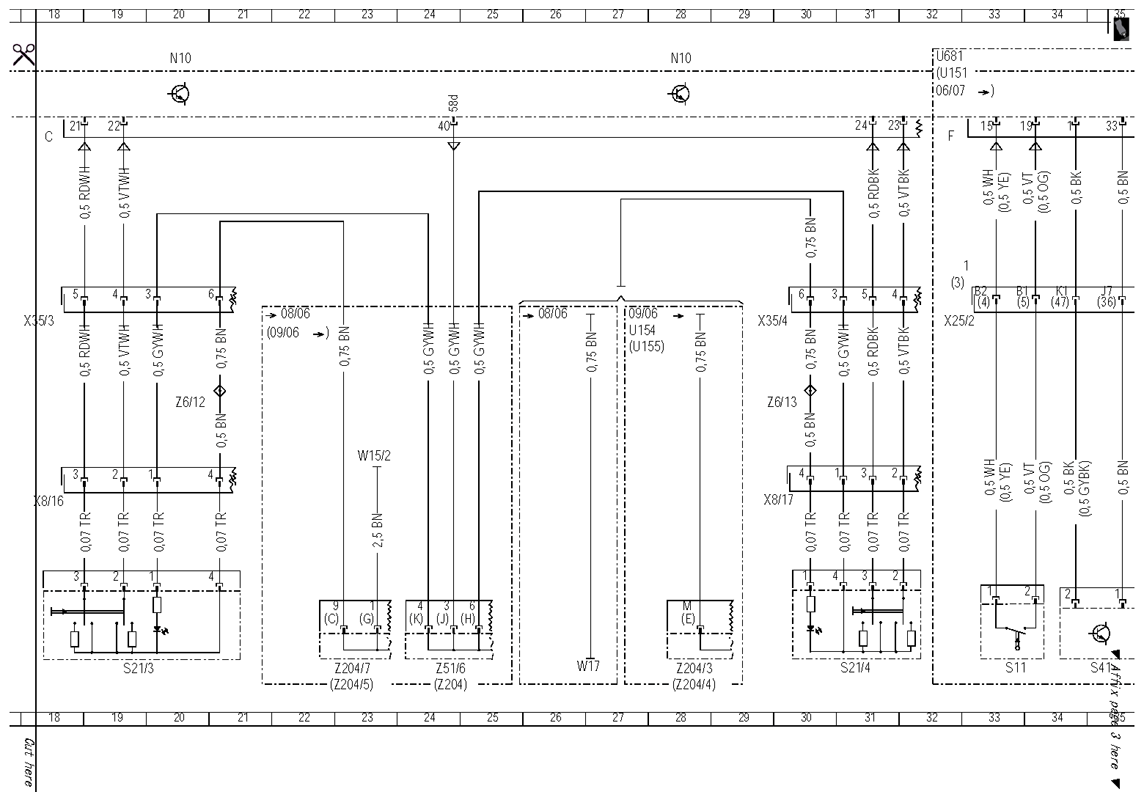

| S21/3 |
Left rear power window switch |
19 M |
| S21/4 |
Right rear power window switch |
30 M |
| S41 |
Coolant level indicator switch |
34 M |
| S42 |
Windshield washer fluid level indicator switch |
36 M |
| U151 |
Valid for engine 113 |
32 B |
| U151 |
Valid for engine 113 |
37 B |
| U151 |
Valid for engine 113 |
43 D |
| U151 |
Valid for engine 113 |
50 E |
| U151 |
Valid for engine 113 |
70 D |
| U151 |
Valid for engine 113 |
75 D |
| U154 |
Valid for 164.1 |
27 F |
| U154 |
Valid for 164.1 |
65 D |
| U154 |
Valid for 164.1 |
66 D |
| U155 |
Valid for 164.8 |
27 G |
| U155 |
Valid for 164.8 |
66 D |
| U679 |
Valid for version without xenon headlamps |
70 H |
| U681 |
Valid for all except M113 |
32 B |
| U681 |
Valid for all except M113 |
37 B |
| U681 |
Valid for all except M113 |
43 D |
| U681 |
Valid for all except M113 |
52 E |
| U681 |
Valid for all except M113 |
70 D |
| U681 |
Valid for all except M113 |
75 D |
| U974 |
Not valid for full hybrid drive |
70 H |
| U978 |
Valid for full hybrid drive |
70 J |
| W15/1 |
Ground (right footwell) |
3 F |
| W15/2 |
Ground (left footwell) |
23 J |
| W15/2 |
Ground (left footwell) |
60 F |
| W15/2 |
Ground (left footwell) |
62 J |
| W16/3 |
Ground (left assembly compartment, power ground) |
39 J |
| W16/3 |
Ground (left assembly compartment, power ground) |
56 J |
| W17 |
Ground (right rear seat) |
26 M |
| W17 |
Ground (right rear seat) |
65 F |
| W17 |
Ground (right rear seat) |
67 F |
| W2 |
Ground (right front, at lamp unit) |
69 F |
| W7 |
Ground (right wheelhouse in luggage compartment) |
68 F |
| W9 |
Ground (left front, at lamp unit) |
50 M |
| W9 |
Ground (left front, at lamp unit) |
74 F |
| X25/2 |
Engine compartment/interior compartment connector |
32 F |
| X25/2 |
Engine compartment/interior compartment connector |
37 F |
| X25/2 |
Engine compartment/interior compartment connector |
41 F |
| X25/2 |
Engine compartment/interior compartment connector |
44 F |
| X25/2 |
Engine compartment/interior compartment connector |
48 F |
| X25/2 |
Engine compartment/interior compartment connector |
50 F |
| X25/2 |
Engine compartment/interior compartment connector |
52 F |
| X25/2 |
Engine compartment/interior compartment connector |
54 F |
| X25/2 |
Engine compartment/interior compartment connector |
68 F |
| X25/2 |
Engine compartment/interior compartment connector |
72 F |
| X25/2 |
Engine compartment/interior compartment connector |
75 F |
| X26/32 |
Left front engine compartment/bumper connector |
72 J |
| X30/4 |
Right voltage distributor (CAN) connector |
7 M |
| X35/3 |
Left rear door separation point |
9 F |
| X35/3 |
Left rear door separation point |
17 F |
| X35/4 |
Right rear door separation point |
14 F |
| X35/4 |
Right rear door separation point |
29 F |
| X62/33 |
Right rear axle multiple circuit junction connector |
63 K |
| X62/36 |
BWI [BBV]/rpm right front axle connector |
68 J |
| X8/16 |
Left rear door printed wiring harness connector |
18 J |
| X8/17 |
Right rear door printed wiring harness connector |
29 J |
| Z108/1 |
Washer nozzle heater circuit 31 connector sleeve |
56 F |
| Z108/2 |
Washer nozzle heater signal connector sleeve |
57 F |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
24 M |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
67 M |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
28 M |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
67 M |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
28 M |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
22 M |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
62 F |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
22 M |
| Z51/6 |
Circuit 58d interior connector sleeve |
24 M |
| Z6/12 |
Left rear door ground connector sleeve |
20 H |
| Z6/13 |
Right rear door ground connector sleeve |
29 H |
| Z6/47 |
Ground (W15/2) connector sleeve |
60 J |
| Z60/4 |
Front fog lamp wiring harness connector sleeve (circuit 31) |
74 M |
