Wiring diagram for front fuse and relay box - PE54.15-U-2107-99MAB

Code: Designation: Position:
F4 Load compartment fuse and relay box 15 L
F4kO Fuel pump relay 13 L
F58 Engine compartment fuse and relay box 4 A
F58 Engine compartment fuse and relay box 12 A
F58 Engine compartment fuse and relay box 20 A
F58 Engine compartment fuse and relay box 27 A
F58 Engine compartment fuse and relay box 36 A
F58 Engine compartment fuse and relay box 44 A
F58 Engine compartment fuse and relay box 51 A
F58 Engine compartment fuse and relay box 60 A
F58/1 Engine compartment fuse and relay box 2 32 L
F58/1fC Fuse C 31 L
F58f101 Fuse 101 40 A
F58f102 Fuse 102 56 A
F58f103 Fuse 103 59 A
F58f104 Fuse 104 25 A
F58f105 Fuse 105 7 A
F58f107 Fuse 107 2 A
F58f118 Fuse 118 26 A
F58f120 Fuse 120 38 A
F58f122 Fuse 122 32 A
F58kC Coolant circulation pump relay 51 A
F58kD Engine circuit 87 relay 31 A
F58kE Air pump relay 6 A
F58kI Starter relay 28 A
M1 Starter 28 L
M33 Electric air pump 1 L
M33 Electric air pump 3 L
M4/7 Engine and AC electric suction fan with integrated control 47 L
M4/7 Engine and AC electric suction fan with integrated control 49 L
M4/7x1 Engine and AC electric suction fan with integrated control connector 1 46 H
M45 Engine coolant circulation pump 55 L
M45 Engine coolant circulation pump 58 L
N3/10 ME-SFI [ME] control unit 6 L
N3/10 ME-SFI [ME] control unit 10 L
N3/10 ME-SFI [ME] control unit 23 L
N3/10 ME-SFI [ME] control unit 36 L
N3/10 ME-SFI [ME] control unit 42 L
N3/10 ME-SFI [ME] control unit 52 L
U127 Valid for engine 272, engine 273 KE 2 G
U127 Valid for engine 272, engine 273 KE 4 G
U127 Valid for engine 272, engine 273 KE 8 G
U127 Valid for engine 272, engine 273 KE 19 G
U127 Valid for engine 272, engine 273 KE 44 G
U127 Valid for engine 272, engine 273 KE 46 G
U152 Valid for engine 156 1 G
U152 Valid for engine 156 4 H
U152 Valid for engine 156 8 H
U152 Valid for engine 156 19 G
U152 Valid for engine 156 44 G
U152 Valid for engine 156 49 G
U475 Valid for M 272 12 G
U978 Valid for full hybrid drive 2 G
U978 Valid for full hybrid drive 4 H
U978 Valid for full hybrid drive 29 G
U978 Valid for full hybrid drive 40 G
U978 Valid for full hybrid drive 59 G
W2 Ground (right front, at lamp unit) 56 H
W2 Ground (right front, at lamp unit) 57 H
X25/2 Engine compartment/interior compartment connector 17 J
X26 Interior and engine wiring harness connector 3 J
X26 Interior and engine wiring harness connector 20 J
X26 Interior and engine wiring harness connector 27 J
X26 Interior and engine wiring harness connector 29 J
X26 Interior and engine wiring harness connector 44 J
X26 Interior and engine wiring harness connector 59 J
Y58/1 Purge control valve 39 L
Z56/18 Low temperature water pump connector sleeve 54 H
Z7/35z1 Circuit 87 M1e connector sleeve 20 L
Z7/35z1 Circuit 87 M1e connector sleeve 45 L
Z7/35z2 Circuit 87 M1e connector sleeve 59 L
Z7/36 Circuit 87 M2e connector sleeve 21 L
Z7/36z2 Circuit 87 M2e connector sleeve 21 L
Z7/38z2 Circuit 87 M1i connector sleeve 20 L
Z7/38z2 Circuit 87 M1i connector sleeve 29 L
Z7/73 Circuit 87D4 connector sleeve 41 H
Z7/98z3 Circuit 87 M3e connector sleeve 45 L

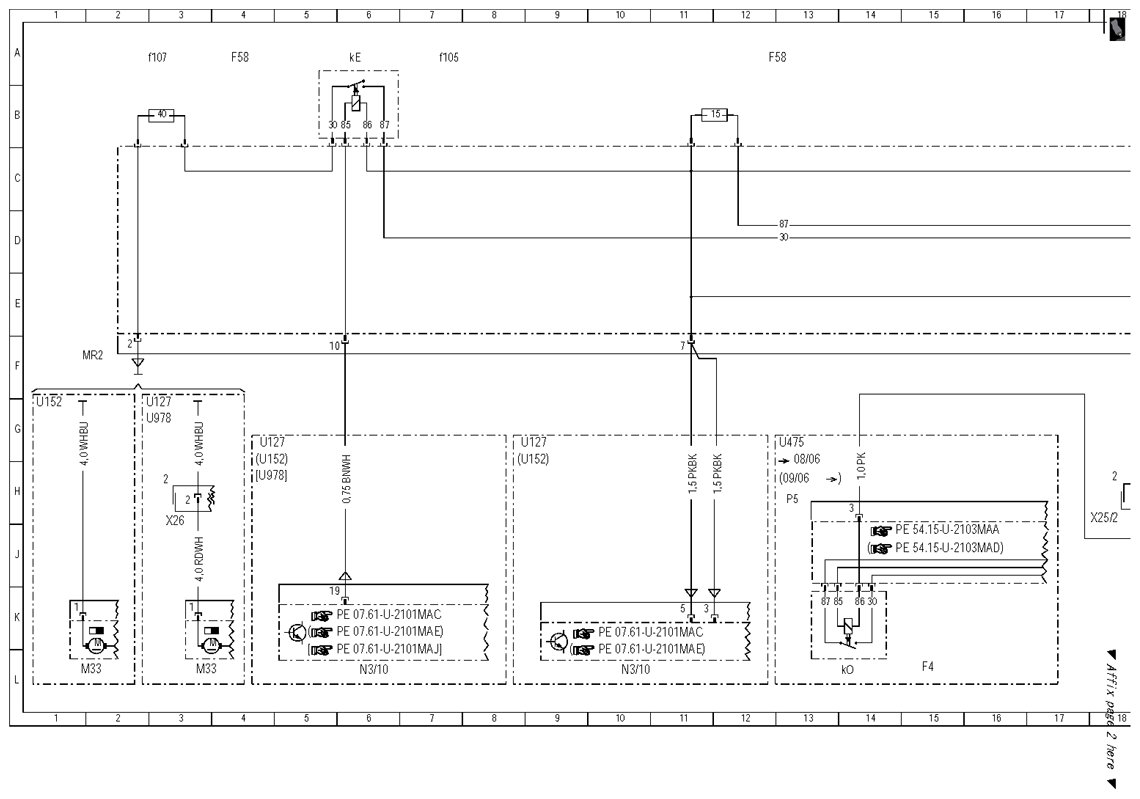

Fig 1: Front Fuse And Relay Box Wiring Diagram (1 Of 4)
G10117259Courtesy of MERCEDES-BENZ USA

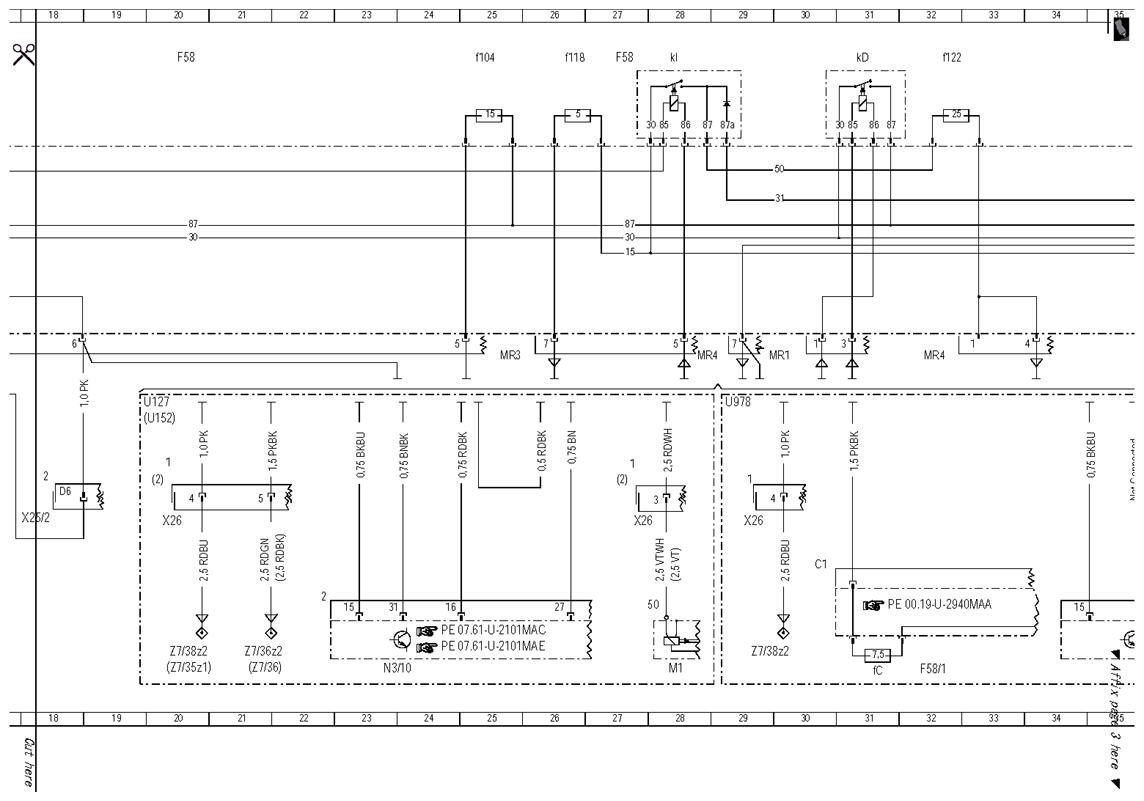

Fig 2: Front Fuse And Relay Box Wiring Diagram (2 Of 4)
G10117260Courtesy of MERCEDES-BENZ USA

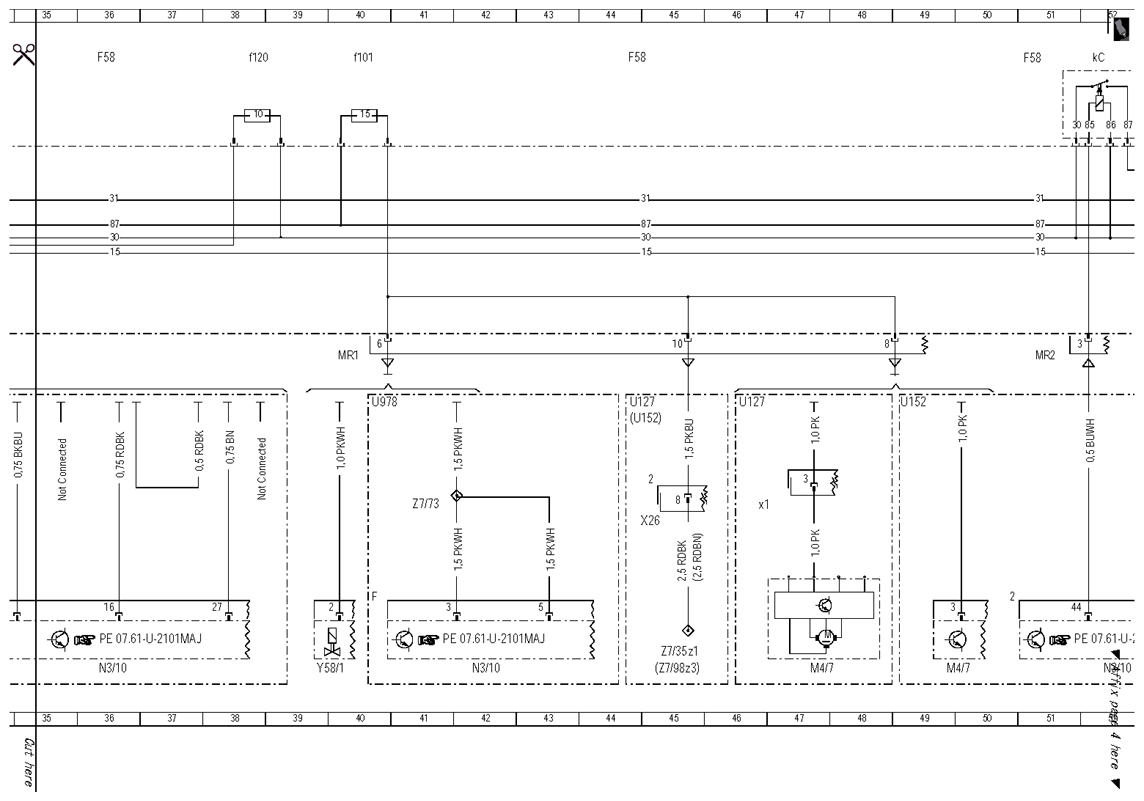

Fig 3: Front Fuse And Relay Box Wiring Diagram (3 Of 4)
G10117261Courtesy of MERCEDES-BENZ USA

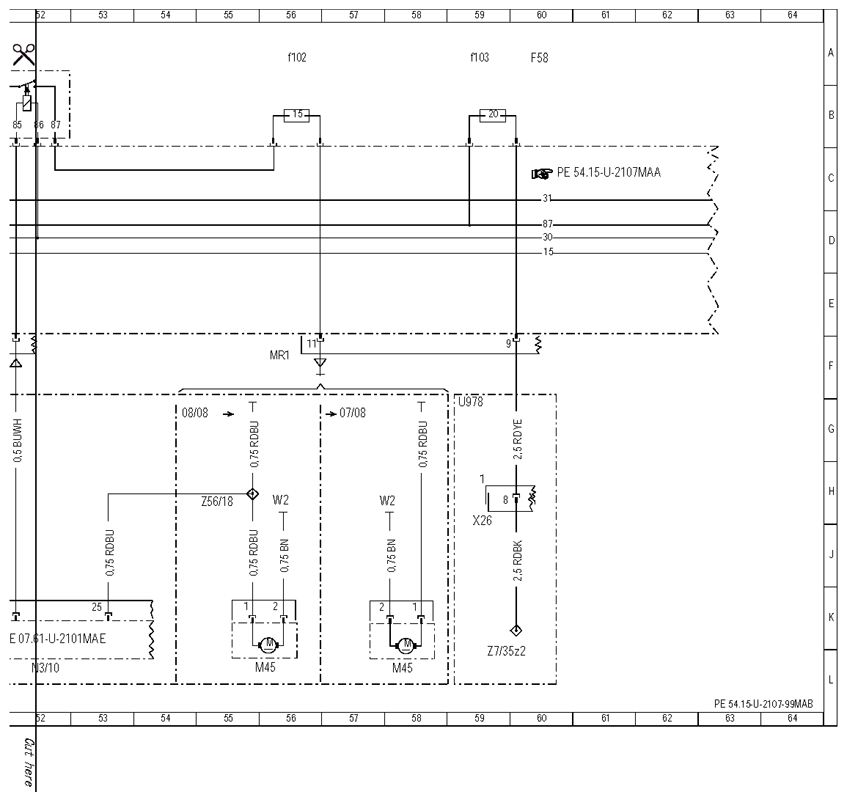

Fig 4: Front Fuse And Relay Box Wiring Diagram (4 Of 4)
G10117262Courtesy of MERCEDES-BENZ USA
