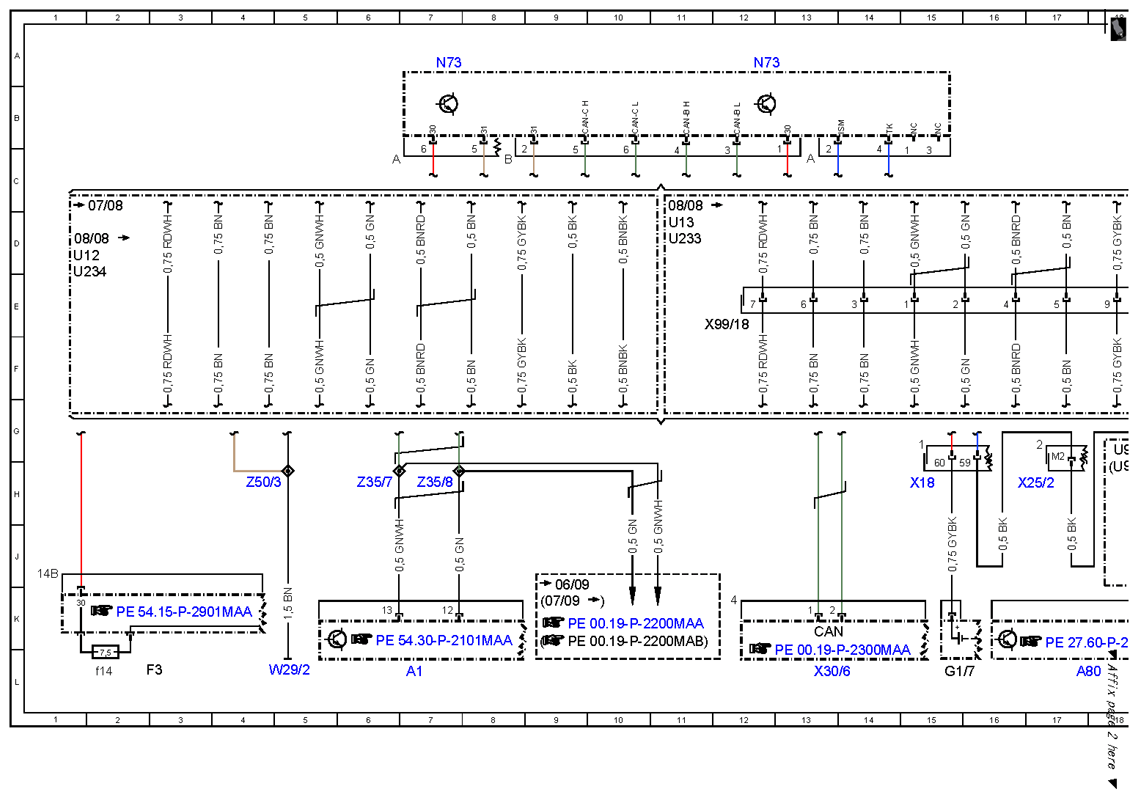

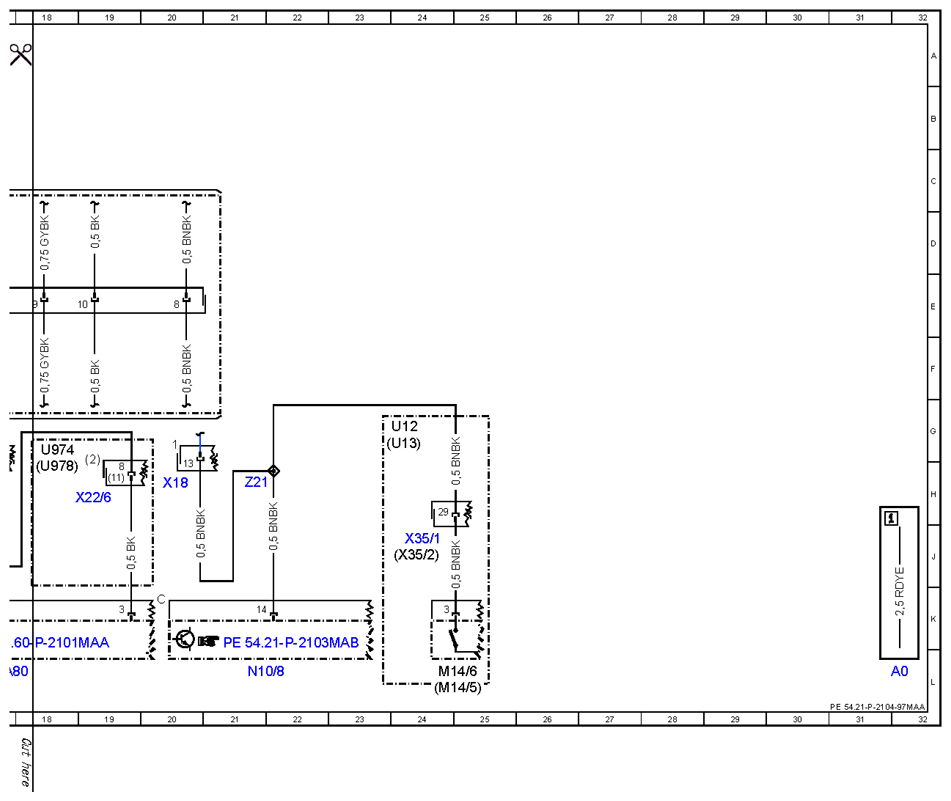

| A0 |
Color code key |
32L |
| A1 |
Instrument cluster |
7L |
| A80 |
Intelligent servo module for DIRECT SELECT |
17L |
| F3 |
Cockpit fuse box |
3L |
| F3f14 |
Fuse 14 |
2L |
| G1/7 |
Additional battery |
15L |
| M14/5 |
Right front door CL [ZV] motor |
24L |
| M14/6 |
Left front door CL [ZV] motor |
24L |
| N10/8 |
Rear SAM control unit |
21L |
| N73 |
EIS [EZS] control unit |
7A |
| N73 |
EIS [EZS] control unit |
12A |
| U12 |
Valid for left-hand drive vehicles |
1D |
| U12 |
Valid for left-hand drive vehicles |
24G |
| U13 |
Valid for right-hand drive vehicles |
11D |
| U13 |
Valid for right-hand drive vehicles |
23G |
| U233 |
Valid for kneebag |
11D |
| U234 |
Not valid for kneebag |
1E |
| U974 |
Not valid for full hybrid drive |
18G |
| U978 |
Valid for full hybrid drive |
18G |
| W29/2 |
Ground (right A-pillar) |
5L |
| X18 |
Interior/cockpit connector |
15H |
| X18 |
Interior/cockpit connector |
20H |
| X22/6 |
Automatic transmission/intelligent servo module connector |
19H |
| X25/2 |
Engine compartment/interior compartment connector |
17H |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
13L |
| X35/1 |
Left front door separation point |
24J |
| X35/2 |
Right front door separation point |
24J |
| X99/18 |
EZS intermediate connector |
12E |
| Z21 |
Front rotary tumbler switch connector sleeve |
21H |
| Z35/7 |
Cockpit CAN bus node (high) |
6H |
| Z35/8 |
Cockpit CAN bus node (low) |
7H |
| Z50/3 |
Circuit 31 cockpit connector sleeve (1, left) |
4H |
