| A32 |
AC air recirculation unit |
7 L |
| F3 |
Cockpit fuse box |
5 L |
| F33 |
Battery compartment prefuse box |
4 A |
| F33 |
Battery compartment prefuse box |
12 A |
| F33 |
Battery compartment prefuse box |
20 A |
| F33 |
Battery compartment prefuse box |
28 A |
| F33 |
Battery compartment prefuse box |
36 A |
| F33 |
Battery compartment prefuse box |
44 A |

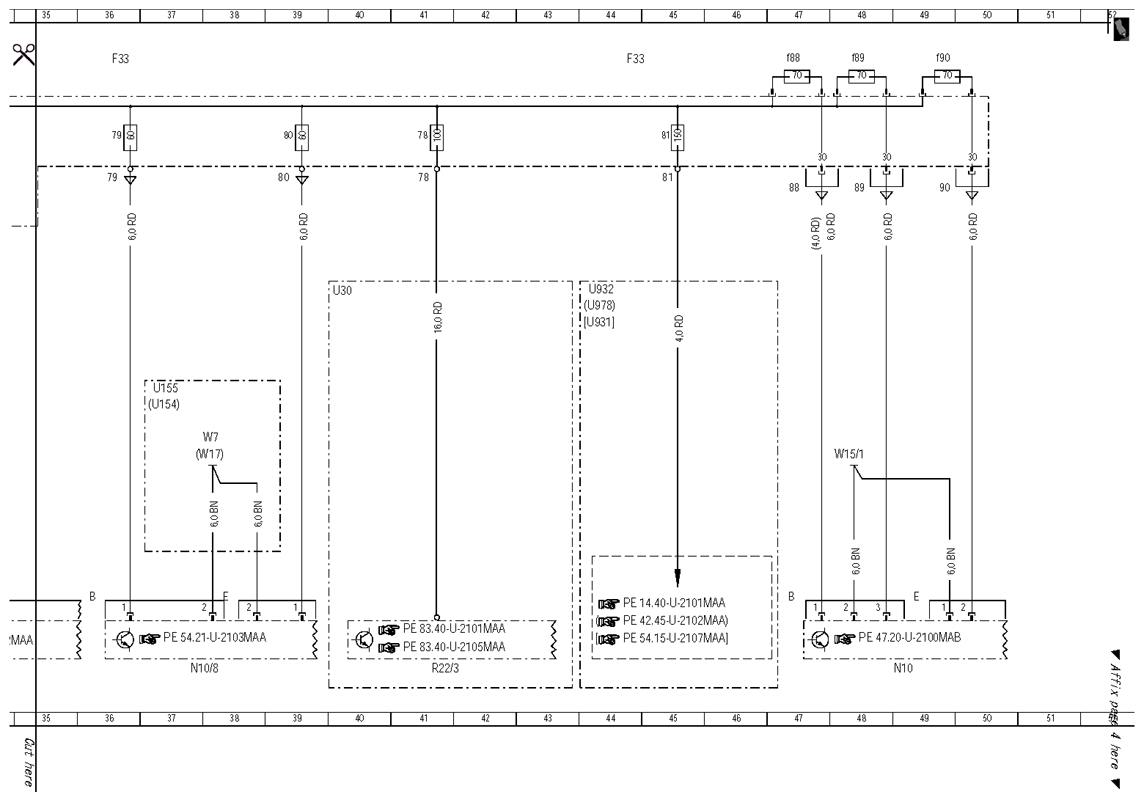

| F33f78 |
Fuse 78 |
41 B |
| F33f79 |
Fuse 79 |
36 B |
| F33f80 |
Fuse 80 |
39 B |
| F33f81 |
Fuse 81 |
45 B |
| F33f82 |
Fuse 82 |
10 B |

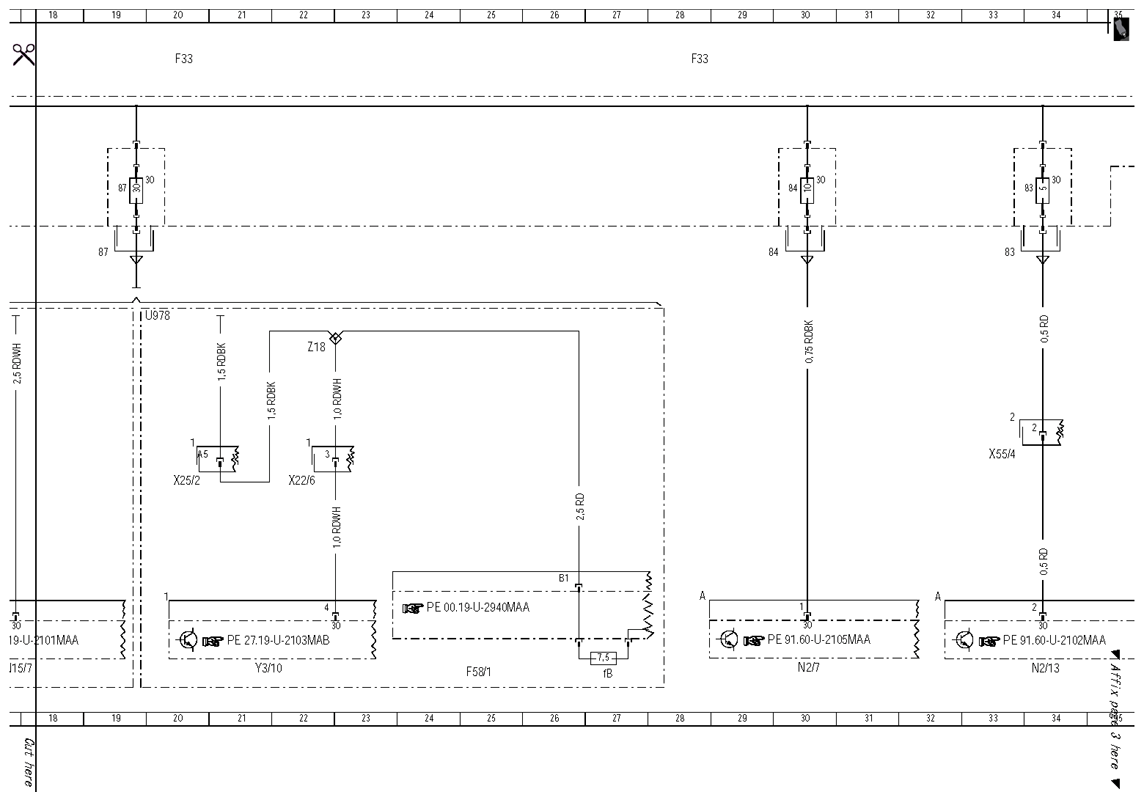

| F33f83 |
Fuse 83 |
34 C |
| F33f84 |
Fuse 84 |
30 C |
| F33f85 |
Fuse 85 |
13 C |
| F33f86 |
Fuse 86 |
4 C |
| F33f87 |
Fuse 87 |
19 C |
| F33f88 |
Fuse 88 |
47 A |
| F33f89 |
Fuse 89 |
48 A |
| F33f90 |
Fuse 90 |
49 A |

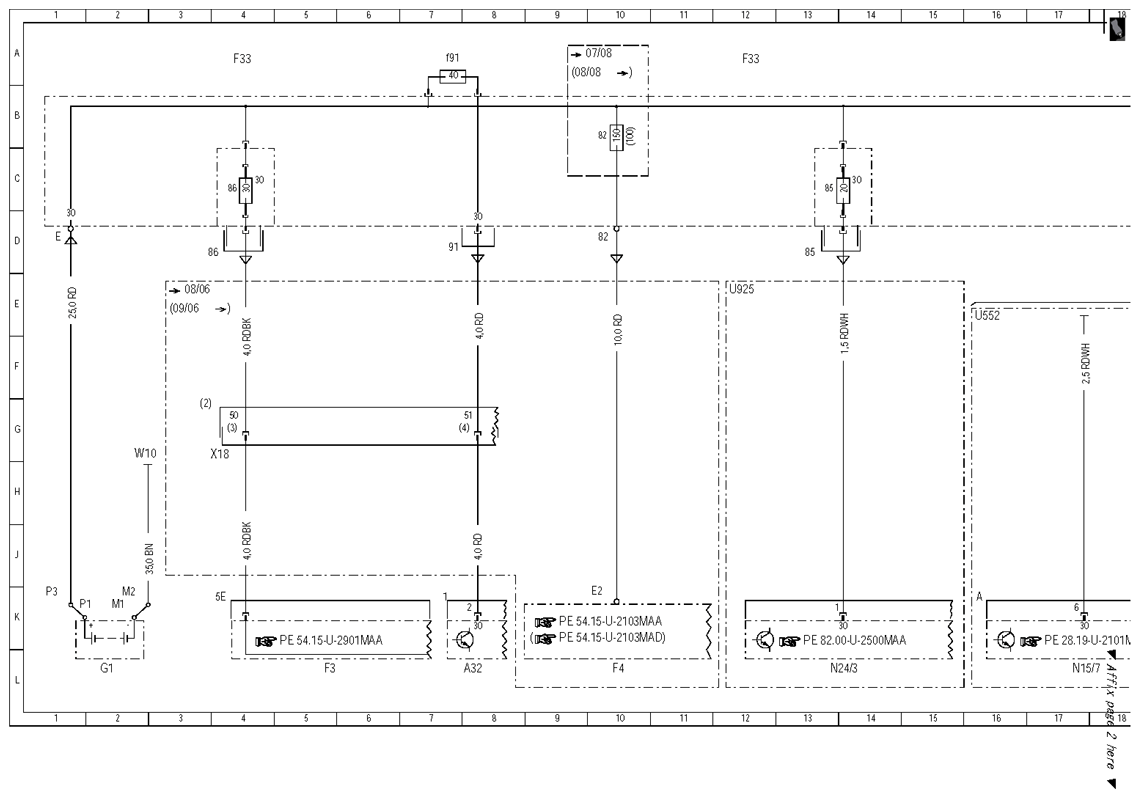

| F33f91 |
Fuse 91 |
7 A |
| F4 |
Load compartment fuse and relay box |
10 L |
| F58/1 |
Engine compartment fuse and relay box 2 |
25 L |
| F58/1fB |
Fuse B |
26 L |
| G1 |
Battery |
2 L |
| N10 |
Front SAM control unit |
48 L |
| N10/8 |
Rear SAM control unit |
37 L |
| N15/7 |
Transfer case control unit |
17 L |
| N2/13 |
WSS (Weight Sensing System) control unit |
34 L |
| N2/7 |
Restraint systems control unit |
30 L |
| N24/3 |
DC/AC converter control unit (115V socket) |
13 L |
| R22/3 |
PTC heater booster |
41 L |
| U154 |
Valid for 164.1 |
37 G |
| U155 |
Valid for 164.8 |
37 G |
| U30 |
Valid for heater booster |
40 E |
| U552 |
Valid for offroad package |
16 E |
| U925 |
Valid for 115V socket |
12 E |
| U931 |
Not valid for engine 642 BLUETEC |
44 E |
| U932 |
Valid for engine 642 BLUETEC |
44 E |
| U978 |
Valid for full hybrid drive |
19 E |
| U978 |
Valid for full hybrid drive |
44 E |
| W10 |
Ground (battery) |
2 H |
| W15/1 |
Ground (right footwell) |
48 H |
| W17 |
Ground (right rear seat) |
37 H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
37 G |
| X18 |
Interior/cockpit connector |
3 H |
| X22/6 |
Automatic transmission/intelligent servo module connector |
22 H |
| X25/2 |
Engine compartment/interior compartment connector |
20 H |
| X55/4 |
Right front seat contacting strip |
33 H |
| Y3/10 |
Hybrid vehicle fully integrated transmission control controller unit |
21 L |
| Z18 |
Connector sleeve 18 |
22 F |
